NSN 4710-01-233-0170 21061444, 2106-144-4, 01-233-0170
Product Details | PLASTIC PIPE
4710-01-233-0170 A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC.
Part Alternates: 21061444, 2106-144-4, 4710-01-233-0170, 01-233-0170, 4710012330170, 012330170
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 MAY 1986 | 01-233-0170 | 21439 ( PIPE, PLASTIC ) |
Drawings & Photos | NSN 4710-01-233-0170
Cross Reference | NSN 4710-01-233-0170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2106-144-4 | 33410 | SMITH A O-INLAND INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-233-0170
Technical Data | NSN 4710-01-233-0170
| Characteristic | Specifications |
|---|---|
| NOMINAL PIPE SIZE DESIGNATION | 6.000 INCHES |
| WALL THICKNESS | 0.145 INCHES NOMINAL |
| INSIDE DIAMETER | 6.335 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.625 INCHES NOMINAL |

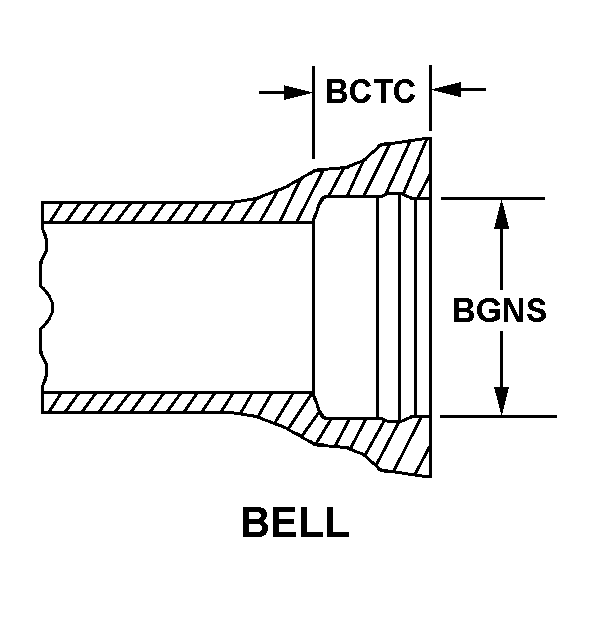

| END CONNECTION STYLE | A6 BELL |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | COLOR IS GREEN; OTHER END IS A SPIGOT END |
Restrictions/Controls & Freight Information | NSN 4710-01-233-0170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-233-0170
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
X FT : Foot |
