NSN 4710-01-361-9092 4052433, 01-361-9092, 013619092
Product Details | METALLIC TUBE
4710-01-361-9092 A straight, hollow product, welded or seamless, of round, square, or any other cross section and continuous periphery, which does not conform in cross sectional dimensions to recognized pipe standards, or those in Tables 1 through 10, Appendix C, FIIG A004A. It is designed to convey fluids, gasses, and/or semisolids. It may be rolled into coils for ease in handling. For items designed to join a tube or tube fitting to another tube, pipe, or hose or fitting, see ADAPTER (as modified); COUPLING (as modified); or NIPPLE (as modified). Excludes TUBE, BENT (as modified); PIPE, METALLIC; SPACER, SLEEVE; METAL BAR (hollow); and items with fittings, except end protectors.
Part Alternates: 4052433, 4710-01-361-9092, 01-361-9092, 4710013619092, 013619092
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JUL 1992 | 01-361-9092 | 31979 ( TUBE, METALLIC ) |
Drawings & Photos | NSN 4710-01-361-9092
Demand History | NSN 4710-01-361-9092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-361-9092 | 2016-06-172 | 178 | DIBBS |
| 4052433 | 2014-03-66 | 2 | TW |
| 4710-01-361-9092 | 2014-03-66 | 2 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-361-9092
Related Products | NSN 4710-01-361-9092
Technical Data | NSN 4710-01-361-9092
| Characteristic | Specifications |
|---|---|
| MEASURING METHOD AND LENGTH | 14.275 INCHES MINIMUM SPECIFIC AND 14.295 INCHES MAXIMUM SPECIFIC |

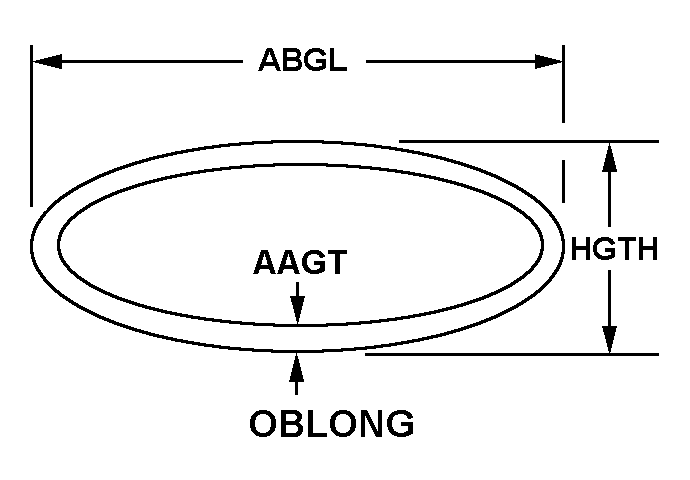

| CROSS-SECTIONAL SHAPE STYLE | 20 OBLONG |
| WALL THICKNESS | 0.033 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| WIDTH | 0.360 INCHES NOMINAL |
| HEIGHT | 0.116 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| FIRST END STYLE | 1 PLAIN |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| CONSTRUCTION | SEAMLESS |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING TEMP | NOT RATED |
| SPECIAL FEATURES | BOTH ENDS ARE OVAL (WIDTH .301-.303 AND HEIGHT .116-.118). U/O: F100-PW-220/-220E ENGINES ONLY. T.O.2J-F100-24 F.121 I.40 |
| III END ITEM IDENTIFICATION | F-15 AND F-16 AIRCRAFTS |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 4052433 |
Restrictions/Controls & Freight Information | NSN 4710-01-361-9092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
