NSN 4710-01-388-4689 1B297201, 1B2972-01, 01-388-4689
Product Details | METAL TUBE ASSEMBLY
4710-01-388-4689 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 1B297201, 1B2972-01, 4710-01-388-4689, 01-388-4689, 4710013884689, 013884689
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 MAR 1994 | 01-388-4689 | 21989 ( TUBE ASSEMBLY, METAL ) |

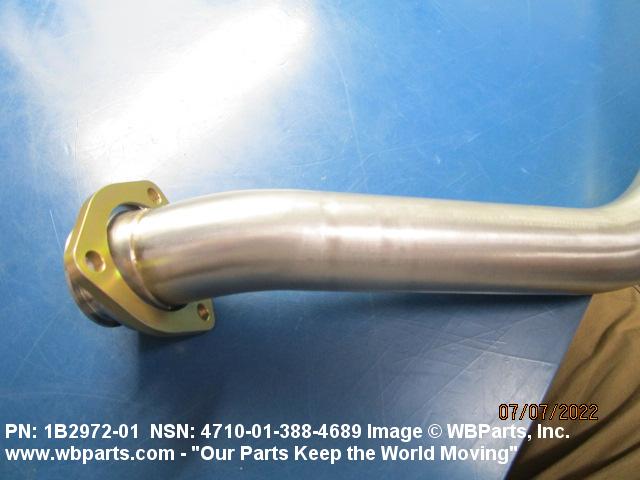

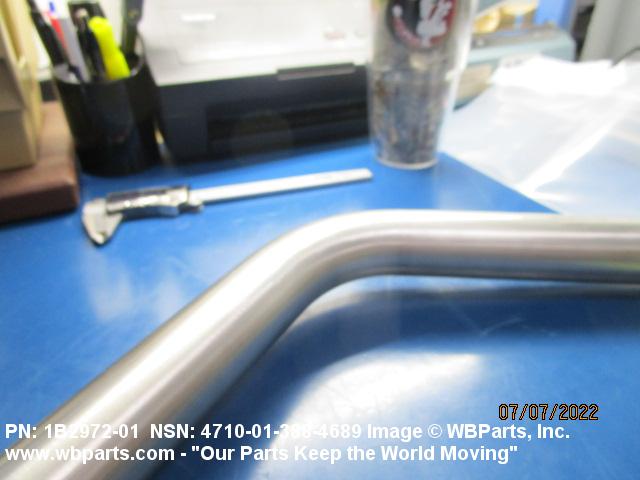

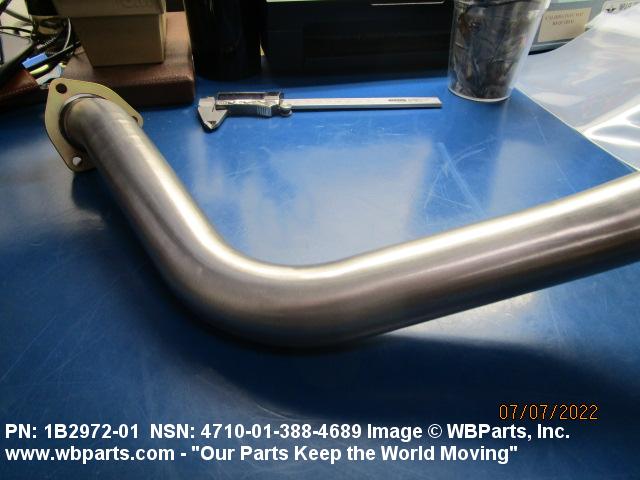

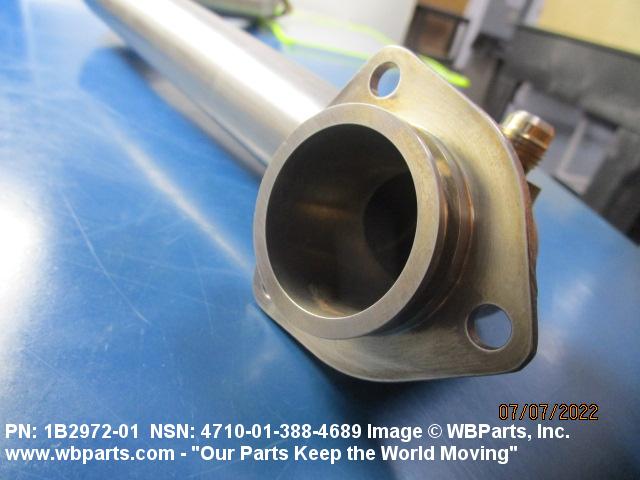

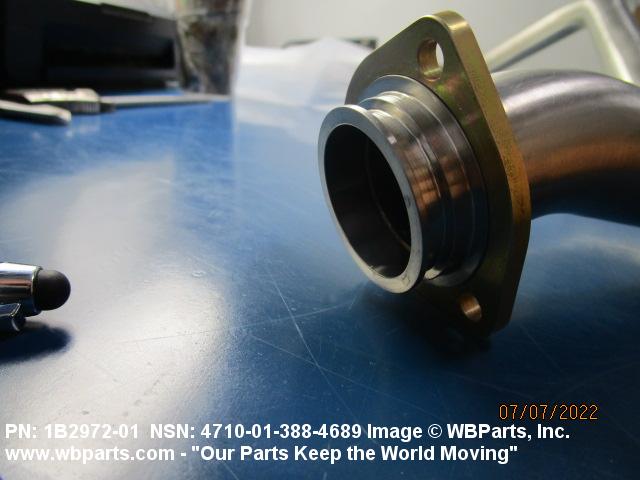

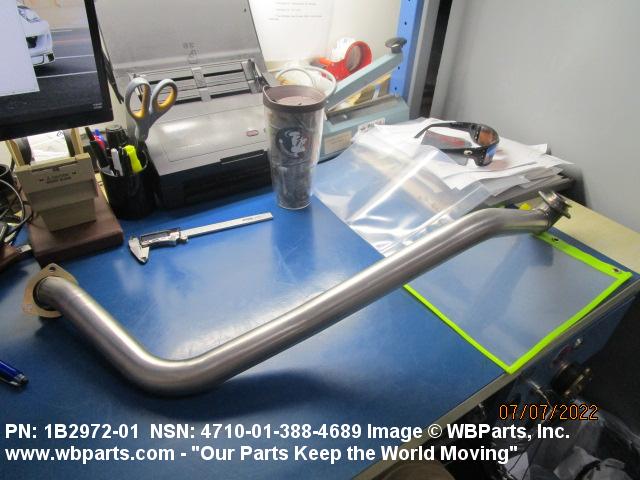

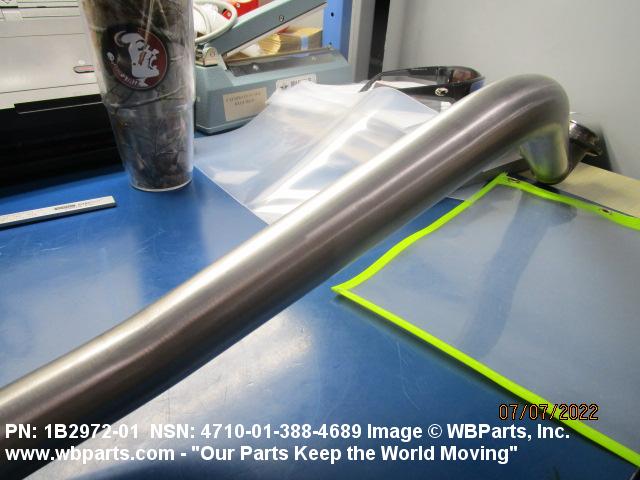

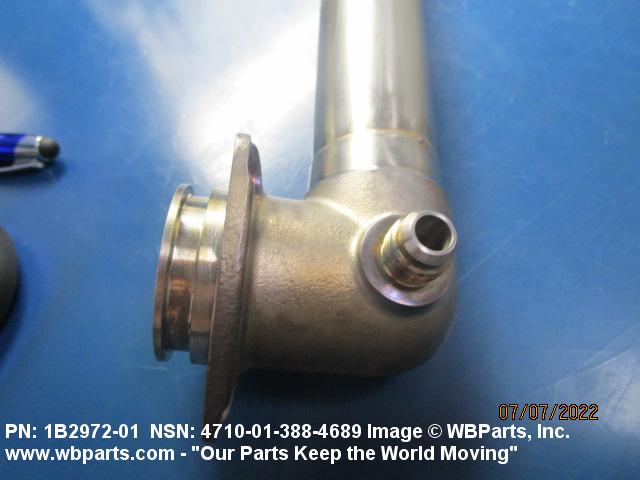

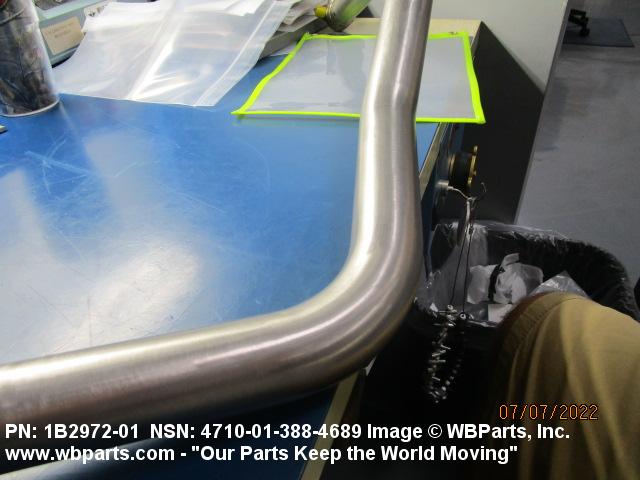

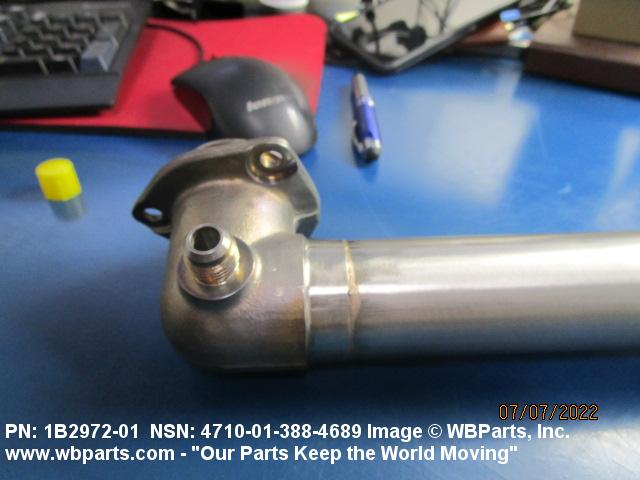

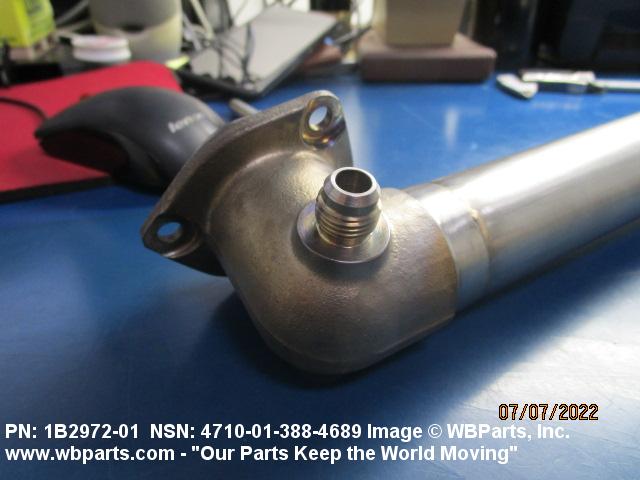

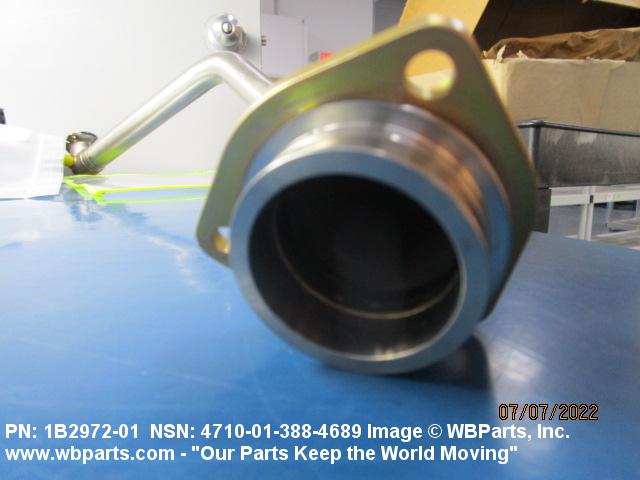

Drawings & Photos | NSN 4710-01-388-4689
Demand History | NSN 4710-01-388-4689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-388-4689 | 2022-06-160 | 1 | United States |
Cross Reference | NSN 4710-01-388-4689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B2972-01 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-388-4689
Restrictions/Controls & Freight Information | NSN 4710-01-388-4689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4710-01-388-4689
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
