NSN 4710-01-511-5612 12354475, 01-511-5612, 015115612
Product Details | METALLIC BENT TUBE
4710-01-511-5612 A bent hollow item, welded or seamless. It has a round, square or any other cross section, with a continuous periphery. It is primarily designed to convey fluids, gases and/or semisolids. Excludes items of circular cross section which conform in dimensional characteristics to PIPE, METALLIC; ELBOW, PIPE; ELBOW, TUBE; BEND, ELECTRICAL CONDUIT; BEND, PIPE, RETURN; and BEND, TUBE, RETURN. For items with end fittings on one or both ends, see TUBE ASSEMBLY, METAL.
Part Alternates: 12354475, 4710-01-511-5612, 01-511-5612, 4710015115612, 015115612
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 AUG 2003 | 01-511-5612 | 32507 ( TUBE, BENT, METALLIC ) |

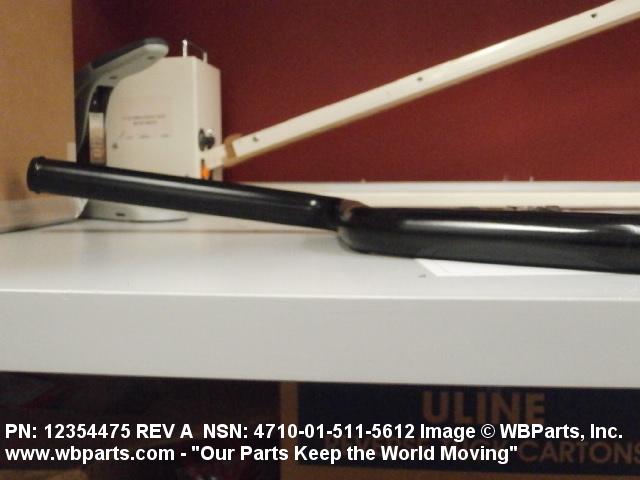

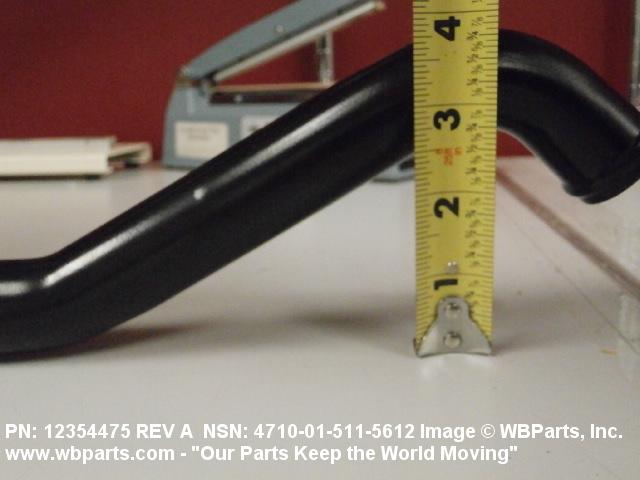

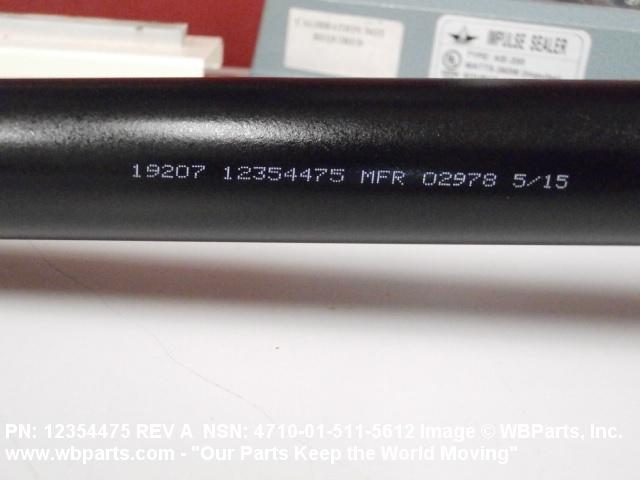

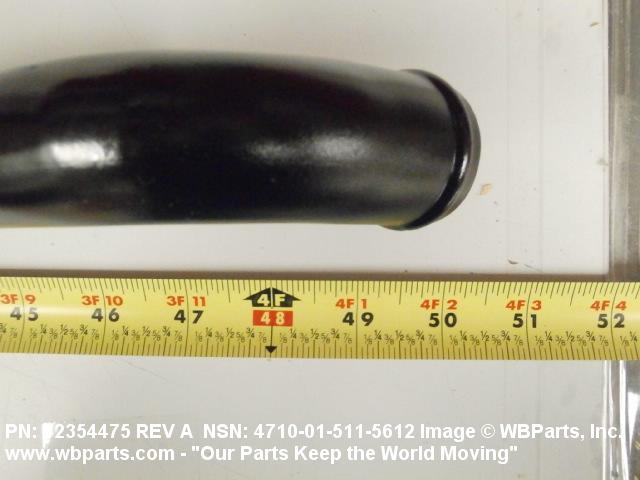

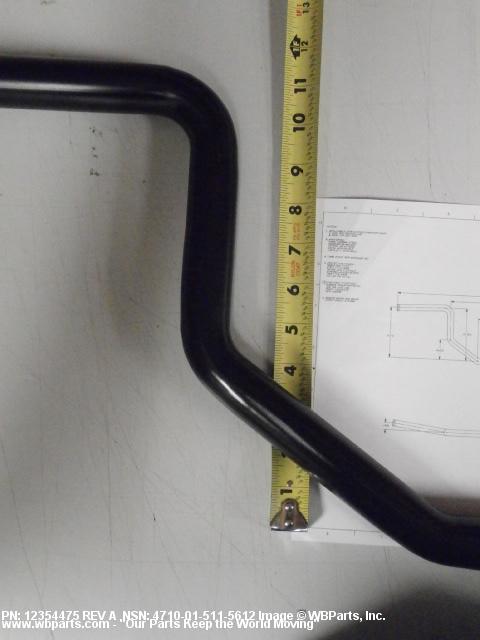

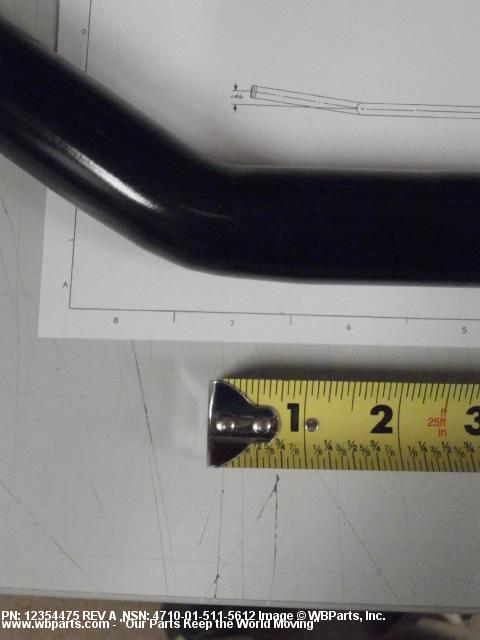

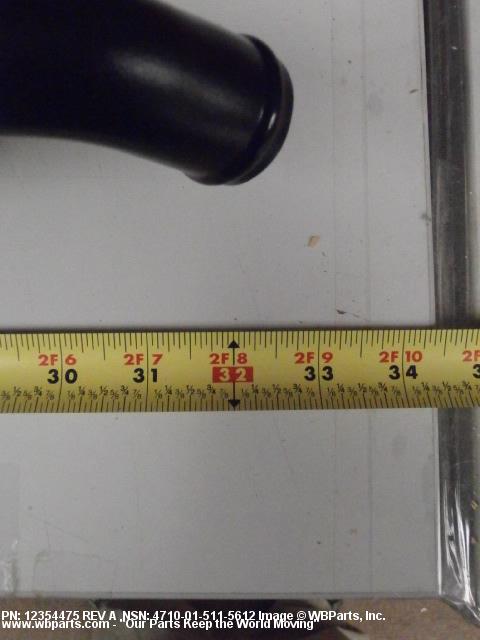

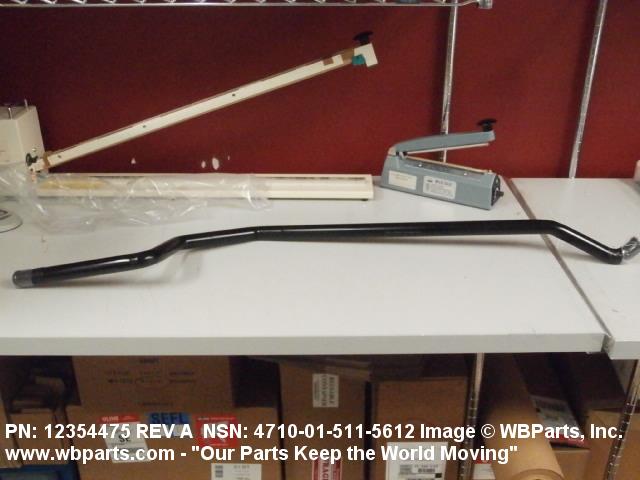

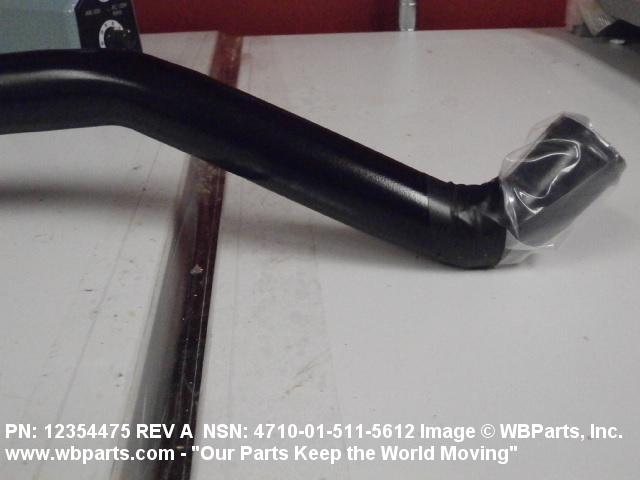

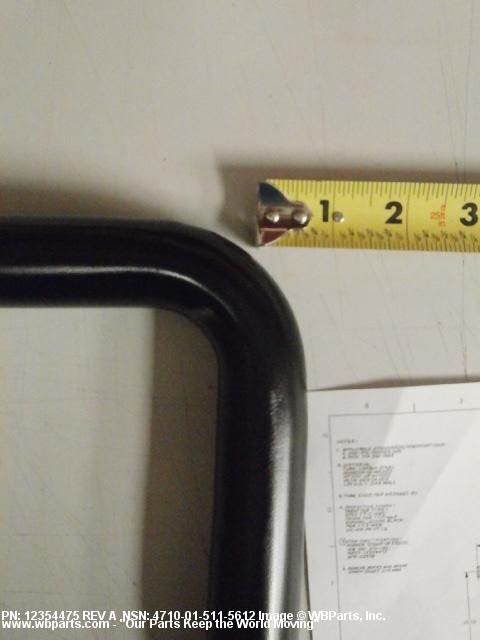

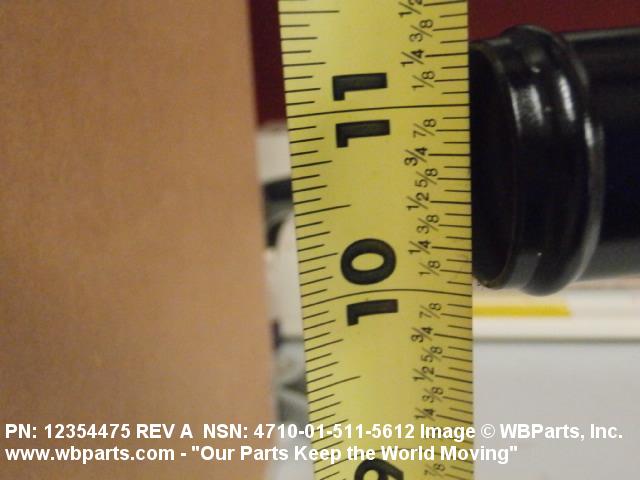

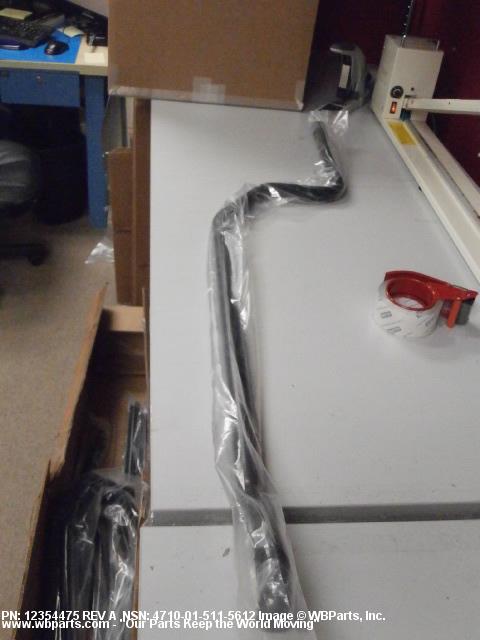

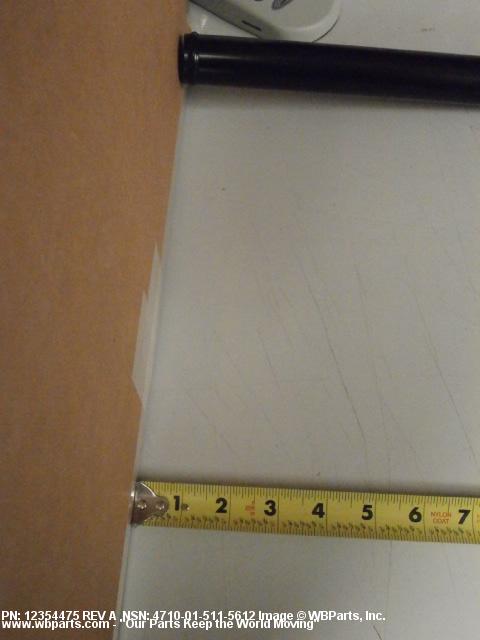

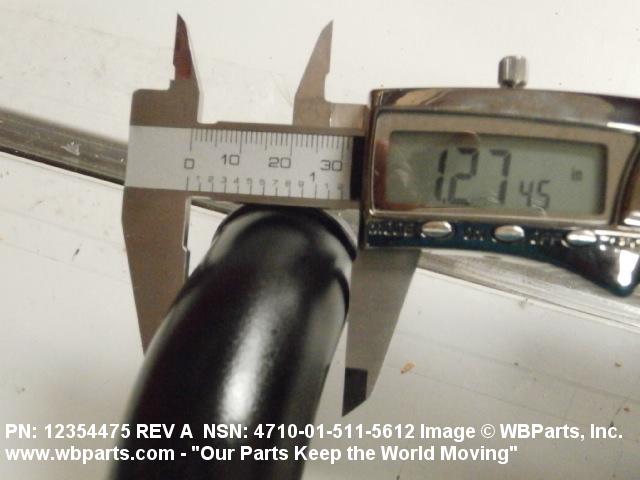

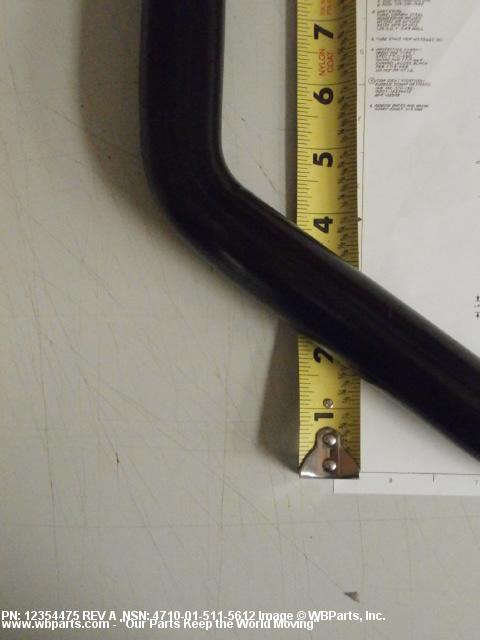

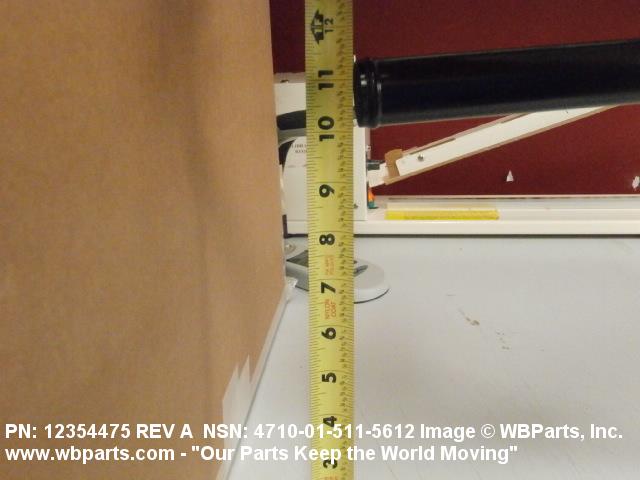

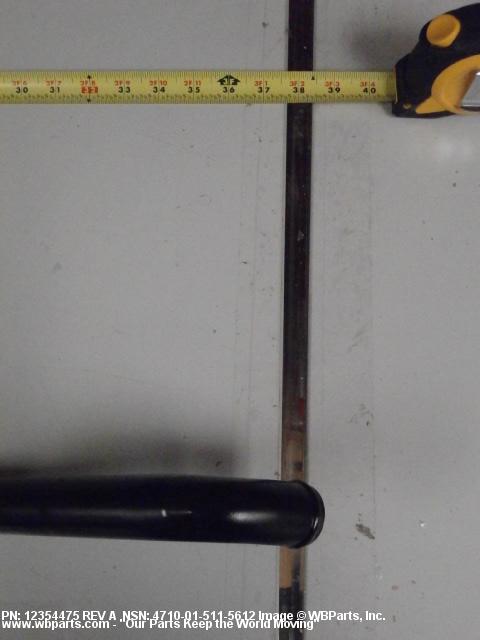

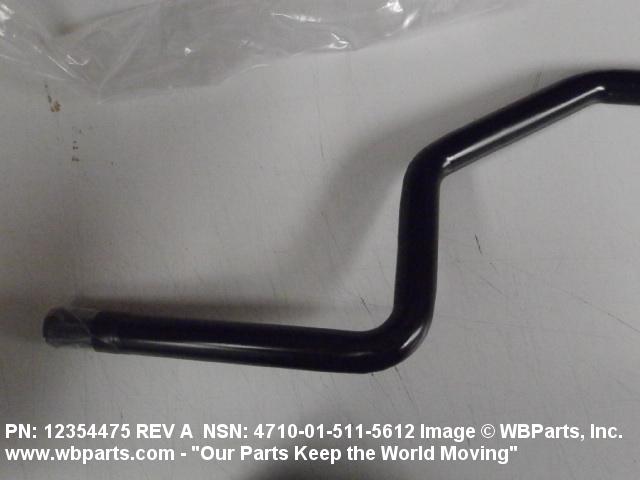

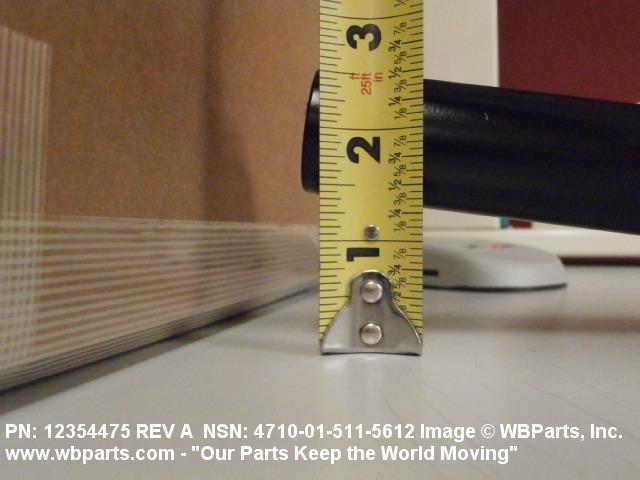

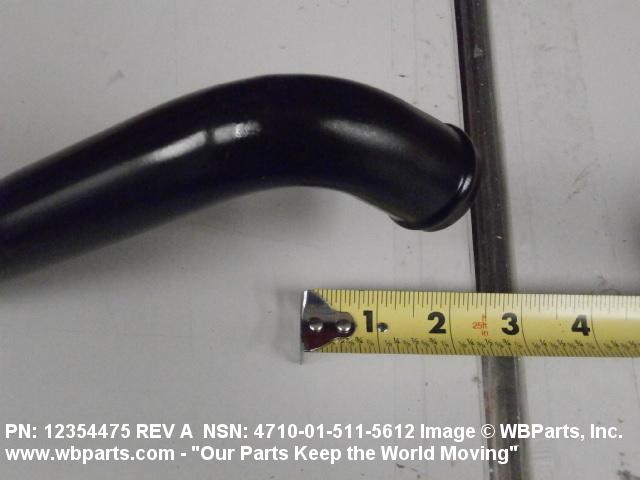

Drawings & Photos | NSN 4710-01-511-5612
Demand History | NSN 4710-01-511-5612
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-511-5612 | 2022-06-172 | 20 | DIBBS |
| 4710-01-511-5612 | 2022-06-159 | 20 | DIBBS |
| 4710-01-511-5612 | 2021-03-84 | 17 | DIBBS |
| 4710-01-511-5612 | 2020-01-15 | 21 | DIBBS |
| 4710-01-511-5612 | 2018-10-298 | 17 | DIBBS |
| 4710-01-511-5612 | 2018-07-183 | 8 | DIBBS |
| 4710-01-511-5612 | 2018-06-172 | 8 | DIBBS |
| 4710-01-511-5612 | 2017-06-152 | 15 | DIBBS |
| 4710-01-511-5612 | 2017-05-141 | 15 | DIBBS |
| 4710-01-511-5612 | 2016-10-285 | 3 | DIBBS |
| 4710-01-511-5612 | 2016-09-273 | 3 | DIBBS |
| 4710-01-511-5612 | 2016-07-192 | 1 | DIBBS |
| 4710-01-511-5612 | 2014-12-346 | 7 | United States |
| 4710-01-511-5612 | 2014-11-314 | 7 | DIBBS |
| 4710-01-511-5612 | 2014-10-303 | 7 | DIBBS |
| 4710-01-511-5612 | 2014-07-206 | 1 | DIBBS |
| 4710-01-511-5612 | 2014-07-195 | 1 | DIBBS |
| 4710-01-511-5612 | 2014-04-99 | 3 | DIBBS |
Cross Reference | NSN 4710-01-511-5612
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12354475 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-511-5612
Related Products | NSN 4710-01-511-5612
Technical Data | NSN 4710-01-511-5612
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CROSS-SECTIONAL SHAPE STYLE | 1 PLAIN ROUND |
| WALL THICKNESS | 0.049 INCHES NOMINAL |
| DIAMETER | 1.250 INCHES NOMINAL |
| FIRST END STYLE | 14 OUTSIDE BEADED |
| FIRST END OUTSIDE DIAMETER | 1.240 INCHES MINIMUM AND 1.255 INCHES MAXIMUM |
| FIRST END BEAD OUTSIDE DIAMETER | 1.364 INCHES MINIMUM AND 1.379 INCHES MAXIMUM |
| FIRST END BEAD WIDTH | 0.093 INCHES MAXIMUM |
| FIRST END LENGTH FROM BEAD CENTER TO END | 0.062 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| CONSTRUCTION | SEAMLESS |
| SPECIAL FEATURES | 49.0 IN. OVERALL LENGTH |
| III END ITEM IDENTIFICATION | ENGINE NSN 2815-00-124-5387 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BREATHER TUBE |
Restrictions/Controls & Freight Information | NSN 4710-01-511-5612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-511-5612
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
