NSN 4720-00-007-0406 998D663G10, 00-007-0406, 000070406
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-007-0406 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 998D663G10, 4720-00-007-0406, 00-007-0406, 4720000070406, 000070406
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 JUL 1972 | 00-007-0406 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

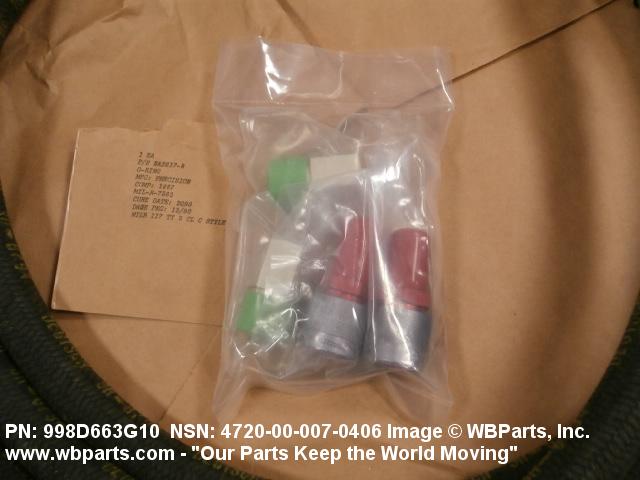

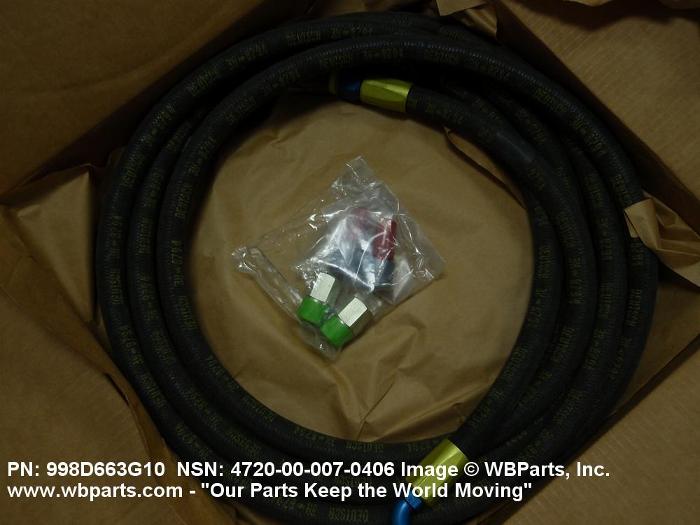

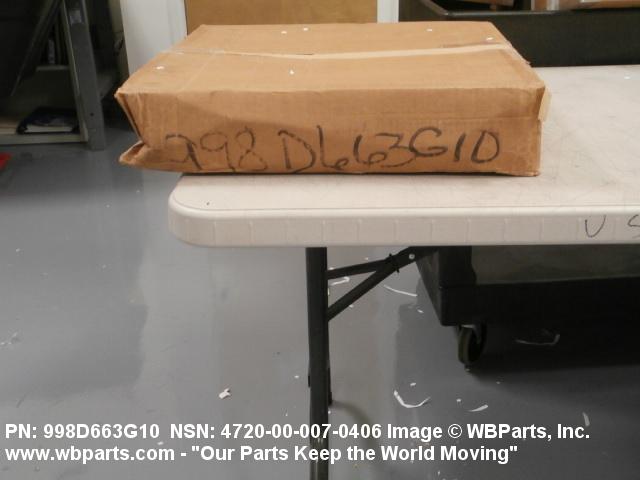

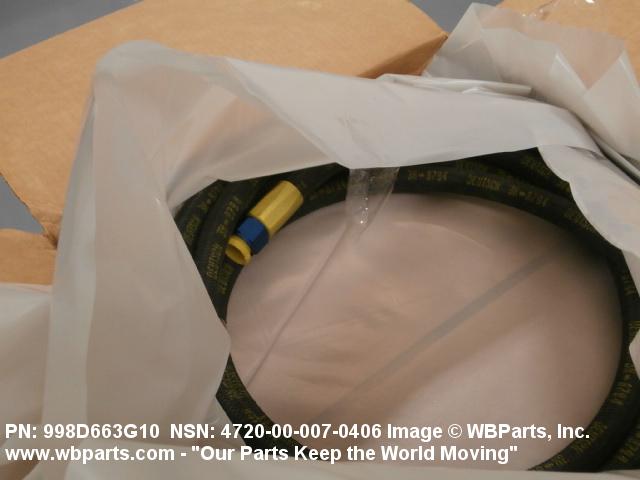

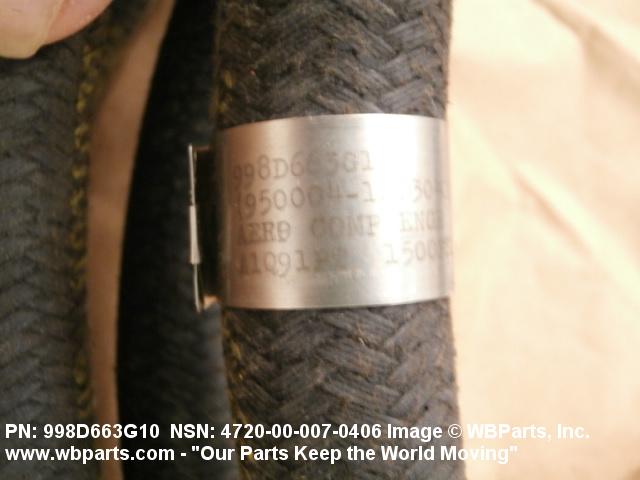

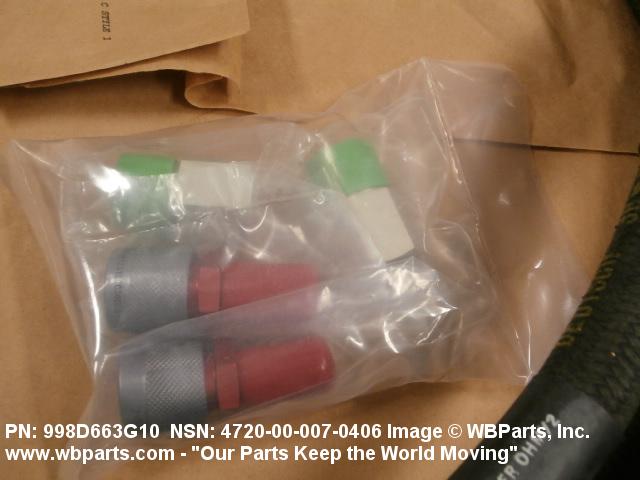

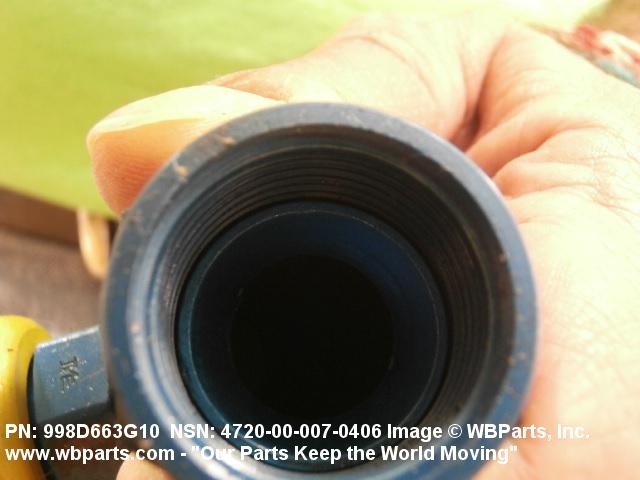

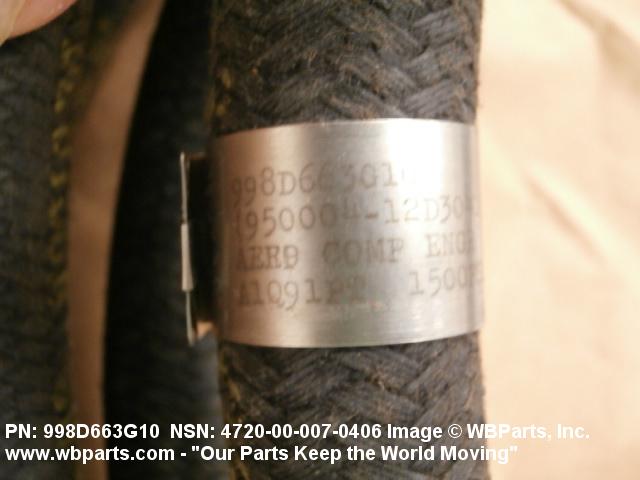

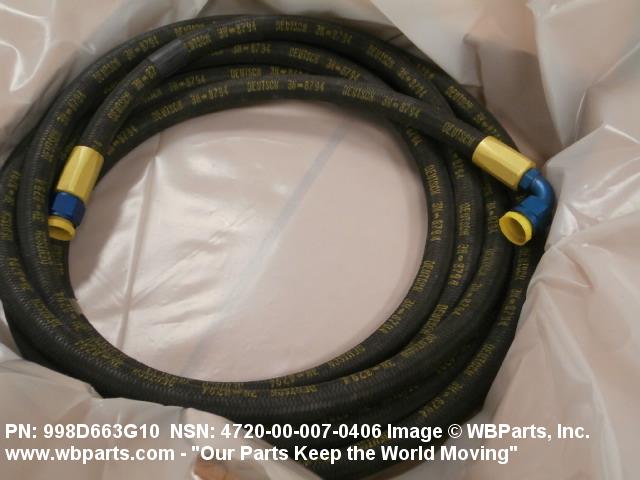

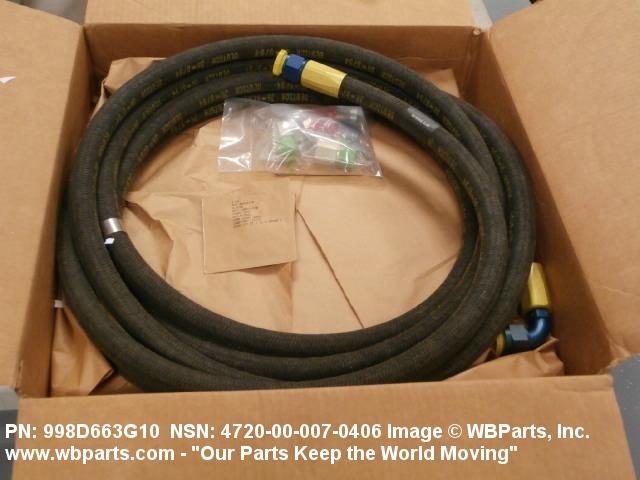

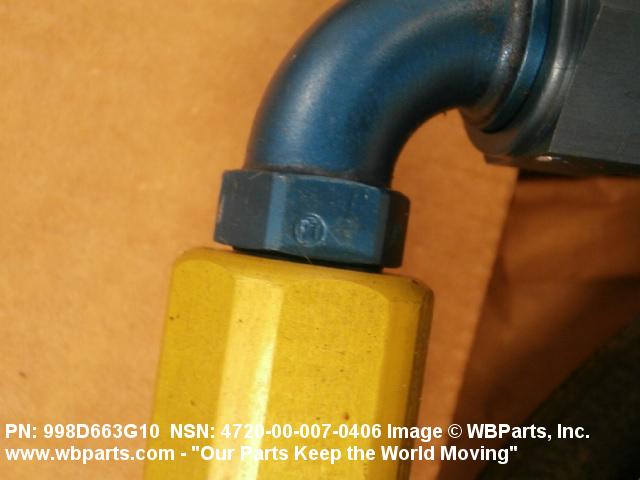

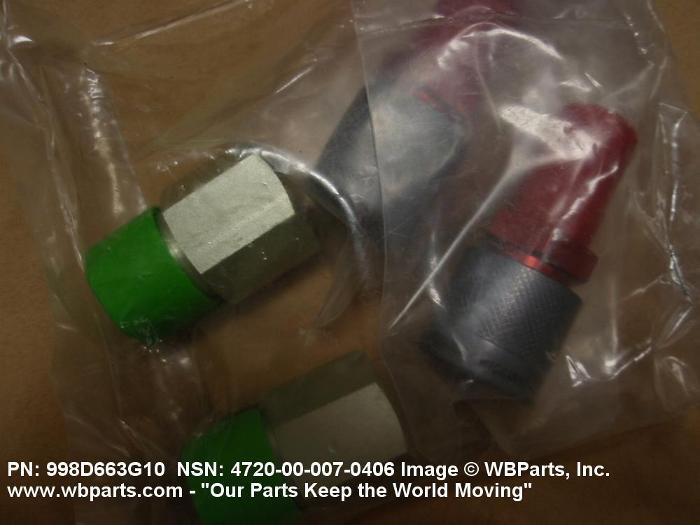

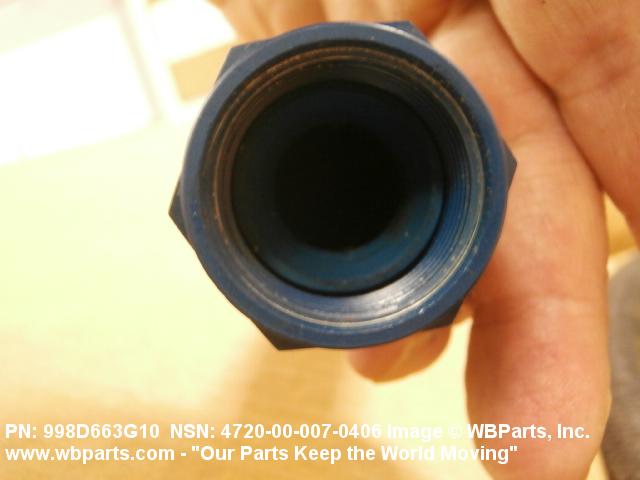

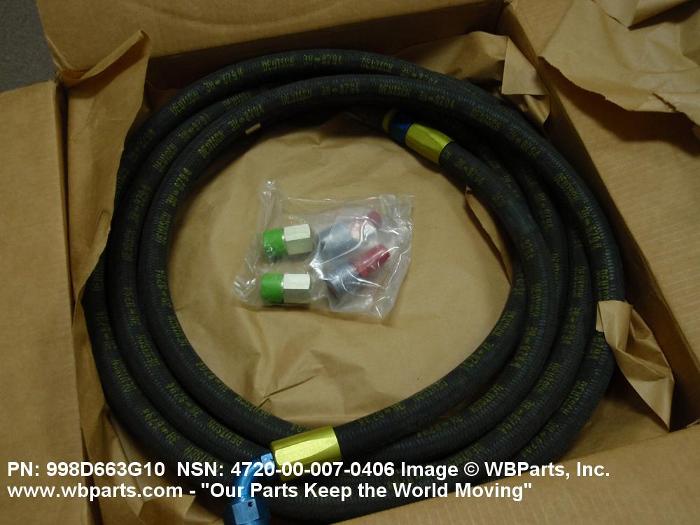

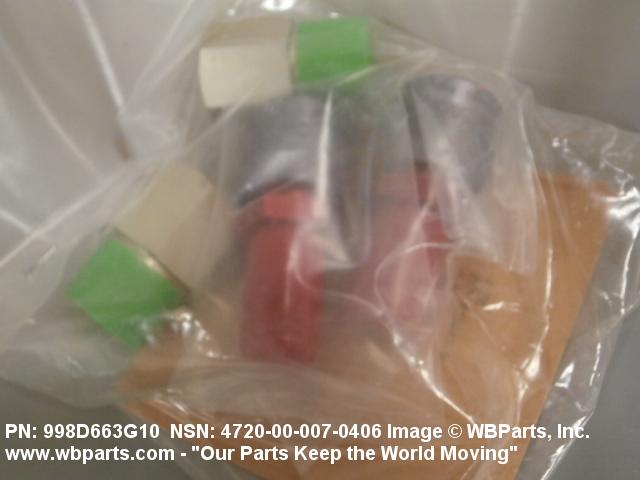

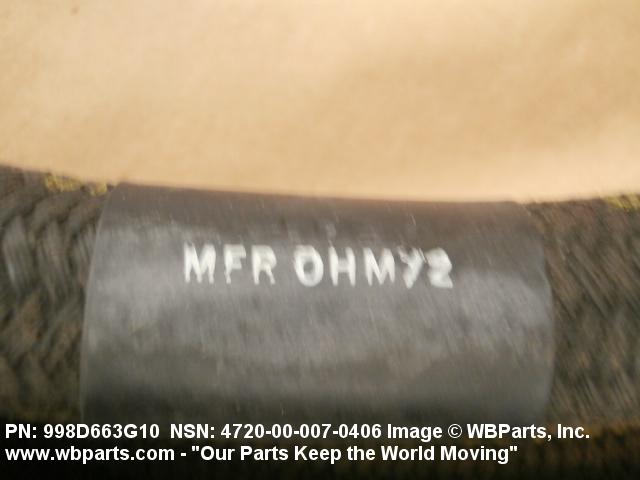

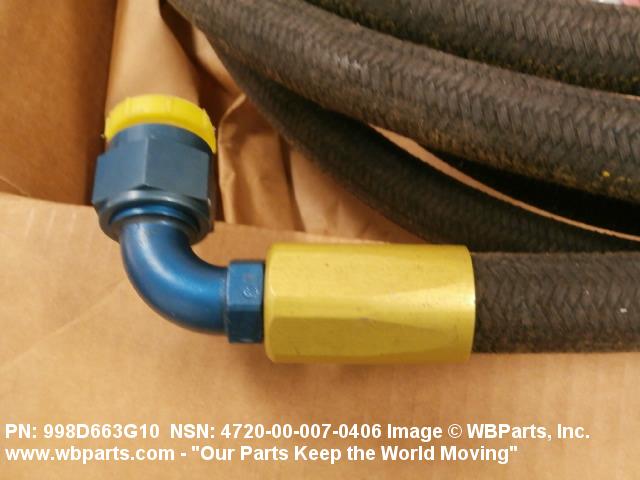

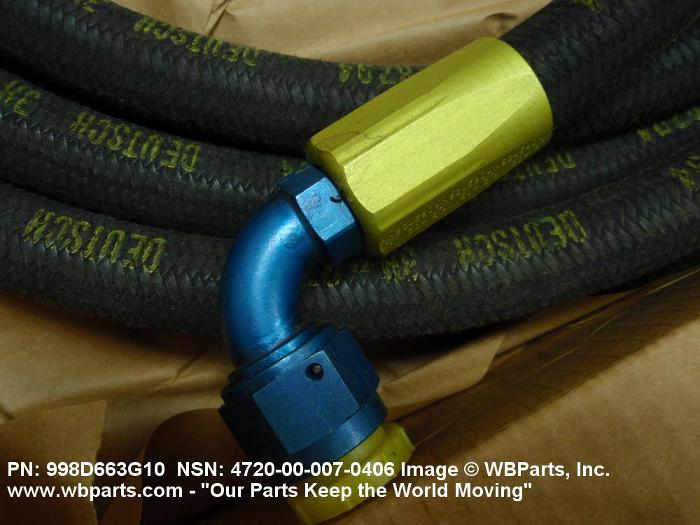

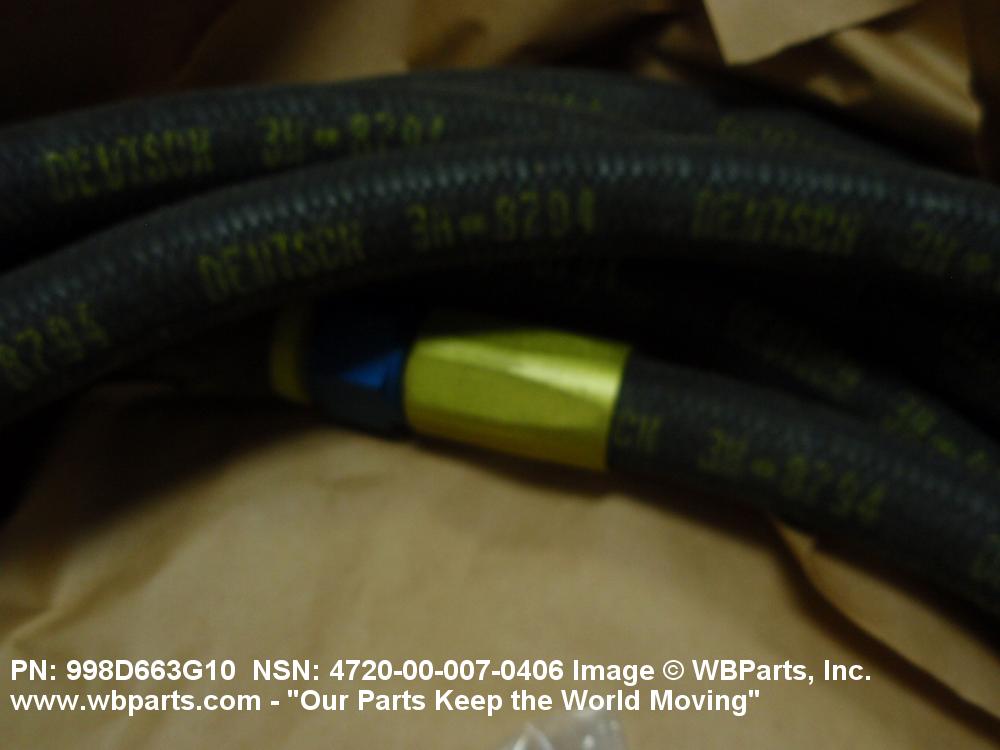

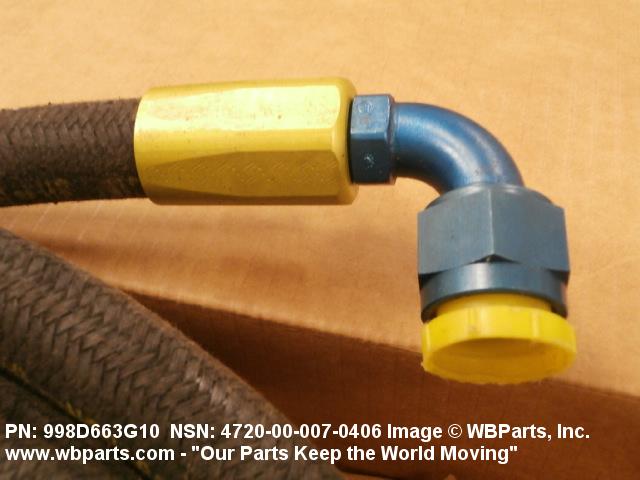

Drawings & Photos | NSN 4720-00-007-0406
Demand History | NSN 4720-00-007-0406
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-007-0406 | 2015-04-95 | 2 | DIBBS |
| 4720-00-007-0406 | 2015-01-23 | 2 | DIBBS |
| 4720-00-007-0406 | 2014-12-337 | 1 | US |
| 4720-00-007-0406 | 2014-11-306 | 2 | DIBBS |
| 4720-00-007-0406 | 2014-06-177 | 2 | DIBBS |
| 4720-00-007-0406 | 2013-12-351 | 2 | United States |
| 4720-00-007-0406 | 2013-10-290 | 3 | DIBBS |
| 4720-00-007-0406 | 2013-08-216 | 3 | DIBBS |
| 4720-00-007-0406 | 2013-05-129 | 3 | DIBBS |
| 4720-00-007-0406 | 2011-03-76 | 1 | United States |
| 4720-00-007-0406 | 2010-11-327 | 1 | DIBBS |
| 4720-00-007-0406 | 2010-07-210 | 3 | DIBBS |
| 4720-00-007-0406 | 2009-02-58 | 5 | DIBBS |
Cross Reference | NSN 4720-00-007-0406
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 998D663G10 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-007-0406
Related Products | NSN 4720-00-007-0406
Technical Data | NSN 4720-00-007-0406
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL MIL-H-8794,SIZE 12 SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER RUBBER IMPREGNATED BRAIDED COTTON CORD 2ND LAYER RUBBER IMPREGNATED BRAIDED STEEL WIRE OUTER LAYER RUBBER IMPREGNATED BRAIDED COTTON CORD |
| OUTER COVERING ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND OIL RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.078 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 300.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | 6.500 INCHES |
| FIRST END FITTING SPEC/STD DATA | MIL MS27224-12 STANDARD |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | ELBOW |
| FIRST END FLOW ANGLE IN DEG | 90.0 |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T6 |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANODIZED, MIL-A-8625, TYPE 2, CLASS 2 |
| FIRST END THREAD SERIES DESIGNATOR | UNJ |
| FIRST END NOMINAL THREAD SIZE | 1.062 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | MIL MS24587-12 STANDARD |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T6 |
| SECOND END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANODIZED, MIL-A-8625, TYPE 2, CLASS 2 |
| SECOND END THREAD SERIES DESIGNATOR | UNJ |
| SECOND END NOMINAL THREAD SIZE | 1.062 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 12 |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4720-00-007-0406
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-007-0406
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EW | TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
