NSN 4720-00-076-4082 FT1980, FT-1980, GH511DA1
Product Details | AIR DUCT HOSE ASSEMBLY
4720-00-076-4082 A length of HOSE, AIR DUCT with couplings on one or both ends. Excludes items which include a branch hose or fork hose, HOSE ASSEMBLY, NONMETALLIC.20242400027Safety and Rescue Equipment47200024Hose and Flexible Tubing
Part Alternates: FT1980, FT-1980, GH511DA1, GRU1008, 042303000105, 0423-0300-0105, 4720-00-076-4082, 00-076-4082, 4720000764082, 000764082
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-076-4082 | 18451 ( HOSE ASSEMBLY, AIR DUCT ) |
Drawings & Photos | NSN 4720-00-076-4082
Demand History | NSN 4720-00-076-4082
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-076-4082 | 2018-02-51 | 2 | US |
| 4720-00-076-4082 | 2012-12-360 | 2 | DIBBS |
| 4720-00-076-4082 | 2012-10-290 | 2 | DIBBS |
Cross Reference | NSN 4720-00-076-4082
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-076-4082
Related Products | NSN 4720-00-076-4082
Technical Data | NSN 4720-00-076-4082
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING 1ST END COUPLING STEEL CORROSION RESISTING 2ND END COUPLING |
| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 3.000 INCHES NOMINAL FIRST END |
| CONNECTION TYPE | COUPLING FIRST END COUPLING SECOND END |

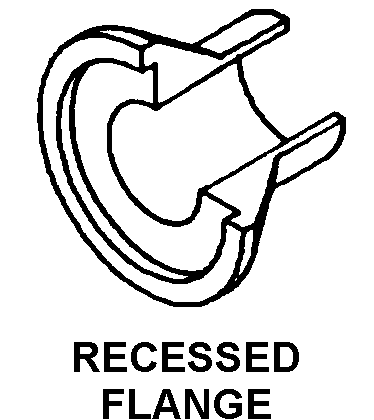

| COUPLING STYLE | D4 RECESSED FLANGE FIRST END D1 BEADED SECOND END |
| MINIMUM INSIDE BENDING RADIUS | 5.250 INCHES |
| MAXIMUM OPERATING PRESSURE | 49.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4720-00-076-4082
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-076-4082
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
