NSN 4720-00-166-5892 M24136/1-96, M24136196, HOSER5126
Product Details | NONMETALLIC HOSE
4720-00-166-5892 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M24136/1-96, M24136196, HOSER5126, HOS-ER512-6, MIL-H-24136/1, MILH241361, 258096, 2580-96, 4720-00-166-5892, 00-166-5892, 4720001665892, 001665892
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 NOV 1971 | 00-166-5892 | 22670 ( HOSE, NONMETALLIC ) |

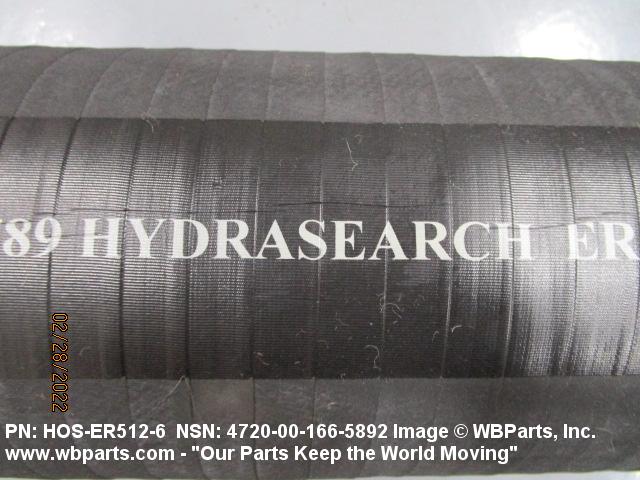

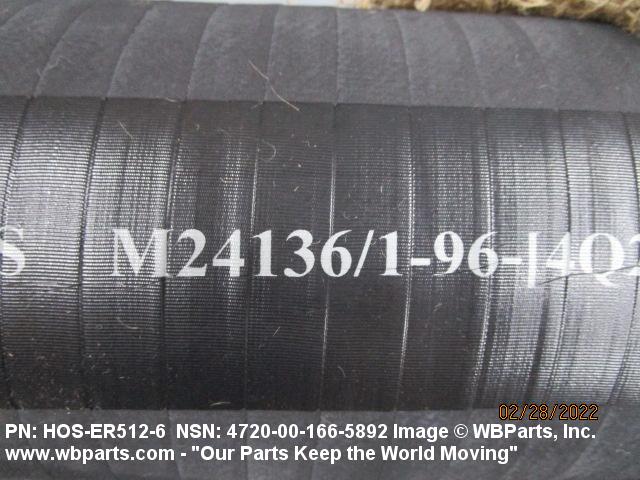

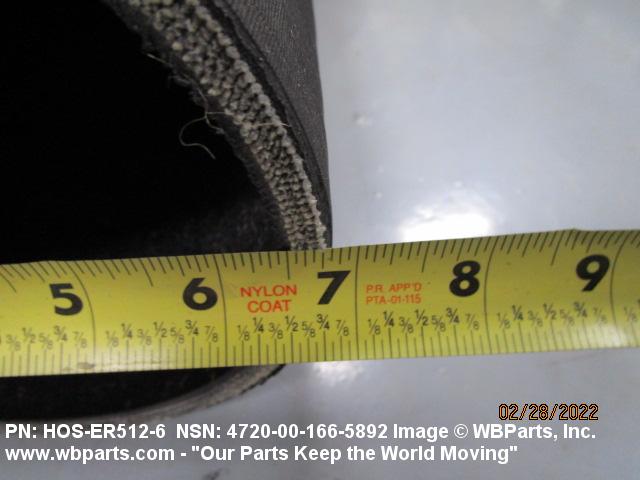

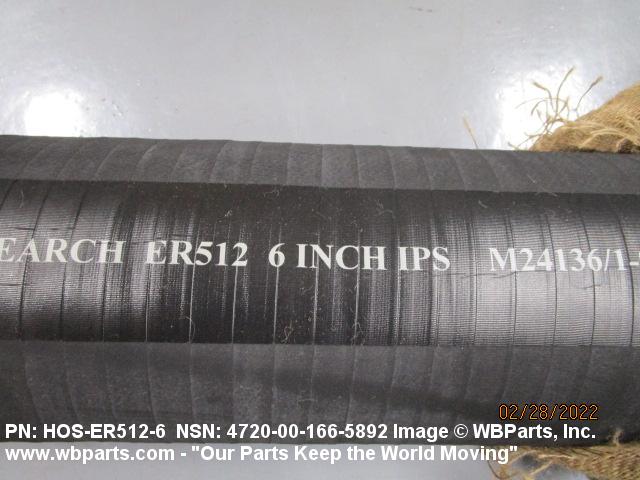

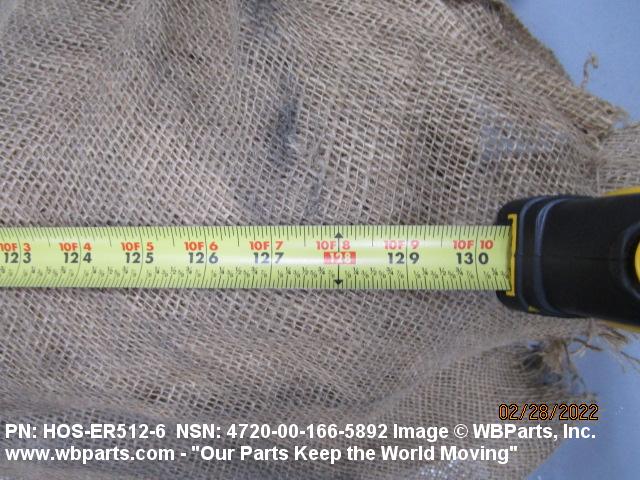

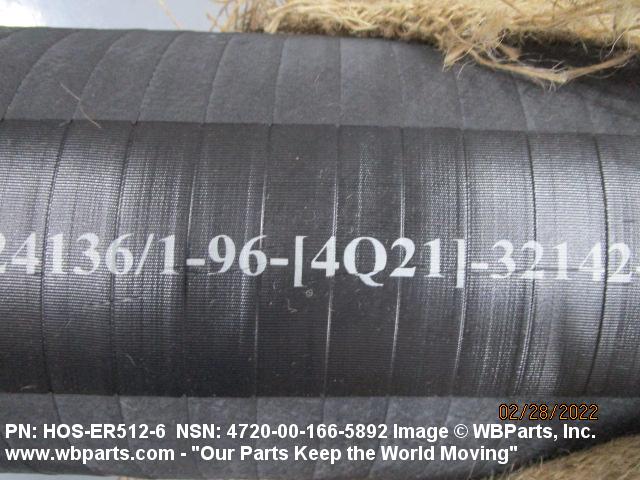

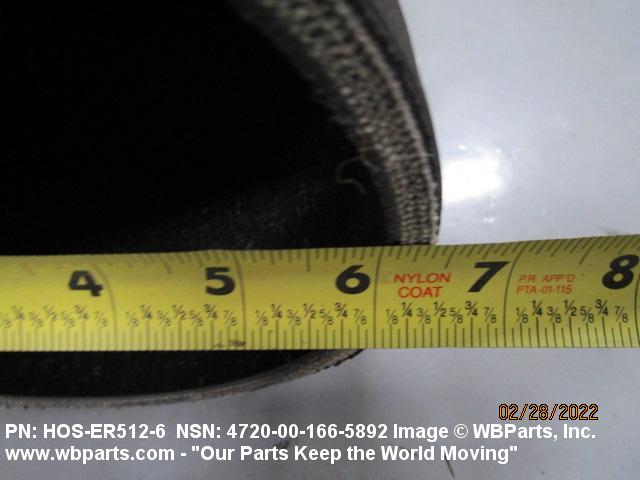

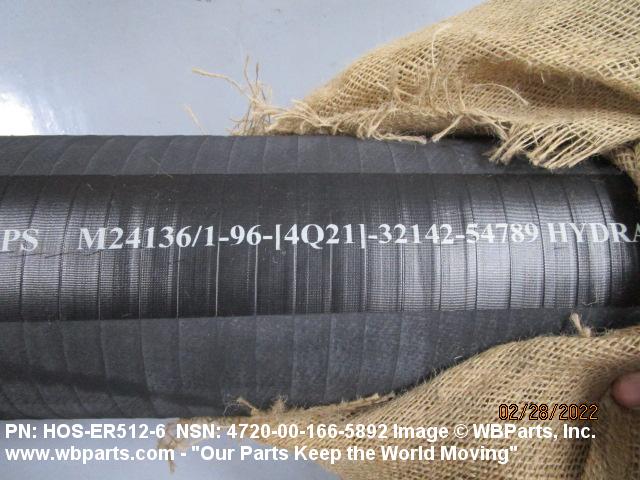

Drawings & Photos | NSN 4720-00-166-5892
Demand History | NSN 4720-00-166-5892
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-166-5892 | 2025-12-356 | 21 | United States |
| 4720-00-166-5892 | 2024-03-71 | 1419 | DIBBS |
| 4720-00-166-5892 | 2024-03-65 | 256 | DIBBS |
| 4720-00-166-5892 | 2023-10-290 | 187 | DIBBS |
| 4720-00-166-5892 | 2023-09-270 | 1149 | DIBBS |
| 4720-00-166-5892 | 2023-09-257 | 180 | DIBBS |
| 4720-00-166-5892 | 2023-08-240 | 1149 | DIBBS |
| 4720-00-166-5892 | 2023-07-183 | 353 | DIBBS |
| 4720-00-166-5892 | 2023-06-180 | 176 | DIBBS |
| 4720-00-166-5892 | 2022-08-242 | 973 | DIBBS |
| 4720-00-166-5892 | 2022-08-220 | 10 | United States |
| 4720-00-166-5892 | 2022-07-206 | 973 | DIBBS |
| 4720-00-166-5892 | 2022-07-193 | 973 | DIBBS |
| 4720-00-166-5892 | 2022-05-143 | 20 | United States |
| 4720-00-166-5892 | 2022-05-139 | 363 | DIBBS |
| 4720-00-166-5892 | 2022-05-131 | 20 | United States |
| 4720-00-166-5892 | 2022-05-126 | 20 | United States |
| 4720-00-166-5892 | 2022-05-125 | 20 | United States |
| 4720-00-166-5892 | 2022-04-118 | 322 | DIBBS |
| 4720-00-166-5892 | 2022-04-103 | 1627 | DIBBS |
| 4720-00-166-5892 | 2022-02-46 | 10 | United States |
| 4720-00-166-5892 | 2021-08-216 | 100 | US |
| 4720-00-166-5892 | 2021-03-66 | 12 | DIBBS |
| 4720-00-166-5892 | 2021-01-14 | 440 | DIBBS |
| 4720-00-166-5892 | 2021-01-03 | 440 | DIBBS |
| 4720-00-166-5892 | 2020-12-348 | 12 | DIBBS |
| 258096 | 2020-09-255 | 1 | United States |
| 4720-00-166-5892 | 2020-03-83 | 20 | DIBBS |
| 4720-00-166-5892 | 2020-03-70 | 20 | DIBBS |
| 4720-00-166-5892 | 2020-02-57 | 30 | Saudi Arabia |
| 4720-00-166-5892 | 2018-09-254 | 50 | ES |
| 4720-00-166-5892 | 2018-02-45 | 840 | DIBBS |
| 4720-00-166-5892 | 2017-11-325 | 1 | DIBBS-RFPs |
| 4720-00-166-5892 | 2017-11-306 | 1 | DIBBS-RFPs |
| 4720-00-166-5892 | 2016-12-340 | 200 | DIBBS |
| 4720-00-166-5892 | 2015-11-326 | 10 | DIBBS |
| 4720-00-166-5892 | 2015-10-298 | 24 | DIBBS |
| 4720-00-166-5892 | 2015-09-260 | 120 | DIBBS |
| 4720-00-166-5892 | 2015-08-243 | 42 | DIBBS |
| 4720-00-166-5892 | 2014-11-317 | 32 | DIBBS |
| 4720-00-166-5892 | 2014-07-202 | 180 | TW |
| 4720-00-166-5892 | 2014-07-191 | 24 | SA |
| 4720-00-166-5892 | 2014-04-113 | 461 | DIBBS |
| 4720-00-166-5892 | 2014-03-71 | 1 | DIBBS-RFPs |
| 4720-00-166-5892 | 2013-04-102 | 20 | DIBBS |
| 4720-00-166-5892 | 2013-03-86 | 458 | DIBBS |
| 4720-00-166-5892 | 2013-03-84 | 406 | DIBBS |
| 4720-00-166-5892 | 2013-03-63 | 40 | DIBBS |
| 4720-00-166-5892 | 2013-03-63 | 45 | DIBBS |
| 4720-00-166-5892 | 2013-02-51 | 500 | DIBBS |
| HOSER5126 | 2012-07-183 | 12 | US |
| 4720-00-166-5892 | 2011-06-165 | 895 | DIBBS |
| 4720-00-166-5892 | 2011-01-18 | 326 | DIBBS |
| 4720-00-166-5892 | 2010-12-340 | 405 | DIBBS |
Cross Reference | NSN 4720-00-166-5892
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-166-5892
Related Products | NSN 4720-00-166-5892
Technical Data | NSN 4720-00-166-5892
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED TEXTILE YARN 2ND LAYER BRAIDED TEXTILE YARN OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ABRASION RESISTANT AND OXIDATION RESISTANT AND WEATHERPROOF |
| EXTERIOR COLOR | BLACK |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 6.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.875 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | ANY ACCEPTABLE |
| MINIMUM INSIDE BENDING RADIUS | 42.000 INCHES |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 600.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1200.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81343-MIL-H-24136/3 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 96 SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24136/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24136/1-96 |
Restrictions/Controls & Freight Information | NSN 4720-00-166-5892
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-166-5892
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
