NSN 4720-00-176-4453 MS87028M0310C, 114PS10053, 114PS100-53
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-176-4453 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: MS87028M0310C, 114PS10053, 114PS100-53, 4720-00-176-4453, 00-176-4453, 4720001764453, 001764453
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 FEB 1970 | 00-176-4453 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

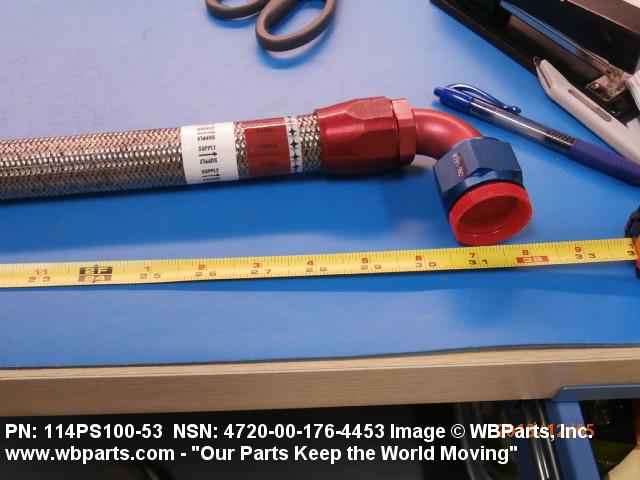

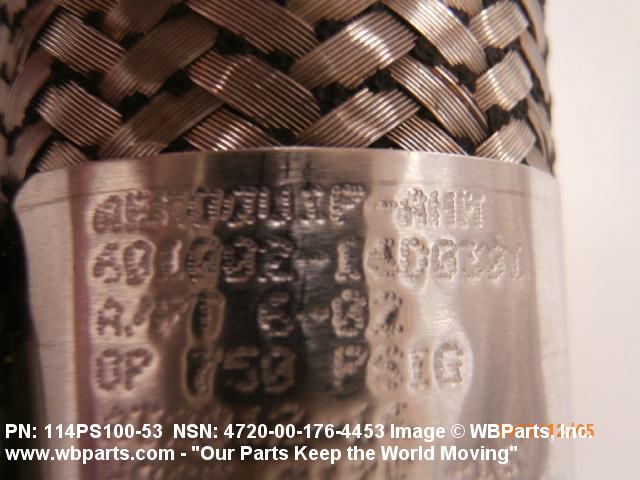

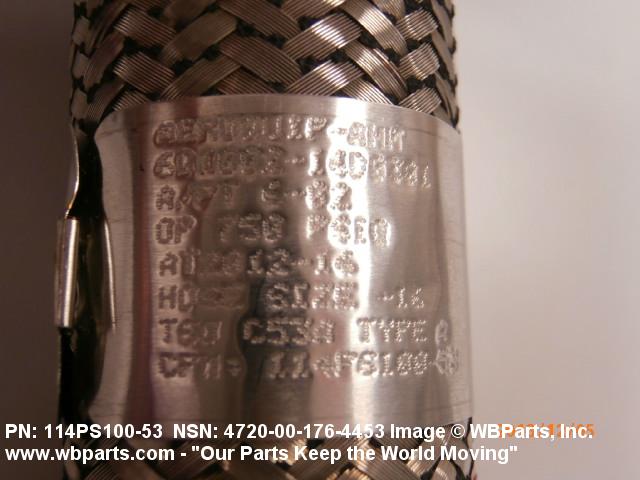

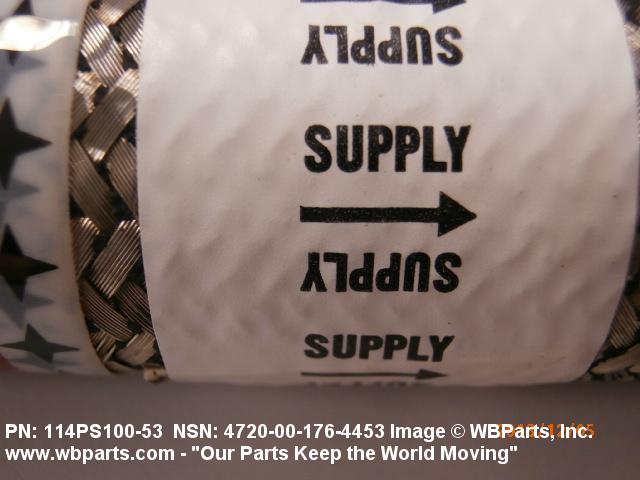

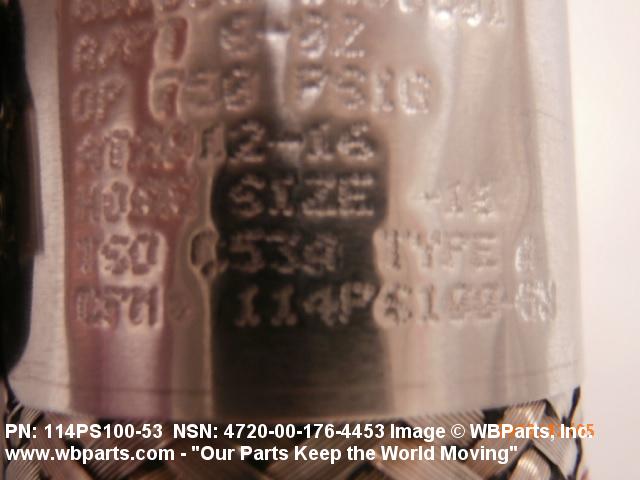

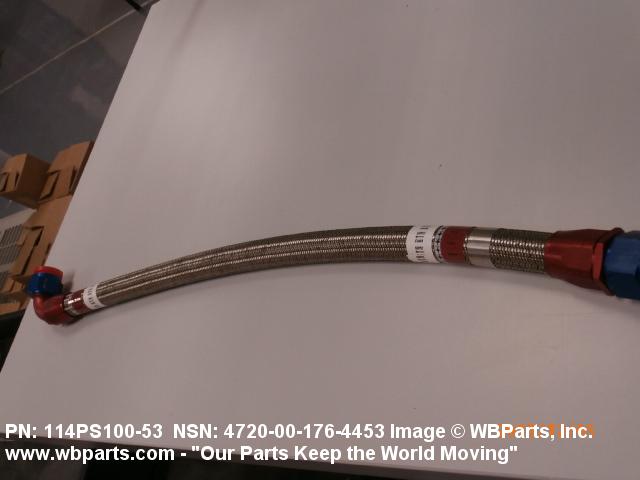

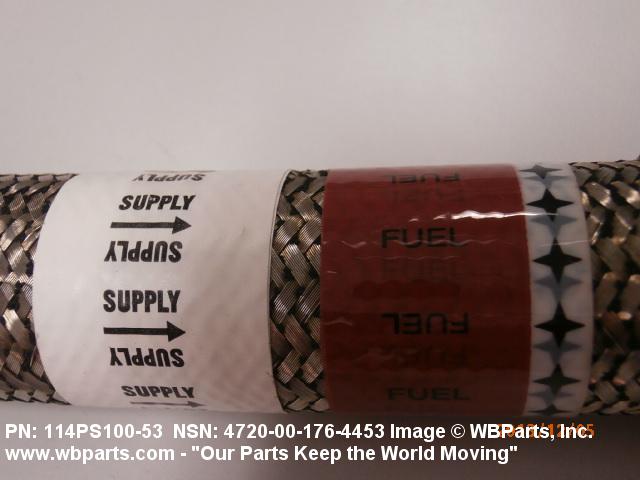

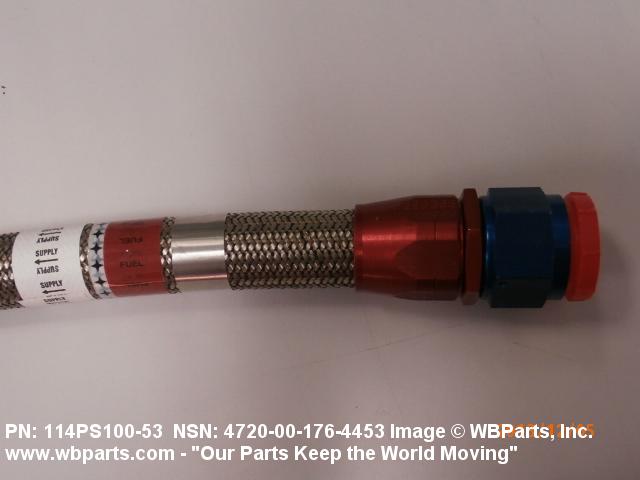

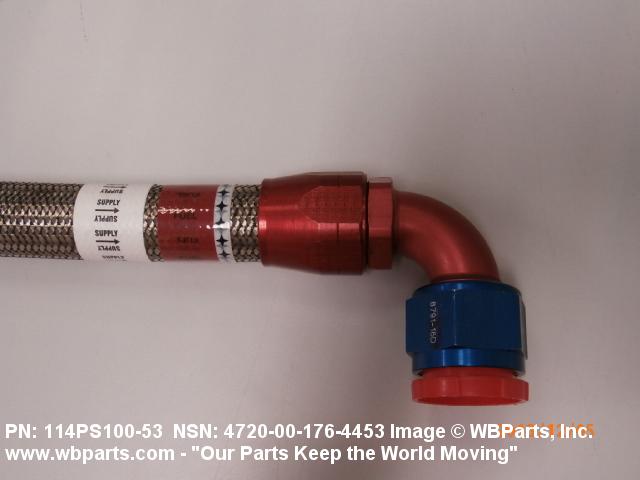

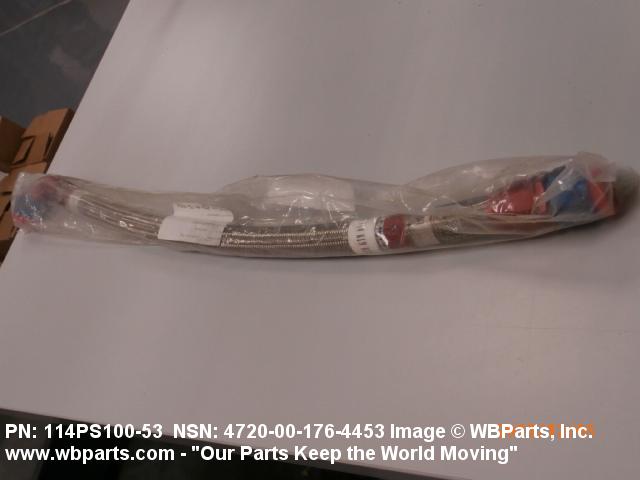

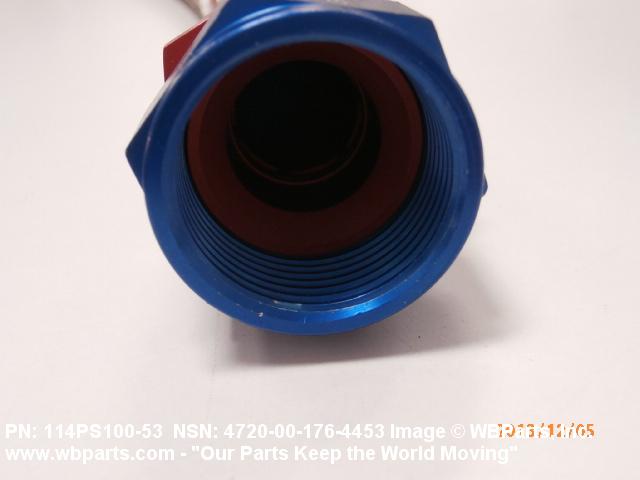

Drawings & Photos | NSN 4720-00-176-4453
Demand History | NSN 4720-00-176-4453
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-176-4453 | 2021-06-158 | 2 | Australia |
| 4720-00-176-4453 | 2016-12-364 | 20 | DIBBS |
| 4720-00-176-4453 | 2016-12-339 | 2 | DIBBS |
| 4720-00-176-4453 | 2016-11-325 | 2 | DIBBS |
| 4720-00-176-4453 | 2016-11-306 | 16 | DIBBS |
| 4720-00-176-4453 | 2016-10-286 | 2 | DIBBS |
| 4720-00-176-4453 | 2013-11-322 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-176-4453
Related Products | NSN 4720-00-176-4453
Technical Data | NSN 4720-00-176-4453
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL MS87027,SIZE 16 STANDARD |
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE, PARTIAL COVERAGE OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.156 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 31.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 5.500 INCHES |
| FIRST END FITTING SPEC/STD DATA | MIL MS87018-16 STANDARD |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | NIPPLE ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T351 OR NIPPLE ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T851 OR NIPPLE ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T6 OR NIPPLE ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T6 OR NIPPLE ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T651 SOCKET ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T351 OR SOCKET ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T851 OR SOCKET ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T6 OR SOCKET ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T6 OR SOCKET ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061, T651 |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | NIPPLE ANODIZED, MIL-A-8625 SOCKET ANODIZED, MIL-A-8625 |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 1.312 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | MIL MS87020-16 STANDARD |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| SECOND END CONNECTION DESIGN | ELBOW |
| SECOND END FLOW ANGLE IN DEG | 90.0 |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND | NIPPLE ALUMINUM ALLOY, |
Restrictions/Controls & Freight Information | NSN 4720-00-176-4453
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
