NSN 4720-00-181-9280 AFA8000362, FCE55262, 50051
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-181-9280 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AFA8000362, FCE55262, 50051, 305-40-0260, 1614026, 161-40-26, 2090606311, 209-060-631-1, 209-060-653, 2090606531, 209-060-653-1, 209060653101, 209-060-653-101, 4720-00-181-9280, 00-181-9280, 4720001819280, 001819280, 305400260, 209060653
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 FEB 1971 | 00-181-9280 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

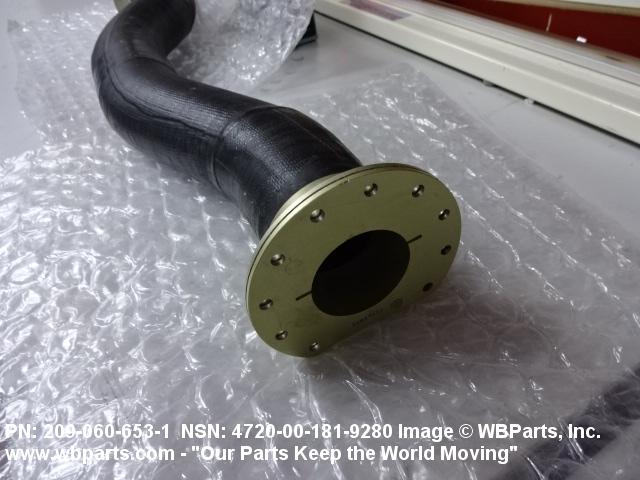

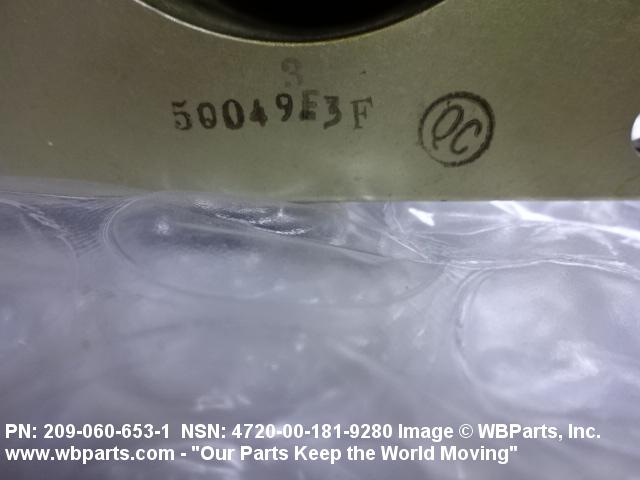

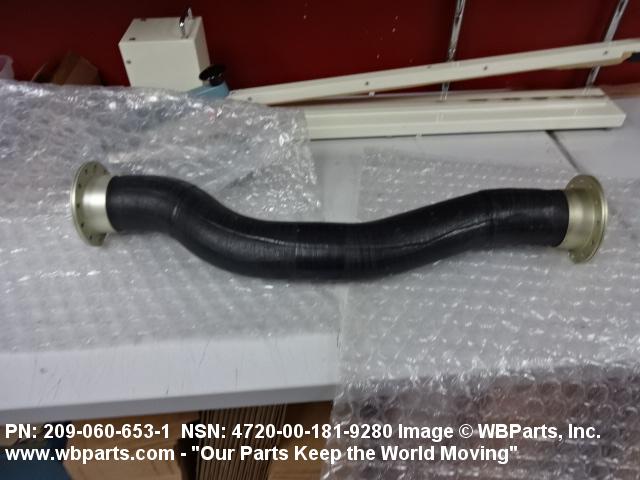

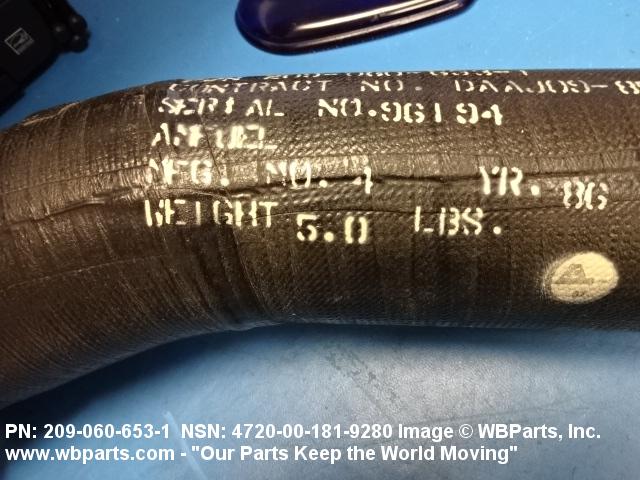

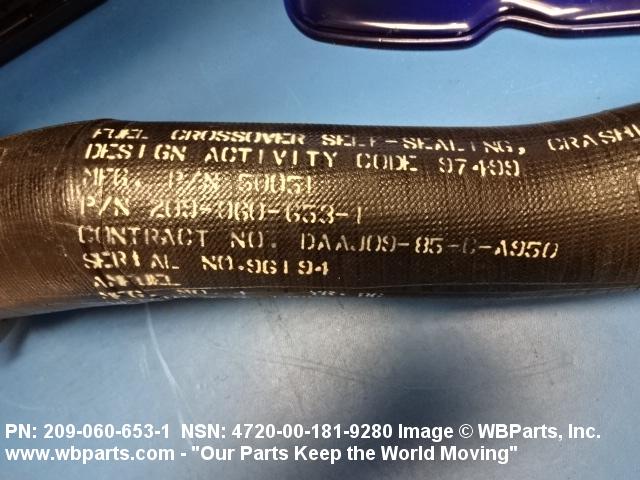

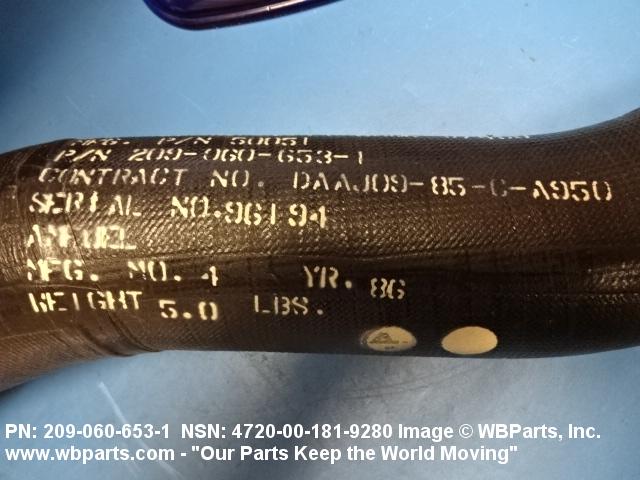

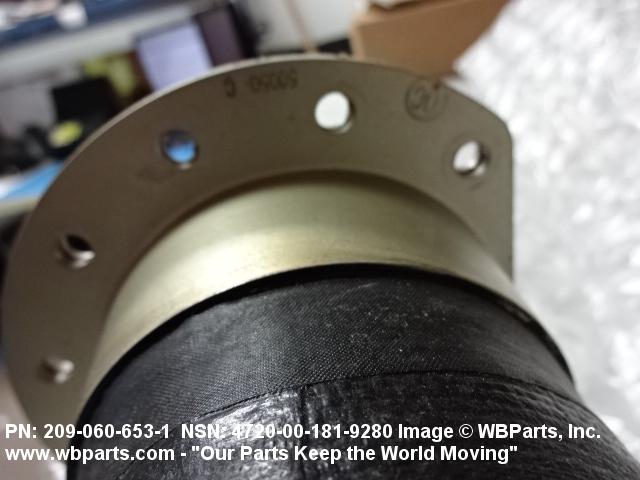

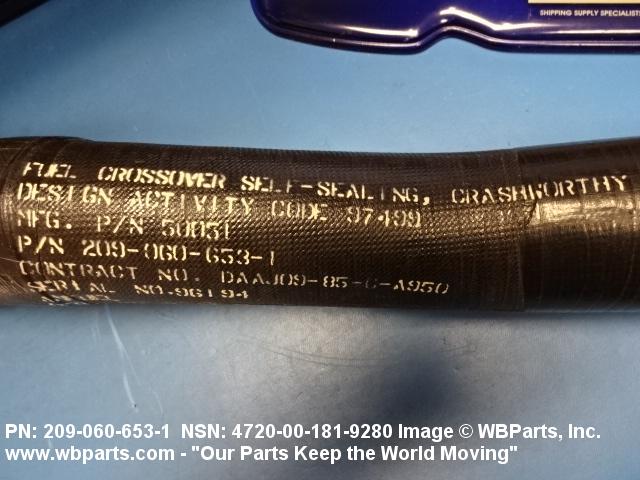

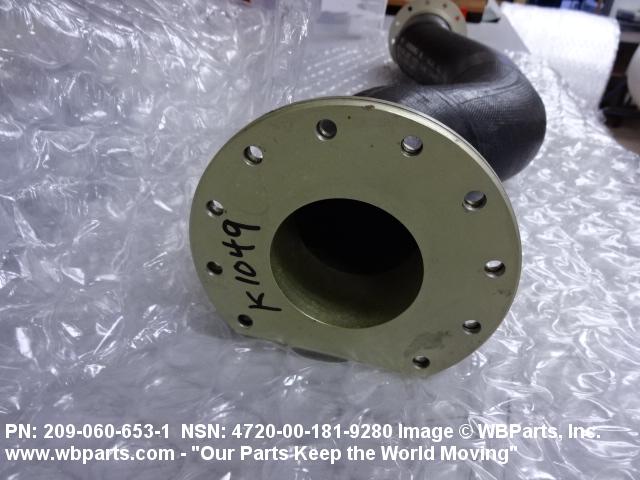

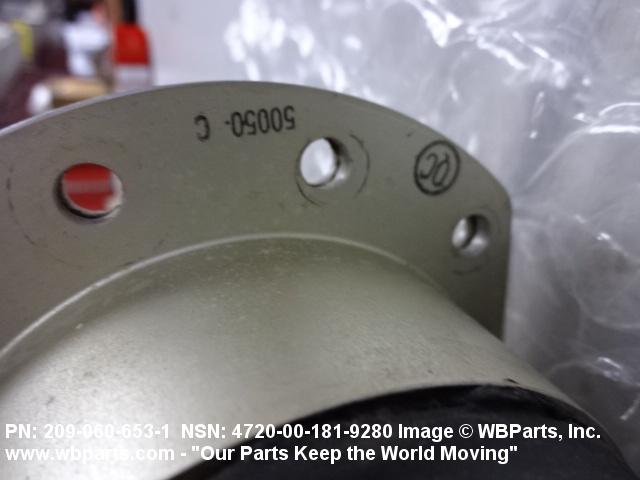

Drawings & Photos | NSN 4720-00-181-9280
Demand History | NSN 4720-00-181-9280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-181-9280 | 2024-08-236 | 2 | United States |
| 4720-00-181-9280 | 2020-02-38 | 10 | US |
| AFA8000362 | 2019-01-14 | 5 | United States |
| 4720-00-181-9280 | 2017-03-88 | 1 | United States |
| 4720-00-181-9280 | 2016-12-342 | 3 | DIBBS |
| 4720-00-181-9280 | 2016-11-313 | 3 | DIBBS |
Cross Reference | NSN 4720-00-181-9280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 161-40-26 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 209-060-631-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 209-060-653 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 209-060-653-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 209-060-653-101 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 305-40-0260 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 50051 | 05476 | AMERICAN FUEL CELL AND COATED FABRICS COMPANY |
| AFA8000362 | 04NP0 | VEYANCE TECHNOLOGIES, INC. |
| AFA8000362 | 56221 | MEGGITT (ROCKMART), INC. DIV MEGGITT POLYMERS & COMPOSITES |
| AFA8000362 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| FCE55262 | 00333 | ROYAL ADHESIVES AND SEALANTS, LLC DBA ROYAL ELASTOMERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-181-9280
Related Products | NSN 4720-00-181-9280
Technical Data | NSN 4720-00-181-9280
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | ANY ACCEPTABLE |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | ANY ACCEPTABLE |

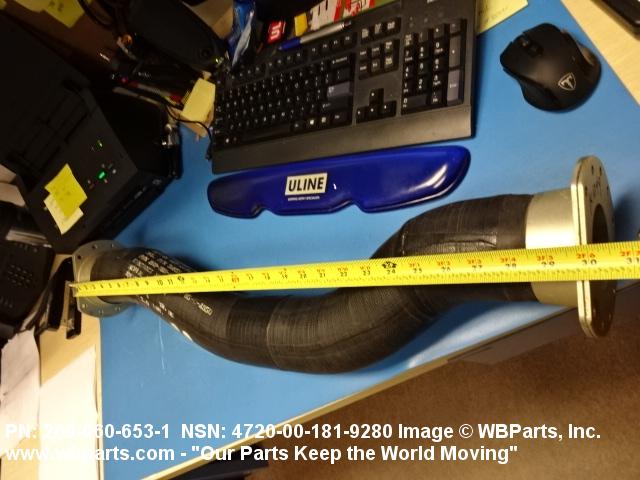

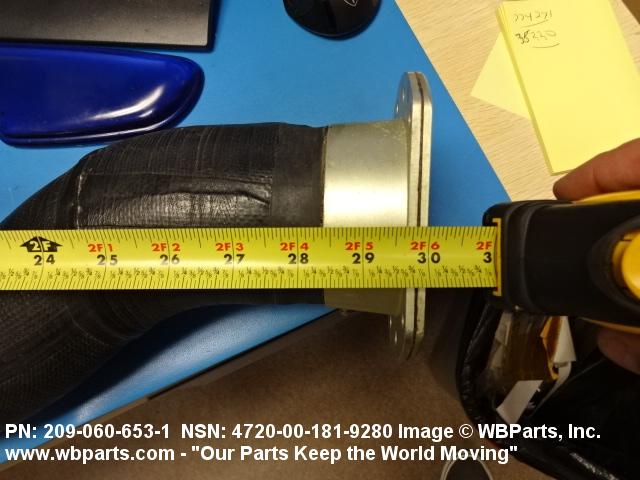

| MEASURING METHOD AND LENGTH | 29.890 INCHES NOMINAL OVERALL |
| FIRST END CONNECTION TYPE | RAISED FACE FLANGE |
| FIRST END STYLE DESIGNATOR | G4 RAISED |
| FIRST END FLANGE CONSTRUCTION | SOLID |
| FIRST END FLANGE SHAPE STYLE | 6 ROUND W/BOLT HOLES |
| FIRST END FLANGE OUTSIDE DIAMETER | 5.360 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.280 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |
| FIRST END BOLT CIRCLE DIAMETER | 4.424 INCHES NOMINAL |
| FIRST END BOLT HOLE QUANTITY | 10 |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 209-060-653 |
Restrictions/Controls & Freight Information | NSN 4720-00-181-9280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-181-9280
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
