NSN 4720-00-235-5455 M6855/4-10L109, M6855/4-22L109, M6855410L109
Product Details | NONMETALLIC TUBING
4720-00-235-5455 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: M6855/4-10L109, M6855/4-22L109, M6855410L109, M6855422L109, AMSR6855, AMS-R-6855, S108093004E06218000, S1080930-04E062-18000, MILR6855, MIL-R-6855, 10111154 , 10363611000, 103636-1-1000, 64070-20004-101, 4720-00-235-5455, 00-235-5455, 5361000813537 , 6407020004101, 4720002355455, 002355455
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-235-5455 | 31934 ( TUBING, NONMETALLIC ) |

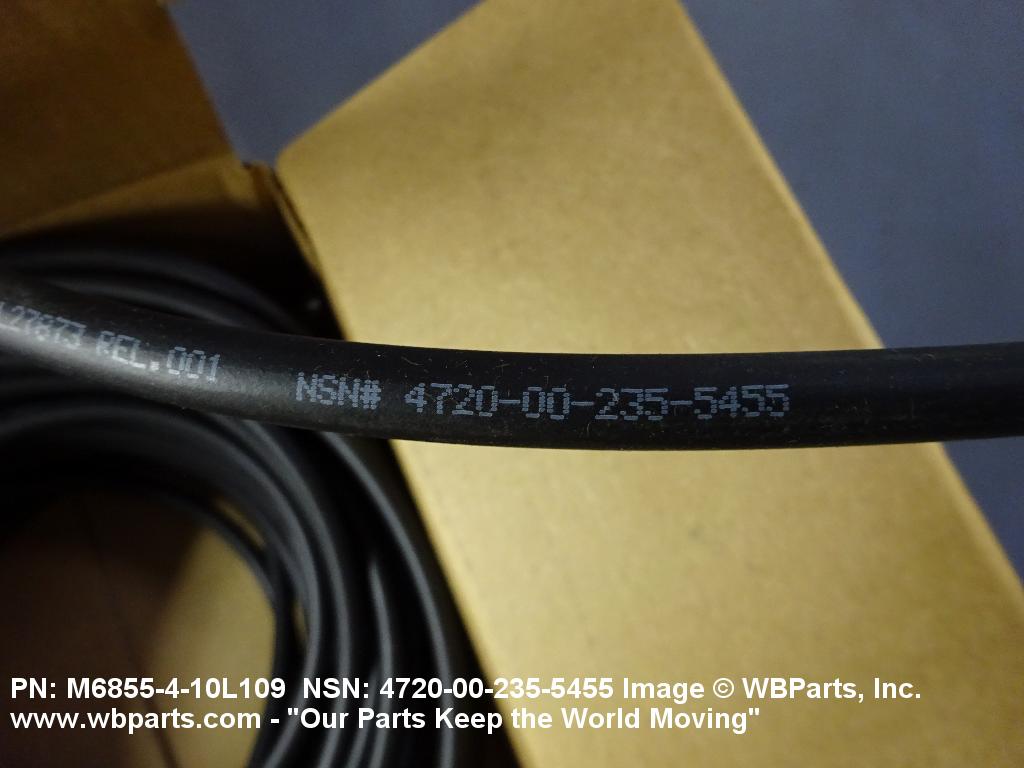

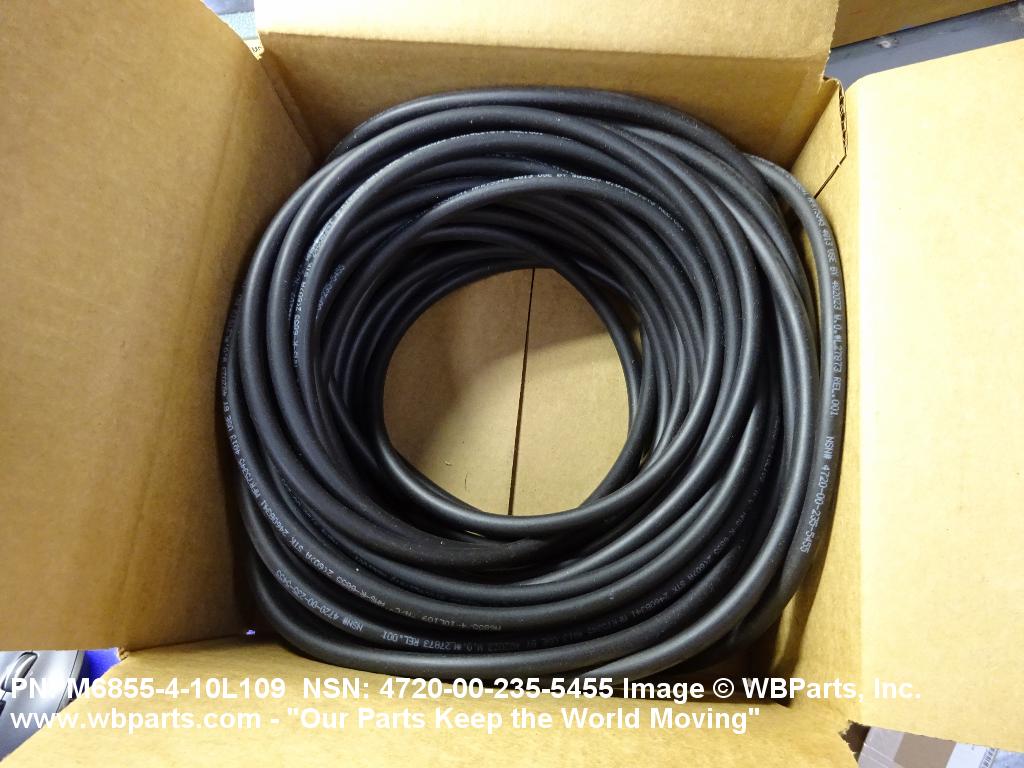

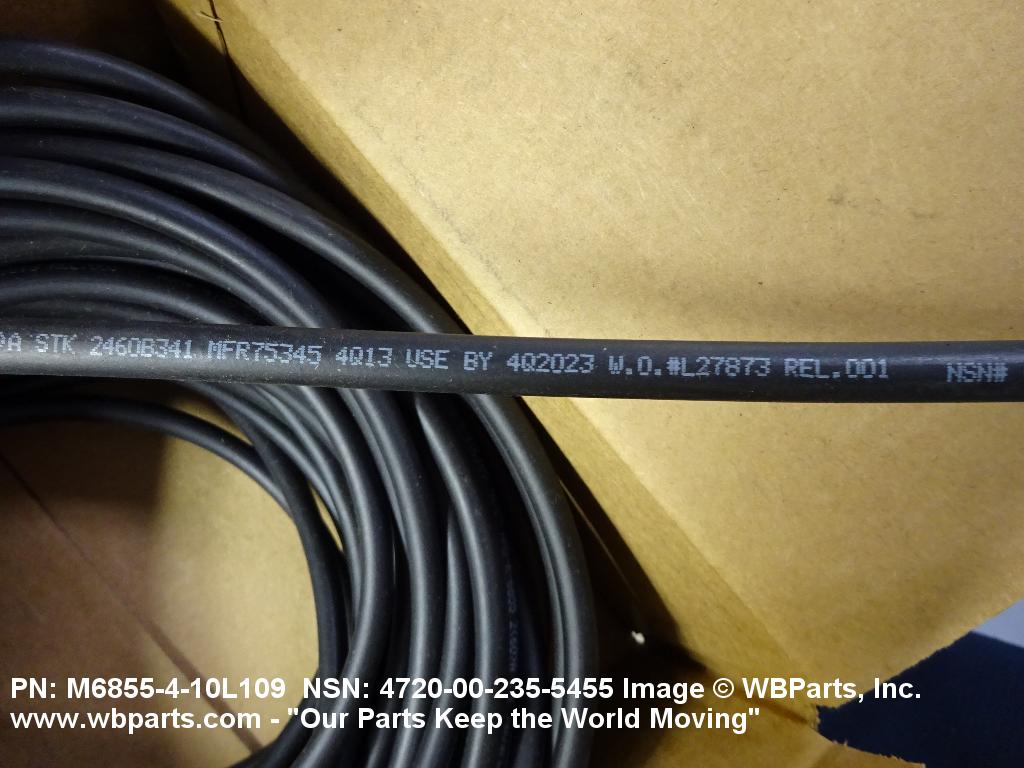

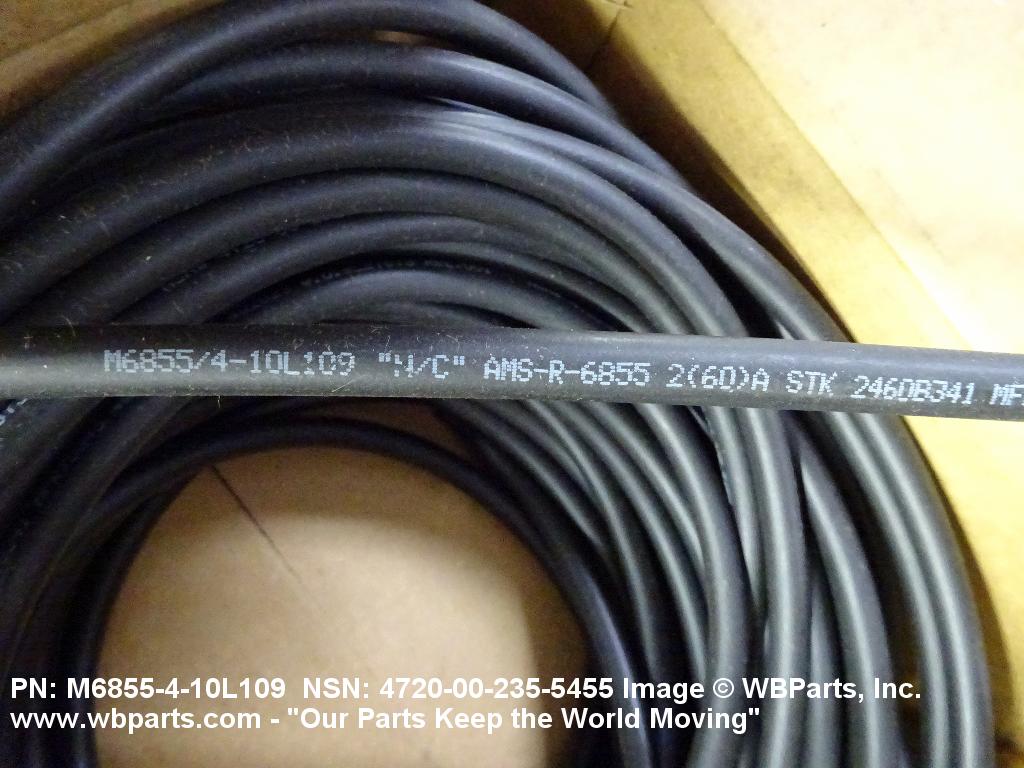

Drawings & Photos | NSN 4720-00-235-5455
Demand History | NSN 4720-00-235-5455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-235-5455 | 2025-08-231 | 600 | US |
| 4720-00-235-5455 | 2025-04-100 | 16974 | DIBBS |
| 4720-00-235-5455 | 2025-01-22 | 16828 | DIBBS |
| 4720-00-235-5455 | 2024-12-345 | 12956 | DIBBS |
| 4720-00-235-5455 | 2024-08-233 | 45 | US |
| 4720-00-235-5455 | 2024-04-95 | 8872 | DIBBS |
| 4720-00-235-5455 | 2023-05-124 | 5065 | DIBBS |
| M6855410L109 | 2023-03-61 | 150 | US |
| 4720-00-235-5455 | 2023-02-33 | 7824 | DIBBS |
| 4720-00-235-5455 | 2022-07-186 | 200 | United States |
| 4720-00-235-5455 | 2022-05-138 | 200 | United States |
| 4720-00-235-5455 | 2022-03-76 | 1372 | DIBBS |
| MILR6855 | 2022-01-07 | 1 | United States |
| MILR6855 | 2021-11-327 | 2 | Taiwan |
| 4720-00-235-5455 | 2020-11-329 | 3578 | DIBBS |
| MILR6855 | 2020-05-148 | 1 | US |
| 4720-00-235-5455 | 2013-12-339 | 2070 | DIBBS |
| 4720-00-235-5455 | 2013-05-140 | 1979 | DIBBS |
| 4720-00-235-5455 | 2012-04-93 | 1307 | DIBBS |
| MILR6855 | 2011-11-333 | 20 | SG |
| MILR6855 | 2011-06-166 | 1 | US |
| MILR6855 | 2010-11-307 | 2 | United States |
| MILR6855 | 2010-11-305 | 2 | United States |
| MILR6855 | 2009-12-351 | 3 | US |
| MILR6855 | 2009-11-327 | 57 | US |
| MILR6855 | 2009-03-86 | 1 | United States |
| MILR6855 | 2008-12-350 | 200 | United States |
Cross Reference | NSN 4720-00-235-5455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103636-1-1000 | 70898 | BEECHCRAFT CORPORATION DBA HAWKER BEECHCRAFT |
| 5361000813537 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 64070-20004-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| AMS-R-6855 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M6855/4-10L109 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M6855/4-22L109 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6855 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S1080930-04E062-18000 | 18355 | BOEING COMPANY, THE DBA BOEING |
| S1080930-04E062-18000 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-235-5455
Related Products | NSN 4720-00-235-5455
Technical Data | NSN 4720-00-235-5455
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1500.0 POUNDS PER SQUARE INCH |
| TUBING MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

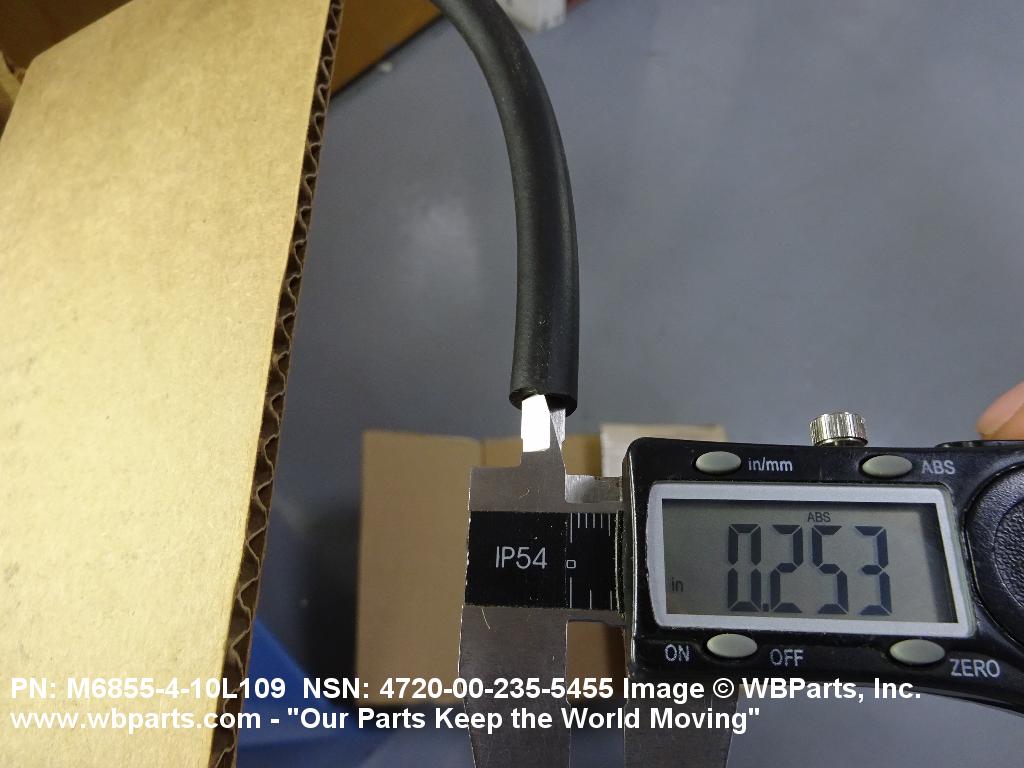

| INSIDE DIAMETER | 0.250 INCHES NOMINAL |

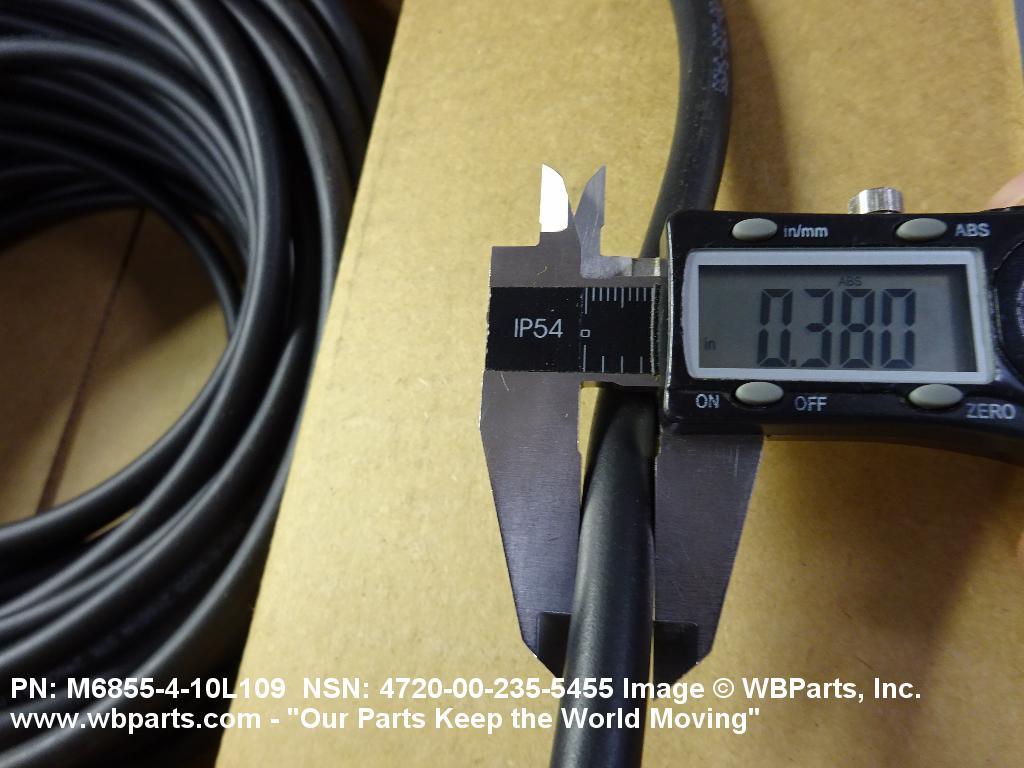

| OUTSIDE DIAMETER | 0.376 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 1800.000 INCHES NOMINAL OVERALL |
| FLEXIBILITY | FLEXIBLE |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-6855 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND 60 GRADE AND A TYPE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M6855/4-10L109 |
Restrictions/Controls & Freight Information | NSN 4720-00-235-5455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-235-5455
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
Z FT : Foot |
