NSN 4720-00-289-1409 M370B051B0500B, NCS36, PE1174-0 ITEM 18
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-289-1409 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M370B051B0500B, NCS36, PE1174-0 ITEM 18, PE11740ITEM18, MILPRF370J, MIL-PRF-370J, FB907607, FB9076-07, G33H52820, G33H528-20, 1681051, 33H2, 33H8, 4720-00-289-1409, 00-289-1409, 4720002891409, 002891409
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-1409 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

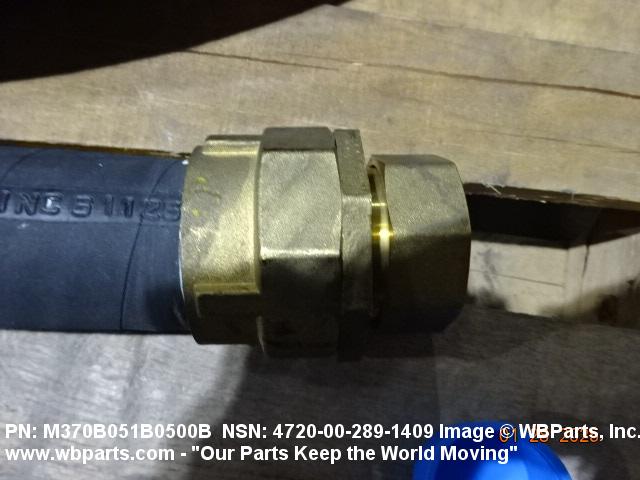

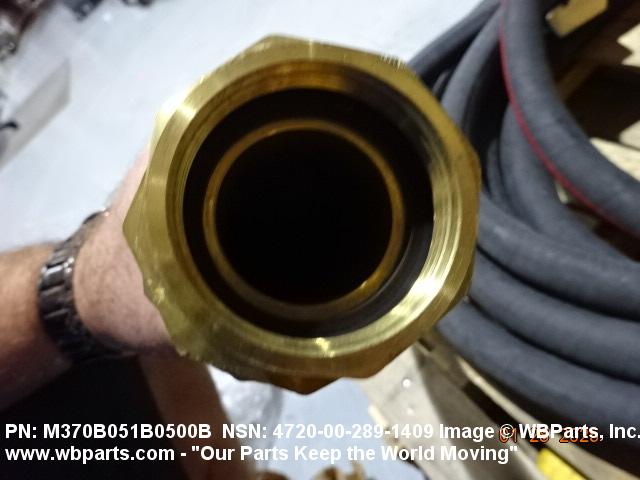

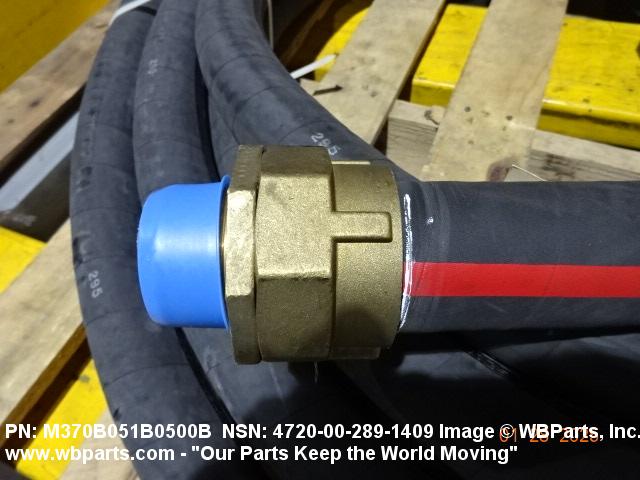

Drawings & Photos | NSN 4720-00-289-1409
Demand History | NSN 4720-00-289-1409
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-289-1409 | 2025-07-212 | 612 | DIBBS |
| 4720-00-289-1409 | 2024-12-337 | 1 | United States |
| 4720-00-289-1409 | 2024-10-275 | 450 | US |
| 4720-00-289-1409 | 2024-10-275 | 450 | DIBBS |
| 4720-00-289-1409 | 2024-09-270 | 162 | DIBBS |
| 4720-00-289-1409 | 2024-07-199 | 1 | United States |
| 4720-00-289-1409 | 2024-03-81 | 10 | DIBBS |
| 4720-00-289-1409 | 2024-03-74 | 596 | DIBBS |
| 4720-00-289-1409 | 2024-03-65 | 449 | DIBBS |
| 4720-00-289-1409 | 2024-02-36 | 217 | DIBBS |
| 4720-00-289-1409 | 2024-01-02 | 315 | DIBBS |
| 4720-00-289-1409 | 2023-11-316 | 149 | DIBBS |
| 4720-00-289-1409 | 2023-10-299 | 263 | DIBBS |
| 4720-00-289-1409 | 2023-04-96 | 89 | DIBBS |
| 4720-00-289-1409 | 2023-03-65 | 2 | US |
| 4720-00-289-1409 | 2023-01-03 | 60 | US |
| 4720-00-289-1409 | 2022-12-335 | 272 | DIBBS |
| 4720-00-289-1409 | 2022-06-173 | 144 | DIBBS |
| 4720-00-289-1409 | 2022-03-90 | 105 | DIBBS |
| 4720-00-289-1409 | 2021-11-308 | 39 | DIBBS |
| 4720-00-289-1409 | 2021-04-112 | 98 | DIBBS |
| 4720-00-289-1409 | 2021-02-35 | 584 | DIBBS |
| 4720-00-289-1409 | 2021-02-35 | 252 | DIBBS |
| 4720-00-289-1409 | 2021-01-03 | 58 | DIBBS |
| 4720-00-289-1409 | 2020-10-296 | 61 | DIBBS |
| 4720-00-289-1409 | 2019-08-234 | 45 | DIBBS |
| 4720-00-289-1409 | 2019-03-80 | 93 | DIBBS |
| 4720-00-289-1409 | 2019-03-70 | 1 | SA |
| 4720-00-289-1409 | 2019-02-38 | 273 | DIBBS |
| 4720-00-289-1409 | 2019-01-15 | 87 | DIBBS |
| 4720-00-289-1409 | 2018-12-343 | 74 | DIBBS |
| 4720-00-289-1409 | 2018-11-305 | 17 | DIBBS |
| 4720-00-289-1409 | 2018-10-277 | 100 | DIBBS |
| 4720-00-289-1409 | 2018-05-126 | 68 | DIBBS |
| 4720-00-289-1409 | 2018-03-67 | 11 | DIBBS |
| 4720-00-289-1409 | 2017-12-362 | 61 | DIBBS |
| 4720-00-289-1409 | 2017-11-334 | 59 | DIBBS |
| 4720-00-289-1409 | 2017-11-323 | 124 | DIBBS |
| 4720-00-289-1409 | 2017-11-317 | 150 | US |
| 4720-00-289-1409 | 2017-10-297 | 103 | DIBBS |
| 4720-00-289-1409 | 2017-09-247 | 90 | DIBBS |
| 4720-00-289-1409 | 2017-08-215 | 74 | DIBBS |
| 4720-00-289-1409 | 2017-07-186 | 81 | DIBBS |
| 4720-00-289-1409 | 2017-06-171 | 102 | DIBBS |
| 4720-00-289-1409 | 2017-06-164 | 111 | DIBBS |
| 4720-00-289-1409 | 2017-05-128 | 165 | DIBBS |
| 4720-00-289-1409 | 2017-04-120 | 55 | DIBBS |
| 4720-00-289-1409 | 2017-04-103 | 1 | US |
| 4720-00-289-1409 | 2016-12-340 | 81 | DIBBS |
| 4720-00-289-1409 | 2016-04-118 | 70 | DIBBS |
| 4720-00-289-1409 | 2016-04-97 | 72 | DIBBS |
| 4720-00-289-1409 | 2016-02-54 | 130 | DIBBS |
| 4720-00-289-1409 | 2016-02-35 | 149 | DIBBS |
| 4720-00-289-1409 | 2014-07-206 | 4 | Taiwan |
| 4720-00-289-1409 | 2011-11-309 | 6 | US |
| M370B051B0500B | 2011-01-24 | 2 | United States |
| 4720-00-289-1409 | 2010-08-230 | 108 | DIBBS |
| 4720-00-289-1409 | 2010-03-74 | 152 | DIBBS |
| 4720-00-289-1409 | 2009-11-329 | 160 | DIBBS |
| 4720-00-289-1409 | 2009-03-77 | 242 | DIBBS |
Cross Reference | NSN 4720-00-289-1409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1681051 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| 33H2 | 10152 | BUTLER MANUFACTURING COMPANY INC |
| 33H8 | 10152 | BUTLER MANUFACTURING COMPANY INC |
| FB9076-07 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| G33H528-20 | 09063 | BROWN-MINNEAPOLIS TANK AND FABRICATING CO |
| M370B051B0500B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-370J | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NCS36 | 13696 | TRICO INDUSTRIES INC COLUMBIAN DIV |
| PE1174-0 ITEM 18 | 02591 | NAVAL AIR WARFARE CTR AIRCRAFT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-289-1409
Related Products | NSN 4720-00-289-1409
Technical Data | NSN 4720-00-289-1409
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | A52554 SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, BUTADIENE ACRYLONITRILE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER RUBBER IMPREGNATED BRAIDED COTTON CORD 2ND LAYER SPIRALLY WRAPPED STEEL FABRIC OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | OZONE RESISTANT AND FUEL RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 600.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| FIRST END FITTING SPEC/STD DATA | FED-H28/10 STANDARD |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | C16 PLAIN |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |
| FIRST END THREAD SERIES DESIGNATOR | NPSH |
| FIRST END NOMINAL THREAD SIZE | 1.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END QUICK DISCONNECT NOMINAL SIZE | 1.500 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | FED-H28/10 STANDARD |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | D5 PLAIN |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |
| SECOND END THREAD SERIES DESIGNATOR | NPSH |
| SECOND END NOMINAL THREAD SIZE | 1.500 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END QUICK DISCONNECT NOMINAL SIZE | 1.500 INCHES |
| TEMP RATING | -32.0 DEG CELSIUS AND 52.0 DEG CELSIUS |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HYDROSTATIC TEST PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | ELECTROSTATIC DISCHARGE CAPABILITY |
| SPECIFICATION/STANDARD DATA | 81349-A-A52554 MANUFACTURERS SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 5 SIZE AND 1 CLASS AND B STYLE |
| III SPECIAL MARKINGS | MIL-H-370,TYPE 2,LIQUID FUEL |
Restrictions/Controls & Freight Information | NSN 4720-00-289-1409
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-289-1409
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | R | 48 months |
| Purchasing | QTY UOM |
1 EA : Each |
