NSN 4720-00-307-0396 AL58133, AL581-33, D3213
Product Details | AIR DUCT HOSE ASSEMBLY
4720-00-307-0396 A length of HOSE, AIR DUCT with couplings on one or both ends. Excludes items which include a branch hose or fork hose, HOSE ASSEMBLY, NONMETALLIC.20242400027Safety and Rescue Equipment47200024Hose and Flexible Tubing
Part Alternates: AL58133, AL581-33, D3213, 20581633, 20-58163-3, 3009031, 300903-1, 91065, 4720-00-307-0396, 00-307-0396, 4720003070396, 003070396
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-307-0396 | 18451 ( HOSE ASSEMBLY, AIR DUCT ) |
Drawings & Photos | NSN 4720-00-307-0396
Cross Reference | NSN 4720-00-307-0396
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20-58163-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 300903-1 | 70628 | ARROWHEAD PRODUCTS CORPORATION |
| 91065 | 70628 | ARROWHEAD PRODUCTS CORPORATION |
| 91065 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| AL581-33 | 98891 | HBD INDUSTRIES, INC DBA CHANUTE OPERATIONS |
| D3213 | 75345 | KIRKHILL-TA CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-00-307-0396
Technical Data | NSN 4720-00-307-0396
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER 1ST PLY FIBERGLASS AND RUBBER CHLOROPRENE CLASS CR 2ND PLY STEEL REINFORCING WIRE |
| SURFACE TREATMENT | ENAMEL 1ST END COUPLING |
| STYLE DESIGNATOR | A3 FULLY CONVOLUTED W/WIRE RINGS BETWEN CONVOLUTIONS |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 3.000 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.375 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 16.250 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END |

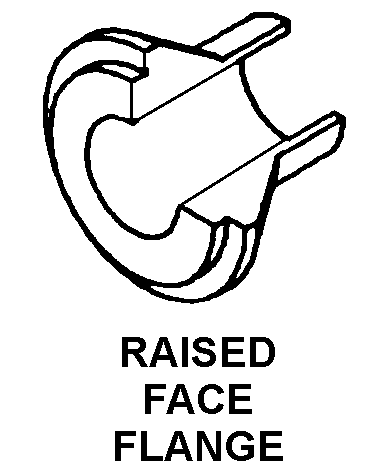

| COUPLING STYLE | D3 RAISED FACE FLANGE FIRST END |
| MAXIMUM OPERATING PRESSURE | 16.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | FLANGED SIDE INLET; HEX STYLE; ALUMINUM; 2/6 BOLT HOLES 0.312 IN. DIA; INLET 2.781 IN. ID |
Restrictions/Controls & Freight Information | NSN 4720-00-307-0396
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
