NSN 4720-00-402-9516 MS50007740104, MS500077-4-0104, MS500077A40104
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-402-9516 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: MS50007740104, MS500077-4-0104, MS500077A40104, FG1997EEE0112, 4720-00-402-9516, 00-402-9516, 4720004029516, 004029516
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 JUN 1970 | 00-402-9516 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

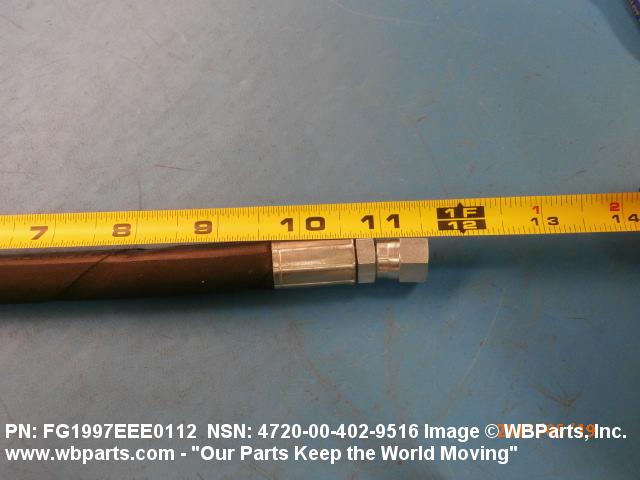

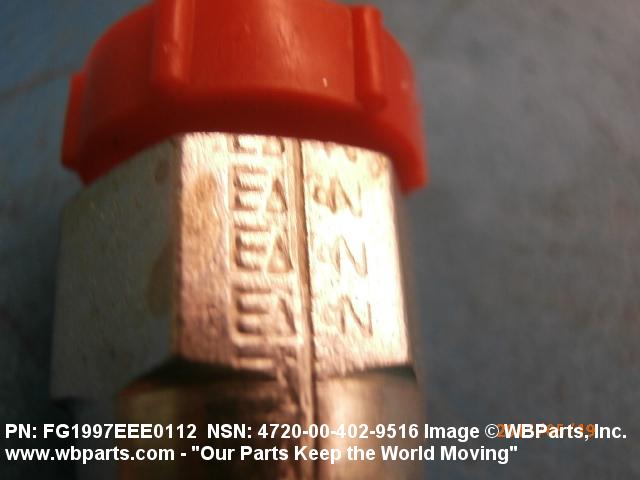

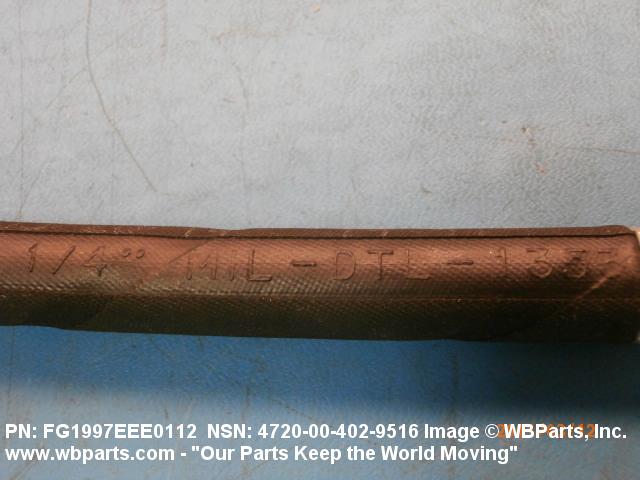

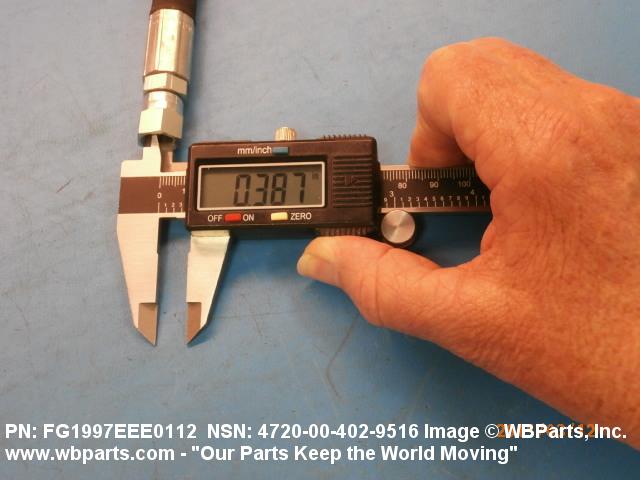

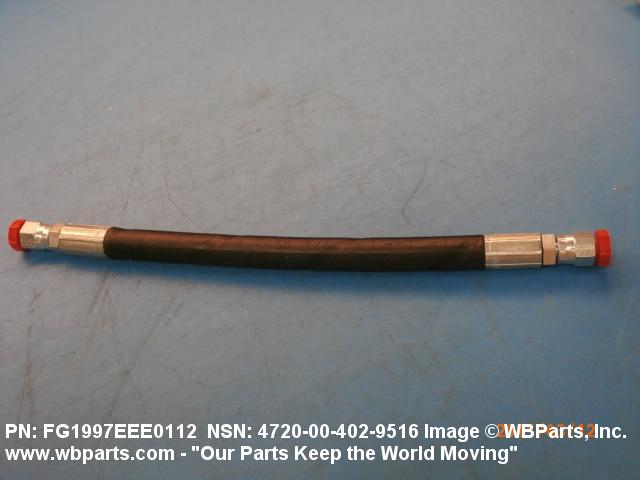

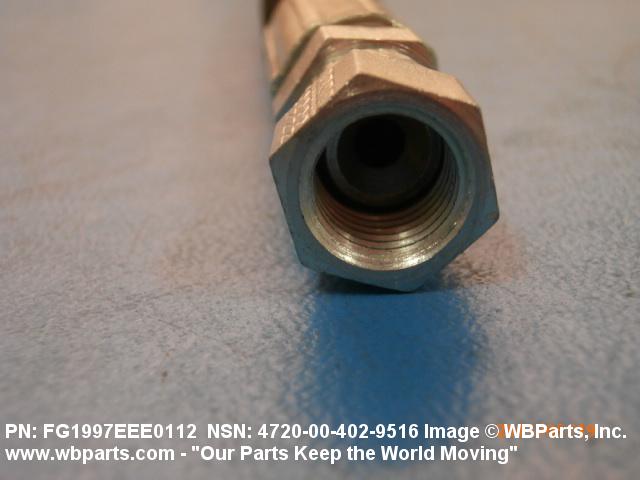

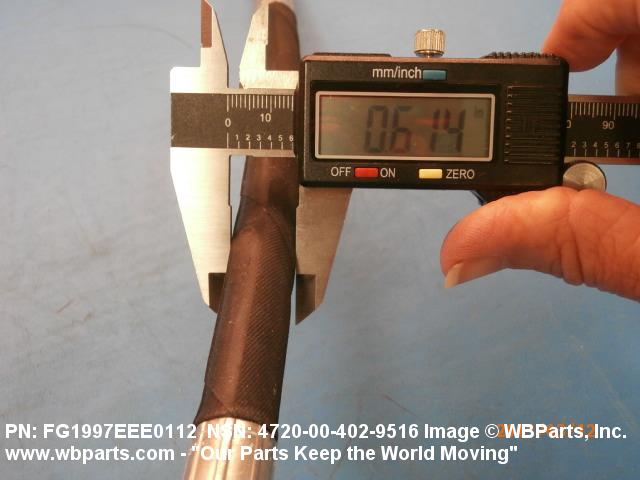

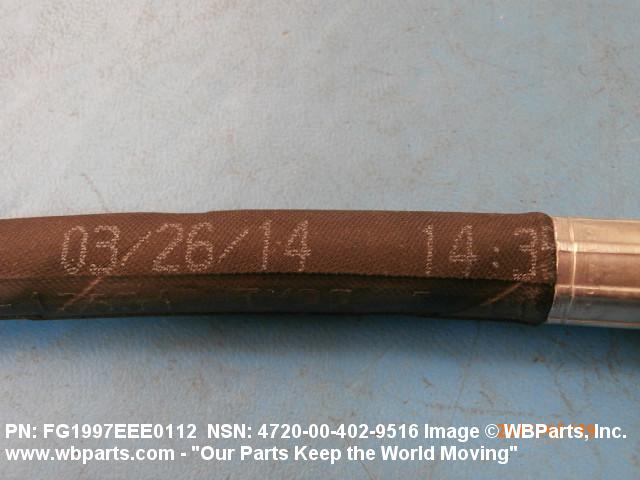

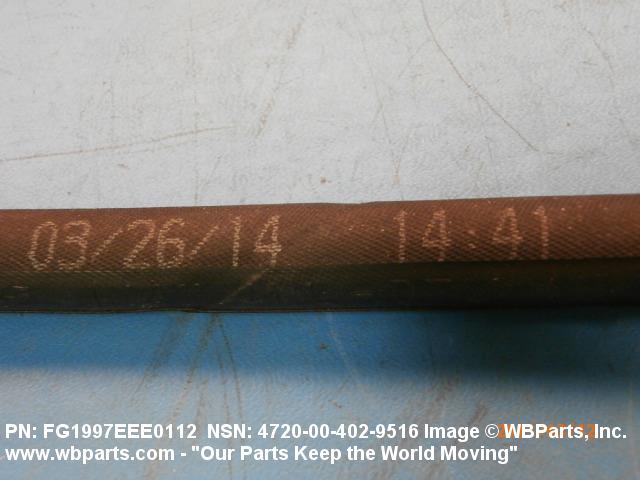

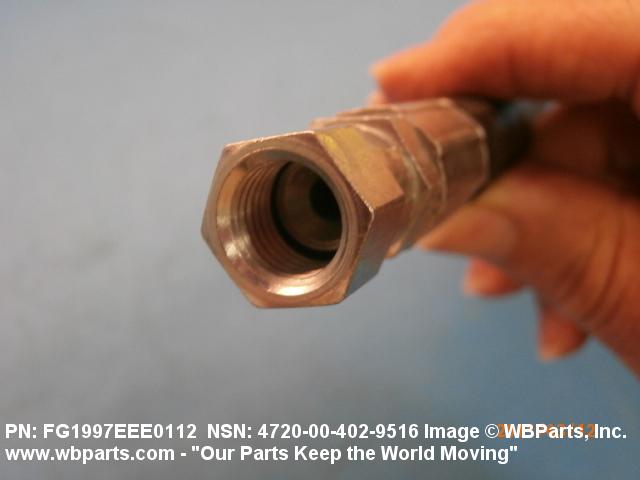

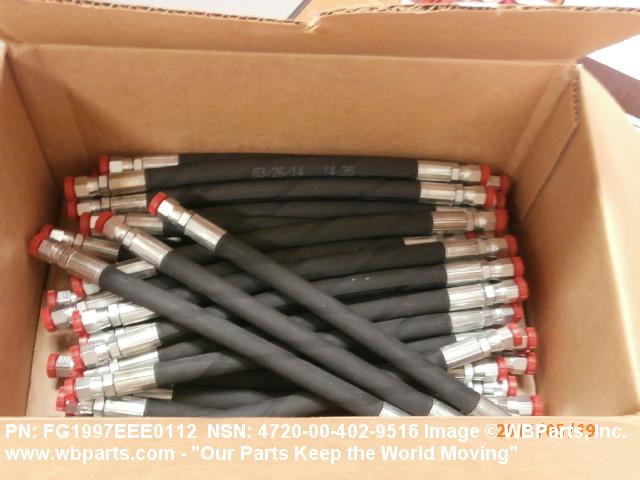

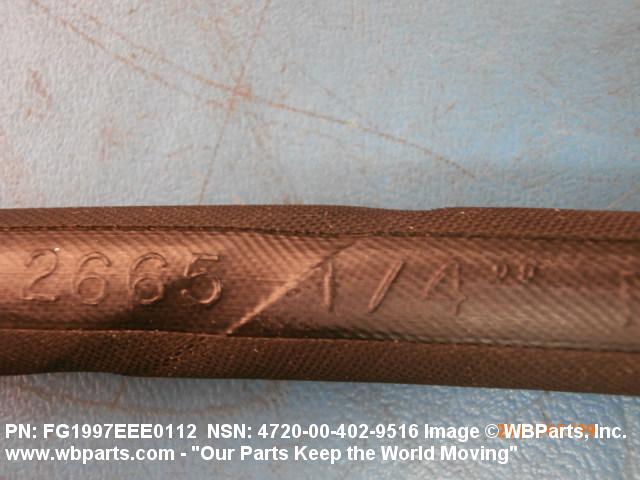

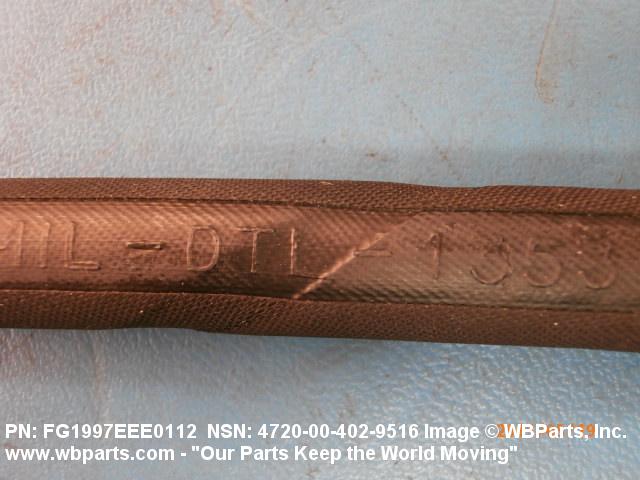

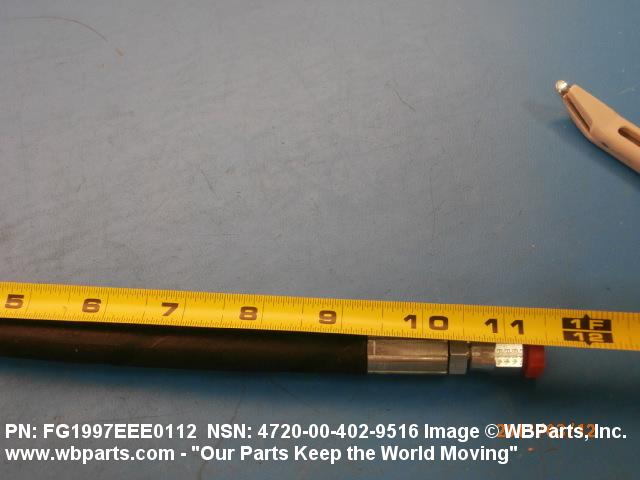

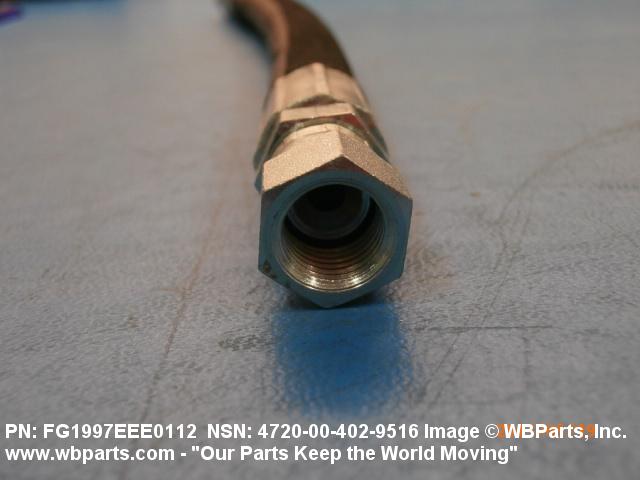

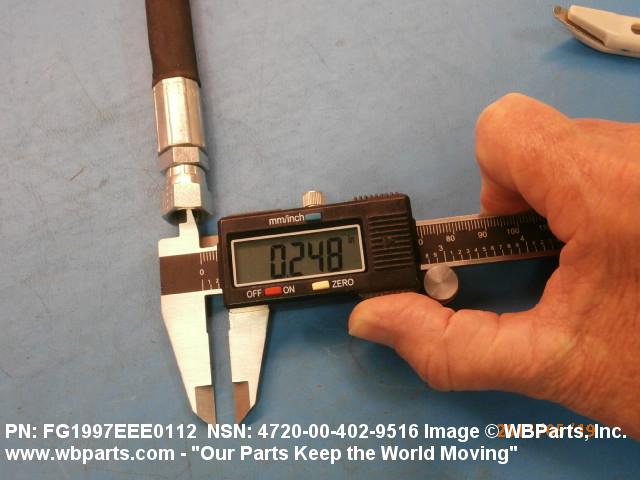

Drawings & Photos | NSN 4720-00-402-9516
Demand History | NSN 4720-00-402-9516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FG1997EEE0112 | 2015-05-121 | 44 | United States |
| FG1997EEE0112 | 2015-04-120 | 44 | United States |
| 4720-00-402-9516 | 2015-02-48 | 24 | United States |
Cross Reference | NSN 4720-00-402-9516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FG1997EEE0112 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| FG1997EEE0112 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| MS500077-4-0104 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS500077A40104 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-402-9516
Related Products | NSN 4720-00-402-9516
Technical Data | NSN 4720-00-402-9516
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL MIL-H-13531,TYPE 1,CLASS A OR B SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE |
| OUTER COVERING ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND OIL RESISTANT AND OZONE RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.242 INCHES MINIMUM AND 0.273 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.504 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| MEASURING METHOD AND LENGTH | 10.500 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 4.000 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING CADMIUM, QQ-P-416, TYPE 2, CLASS 3 OR COMPLETE FITTING ZINC, QQ-Z-325, TYPE 2, CLASS 2 |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 2B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | 2750.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 5500.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 11000.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 96906-MS500077 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS500077A40104 |
Restrictions/Controls & Freight Information | NSN 4720-00-402-9516
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
