NSN 4720-00-430-4231 FG2028MMN0340, 10921189, 2766142016S34
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-430-4231 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: FG2028MMN0340, 10921189, 2766142016S34, 276614-20-16S34, 4720-00-430-4231, 00-430-4231, 4720004304231 , 004304231
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-430-4231 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

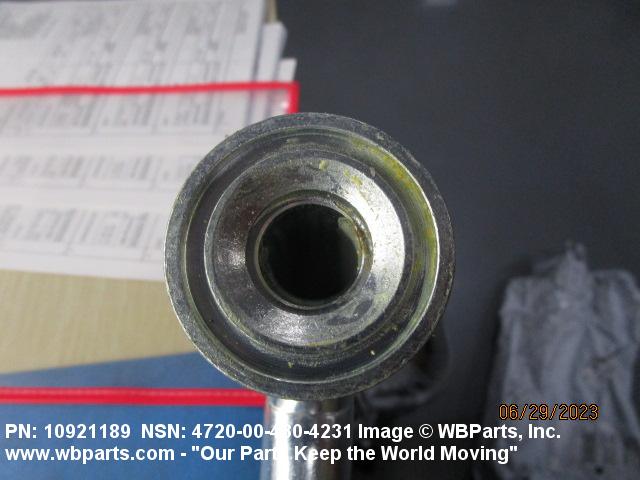

Drawings & Photos | NSN 4720-00-430-4231
Demand History | NSN 4720-00-430-4231
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-430-4231 | 2025-04-118 | 47 | DIBBS |
| 4720-00-430-4231 | 2024-11-310 | 41 | DIBBS |
| 4720-00-430-4231 | 2024-02-46 | 38 | DIBBS |
| 4720-00-430-4231 | 2023-06-163 | 1 | Poland |
| 4720-00-430-4231 | 2023-04-96 | 71 | DIBBS |
| 4720-00-430-4231 | 2023-03-90 | 10 | Germany |
| 4720-00-430-4231 | 2022-07-209 | 38 | DIBBS |
| 4720-00-430-4231 | 2022-03-76 | 72 | DIBBS |
| 4720-00-430-4231 | 2022-02-53 | 14 | DIBBS |
| 4720-00-430-4231 | 2022-02-41 | 14 | DIBBS |
| 4720-00-430-4231 | 2021-11-312 | 10 | DIBBS |
| 4720-00-430-4231 | 2021-10-301 | 10 | DIBBS |
| 4720-00-430-4231 | 2020-11-331 | 97 | Korea |
| 4720-00-430-4231 | 2020-10-294 | 78 | DIBBS |
| 4720-00-430-4231 | 2020-08-237 | 148 | Korea |
| 4720-00-430-4231 | 2019-12-337 | 1 | Denmark |
| 4720-00-430-4231 | 2019-08-218 | 12 | United States |
| 4720-00-430-4231 | 2019-05-122 | 153 | DIBBS |
| 4720-00-430-4231 | 2019-04-95 | 1 | United States |
| 4720-00-430-4231 | 2015-10-292 | 20 | DIBBS |
| 4720-00-430-4231 | 2015-10-280 | 20 | DIBBS |
| 4720-00-430-4231 | 2011-07-195 | 1 | DIBBS |
| 4720-00-430-4231 | 2011-07-195 | 4 | DIBBS |
| 4720-00-430-4231 | 2011-07-195 | 6 | DIBBS |
| 4720-00-430-4231 | 2011-07-195 | 8 | DIBBS |
| 4720-00-430-4231 | 2011-07-195 | 9 | DIBBS |
| 4720-00-430-4231 | 2011-03-68 | 1 | MANUAL |
Cross Reference | NSN 4720-00-430-4231
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10921189 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 276614-20-16S34 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 4720004304231 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| FG2028MMN0340 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-430-4231
Related Products | NSN 4720-00-430-4231
Technical Data | NSN 4720-00-430-4231
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-H-13531 TYPE 2,CLASS A SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, BUTADIENE ACRYLONITRILE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED STEEL WIRE 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE |
| OUTER COVERING ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND OIL RESISTANT AND OZONE RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 34.875 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 11.000 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, QQ-S-633-CANCELED |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |
| FIRST END THREAD SERIES DESIGNATOR | UN |
| FIRST END NOMINAL THREAD SIZE | 1.312 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 |
| FIRST END THREAD CLASS | 2B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | PLAIN FACE FLANGE |
| SECOND END STYLE DESIGNATOR | G1 PLAIN |
| SECOND END FLANGE CONSTRUCTION | SOLID |
| SECOND END FLANGE SHAPE STYLE | 6 ROUND W/BOLT HOLES |
| SECOND END FLANGE OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| SECOND END FLANGE THICKNESS | 0.560 INCHES NOMINAL |
| SECOND END CONNECTION DESIGN | ELBOW |
| SECOND END FLOW ANGLE IN DEG | 97.0 |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, QQ-S-633-CANCELED |
| SECOND END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 2000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 4000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 8000.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10921189 |
