NSN 4720-00-483-0703 AE1004638G0210, AE2463424G0210, 000AE906W0210
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-483-0703 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AE1004638G0210, AE2463424G0210, 000AE906W0210, 000AE90-6W-0210, 170U1416CR0210, 170U141-6CR0210, 660606060210J, 66060606-0210J, 4720-00-483-0703, 00-483-0703, 4720004830703, 004830703
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 FEB 1971 | 00-483-0703 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

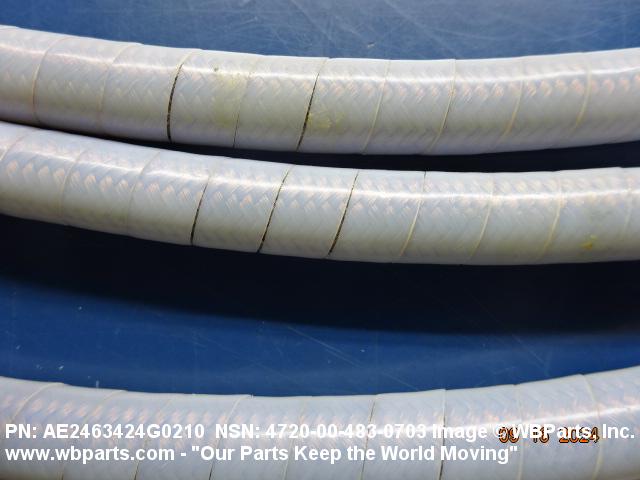

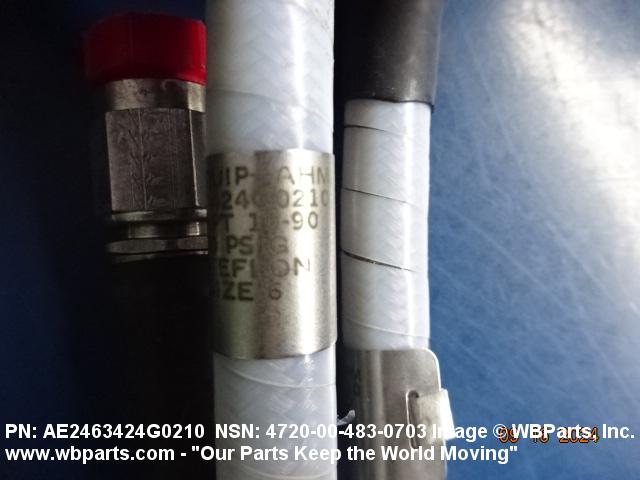

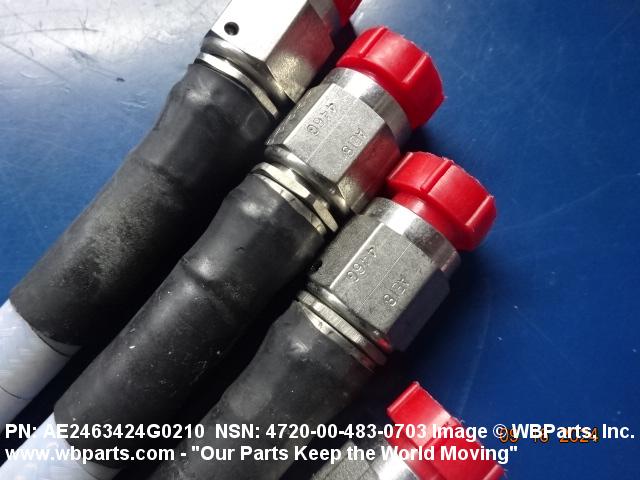

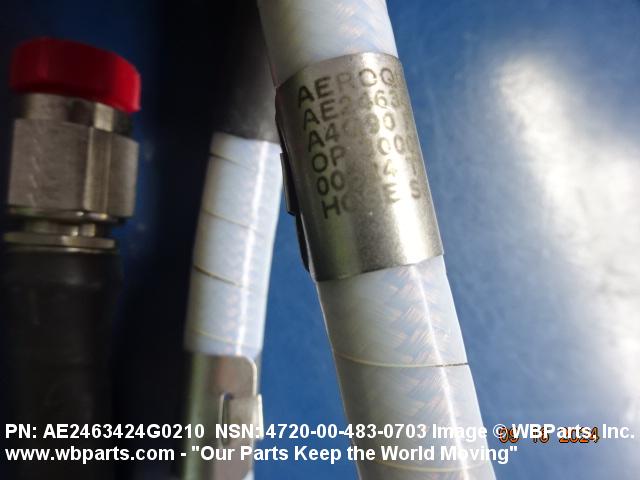

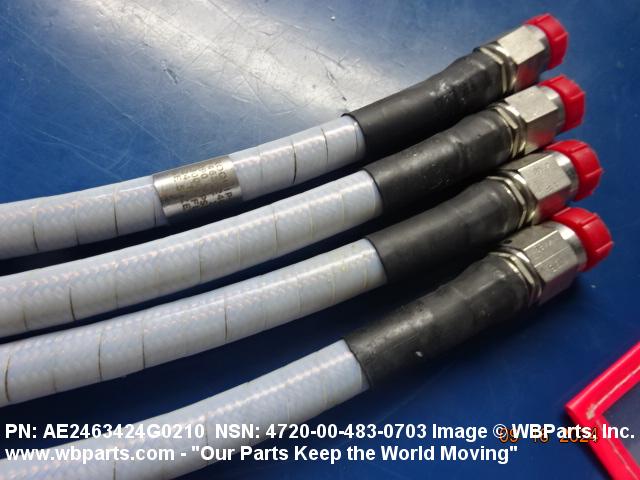

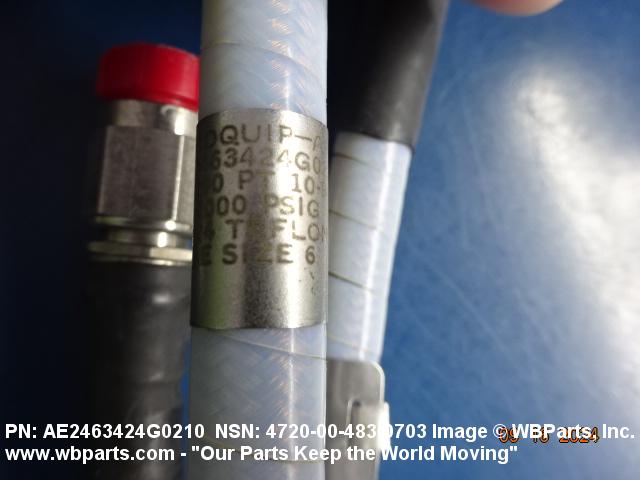

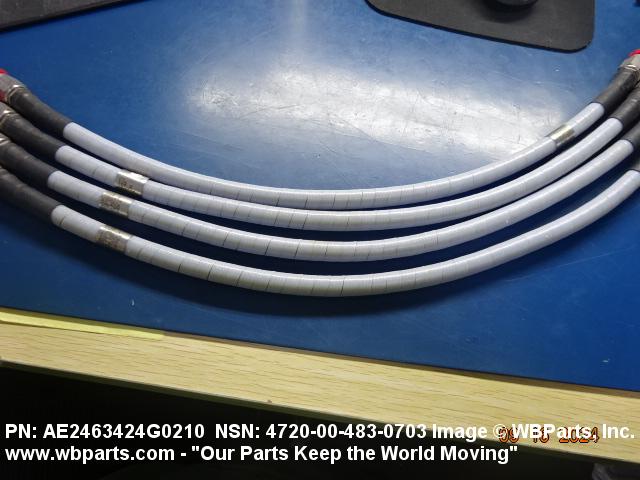

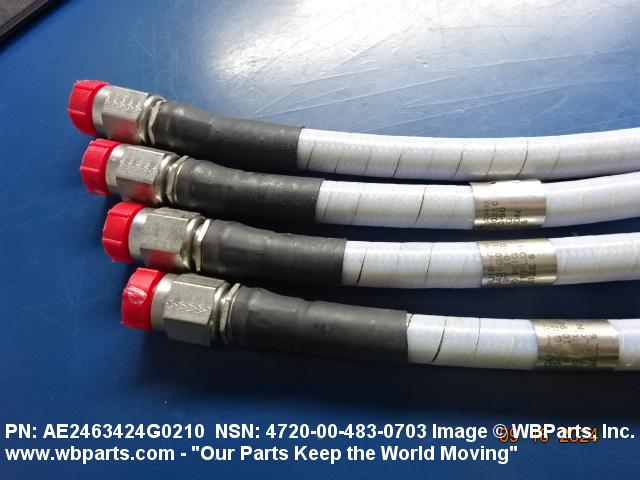

Drawings & Photos | NSN 4720-00-483-0703
Demand History | NSN 4720-00-483-0703
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE1004638G0210 | 2024-08-234 | 4 | Canada |
| 000AE90-6W-0210 | 2024-03-71 | 66 | DIBBS |
| 170U141-6CR0210 | 2024-03-71 | 66 | DIBBS |
| 66060606-0210J | 2024-03-71 | 66 | DIBBS |
| AE2463424G0210 | 2024-03-71 | 66 | DIBBS |
| 000AE90-6W-0210 | 2023-04-96 | 66 | DIBBS |
| 170U141-6CR0210 | 2023-04-96 | 66 | DIBBS |
| 66060606-0210J | 2023-04-96 | 66 | DIBBS |
| AE2463424G0210 | 2023-04-96 | 66 | DIBBS |
| 000AE90-6W-0210 | 2022-07-209 | 55 | DIBBS |
| 170U141-6CR0210 | 2022-07-209 | 55 | DIBBS |
| 66060606-0210J | 2022-07-209 | 55 | DIBBS |
| AE2463424G0210 | 2022-07-209 | 55 | DIBBS |
| 4720-00-483-0703 | 2021-06-161 | 4 | MY |
| AE1004638G0210 | 2021-06-159 | 4 | Malaysia |
| 4720-00-483-0703 | 2017-03-78 | 68 | DIBBS |
| 4720-00-483-0703 | 2014-05-133 | 1 | DIBBS-RFPs |
| AE1004638G0210 | 2014-04-107 | 2 | US |
| 4720-00-483-0703 | 2012-11-325 | 0 | DIBBS |
| 4720-00-483-0703 | 2012-06-181 | 31 | DIBBS |
| 4720-00-483-0703 | 2012-04-95 | 30 | DIBBS |
| 4720-00-483-0703 | 2012-03-61 | 49 | DIBBS |
| AE1004638G0210 | 2012-02-43 | 1 | us |
| 4720-00-483-0703 | 2012-02-39 | 52 | DIBBS |
| 4720-00-483-0703 | 2011-11-326 | 19 | DIBBS |
| 4720-00-483-0703 | 2011-10-297 | 19 | DIBBS |
| 4720-00-483-0703 | 2011-08-227 | 18 | DIBBS |
| 4720-00-483-0703 | 2011-07-194 | 40 | DIBBS |
| 4720-00-483-0703 | 2009-05-125 | 28 | DIBBS |
Cross Reference | NSN 4720-00-483-0703
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000AE90-6W-0210 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| 170U141-6CR0210 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 66060606-0210J | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
| AE1004638G0210 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AE2463424G0210 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-483-0703
Related Products | NSN 4720-00-483-0703
Technical Data | NSN 4720-00-483-0703
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| EXTERIOR COLOR | NATURAL |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.547 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 21.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 5.000 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C12 SWIVEL NUT, FLARELESS |
| FIRST END SEAT ANGLE IN DEG | 12.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, AISI 304 |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING PASSIVATED |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.562 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 400.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 6000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 14000.0 POUNDS PER SQUARE INCH |
| EXTERNAL PROTECTION TYPE AND LOCATION | OVERALL CHAFE GUARD, SPIRALLY WRAPPED POLYTETRAFLUOROETHYLENE |
| FEATURES PROVIDED | ELECTROSTATIC DISCHARGE CAPABILITY |
Restrictions/Controls & Freight Information | NSN 4720-00-483-0703
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-483-0703
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
