NSN 4720-00-507-7264 MS8000F280C, 00-507-7264, 005077264
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-507-7264 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: MS8000F280C, 4720-00-507-7264, 00-507-7264, 4720005077264, 005077264
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 JUL 1974 | 00-507-7264 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

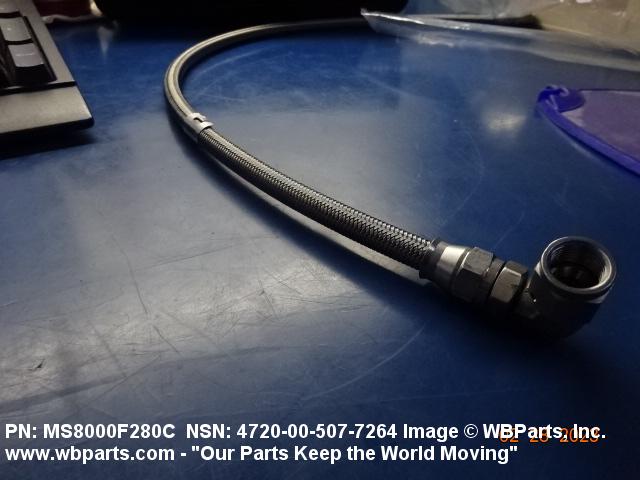

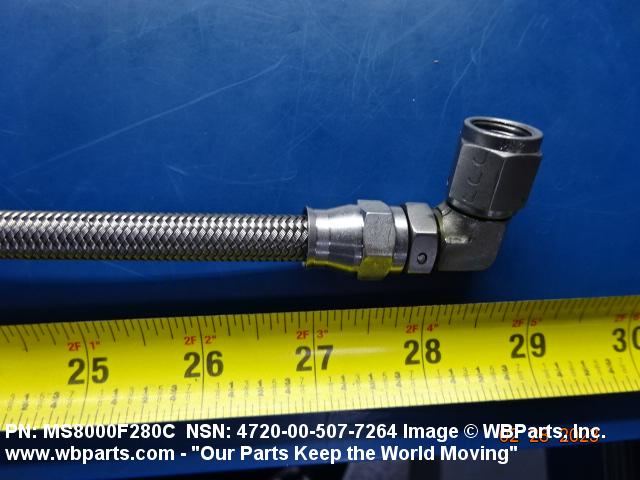

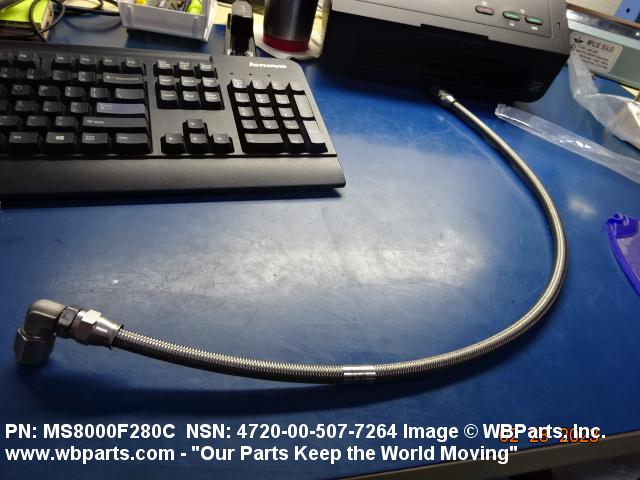

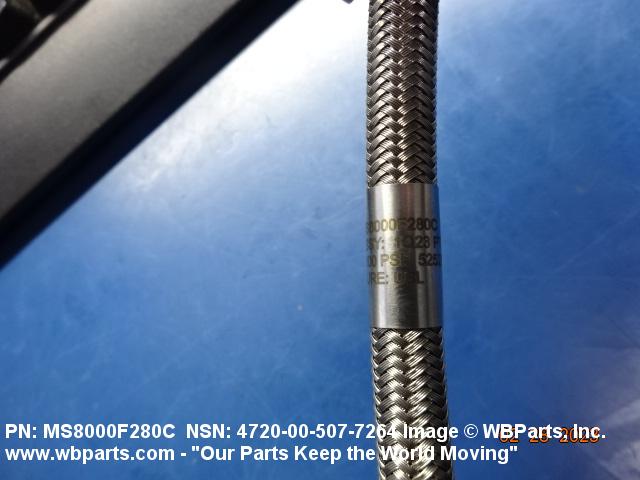

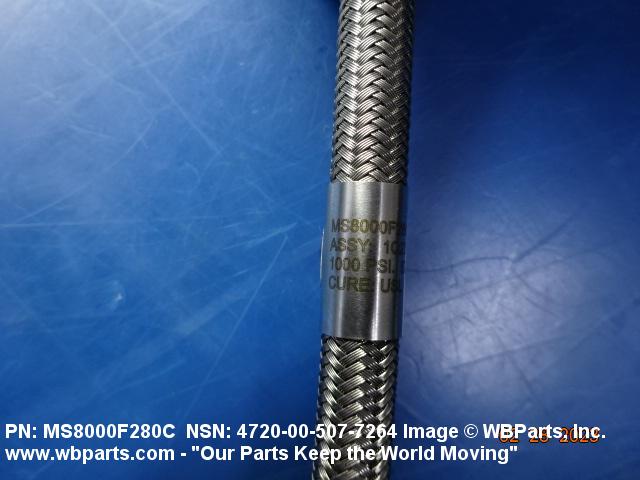

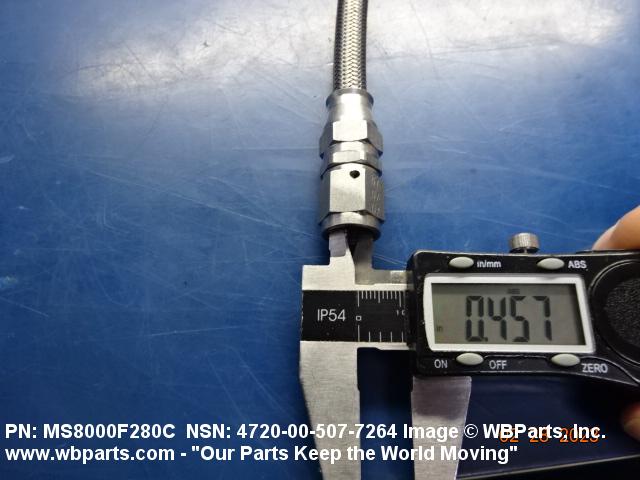

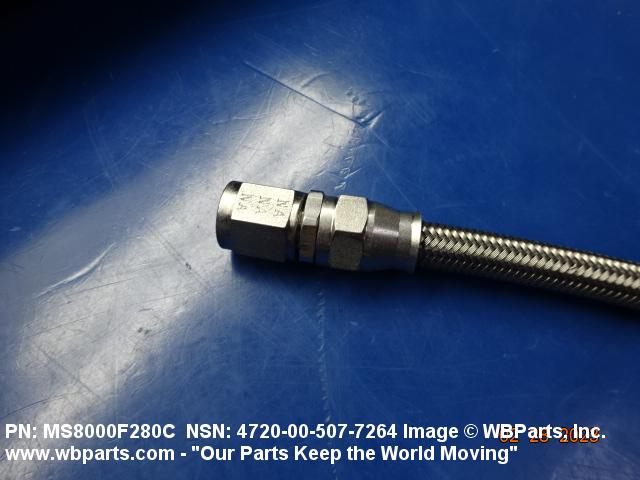

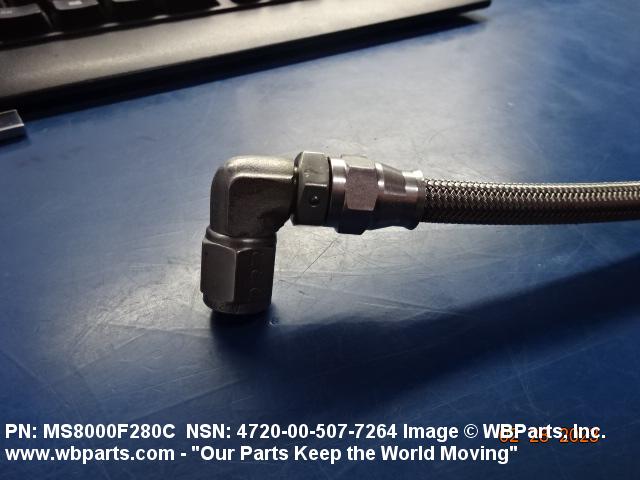

Drawings & Photos | NSN 4720-00-507-7264
Demand History | NSN 4720-00-507-7264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-507-7264 | 2025-11-331 | 24 | DIBBS |
| 4720-00-507-7264 | 2023-12-348 | 29 | DIBBS |
| 4720-00-507-7264 | 2023-08-215 | 28 | DIBBS |
| 4720-00-507-7264 | 2023-07-187 | 19 | DIBBS |
| 4720-00-507-7264 | 2023-04-116 | 10 | IT |
| 4720-00-507-7264 | 2022-12-343 | 1 | United States |
| 4720-00-507-7264 | 2022-12-342 | 1 | United States |
| 4720-00-507-7264 | 2022-07-209 | 44 | DIBBS |
| 4720-00-507-7264 | 2022-05-132 | 29 | DIBBS |
| 4720-00-507-7264 | 2022-04-111 | 6 | DIBBS |
| 4720-00-507-7264 | 2022-02-41 | 51 | DIBBS |
| 4720-00-507-7264 | 2021-07-182 | 15 | DIBBS |
| 4720-00-507-7264 | 2021-06-172 | 50 | DIBBS |
| 4720-00-507-7264 | 2021-06-161 | 12 | DIBBS |
| 4720-00-507-7264 | 2021-06-154 | 50 | DIBBS |
| 4720-00-507-7264 | 2021-05-147 | 9 | DIBBS |
| 4720-00-507-7264 | 2021-05-133 | 11 | DIBBS |
| 4720-00-507-7264 | 2020-11-331 | 1 | Indonesia |
| 4720-00-507-7264 | 2020-10-294 | 50 | DIBBS |
| 4720-00-507-7264 | 2017-11-311 | 116 | DIBBS |
| 4720-00-507-7264 | 2017-04-107 | 78 | DIBBS |
| 4720-00-507-7264 | 2017-04-94 | 78 | DIBBS |
| 4720-00-507-7264 | 2015-09-253 | 81 | DIBBS |
| 4720-00-507-7264 | 2013-07-185 | 75 | DIBBS |
| 4720-00-507-7264 | 2009-09-246 | 120 | DIBBS |
| 4720-00-507-7264 | 2009-07-212 | 95 | DIBBS |
| 4720-00-507-7264 | 2009-06-180 | 49 | DIBBS |
| 4720-00-507-7264 | 2009-06-168 | 30 | DIBBS |
| 4720-00-507-7264 | 2009-05-150 | 67 | DIBBS |
Cross Reference | NSN 4720-00-507-7264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS8000F280C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-507-7264
Related Products | NSN 4720-00-507-7264
Technical Data | NSN 4720-00-507-7264
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL MIL-H-27267,SIZE 5 SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | PLASTIC, TETRAFLUOROETHYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| EXTERIOR COLOR | NATURAL |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |

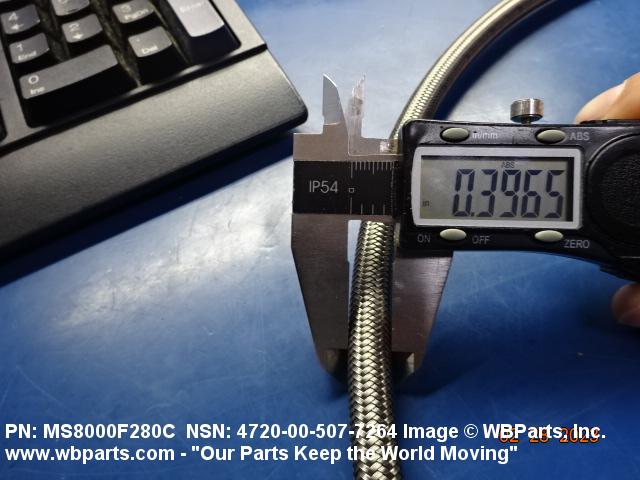

| OUTSIDE DIAMETER | 0.385 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 28.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 2.000 INCHES |
| FIRST END FITTING SPEC/STD DATA | MIL MS27053-5C STANDARD |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, CORROSION RESISTING |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING PASSIVATED, MIL-F-27272 |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.500 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | MIL MS27060-5C STANDARD |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| SECOND END SEAT ANGLE IN DEG | 37.0 |

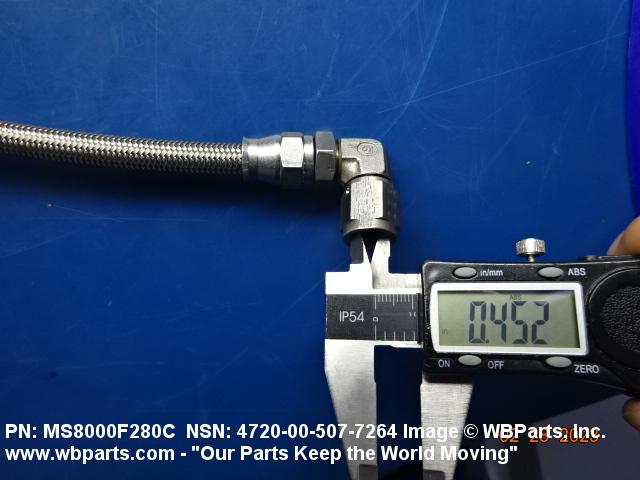

| SECOND END CONNECTION DESIGN | ELBOW |
| SECOND END FLOW ANGLE IN DEG | 90.0 |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, CORROSION RESISTING |
| SECOND END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING PASSIVATED, MIL-F-27272 |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.500 INCHES |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 450.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 10000.0 POUNDS PER SQUARE INCH |
| VACUUM IN TORR | 50.8 |
| FEATURES PROVIDED | ELECTROSTATIC DISCHARGE CAPABILITY |
| SPECIFICATION/STANDARD DATA | 96906-MS8000 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A-10 AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
Restrictions/Controls & Freight Information | NSN 4720-00-507-7264
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-507-7264
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
