NSN 4720-00-510-8769 FT2946, 41G613, 00-510-8769
Product Details | AIR DUCT HOSE ASSEMBLY
4720-00-510-8769 A length of HOSE, AIR DUCT with couplings on one or both ends. Excludes items which include a branch hose or fork hose, HOSE ASSEMBLY, NONMETALLIC.20242400027Safety and Rescue Equipment47200024Hose and Flexible Tubing
Part Alternates: FT2946, 41G613, 4720-00-510-8769, 00-510-8769, 4720005108769, 005108769
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-510-8769 | 18451 ( HOSE ASSEMBLY, AIR DUCT ) |
Drawings & Photos | NSN 4720-00-510-8769
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-00-510-8769
Technical Data | NSN 4720-00-510-8769
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE AND RUBBER CHLOROPRENE CLASS CR 1ST PLY FIBERGLASS AND RUBBER CHLOROPRENE CLASS CR 2ND PLY PLASTIC POLYAMIDE AND RUBBER CHLOROPRENE CLASS CR 3RD PLY STEEL REINFORCING WIRE |
| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 12.000 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 1.000 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 120.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END COUPLING SECOND END |

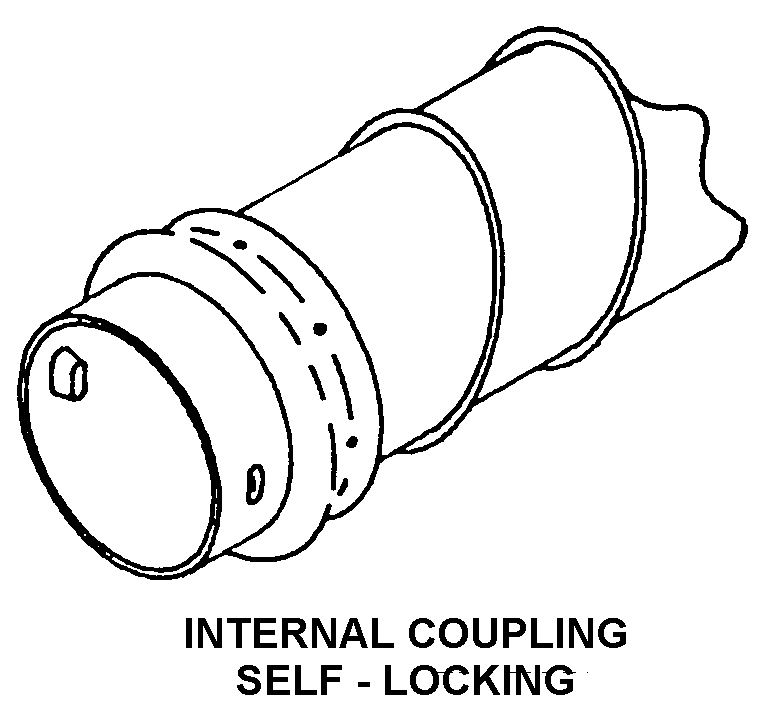

| COUPLING STYLE | D19 INTERNAL COUPLING SELF-LOCKING FIRST END D20 EXTERNAL COUPLING SELF-LOCKING SECOND END |
| MINIMUM INSIDE BENDING RADIUS | 1.000 INCHES |
| (NON-CORE DATA) TEMP RANGE | -65.0 TO 200.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 4720-00-510-8769
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051590 | PIPE/DUCT(AIR/SMOKE)D/ELBOWS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
