NSN 4720-00-585-2289 AA59567, A-A-59567, AA595671112050
Product Details | NONMETALLIC HOSE ASSEMBLY

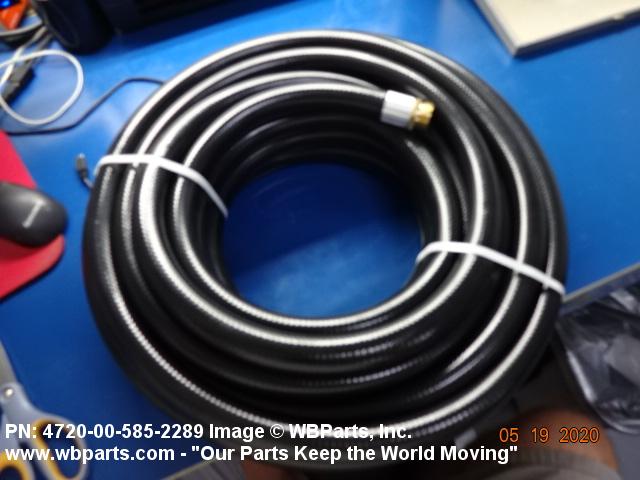

4720-00-585-2289 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AA59567, A-A-59567, AA595671112050, AA59567-1-1-12-050, AA59614, A-A-59614, AA596141W106, AA59614-1W-1-06, WWC6241W106, WWC624-1W-1-06, ZZH601, ZZ-H-601, 245011, 4720-00-585-2289, 00-585-2289, 4720005852289, 005852289
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-585-2289 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

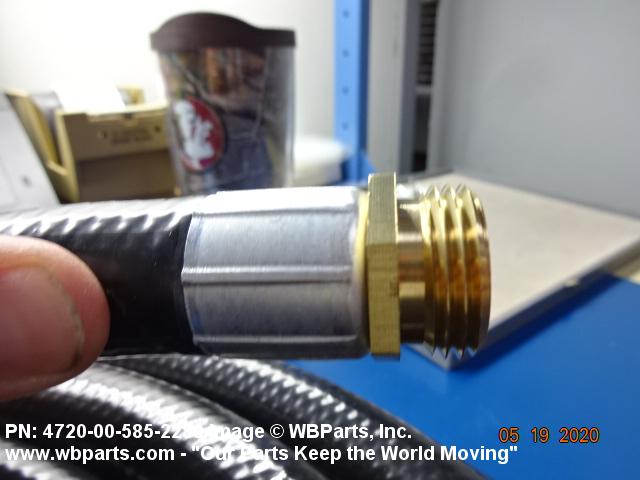

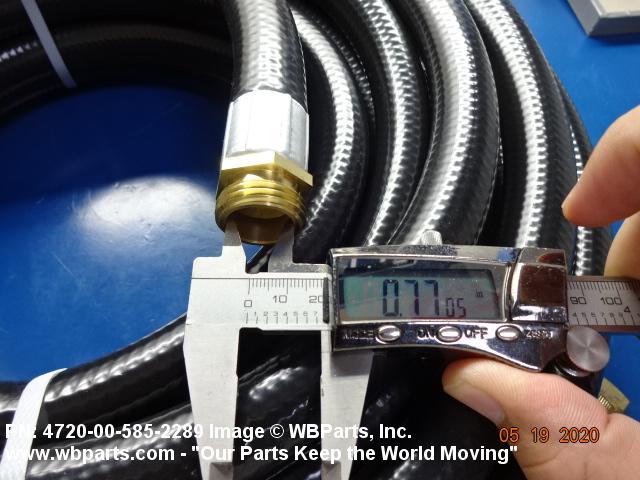

Drawings & Photos | NSN 4720-00-585-2289
Demand History | NSN 4720-00-585-2289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-585-2289 | 2025-09-261 | 174 | DIBBS |
| 4720-00-585-2289 | 2025-04-100 | 175 | DIBBS |
| 4720-00-585-2289 | 2024-11-312 | 152 | DIBBS |
| 4720-00-585-2289 | 2024-08-228 | 116 | DIBBS |
| 4720-00-585-2289 | 2024-07-200 | 185 | DIBBS |
| 4720-00-585-2289 | 2024-03-64 | 293 | DIBBS |
| 4720-00-585-2289 | 2024-02-51 | 293 | DIBBS |
| 4720-00-585-2289 | 2024-02-39 | 293 | DIBBS |
| 4720-00-585-2289 | 2023-09-254 | 138 | DIBBS |
| 4720-00-585-2289 | 2023-08-243 | 138 | DIBBS |
| 4720-00-585-2289 | 2022-11-317 | 218 | DIBBS |
| 4720-00-585-2289 | 2022-04-118 | 122 | DIBBS |
| 4720-00-585-2289 | 2021-08-231 | 388 | DIBBS |
| 4720-00-585-2289 | 2020-11-310 | 333 | DIBBS |
| 4720-00-585-2289 | 2020-09-247 | 74 | DIBBS |
| 4720-00-585-2289 | 2020-05-126 | 8 | United States |
| 4720-00-585-2289 | 2019-10-276 | 183 | DIBBS |
| 4720-00-585-2289 | 2018-02-46 | 365 | DIBBS |
| 4720-00-585-2289 | 2017-08-243 | 216 | DIBBS |
| 4720-00-585-2289 | 2017-02-37 | 155 | DIBBS |
| 4720-00-585-2289 | 2016-11-333 | 15 | US |
| 4720-00-585-2289 | 2016-08-244 | 82 | DIBBS |
| 4720-00-585-2289 | 2015-10-301 | 382 | DIBBS |
| 4720-00-585-2289 | 2015-07-207 | 144 | DIBBS |
| 4720-00-585-2289 | 2014-09-271 | 170 | DIBBS |
| 4720-00-585-2289 | 2013-12-353 | 120 | DIBBS |
| 4720-00-585-2289 | 2013-06-162 | 231 | DIBBS |
| 4720-00-585-2289 | 2013-01-03 | 161 | DIBBS |
| 4720-00-585-2289 | 2012-02-39 | 50 | DIBBS |
| 4720-00-585-2289 | 2011-12-356 | 71 | DIBBS |
Cross Reference | NSN 4720-00-585-2289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 245011 | 78393 | MINTEX INTERNATIONAL CORP |
| A-A-59567 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59614 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59567-1-1-12-050 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59614-1W-1-06 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| WWC624-1W-1-06 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| ZZ-H-601 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-585-2289
Related Products | NSN 4720-00-585-2289
Technical Data | NSN 4720-00-585-2289
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | FED ZZ-H-601,GRADE 1 SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, NATURAL OR RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED COTTON CORD 2ND LAYER SPIRALLY WRAPPED FABRIC 3RD LAYER SPIRALLY WRAPPED FABRIC 4TH LAYER WOVEN FABRIC 5TH LAYER WOVEN FABRIC OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | OZONE RESISTANT AND WEATHERPROOF |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

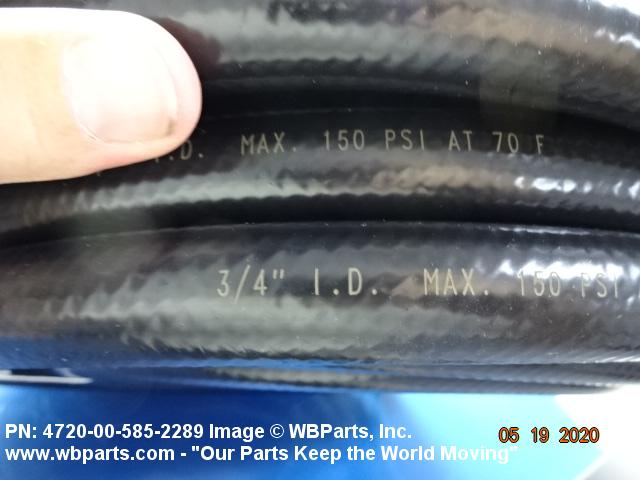

| INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |
| MEASURING METHOD AND LENGTH | 600.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| FIRST END FITTING SPEC/STD DATA | WW-C-624-1W-1-06 SPECIFICATION |

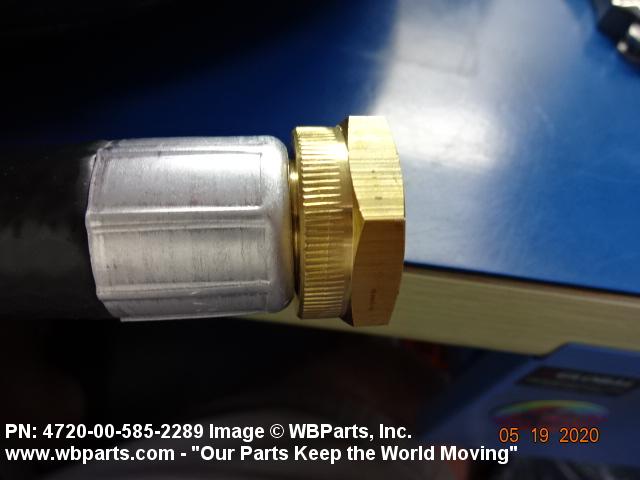

| FIRST END CONNECTION TYPE | THREADED INTERNAL HOSE |

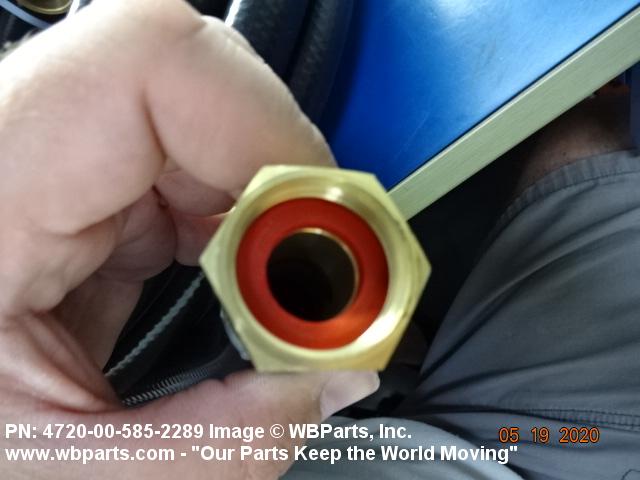

| FIRST END STYLE DESIGNATOR | C5 SWIVEL NUT, GASKET SEAL |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING COPPER ALLOY |
| FIRST END THREAD SERIES DESIGNATOR | NH |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 11-1/2 |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | WW-C-624-1W-1-06 SPECIFICATION |

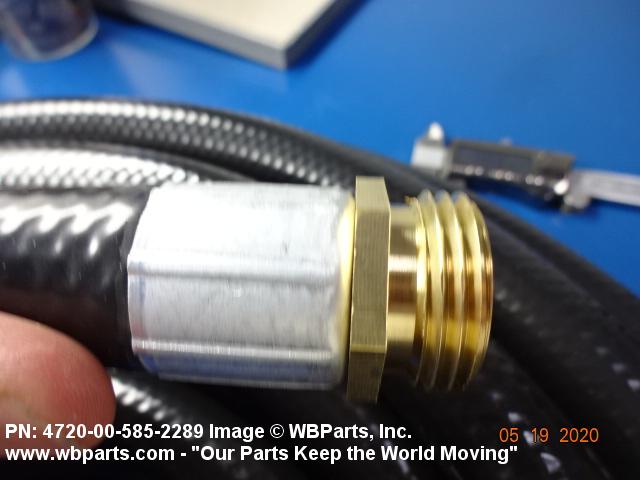

| SECOND END CONNECTION TYPE | THREADED EXTERNAL HOSE |
| SECOND END STYLE DESIGNATOR | D5 PLAIN |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING COPPER ALLOY |
| SECOND END THREAD SERIES DESIGNATOR | NH |
| SECOND END NOMINAL THREAD SIZE | 0.750 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 11-1/2 |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | 221.0 DEG FAHRENHEIT |

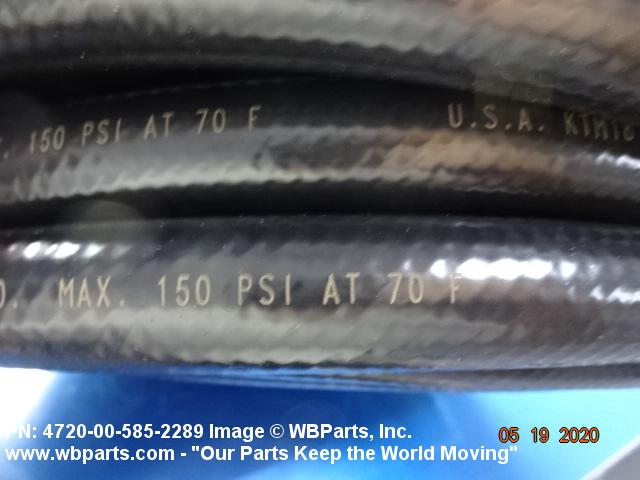

| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 600.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81348-ZZ-H-601 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 1 GRADE AND 1 CLASS |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
| MANUFACTURERS CODE | 81348 |
Restrictions/Controls & Freight Information | NSN 4720-00-585-2289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 195040 | WASTE:HOSE FABRIC RUBR COMB |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-585-2289
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
