NSN 4720-00-585-7293 M24135/2-16, M24135216, MILH24135

Product Details | NONMETALLIC HOSE

4720-00-585-7293 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing

Part Alternates: M24135/2-16, M24135216, MILH24135, MIL-H-24135, FC16216, FC162-16, 150816, 1508-16, 21416, 214-16, 4720-00-585-7293, 00-585-7293, 4720005857293, 005857293

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-585-7293	22670 ( HOSE, NONMETALLIC )

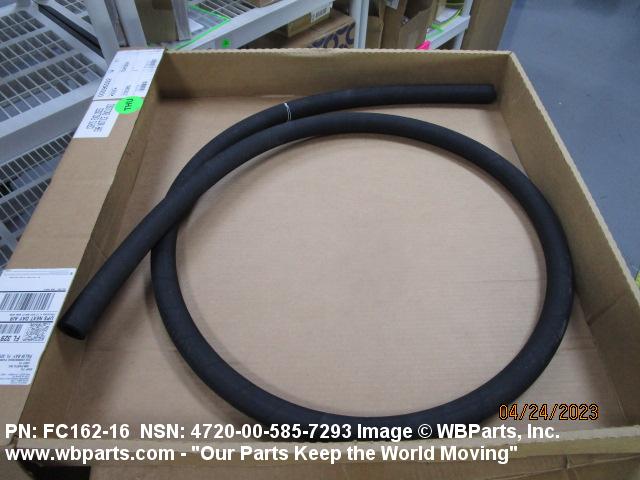

Drawings & Photos | NSN 4720-00-585-7293

Part Number	Request Date	QTY	Origin
21416	2023-12-348	492	United States
21416	2023-12-348	492	United States
21416	2023-10-290	300	US
21416	2023-07-198	50	AU
4720-00-585-7293	2023-07-183	976	DIBBS
4720-00-585-7293	2023-04-102	12	DIBBS
4720-00-585-7293	2023-04-101	10	United States
4720-00-585-7293	2023-04-99	2004	DIBBS
4720-00-585-7293	2023-02-52	1049	DIBBS
4720-00-585-7293	2022-07-199	284	DIBBS
4720-00-585-7293	2022-06-172	657	DIBBS
4720-00-585-7293	2022-01-09	617	DIBBS
4720-00-585-7293	2021-08-229	602	DIBBS
4720-00-585-7293	2020-10-290	671	DIBBS
4720-00-585-7293	2020-10-275	671	DIBBS
4720-00-585-7293	2019-01-31	1112	DIBBS
4720-00-585-7293	2018-06-179	977	DIBBS
21416	2017-12-352	50	US
4720-00-585-7293	2017-09-260	1101	DIBBS
4720-00-585-7293	2015-12-340	2832	DIBBS
4720-00-585-7293	2015-09-246	1218	DIBBS
4720-00-585-7293	2015-02-56	1127	DIBBS
4720-00-585-7293	2012-06-153	937	DIBBS
4720-00-585-7293	2012-05-128	1496	DIBBS
4720-00-585-7293	2012-04-96	387	DIBBS
4720-00-585-7293	2012-03-80	298	DIBBS
21416	2011-04-105	2000	US
21416	2011-04-105	2000	US
21416	2010-03-77	500	US
4720-00-585-7293	2009-12-364	1178	DIBBS
4720-00-585-7293	2009-11-306	666	DIBBS
4720-00-585-7293	2009-04-98	721	DIBBS
4720-00-585-7293	2009-04-94	60	DIBBS
4720-00-585-7293	2009-03-72	499	DIBBS
4720-00-585-7293	2009-03-68	442	DIBBS
4720-00-585-7293	2009-02-50	1156	DIBBS
4720-00-585-7293	2008-12-340	149	DIBBS

Cross Reference | NSN 4720-00-585-7293

Part Number	Cage Code	Manufacturer
1508-16	00624	EATON CORPORATION DBA AEROSPACE DIV
1508-16	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
214-16	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
FC162-16	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
FC162-16	1P322	EATON AEROQUIP INC
M24135/2-16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-H-24135	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-00-585-7293

Compare

Related Products | NSN 4720-00-585-7293

4720-00-585-7294, 4720-00-585-7301, 4720-00-585-7305, 4720-00-585-7306, 4720-00-585-7309

Technical Data | NSN 4720-00-585-7293

Characteristic	Specifications
INNER CONVEYING TUBE MATERIAL	RUBBER, SYNTHETIC
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID
INSIDE SURFACE CONDITION	SMOOTH
LAYER COMPOSITION AND LOCATION	1ST LAYER BRAIDED ASBESTOS CORD 2ND LAYER SPIRALLY LAID STEEL WIRE 3RD LAYER SPIRALLY LAID STEEL WIRE 4TH LAYER SPIRALLY LAID STEEL WIRE 5TH LAYER SPIRALLY LAID STEEL WIRE OUTER LAYER MOLDED RUBBER, SYNTHETIC
OUTER COVERING ENVIRONMENTAL PROTECTION	OIL RESISTANT AND WATER RESISTANT
EXTERIOR COLOR	ANY ACCEPTABLE
CROSS-SECTIONAL SHAPE STYLE	1 ROUND

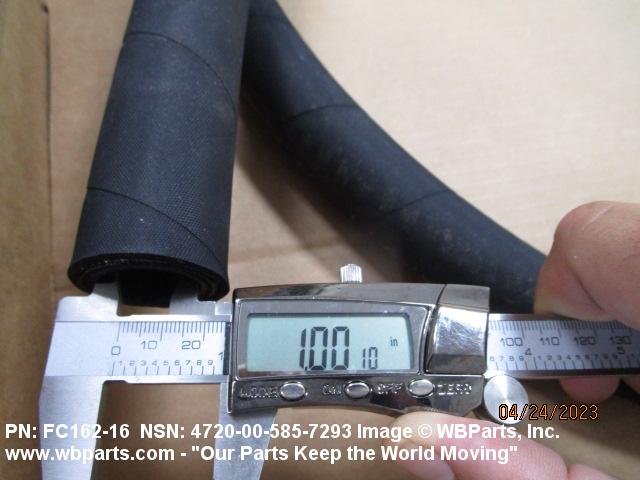

INSIDE DIAMETER	1.000 INCHES NOMINAL

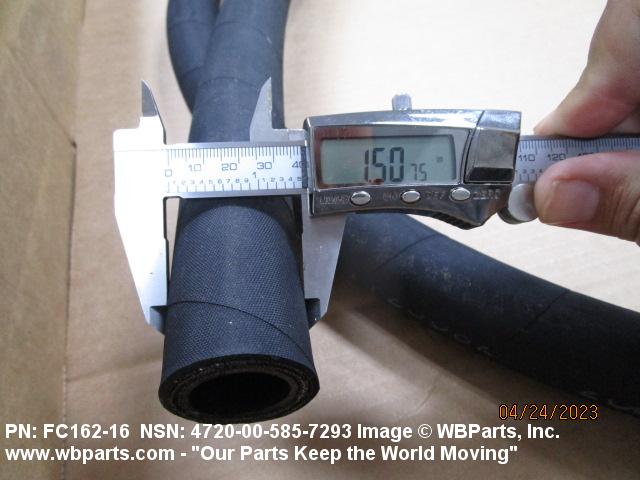

OUTSIDE DIAMETER	1.560 INCHES NOMINAL

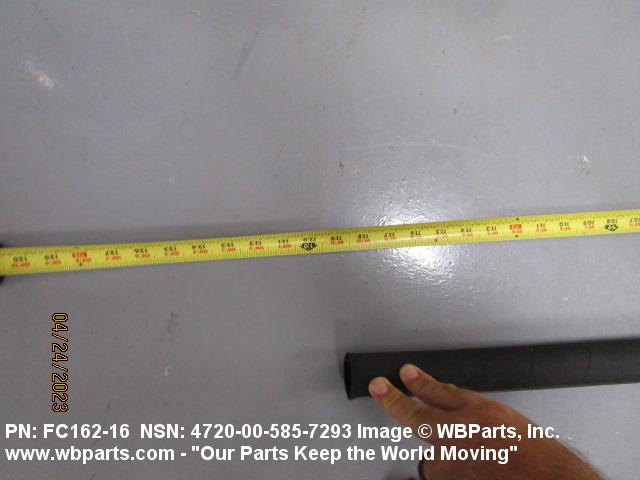

MEASURING METHOD AND LENGTH	ANY ACCEPTABLE
MINIMUM INSIDE BENDING RADIUS	12.000 INCHES
TEMP RATING	-40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH
HYDROSTATIC TEST PRESSURE	6000.0 POUNDS PER SQUARE INCH
BURST TEST PRESSURE	12000.0 POUNDS PER SQUARE INCH
SPECIFICATION/STANDARD DATA	81349-MIL-H-24135 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA	2 CLASS AND 16 SIZE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-H-24135
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24135/2-16

Restrictions/Controls & Freight Information | NSN 4720-00-585-7293

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	W	120 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4720-00-585-7293

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	X FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	X FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	X FT : Foot
