NSN 4720-00-610-0448 11673795, 00-610-0448, 006100448
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-610-0448 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 11673795, 4720-00-610-0448, 00-610-0448, 4720006100448, 006100448
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 FEB 1975 | 00-610-0448 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

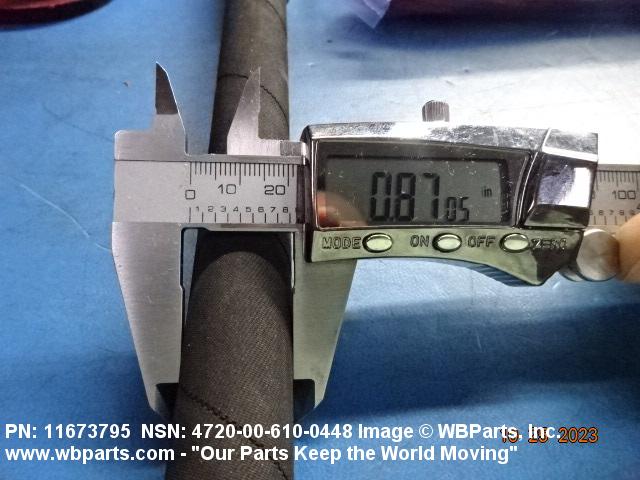

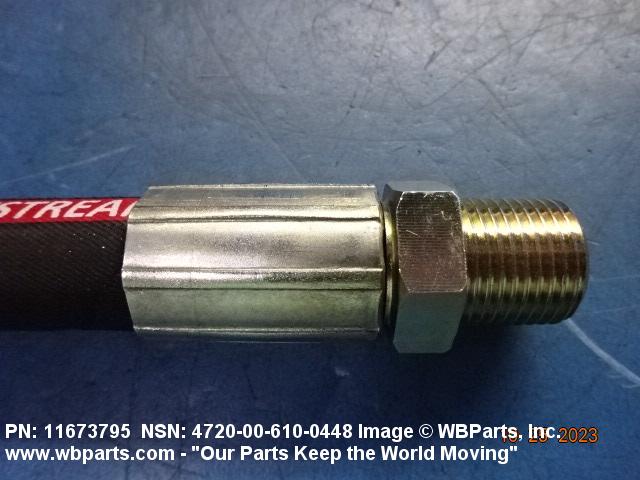

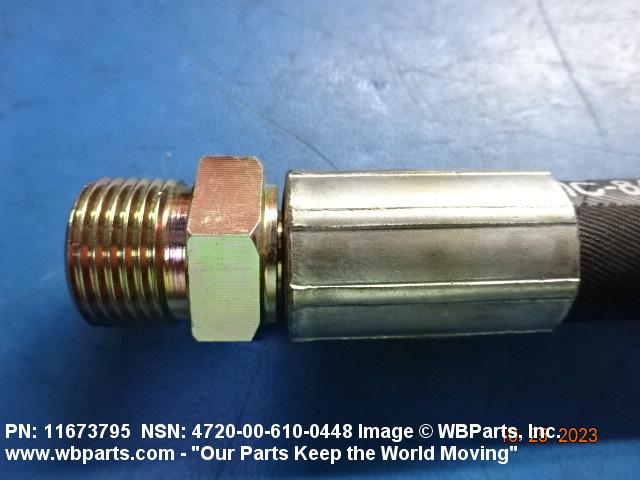

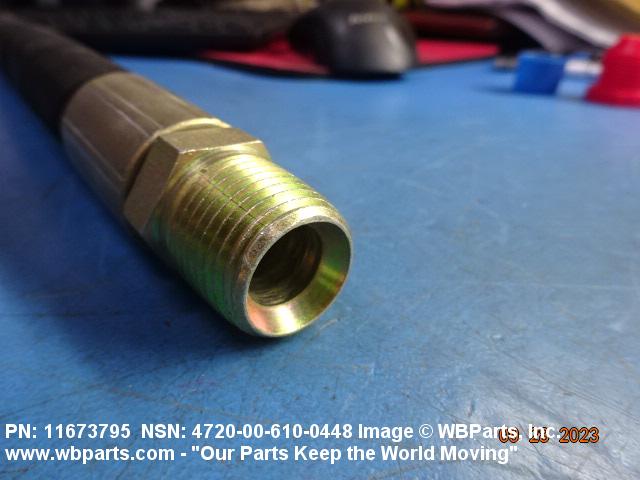

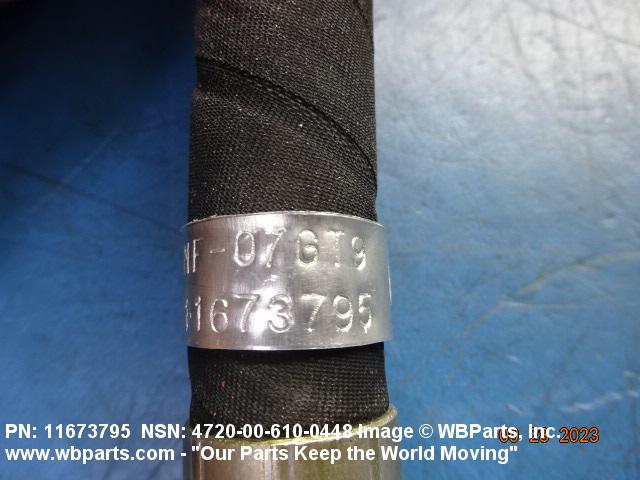

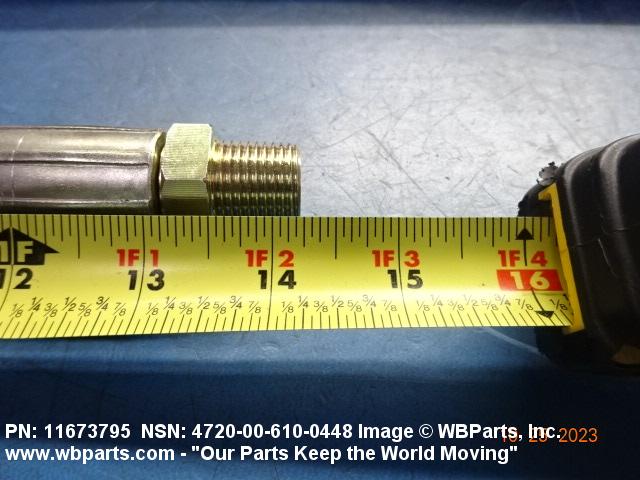

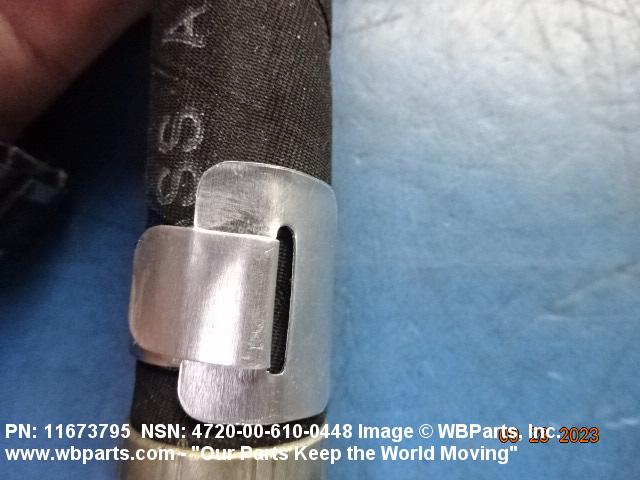

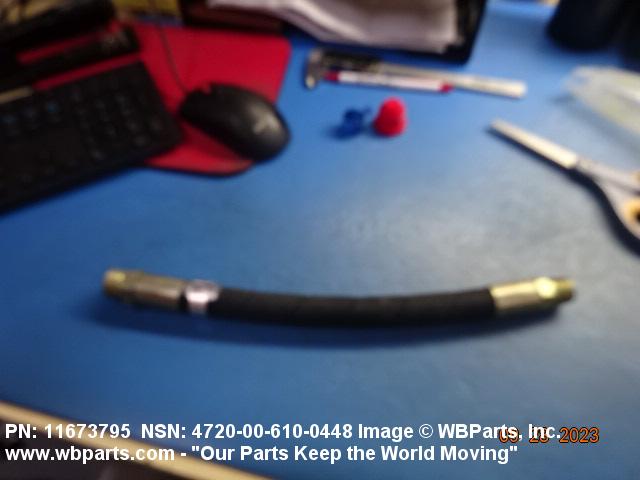

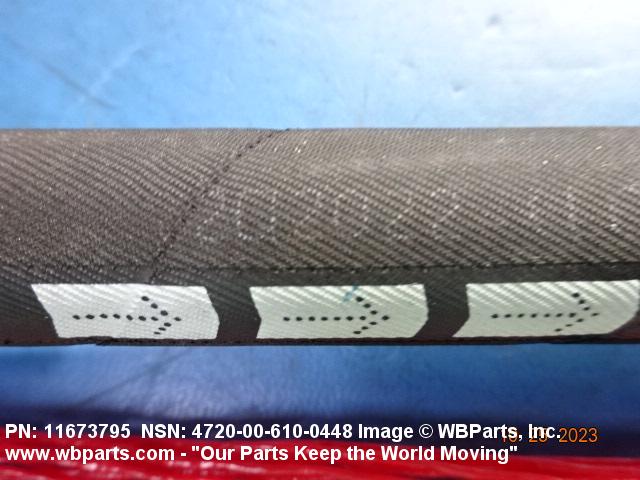

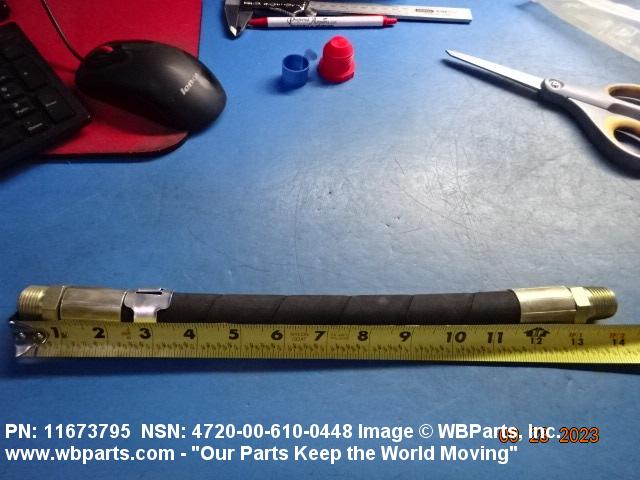

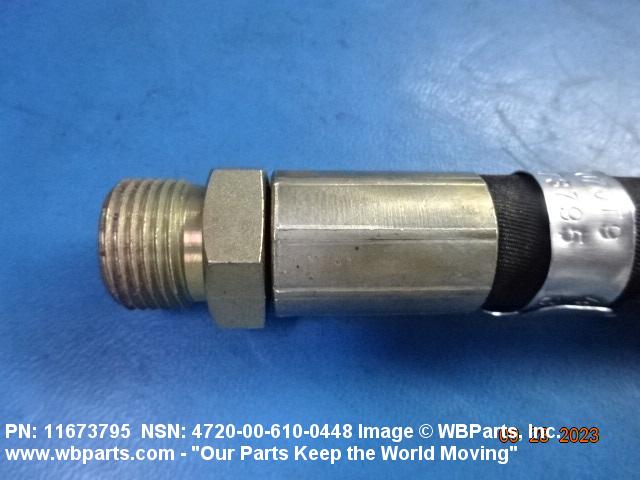

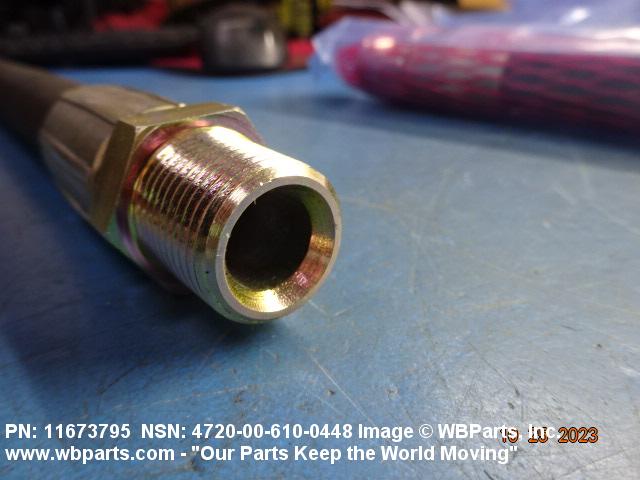

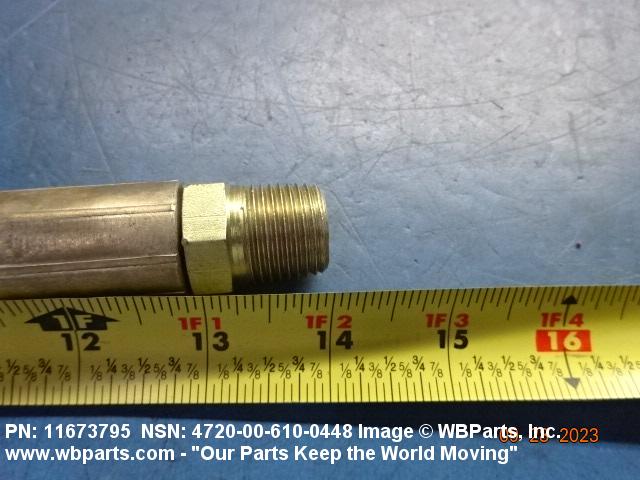

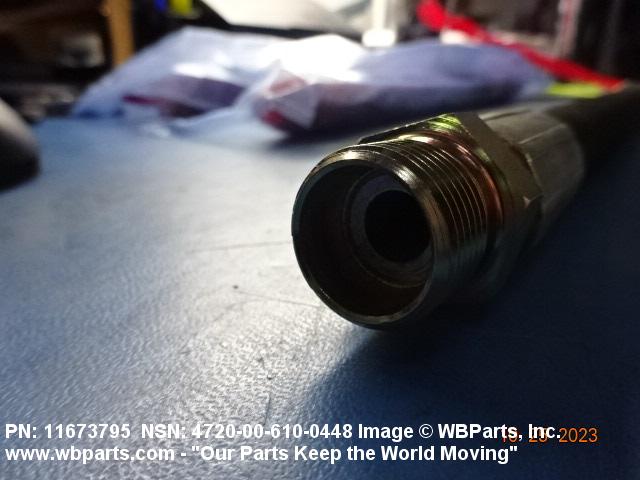

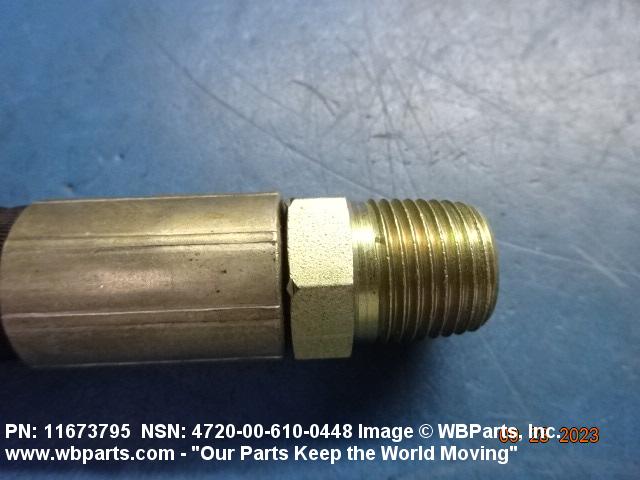

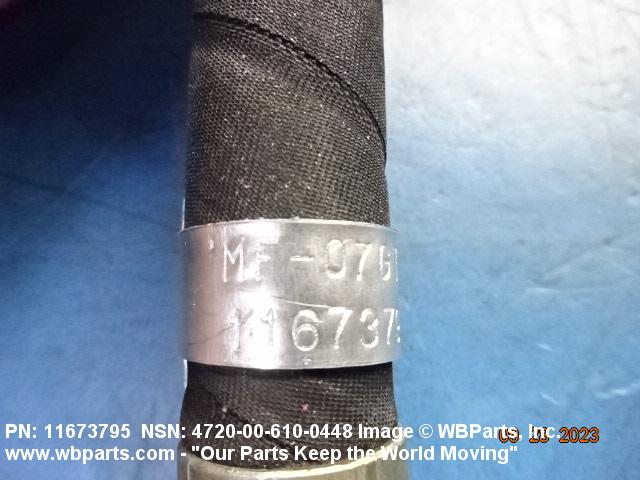

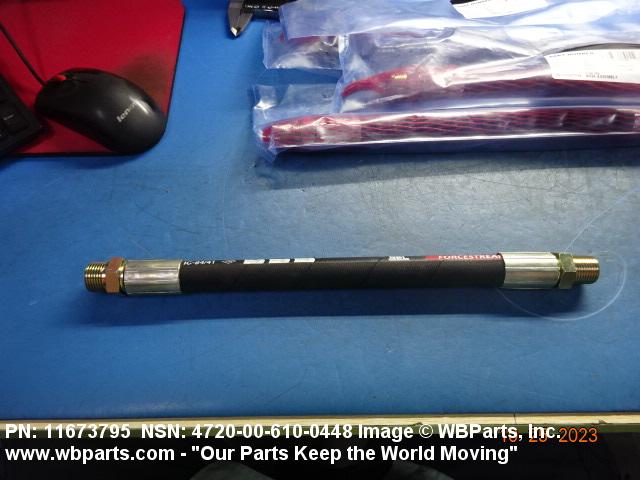

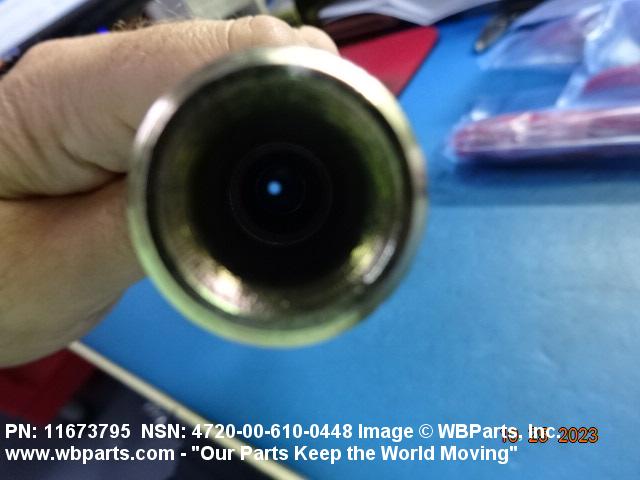

Drawings & Photos | NSN 4720-00-610-0448
Demand History | NSN 4720-00-610-0448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-610-0448 | 2025-07-202 | 20 | US |
| 4720-00-610-0448 | 2023-04-94 | 4 | United States |
| 4720-00-610-0448 | 2020-05-129 | 1 | TH |
| 4720-00-610-0448 | 2020-02-49 | 1 | MANUAL |
| 4720-00-610-0448 | 2017-10-288 | 205 | DIBBS |
| 4720-00-610-0448 | 2017-03-67 | 166 | DIBBS |
| 4720-00-610-0448 | 2016-09-249 | 150 | DIBBS |
| 4720-00-610-0448 | 2015-11-327 | 182 | DIBBS |
| 4720-00-610-0448 | 2014-09-272 | 204 | DIBBS |
| 4720-00-610-0448 | 2014-09-259 | 204 | DIBBS |
| 4720-00-610-0448 | 2013-09-254 | 190 | DIBBS |
| 4720-00-610-0448 | 2013-07-196 | 502 | DIBBS |
| 4720-00-610-0448 | 2013-06-181 | 502 | DIBBS |
| 4720-00-610-0448 | 2013-04-108 | 300 | MANUAL |
| 4720-00-610-0448 | 2010-08-214 | 196 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-610-0448
Related Products | NSN 4720-00-610-0448
Technical Data | NSN 4720-00-610-0448
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-H-13531,TYPE 1,CLASS A SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER, BUTADIENE ACRYLONITRILE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE |
| OUTER COVERING ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND OIL RESISTANT AND OZONE RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.906 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 14.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 7.000 INCHES |
| FIRST END FITTING SPEC/STD DATA | SAE J514 STANDARD |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| TEMP RATING | -67.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 2000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 4000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 8000.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11673795 |
Restrictions/Controls & Freight Information | NSN 4720-00-610-0448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-610-0448
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
