NSN 4720-00-720-0260 M83797/1-RR, M837971RR, MILH83797

Product Details | NONMETALLIC HOSE

4720-00-720-0260 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing

Part Alternates: M83797/1-RR, M837971RR, MILH83797, MIL-H-83797, 15632, 156-32, 17632, 176-32, 3H23632, 3H236-32, 601/AE701-32, 60132, 601-32, 601AE70132, 4720-00-720-0260, 00-720-0260, 4720007200260, 007200260

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-720-0260	22670 ( HOSE, NONMETALLIC )

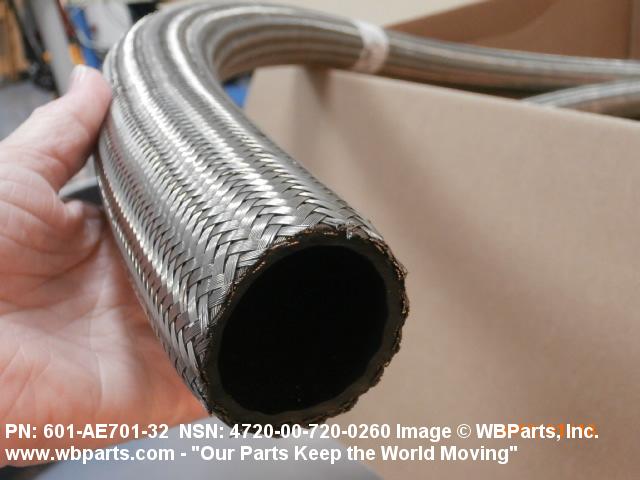

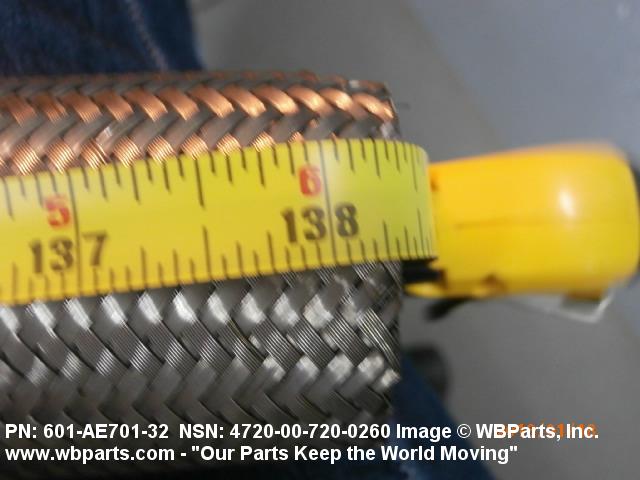

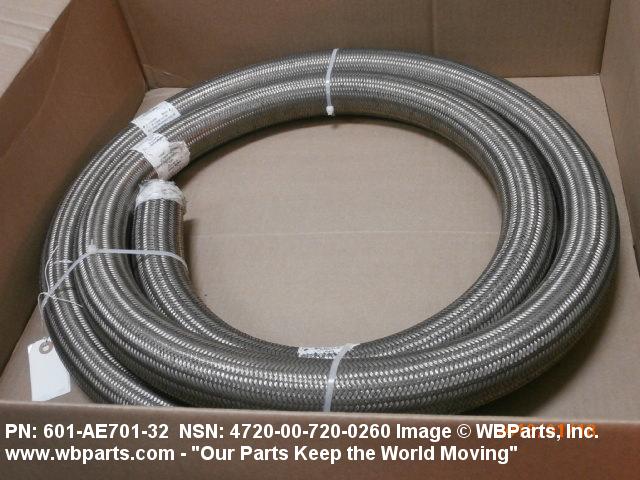

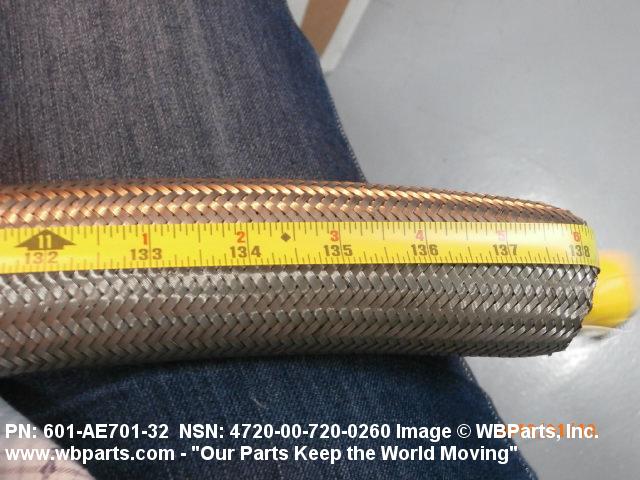

Drawings & Photos | NSN 4720-00-720-0260

Part Number	Request Date	QTY	Origin
4720-00-720-0260	2025-12-339	461	DIBBS
4720-00-720-0260	2025-11-324	461	DIBBS
4720-00-720-0260	2024-10-305	274	DIBBS
4720-00-720-0260	2024-06-156	220	DIBBS
4720-00-720-0260	2024-05-142	220	DIBBS
4720-00-720-0260	2024-05-135	135	DIBBS
4720-00-720-0260	2024-05-123	85	DIBBS
4720-00-720-0260	2024-04-112	85	DIBBS
4720-00-720-0260	2022-06-158	20	DIBBS
17632	2020-03-91	3	US
4720-00-720-0260	2018-07-210	20	DIBBS
4720-00-720-0260	2018-07-186	20	DIBBS
4720-00-720-0260	2018-06-175	20	DIBBS
4720-00-720-0260	2017-09-248	117	DIBBS
15632	2017-06-172	11	Canada
4720-00-720-0260	2017-06-170	1	DIBBS-RFPs
4720-00-720-0260	2017-05-130	11	Canada
601AE70132	2013-03-81	1	US
4720-00-720-0260	2011-04-101	492	DIBBS
4720-00-720-0260	2011-02-33	174	DIBBS
4720-00-720-0260	2010-09-270	200	DIBBS
4720-00-720-0260	2010-07-182	87	DIBBS
4720-00-720-0260	2009-12-362	246	DIBBS
4720-00-720-0260	2009-11-313	32	DIBBS
4720-00-720-0260	2009-10-300	150	US
4720-00-720-0260	2009-08-219	89	DIBBS
4720-00-720-0260	2009-07-212	9	DIBBS
4720-00-720-0260	2009-07-208	10	DIBBS

Cross Reference | NSN 4720-00-720-0260

Part Number	Cage Code	Manufacturer
156-32	03925	PARKER-HANNIFIN, CORPORATION DBA PARKER SERVICE CENTER
156-32	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
176-32	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
3H236-32	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
601-32	00624	EATON CORPORATION DBA AEROSPACE DIV
601/AE701-32	00624	EATON CORPORATION DBA AEROSPACE DIV
M83797-32R	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83797/1-RR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-H-83797	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-00-720-0260

Compare

Related Products | NSN 4720-00-720-0260

4720-00-720-0291, 4720-00-720-0294, 4720-00-720-0320, 4720-00-720-0325, 4720-00-720-0326

Technical Data | NSN 4720-00-720-0260

Characteristic	Specifications
INNER CONVEYING TUBE MATERIAL	RUBBER, SYNTHETIC
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
INSIDE SURFACE CONDITION	SMOOTH
LAYER COMPOSITION AND LOCATION	1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE, PARTIAL COVERAGE OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE
OUTSIDE SURFACE TREATMENT	PASSIVATED
OUTER COVERING ENVIRONMENTAL PROTECTION	CORROSION RESISTANT
EXTERIOR COLOR	ANY ACCEPTABLE
CROSS-SECTIONAL SHAPE STYLE	1 ROUND

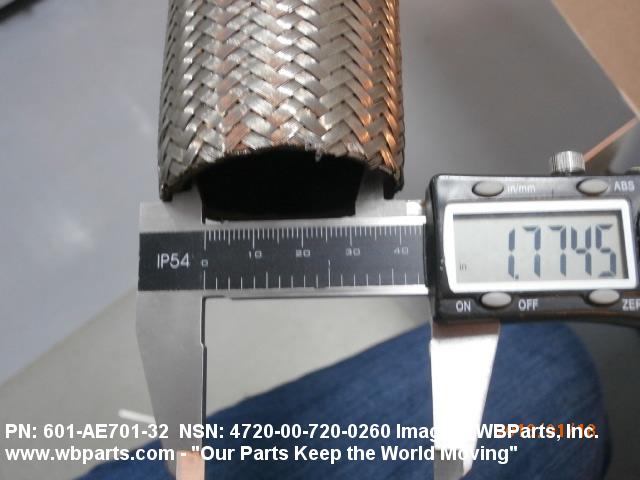

INSIDE DIAMETER	1.781 INCHES NOMINAL

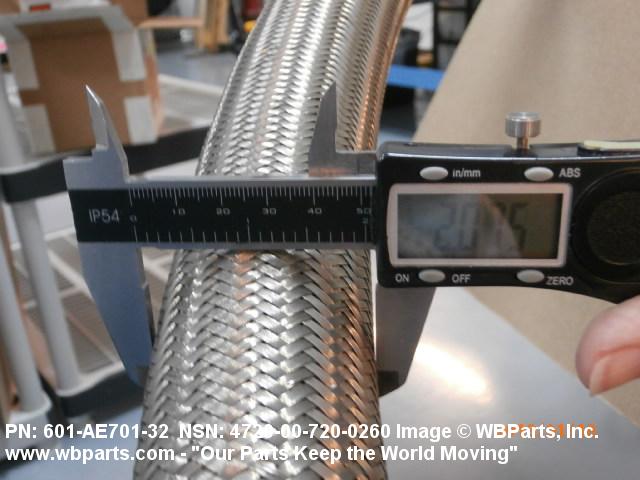

OUTSIDE DIAMETER	2.084 INCHES NOMINAL
MINIMUM INSIDE BENDING RADIUS	12.500 INCHES
TEMP RATING	-65.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT
MAXIMUM OPERATING PRESSURE	200.0 POUNDS PER SQUARE INCH
HYDROSTATIC TEST PRESSURE	600.0 POUNDS PER SQUARE INCH
BURST TEST PRESSURE	1200.0 POUNDS PER SQUARE INCH
VACUUM IN TORR	203.2
SPECIFICATION/STANDARD DATA	81349-MIL-H-83797 GOVERNMENT SPECIFICATION
III END ITEM IDENTIFICATION	EA-6A AIRCRAFT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-H-83797
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83797/1-RR

Restrictions/Controls & Freight Information | NSN 4720-00-720-0260

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	W	120 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
