NSN 4720-00-729-5334 AA59270, A-A-59270, AA59270B3B
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-729-5334 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AA59270, A-A-59270, AA59270B3B, LH520, L-H-520, QQT00825 , 4720-00-729-5334, 00-729-5334, 4720007295334, 007295334
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-729-5334 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

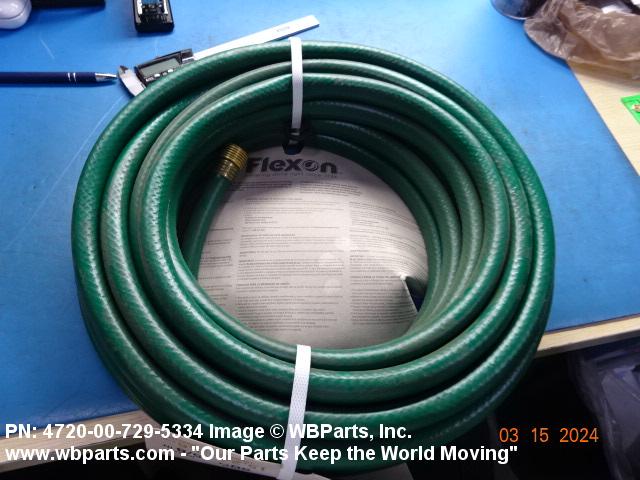

Drawings & Photos | NSN 4720-00-729-5334
Demand History | NSN 4720-00-729-5334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-729-5334 | 2026-01-22 | 386 | DIBBS |
| AA59270B3B | 2025-11-310 | 1 | US |
| 4720-00-729-5334 | 2025-10-289 | 464 | DIBBS |
| 4720-00-729-5334 | 2025-06-175 | 394 | DIBBS |
| 4720-00-729-5334 | 2025-06-163 | 394 | DIBBS |
| 4720-00-729-5334 | 2024-05-152 | 2 | us |
| 4720-00-729-5334 | 2024-04-101 | 17 | DIBBS |
| 4720-00-729-5334 | 2024-03-86 | 17 | DIBBS |
| 4720-00-729-5334 | 2024-03-74 | 904 | DIBBS |
| 4720-00-729-5334 | 2024-03-63 | 904 | DIBBS |
| 4720-00-729-5334 | 2024-02-50 | 4 | United States |
| 4720-00-729-5334 | 2023-11-307 | 1 | United States |
| 4720-00-729-5334 | 2023-08-232 | 15 | TW |
| 4720-00-729-5334 | 2023-02-36 | 967 | DIBBS |
| 4720-00-729-5334 | 2022-12-346 | 432 | DIBBS |
| 4720-00-729-5334 | 2022-11-334 | 432 | DIBBS |
| 4720-00-729-5334 | 2022-06-178 | 2 | United States |
| 4720-00-729-5334 | 2022-06-165 | 1 | United States |
| 4720-00-729-5334 | 2021-06-180 | 1 | United States |
| 4720-00-729-5334 | 2021-02-42 | 369 | DIBBS |
| 4720-00-729-5334 | 2020-12-352 | 235 | DIBBS |
| 4720-00-729-5334 | 2020-10-293 | 2 | United Arab Emirates |
| 4720-00-729-5334 | 2020-10-292 | 300 | DIBBS |
| 4720-00-729-5334 | 2020-04-121 | 113 | DIBBS |
| 4720-00-729-5334 | 2020-04-100 | 103 | DIBBS |
| 4720-00-729-5334 | 2020-01-16 | 476 | DIBBS |
| 4720-00-729-5334 | 2019-12-335 | 564 | DIBBS |
| 4720-00-729-5334 | 2019-11-331 | 1 | DIBBS-RFPs |
| 4720-00-729-5334 | 2019-11-308 | 8 | US |
| 4720-00-729-5334 | 2019-10-303 | 8 | US |
| 4720-00-729-5334 | 2019-10-290 | 263 | DIBBS |
| 4720-00-729-5334 | 2019-05-148 | 1 | US |
| 4720-00-729-5334 | 2014-08-231 | 5 | United States |
| 4720-00-729-5334 | 2014-03-79 | 1 | US |
| 4720-00-729-5334 | 2013-10-303 | 913 | DIBBS |
| 4720-00-729-5334 | 2013-07-193 | 1 | DIBBS-RFPs |
| 4720-00-729-5334 | 2013-03-78 | 160 | United Arab Emirates |
| LH520 | 2012-10-303 | 1 | United States |
| 4720-00-729-5334 | 2012-04-97 | 393 | DIBBS |
| 4720-00-729-5334 | 2011-09-246 | 1111 | DIBBS |
| 4720-00-729-5334 | 2011-08-213 | 1247 | DIBBS |
| 4720-00-729-5334 | 2011-07-188 | 937 | DIBBS |
| 4720-00-729-5334 | 2011-06-165 | 577 | DIBBS |
| 4720-00-729-5334 | 2011-06-164 | 0 | DIBBS |
| 4720-00-729-5334 | 2011-05-125 | 588 | DIBBS |
| 4720-00-729-5334 | 2011-03-67 | 490 | DIBBS |
| 4720-00-729-5334 | 2011-02-34 | 592 | DIBBS |
| 4720-00-729-5334 | 2010-07-210 | 444 | DIBBS |
| 4720-00-729-5334 | 2010-06-166 | 503 | DIBBS |
| 4720-00-729-5334 | 2010-05-121 | 356 | DIBBS |
| 4720-00-729-5334 | 2010-03-84 | 439 | DIBBS |
| 4720-00-729-5334 | 2010-01-26 | 350 | DIBBS |
Cross Reference | NSN 4720-00-729-5334
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-729-5334
Related Products | NSN 4720-00-729-5334
Technical Data | NSN 4720-00-729-5334
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | PLASTIC, POLYVINYL CHLORIDE |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER,COTTON OR SYNTHETIC YARD OUTER LAYER,MOLDED PLASTIC,POLYVINYL CHLORIDE |
| OUTSIDE SURFACE TREATMENT | ANY ACCEPTABLE |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |
| MEASURING METHOD AND LENGTH | 600.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| FIRST END CONNECTION TYPE | THREADED INTERNAL HOSE |
| FIRST END STYLE DESIGNATOR | C5 SWIVEL NUT, GASKET SEAL |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ZINC ALLOY |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANY ACCEPTABLE |
| FIRST END THREAD SERIES DESIGNATOR | NH |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 11-1/2 |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL HOSE |
| SECOND END STYLE DESIGNATOR | D5 PLAIN |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ZINC ALLOY |
| SECOND END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANY ACCEPTABLE |
| SECOND END THREAD SERIES DESIGNATOR | NH |
| SECOND END NOMINAL THREAD SIZE | 0.750 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 11-1/2 |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HYDROSTATIC TEST PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A GRADE |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59270 |
Restrictions/Controls & Freight Information | NSN 4720-00-729-5334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
