NSN 4720-00-883-9038 NA84200C-4-L-11.00, NA84200C4L1100, NA84200CC40110
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-00-883-9038 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: NA84200C-4-L-11.00, NA84200C4L1100, NA84200CC40110, NA84200CC-4-0110, PFD-6, PFD6, 322AS168, 322AS1682, 322AS168-2, 4HDP14FJS1100, 4HDP1-4FJS11-00, 4720-00-883-9038, 00-883-9038, 4720008839038, 008839038
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 NOV 1967 | 00-883-9038 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

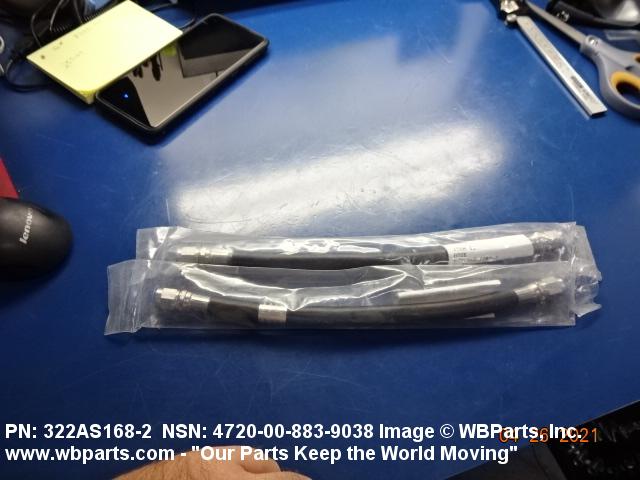

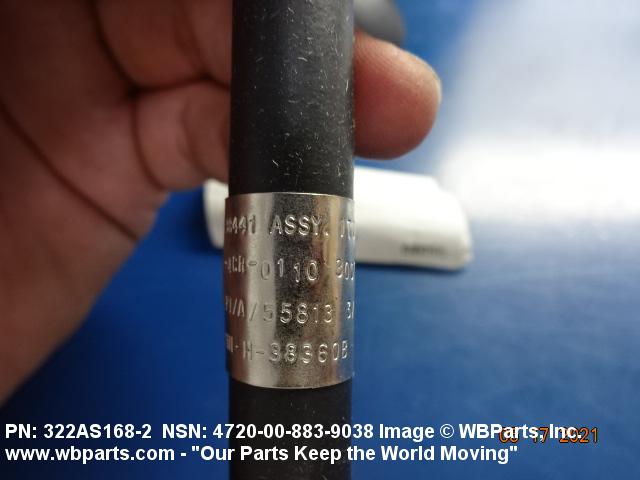

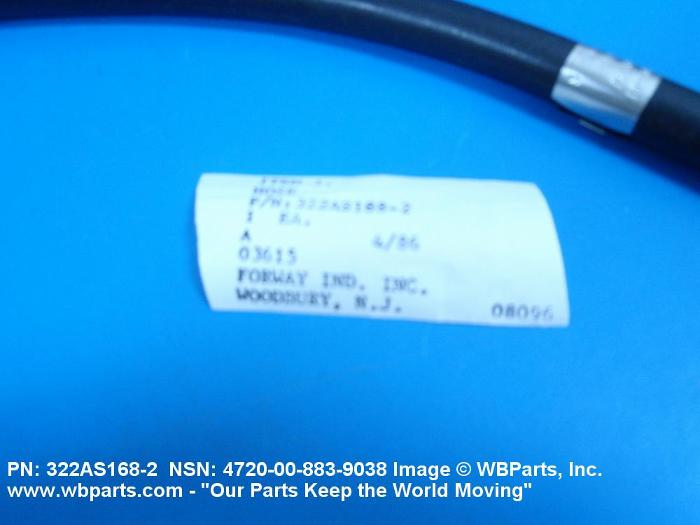

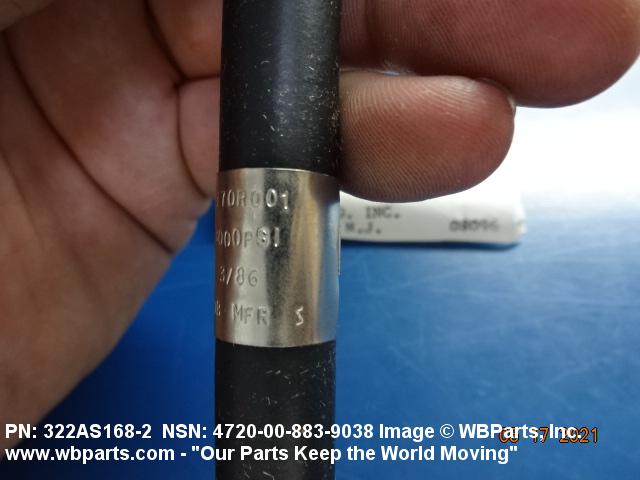

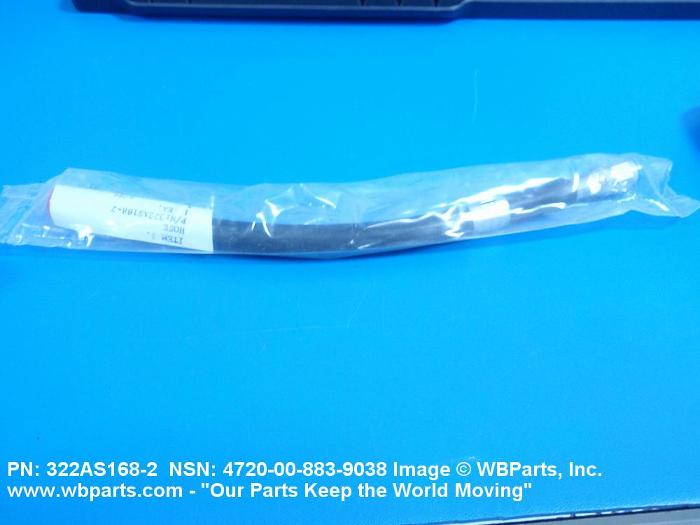

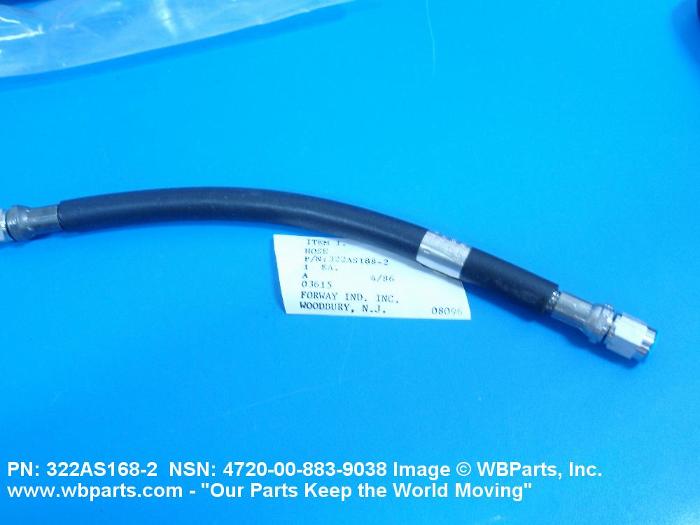

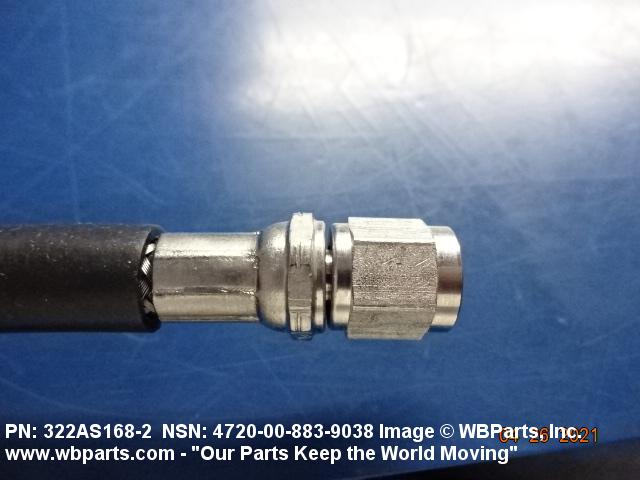

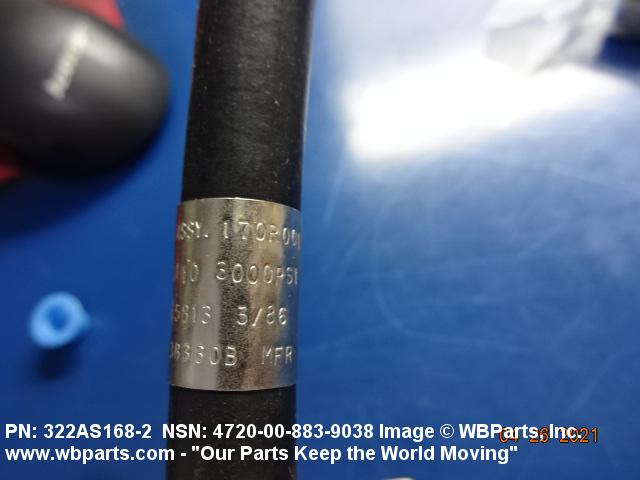

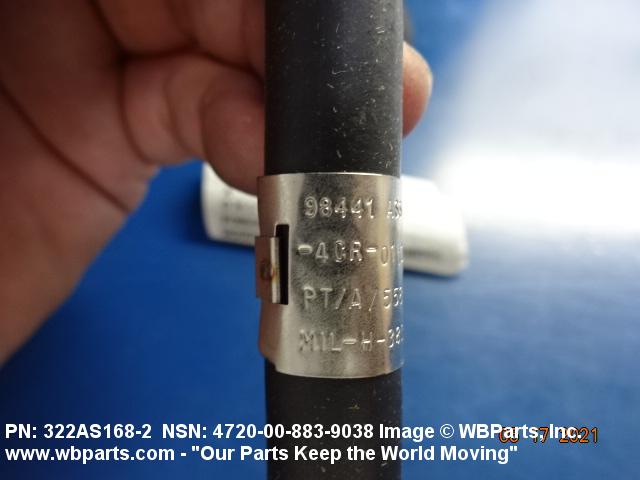

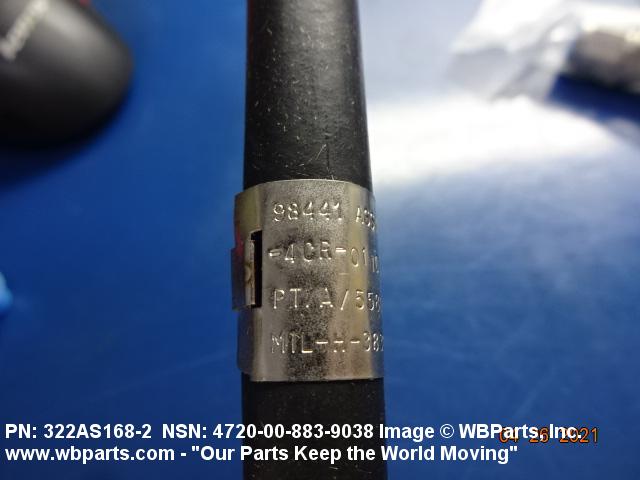

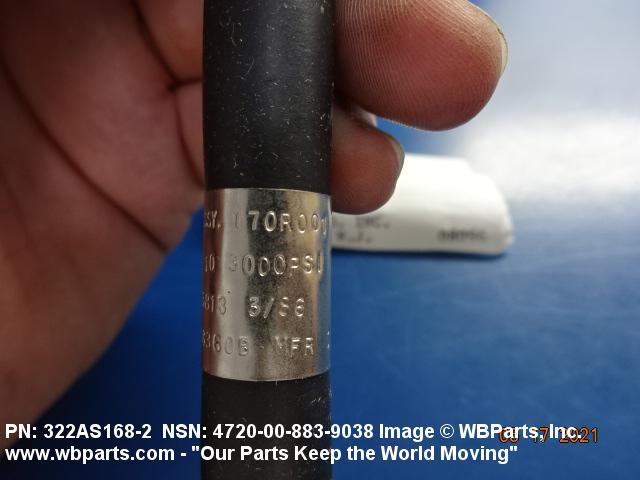

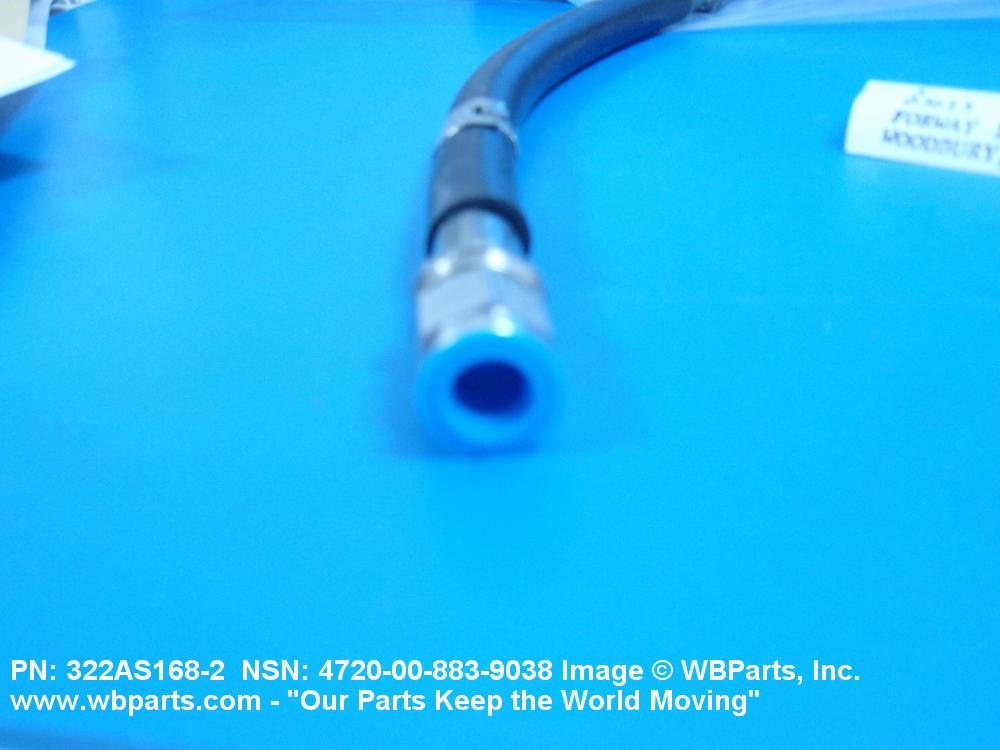

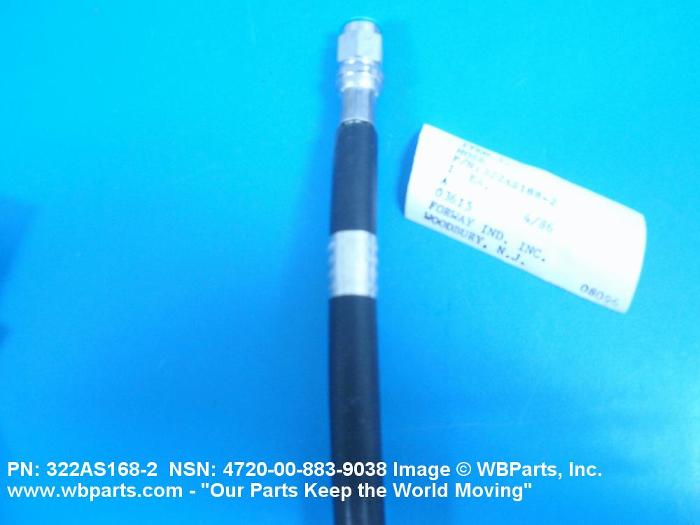

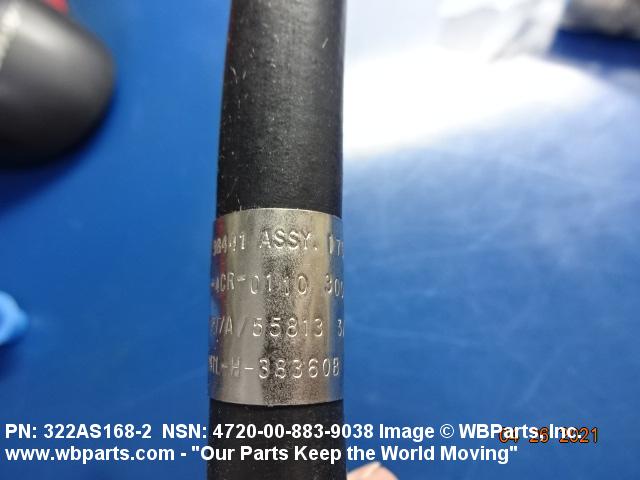

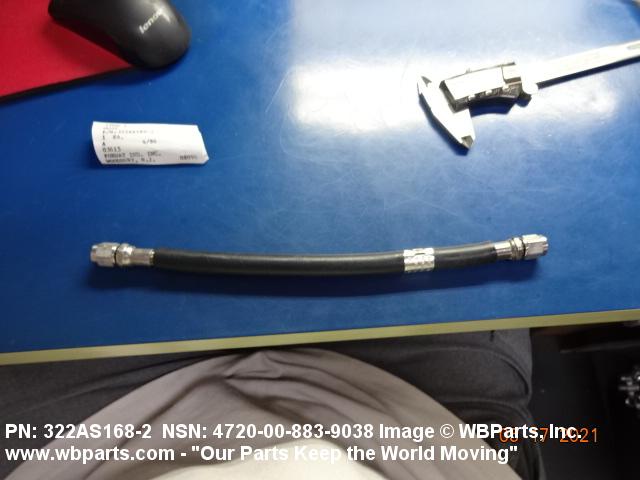

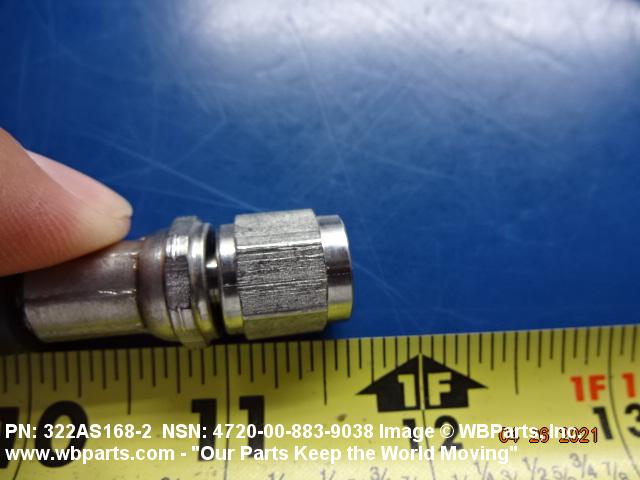

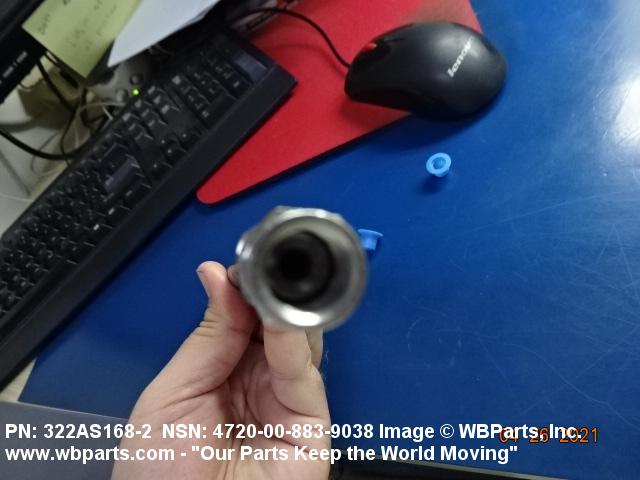

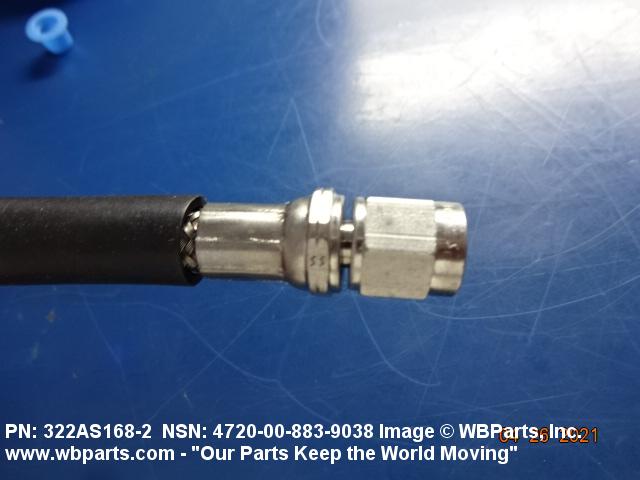

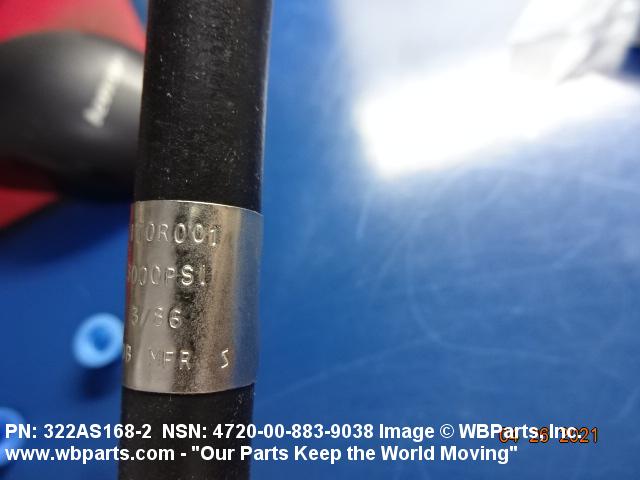

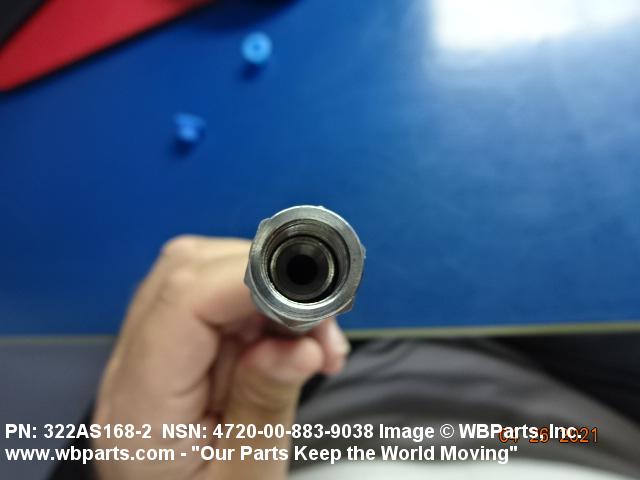

Drawings & Photos | NSN 4720-00-883-9038
Demand History | NSN 4720-00-883-9038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-883-9038 | 2025-11-310 | 166 | DIBBS |
| 4720-00-883-9038 | 2025-10-293 | 1 | United States |
| 4720-00-883-9038 | 2025-08-219 | 88 | DIBBS |
| 4720-00-883-9038 | 2025-02-51 | 139 | DIBBS |
| 4720-00-883-9038 | 2023-12-341 | 123 | DIBBS |
| 4720-00-883-9038 | 2023-10-283 | 11 | DIBBS |
| 4720-00-883-9038 | 2023-09-262 | 46 | DIBBS |
| 4720-00-883-9038 | 2023-06-159 | 66 | DIBBS |
| 4720-00-883-9038 | 2023-03-74 | 6 | US |
| 4720-00-883-9038 | 2022-12-335 | 20 | DIBBS |
| 4720-00-883-9038 | 2022-10-292 | 2 | United States |
| 4720-00-883-9038 | 2022-09-244 | 91 | DIBBS |
| 4720-00-883-9038 | 2022-08-222 | 4 | United States |
| 4720-00-883-9038 | 2022-07-207 | 2 | United States |
| 4720-00-883-9038 | 2022-07-196 | 2 | United States |
| 4720-00-883-9038 | 2022-03-76 | 245 | DIBBS |
| 4720-00-883-9038 | 2022-03-60 | 2 | United States |
| 4720-00-883-9038 | 2022-02-52 | 4 | United States |
| 4720-00-883-9038 | 2022-02-38 | 2 | United States |
| 322AS1682 | 2021-06-168 | 1 | US |
| 4720-00-883-9038 | 2021-06-161 | 1 | United States |
| 4720-00-883-9038 | 2021-06-158 | 1 | United States |
| 4720-00-883-9038 | 2021-06-155 | 2 | United States |
| 4720-00-883-9038 | 2021-05-139 | 2 | United States |
| 322AS1682 | 2021-05-139 | 1 | United States |
| 322AS1682 | 2021-05-127 | 1 | United States |
| 4720-00-883-9038 | 2021-05-127 | 1 | United States |
| 4720-00-883-9038 | 2021-04-103 | 1 | Malaysia |
| 4720-00-883-9038 | 2021-02-53 | 2 | United States |
| 4720-00-883-9038 | 2020-10-282 | 167 | DIBBS |
| 4720-00-883-9038 | 2020-08-230 | 1 | United States |
| 4720-00-883-9038 | 2020-08-224 | 1 | US |
| 4720-00-883-9038 | 2020-08-224 | 1 | US |
| 4720-00-883-9038 | 2019-12-346 | 49 | DIBBS |
| 4720-00-883-9038 | 2019-08-221 | 4 | US |
| 4720-00-883-9038 | 2019-04-119 | 2 | United States |
| 4720-00-883-9038 | 2019-02-35 | 216 | DIBBS |
| 4720-00-883-9038 | 2018-02-53 | 320 | DIBBS |
| 4720-00-883-9038 | 2017-05-144 | 218 | DIBBS |
| 322AS1682 | 2017-01-12 | 1 | US |
| 4720-00-883-9038 | 2017-01-12 | 1 | US |
| 4720-00-883-9038 | 2016-09-245 | 2 | US |
| 4720-00-883-9038 | 2016-02-55 | 228 | DIBBS |
| 322AS1682 | 2015-01-21 | 1 | US |
| 4720-00-883-9038 | 2014-07-196 | 119 | DIBBS |
| 4720-00-883-9038 | 2014-01-24 | 1 | us |
| 4720-00-883-9038 | 2013-12-350 | 104 | DIBBS |
| 4720-00-883-9038 | 2013-10-276 | 16 | United States |
| 4720-00-883-9038 | 2013-03-84 | 323 | DIBBS |
| 4720-00-883-9038 | 2012-01-19 | 3 | AU |
| 4720-00-883-9038 | 2011-10-290 | 104 | DIBBS |
| 4720-00-883-9038 | 2011-10-290 | 184 | DIBBS |
| 4720-00-883-9038 | 2011-10-290 | 523 | DIBBS |
| 4720-00-883-9038 | 2010-02-56 | 206 | DIBBS |
| 4720-00-883-9038 | 2009-11-307 | 311 | DIBBS |
| NA84200C4L1100 | 2008-11-319 | 2 | United States |
| NA84200C4L1100 | 2008-09-268 | 1 | United States |
Cross Reference | NSN 4720-00-883-9038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 322AS168 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 322AS168-2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 4HDP1-4FJS11-00 | 63906 | VEYANCE TECHNOLOGIES, INC. DIV VEYANCE NORTH AMERICA |
| 4HDP1-4FJS11-00 | 70434 | ANCHOR SWAN CORP SUB OF AMERACE CORP |
| NA84200C-4-L-11.00 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| NA84200CC-4-0110 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| PFD-6 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-883-9038
Related Products | NSN 4720-00-883-9038
Technical Data | NSN 4720-00-883-9038
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, NATURAL |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER SPIRALLY WRAPPED CORROSION RESISTANT STEEL FABRIC 2ND LAYER SPIRALLY WRAPPED CORROSION RESISTANT STEEL FABRIC OUTER LAYER MOLDED RUBBER, CHLOROPRENE |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.234 INCHES MINIMUM |
| OUTSIDE DIAMETER | 0.703 INCHES MAXIMUM |
| MEASURING METHOD AND LENGTH | 11.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 3.250 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, CORROSION RESISTING |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 180.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 8000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 16000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4720-00-883-9038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-883-9038
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
