NSN 4720-00-939-7773 C4V16841, C4V1684-1, 00-939-7773
Product Details | AIR DUCT HOSE ASSEMBLY
4720-00-939-7773 A length of HOSE, AIR DUCT with couplings on one or both ends. Excludes items which include a branch hose or fork hose, HOSE ASSEMBLY, NONMETALLIC.20242400027Safety and Rescue Equipment47200024Hose and Flexible Tubing
Part Alternates: C4V16841, C4V1684-1, 4720-00-939-7773, 00-939-7773, 4720009397773, 009397773
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 NOV 1965 | 00-939-7773 | 18451 ( HOSE ASSEMBLY, AIR DUCT ) |
Drawings & Photos | NSN 4720-00-939-7773
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-00-939-7773
Technical Data | NSN 4720-00-939-7773
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC SINGLE PLY |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| MEASURING METHOD AND LENGTH | 5.650 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END |

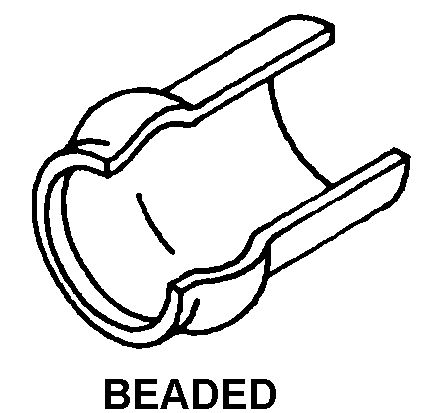

| COUPLING STYLE | D1 BEADED FIRST END |
| MANUFACTURERS CODE | 71867 |
| DESIGN CONTROL REFERENCE | C4V1684-1 |
Restrictions/Controls & Freight Information | NSN 4720-00-939-7773
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
