NSN 4720-01-038-4624 25822, 01-038-4624, 010384624
Product Details | PREFORMED HOSE
4720-01-038-4624 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: 25822, 4720-01-038-4624, 01-038-4624, 4720010384624, 010384624
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 APR 1977 | 01-038-4624 | 17271 ( HOSE, PREFORMED ) |
Drawings & Photos | NSN 4720-01-038-4624
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-038-4624
Related Products | NSN 4720-01-038-4624
Technical Data | NSN 4720-01-038-4624
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER,SYNTHETIC,S.A.E. ASTM NON-CONDUCTIVE EPDM 810,AG1,L2,Z5,ZG,Z9 |

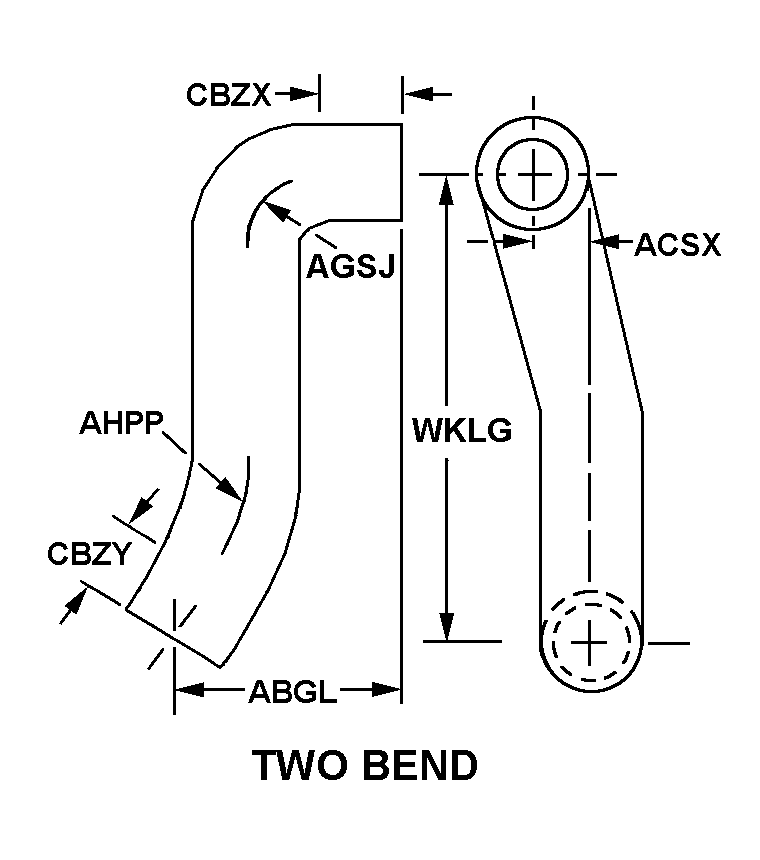

| STYLE DESIGNATOR | C9 TWO BEND |
| EFFECTIVE LENGTH | 6.375 INCHES NOMINAL |
| BEND RADIUS | 1.000 INCHES NOMINAL |
| FIRST ARM LENGTH | 0.500 INCHES NOMINAL |
| SECOND ARM LENGTH | 0.500 INCHES NOMINAL |
| OUTER RADIUS | 0.500 INCHES NOMINAL |
| WIDTH | ANY ACCEPTABLE |
| OFFSET DISTANCE | 0.250 INCHES NOMINAL |
| ENLARGED END | NOT PROVIDED |
| WALL THICKNESS | 0.093 INCHES NOMINAL |
| HOSE INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| PROTECTIVE CAP | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4720-01-038-4624
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-038-4624
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
