NSN 4720-01-043-0768 AE4694E0206045, AE4694E0206-045, C7905C40206

Product Details | NONMETALLIC HOSE ASSEMBLY

4720-01-043-0768 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing

Part Alternates: AE4694E0206045, AE4694E0206-045, C7905C40206, C7905C4-0206, S58080206H045, S5808-0206-H045, S58080206H45, S5808-0206H45, G214ABB0206C045, 4720-01-043-0768, 01-043-0768, 4720010430768, 010430768

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	19 JUN 1977	01-043-0768	20311 ( HOSE ASSEMBLY, NONMETALLIC )

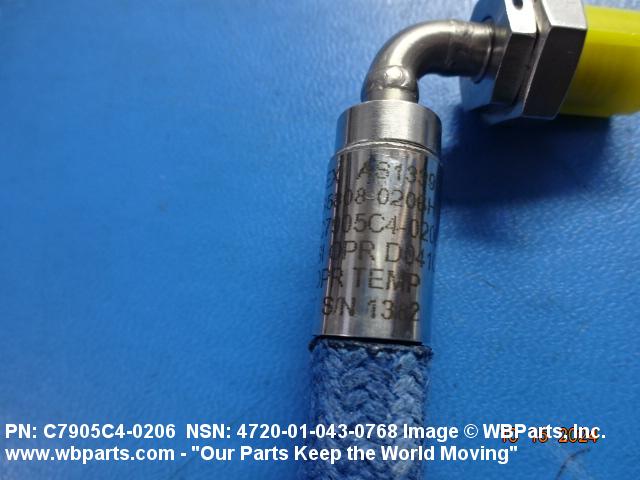

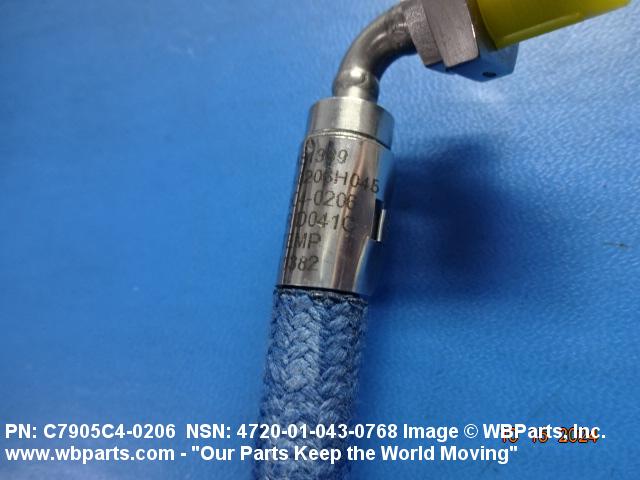

Drawings & Photos | NSN 4720-01-043-0768

Part Number	Request Date	QTY	Origin
4720-01-043-0768	2025-12-338	1	United States
AE4694E0206-045	2025-10-300	39	DIBBS
G214ABB0206C045	2025-10-300	39	DIBBS
S5808-0206-H045	2025-10-300	39	DIBBS
AE4694E0206-045	2025-10-289	39	DIBBS
G214ABB0206C045	2025-10-289	39	DIBBS
S5808-0206-H045	2025-10-289	39	DIBBS
AE4694E0206-045	2025-06-168	12	DIBBS
G214ABB0206C045	2025-06-168	12	DIBBS
S5808-0206-H045	2025-06-168	12	DIBBS
4720-01-043-0768	2024-05-142	25	Singapore
4720-01-043-0768	2023-10-275	25	Singapore
AE4694E0206-045	2020-05-127	16	DIBBS
G214ABB0206C045	2020-05-127	16	DIBBS
S5808-0206-H045	2020-05-127	16	DIBBS
AE4694E0206-045	2020-03-79	10	DIBBS
G214ABB0206C045	2020-03-79	10	DIBBS
S5808-0206-H045	2020-03-79	10	DIBBS
4720-01-043-0768	2013-03-87	15	DIBBS
4720-01-043-0768	2012-11-334	22	DIBBS
4720-01-043-0768	2012-06-165	31	DIBBS
4720-01-043-0768	2012-06-153	26	DIBBS
4720-01-043-0768	2012-03-62	16	DIBBS
4720-01-043-0768	2012-02-46	13	DIBBS
4720-01-043-0768	2011-11-322	13	DIBBS
4720-01-043-0768	2011-07-190	13	DIBBS
4720-01-043-0768	2011-05-123	11	DIBBS
4720-01-043-0768	2011-02-55	8	DIBBS
4720-01-043-0768	2011-02-39	9	DIBBS
4720-01-043-0768	2011-01-27	4	DIBBS
4720-01-043-0768	2011-01-11	7	DIBBS
4720-01-043-0768	2010-07-204	10	DIBBS
4720-01-043-0768	2009-10-292	24	DIBBS
4720-01-043-0768	2008-10-295	1	Netherlands

Cross Reference | NSN 4720-01-043-0768

Part Number	Cage Code	Manufacturer
AE4694E0206-045	00624	EATON CORPORATION DBA AEROSPACE DIV
C7905C4-0206	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
G214ABB0206C045	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
S5808-0206-H045	78570	SMITHS TUBULAR SYSTEMS-LACONIA, INC.
S5808-0206H45	78570	SMITHS TUBULAR SYSTEMS-LACONIA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4720-01-043-0768

Compare

Related Products | NSN 4720-01-043-0768

4720-01-043-1533, 4720-01-043-1534, 4720-01-043-1535, 4720-01-043-1536, 4720-01-043-1820

Technical Data | NSN 4720-01-043-0768

Characteristic	Specifications
HOSE OR TUBING SPEC/STD DATA	AS1339-81343 SPECIFICATION
INNER CONVEYING TUBE MATERIAL	PLASTIC, POLYTETRAFLUOROETHYLENE
INSIDE SURFACE CONDITION	SMOOTH
LAYER COMPOSITION AND LOCATION	OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE
CROSS-SECTIONAL SHAPE STYLE	1 ROUND
INSIDE DIAMETER	0.212 INCHES NOMINAL
OUTSIDE DIAMETER	0.500 INCHES NOMINAL
MEASURING METHOD AND LENGTH	20.750 INCHES NOMINAL WORKING
MINIMUM INSIDE BENDING RADIUS	1.500 INCHES
FIRST END FITTING SPEC/STD DATA	MS33656E4 STANDARD
FIRST END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	D1 FLARED
FIRST END SEAT ANGLE IN DEG	45.0
FIRST END CONNECTION DESIGN	ELBOW
FIRST END FLOW ANGLE IN DEG	90.0
FIRST END SWIVEL ACTION CAPABILITY	INCLUDED
FIRST END FITTING/COMPONENT AND MATERIAL	COMPLETE FITTING STEEL, CORROSION RESISTING
FIRST END FITTING/COMPONENT AND SURFACE TREATMENT	COMPLETE FITTING PASSIVATED, QQ-P-35
FIRST END THREAD SERIES DESIGNATOR	UNJF
FIRST END NOMINAL THREAD SIZE	0.438 INCHES
FIRST END THREAD CLASS	3A
FIRST END THREAD DIRECTION	RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END FITTING SPEC/STD DATA	MS33656E3 STANDARD
SECOND END CONNECTION TYPE	THREADED EXTERNAL TUBE
SECOND END STYLE DESIGNATOR	D1 FLARED
SECOND END SEAT ANGLE IN DEG	45.0
SECOND END CONNECTION DESIGN	ELBOW
SECOND END FLOW ANGLE IN DEG	90.0
SECOND END SWIVEL ACTION CAPABILITY	INCLUDED
SECOND END FITTING/COMPONENT AND MATERIAL	COMPLETE FITTING STEEL, CORROSION RESISTING
SECOND END FITTING/COMPONENT AND SURFACE TREATMENT	COMPLETE FITTING PASSIVATED, QQ-P-35
SECOND END THREAD SERIES DESIGNATOR	UNJF
SECOND END NOMINAL THREAD SIZE	0.375 INCHES
SECOND END THREAD CLASS	3A
SECOND END THREAD DIRECTION	RIGHT-HAND
ANGLE BETWEEN RIGID ELBOW FITTINGS IN DEG	45.0
TEMP RATING	-65.0 DEG FAHRENHEIT AND 275.0 DEG FAHRENHEIT
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH
HYDROSTATIC TEST PRESSURE	6000.0 POUNDS PER SQUARE INCH
BURST TEST PRESSURE	12000.0 POUNDS PER SQUARE INCH
FEATURES PROVIDED	NUTS DRILLED FOR LOCKWIRE
III END ITEM IDENTIFICATION	F-16 A B C D AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4720-01-043-0768

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	772	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4720-01-043-0768

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
