NSN 4720-01-052-6930 AA59566, A-A-59566, AA59566AA1030180
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-052-6930 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AA59566, A-A-59566, AA59566AA1030180, A-A-59566AA1030180, 4124606496WH37, 412-4606496WH37, 4S1670, 4S16702, 4S1670-2, 4720-01-052-6930, 01-052-6930, 4720010526930, 010526930
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 DEC 1977 | 01-052-6930 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

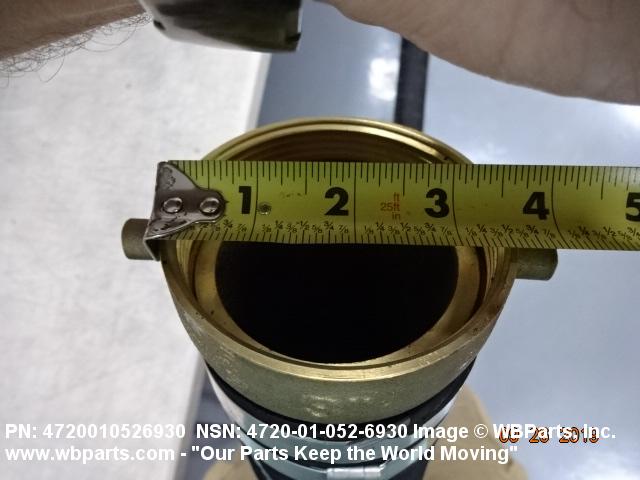

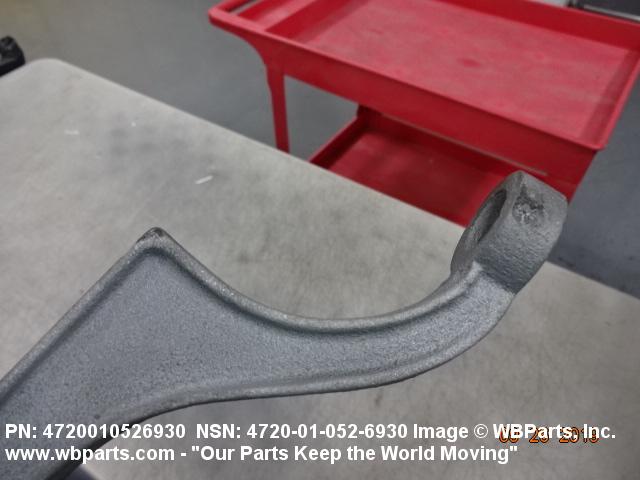

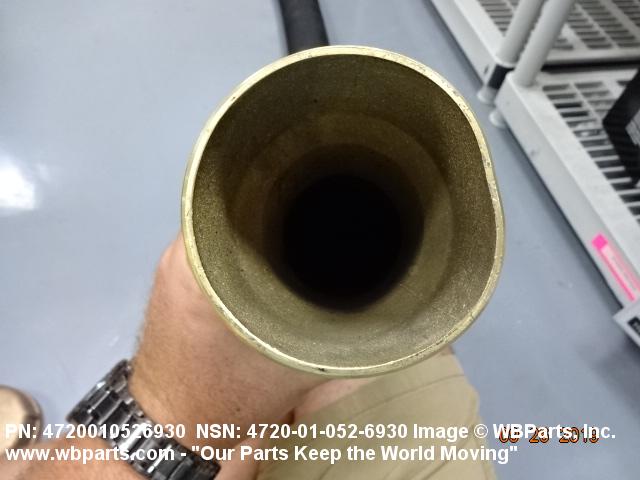

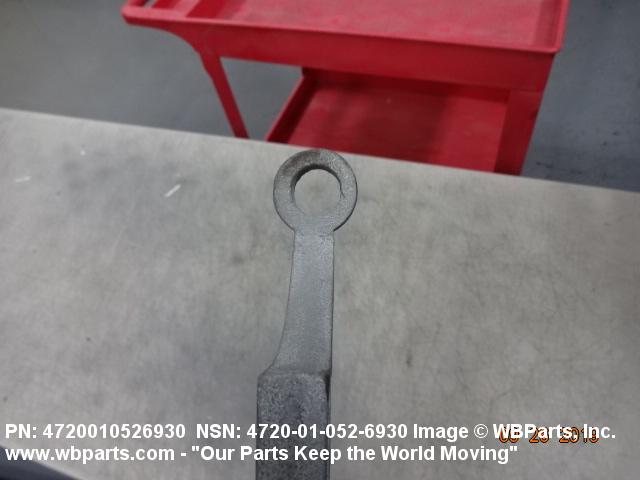

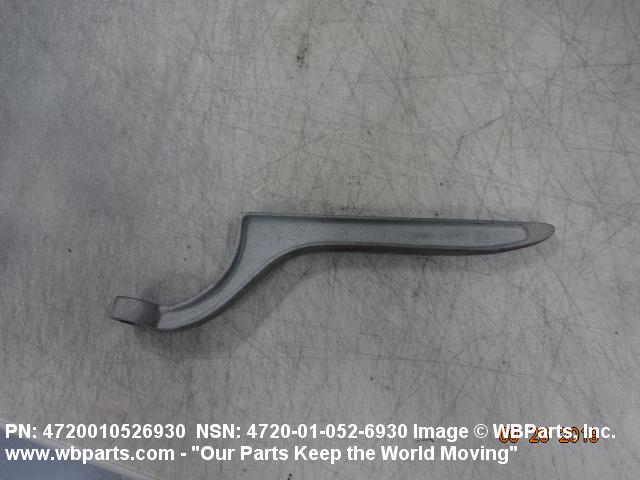

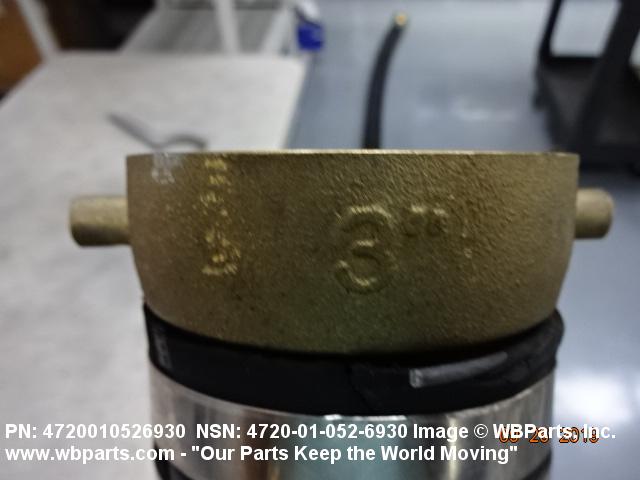

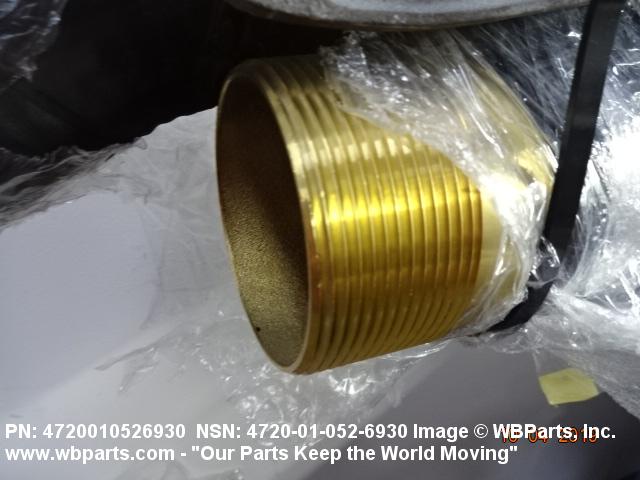

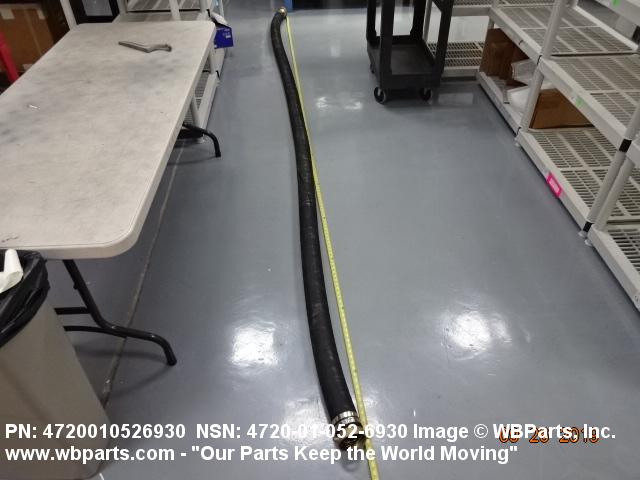

Drawings & Photos | NSN 4720-01-052-6930
Demand History | NSN 4720-01-052-6930
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SDRW-W-H-37 | 2025-10-287 | 30 | DIBBS |
| SDRW-W-H-37 | 2025-10-274 | 30 | DIBBS |
| SDRW-W-H-37 | 2025-05-139 | 30 | DIBBS |
| SDRW-W-H-37 | 2025-05-128 | 30 | DIBBS |
| 4720-01-052-6930 | 2024-07-205 | 25 | DIBBS |
| 4720-01-052-6930 | 2024-07-184 | 25 | DIBBS |
| 4720-01-052-6930 | 2023-09-261 | 8 | DIBBS |
| 4720-01-052-6930 | 2023-09-250 | 8 | DIBBS |
| 4720-01-052-6930 | 2023-06-171 | 1 | United States |
| 4720-01-052-6930 | 2023-04-96 | 12 | DIBBS |
| 4720-01-052-6930 | 2022-09-272 | 5 | DIBBS |
| 4720-01-052-6930 | 2022-09-262 | 5 | DIBBS |
| 4720-01-052-6930 | 2021-07-199 | 4 | DIBBS |
| 4720-01-052-6930 | 2021-02-46 | 1 | DIBBS |
| 4720-01-052-6930 | 2020-10-294 | 2 | DIBBS |
| 4720-01-052-6930 | 2020-06-156 | 2 | DIBBS |
| 4720-01-052-6930 | 2020-05-142 | 1 | DIBBS |
| 4720-01-052-6930 | 2020-04-100 | 2 | DIBBS |
| 4720-01-052-6930 | 2020-03-72 | 1 | DIBBS |
| 4720-01-052-6930 | 2019-08-226 | 1 | United States |
| 4720-01-052-6930 | 2019-03-90 | 2 | DIBBS |
| 4720-01-052-6930 | 2019-03-80 | 1 | DIBBS |
| 4720-01-052-6930 | 2018-11-312 | 1 | DIBBS |
| 4720-01-052-6930 | 2018-08-221 | 1 | DIBBS |
| 4720-01-052-6930 | 2018-07-185 | 3 | DIBBS |
| 4720-01-052-6930 | 2018-05-126 | 1 | DIBBS |
| 4720-01-052-6930 | 2017-06-157 | 2 | DIBBS |
| 4720-01-052-6930 | 2016-06-166 | 5 | DIBBS |
| 4720-01-052-6930 | 2016-04-95 | 4 | DIBBS |
| 4720-01-052-6930 | 2016-02-38 | 3 | DIBBS |
| 4720-01-052-6930 | 2015-08-222 | 2 | DIBBS |
| 4720-01-052-6930 | 2015-04-102 | 2 | DIBBS |
| 4720-01-052-6930 | 2014-11-327 | 1 | DIBBS |
| 4720-01-052-6930 | 2014-07-190 | 4 | DIBBS |
| 4720-01-052-6930 | 2012-10-283 | 3 | DIBBS |
| 4720-01-052-6930 | 2011-10-292 | 11 | DIBBS |
| 4720-01-052-6930 | 2011-08-238 | 4 | DIBBS |
| 4720-01-052-6930 | 2011-08-237 | 3 | DIBBS |
| 4720-01-052-6930 | 2011-01-18 | 5 | DIBBS |
| 4720-01-052-6930 | 2010-08-215 | 4 | DIBBS |
| 4720-01-052-6930 | 2010-03-64 | 3 | DIBBS |
| 4720-01-052-6930 | 2009-12-356 | 3 | DIBBS |
| 4720-01-052-6930 | 2009-10-286 | 2 | DIBBS |
Cross Reference | NSN 4720-01-052-6930
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 412-4606496WH37 | 89219 | LONG BEACH NAVAL SHIPYARD |
| 4S1670 | 03481 | BFGOODRICH CO THE AEROSPACE DIV |
| 4S1670-2 | 03481 | BFGOODRICH CO THE AEROSPACE DIV |
| 4S1670-2 | 0BBK9 | GOODRICH CORPORATION DBA ENGINEERED POLYMER PRODUCTS |
| 4S1670-2 | 76555 | MURDOCK INDUSTRIAL, INC |
| A-A-59566 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| A-A-59566AA1030180 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-052-6930
Related Products | NSN 4720-01-052-6930
Technical Data | NSN 4720-01-052-6930
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, ETHYLENE PROPYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED POLYAMIDE CORD 2ND LAYER BRAIDED POLYAMIDE CORD 3RD LAYER HELIX WIRE COIL 4TH LAYER BRAIDED POLYAMIDE CORD OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | OIL RESISTANT AND OZONE RESISTANT AND WEATHERPROOF |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.750 INCHES NOMINAL |

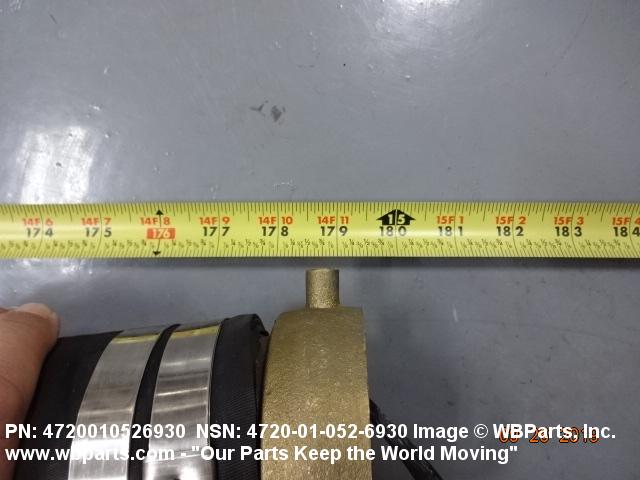

| MEASURING METHOD AND LENGTH | 180.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |

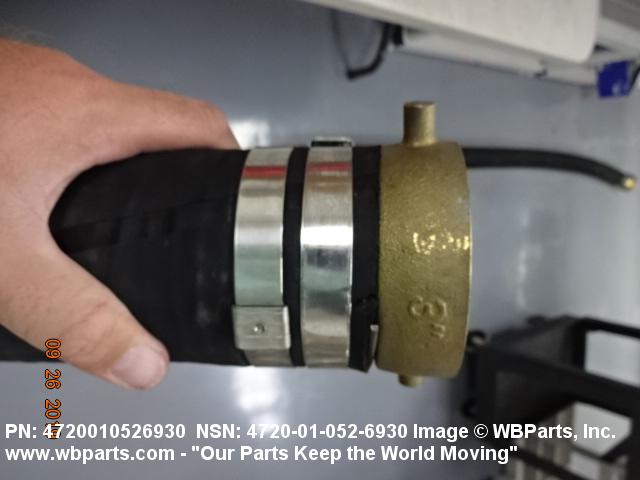

| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | C16 PLAIN |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANY ACCEPTABLE |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 3.000 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

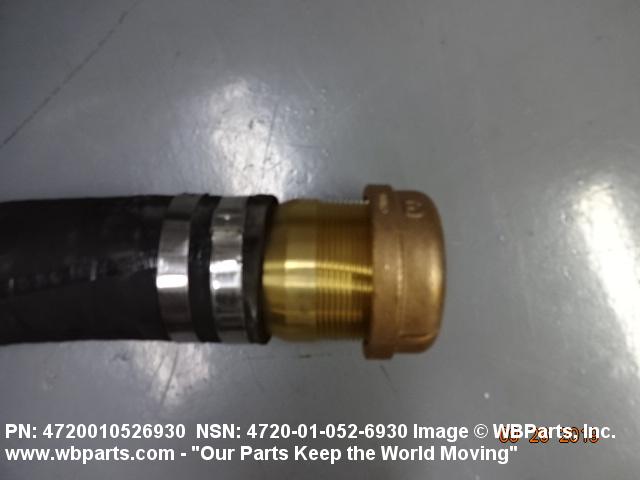

| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | D5 PLAIN |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |
| SECOND END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANY ACCEPTABLE |
| SECOND END THREAD SERIES DESIGNATOR | NPT |
| SECOND END NOMINAL THREAD SIZE | 3.000 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| SPECIAL FEATURES | FURNISHED WITH CAP ON ONE END |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59566 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59566AA1030180 |
Restrictions/Controls & Freight Information | NSN 4720-01-052-6930
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-052-6930
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
