NSN 4720-01-087-2096 NT1001250FT, NT10012-50FT, NT10012BK
Product Details | NONMETALLIC HOSE
4720-01-087-2096 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: NT1001250FT, NT10012-50FT, NT10012BK, NT10012-BK, C61250, C612-50, EE102554, EE-102554, J844 TYPEB-SIZE 3/4X50FT, J844TYPEBSIZE34X50FT, PFT12B50FT, PFT-12B-50FT, PFT12BBLK, PFT-12B-BLK, 250121050FT, 250-1210-50FT, 47213AX, C612, 4720-01-087-2096, 01-087-2096, 4720010872096, 010872096
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 DEC 1979 | 01-087-2096 | 31934 ( TUBING, NONMETALLIC ) |

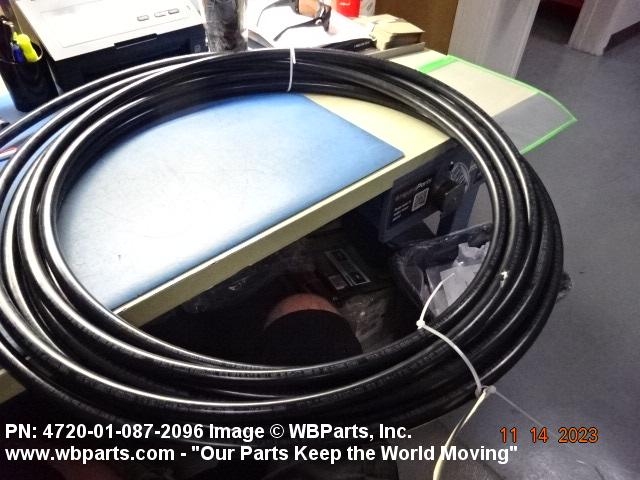

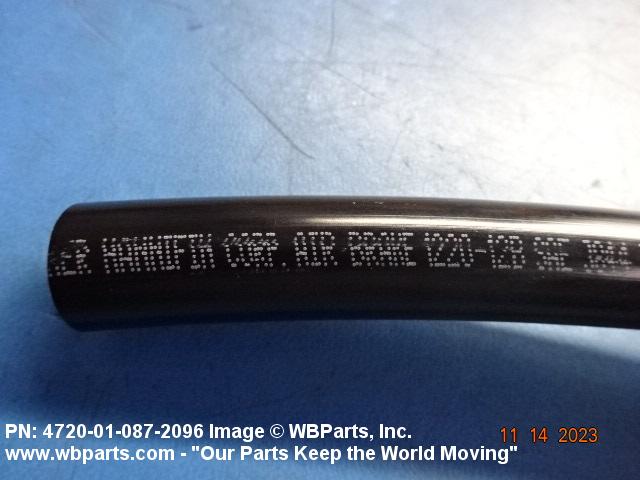

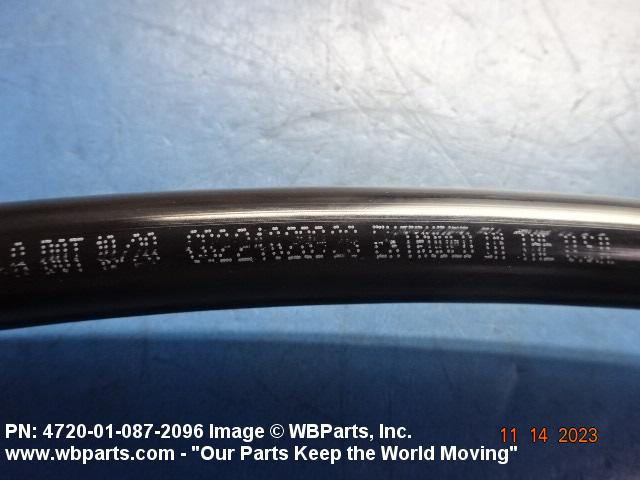

Drawings & Photos | NSN 4720-01-087-2096
Demand History | NSN 4720-01-087-2096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-087-2096 | 2025-02-59 | 100 | us |
| 4720-01-087-2096 | 2024-05-144 | 193 | DIBBS |
| 4720-01-087-2096 | 2023-11-305 | 1 | United States |
| 4720-01-087-2096 | 2022-09-255 | 132 | DIBBS |
| 4720-01-087-2096 | 2022-09-244 | 132 | DIBBS |
| 4720-01-087-2096 | 2022-05-129 | 120 | DIBBS |
| 4720-01-087-2096 | 2019-06-178 | 375 | DIBBS |
| 4720-01-087-2096 | 2016-05-143 | 495 | DIBBS |
| 4720-01-087-2096 | 2015-11-324 | 1009 | DIBBS |
| 4720-01-087-2096 | 2015-11-312 | 1009 | DIBBS |
Cross Reference | NSN 4720-01-087-2096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250-1210-50FT | 85753 | MOORE A G AND CO INC |
| 47213AX | 45152 | OSHKOSH CORPORATION |
| 47213AX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 47213AX | Z5B11 | MILSPEC SERVICES PTY LIMITED |
| C612 | 09505 | DAYCO INDUSTRIAL |
| C612 | 30327 | IMPERIAL |
| C612-50 | 30327 | IMPERIAL |
| EE-102554 | 45152 | OSHKOSH CORPORATION |
| J844 TYPEB-SIZE 3/4X50FT | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| NT10012-50FT | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| NT10012-50FT | 79470 | DANA CORP WEATHERHEAD DIV |
| NT10012-BK | Z1V84 | DANA AUSTRALIA PTY LTD |
| NT10012-BK | ZH215 | RAWSON GIBSON PTY LTD |
| PFT-12B-50FT | 61424 | PARKER-HANNIFIN CORPORATION DBA PARFLEX DIV |
| PFT-12B-50FT | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| PFT-12B-BLK | 61424 | PARKER-HANNIFIN CORPORATION DBA PARFLEX DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-087-2096
Related Products | NSN 4720-01-087-2096
Technical Data | NSN 4720-01-087-2096
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | POLYAMIDE NYLON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED POLYESTER CORD OUTER LAYER WOVEN POLYAMIDE CORD |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ABRASION RESISTANT AND OIL RESISTANT AND HEAT RESISTANT |
| EXTERIOR COLOR | BLACK |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

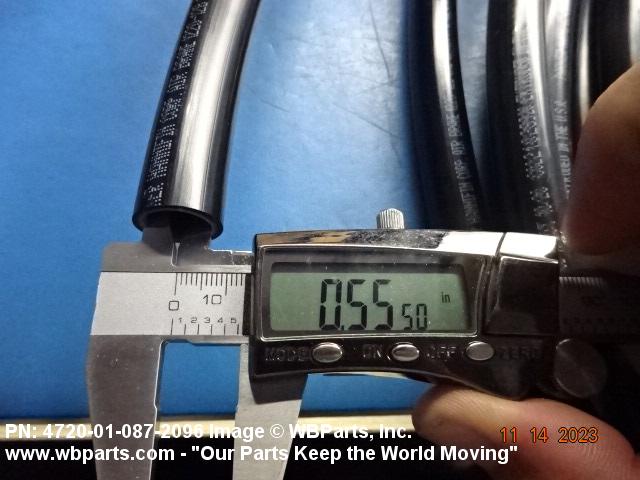

| INSIDE DIAMETER | 0.566 INCHES NOMINAL |

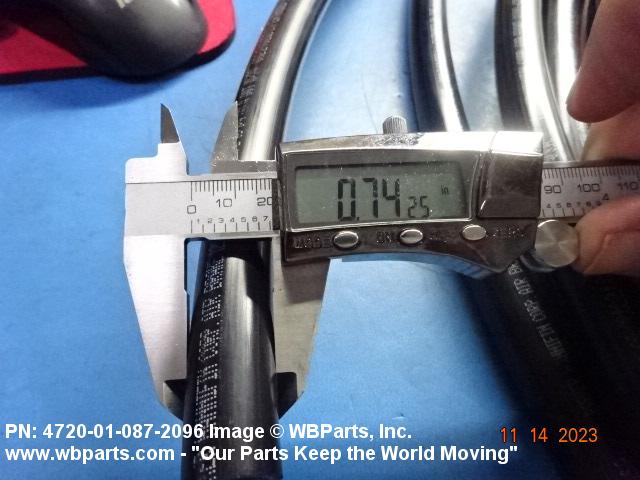

| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 600.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 3.000 INCHES |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 400.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 800.0 POUNDS PER SQUARE INCH |

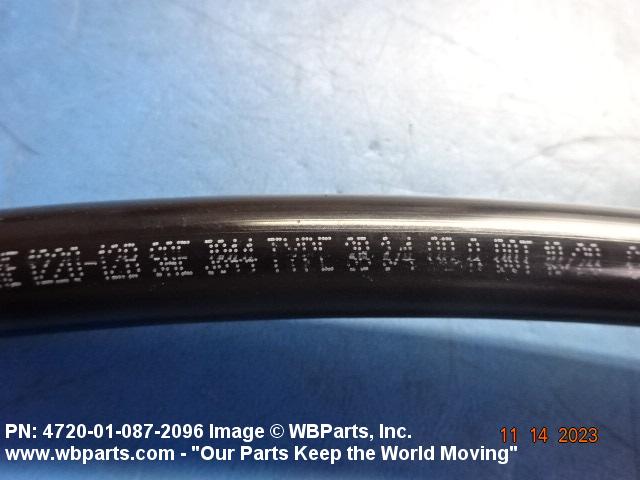

| SPECIFICATION/STANDARD DATA | 81343-SAE J844 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | B TYPE |
| III END ITEM IDENTIFICATION | 3950-01-110-9224 |
Restrictions/Controls & Freight Information | NSN 4720-01-087-2096
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-087-2096
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
