NSN 4720-01-088-8664 30542000663, 305-420006-63, 01-088-8664
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-088-8664 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 30542000663, 305-420006-63, 4720-01-088-8664, 01-088-8664, 4720010888664, 010888664
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 JAN 1980 | 01-088-8664 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

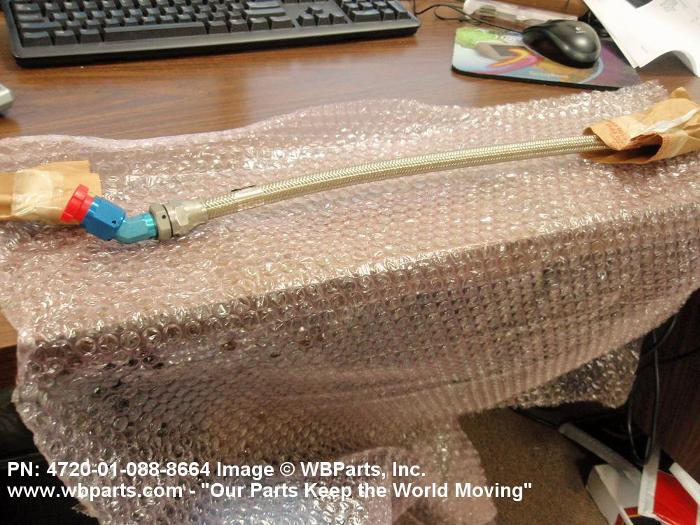

Drawings & Photos | NSN 4720-01-088-8664
Demand History | NSN 4720-01-088-8664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30542000663 | 2011-05-136 | 1 | United States |
| 4720-01-088-8664 | 2011-05-136 | 1 | United States |
Cross Reference | NSN 4720-01-088-8664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 305-420006-63 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-088-8664
Related Products | NSN 4720-01-088-8664
Technical Data | NSN 4720-01-088-8664
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-H-27267 SPECIFICATION |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 20.120 INCHES NOMINAL OVERALL |
| FIRST END FITTING SPEC/STD DATA | MS27060-8 SPECIFICATION |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END CONNECTION DESIGN | ELBOW |
| FIRST END FLOW ANGLE IN DEG | 90.0 |
| FIRST END SWIVEL ACTION CAPABILITY | INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ALUMINUM ALLOY |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END FITTING SPEC/STD DATA | MS27059-8 SPECIFICATION |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| SECOND END CONNECTION DESIGN | ELBOW |
| SECOND END FLOW ANGLE IN DEG | 45.0 |
| SECOND END SWIVEL ACTION CAPABILITY | INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ALUMINUM ALLOY |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 89372 |
| DESIGN CONTROL REFERENCE | 305-420006-63 |
Restrictions/Controls & Freight Information | NSN 4720-01-088-8664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-088-8664
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
