NSN 4720-01-173-5842 AE7010010H0152, 4J08TEJ08J0152, 4J08TEJ08J-0152
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-173-5842 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: AE7010010H0152, 4J08TEJ08J0152, 4J08TEJ08J-0152, 7311670419, 7-311670419, 4720-01-173-5842, 01-173-5842, 4720011735842, 011735842
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 MAR 1984 | 01-173-5842 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

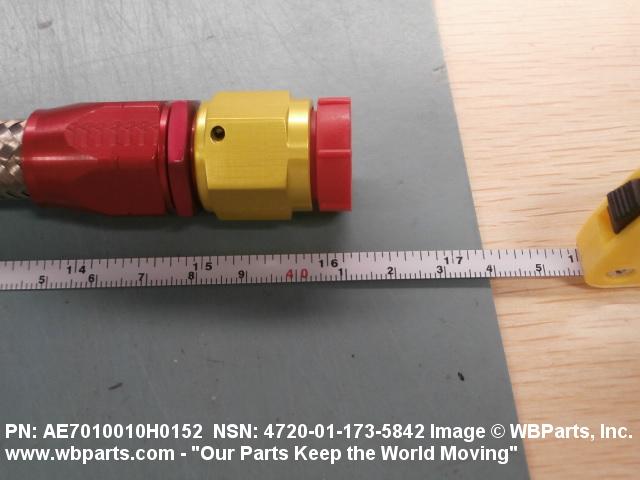

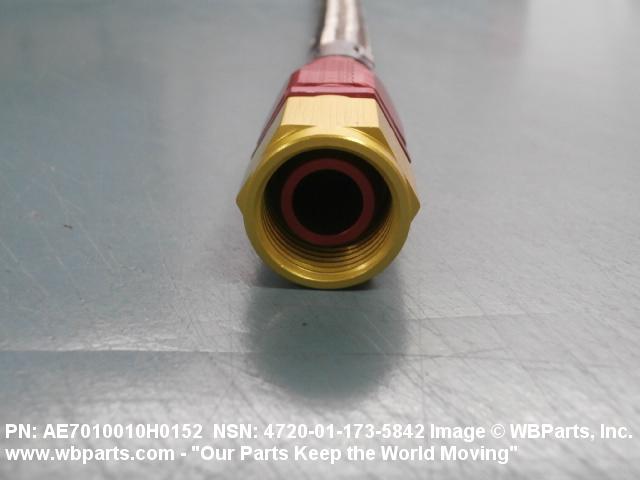

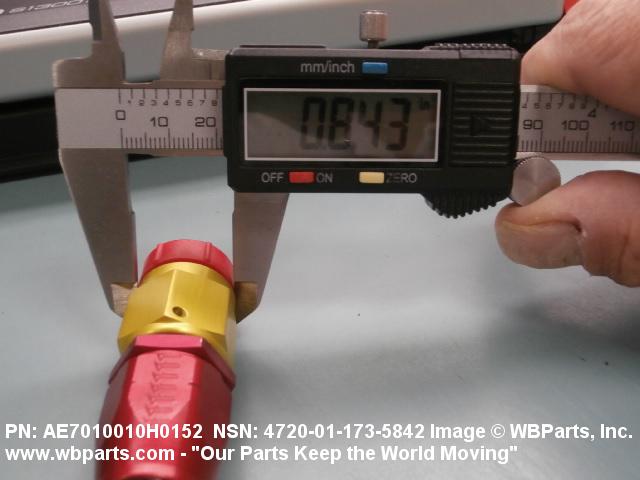

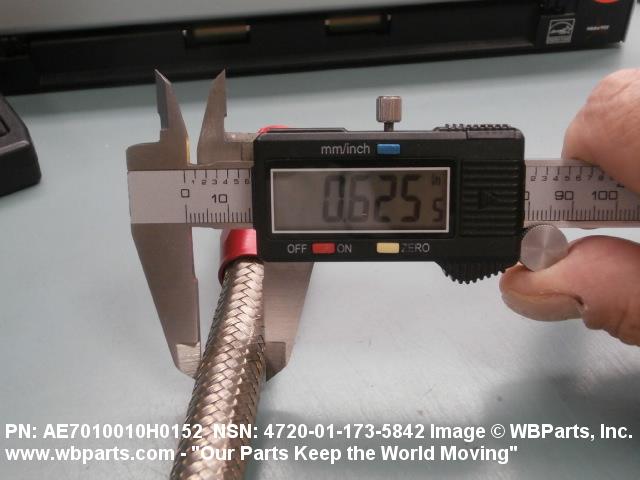

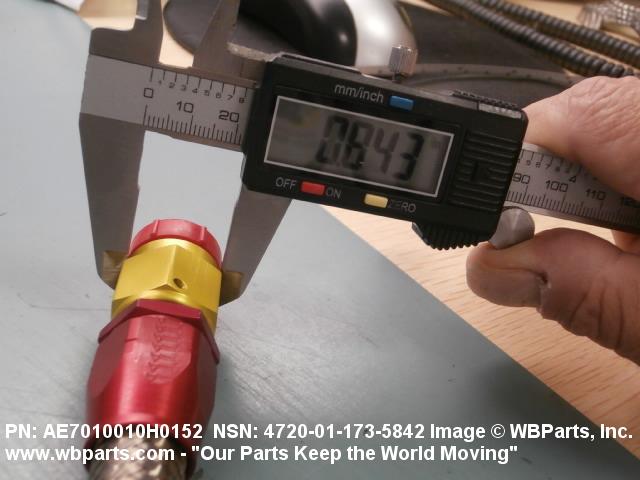

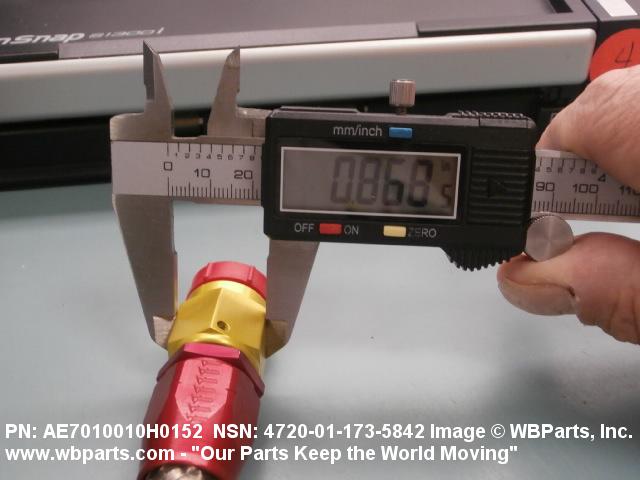

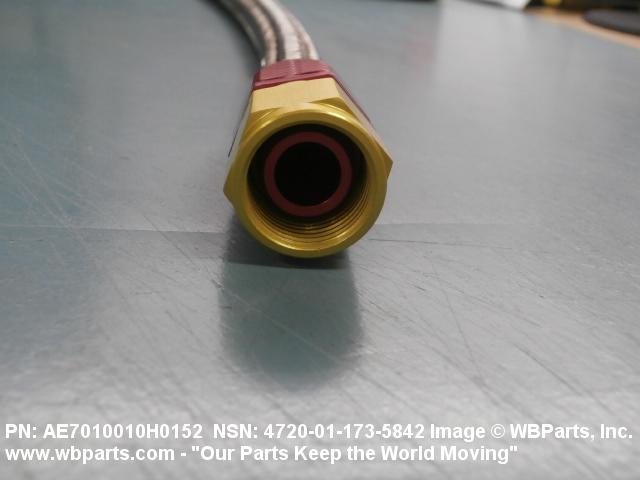

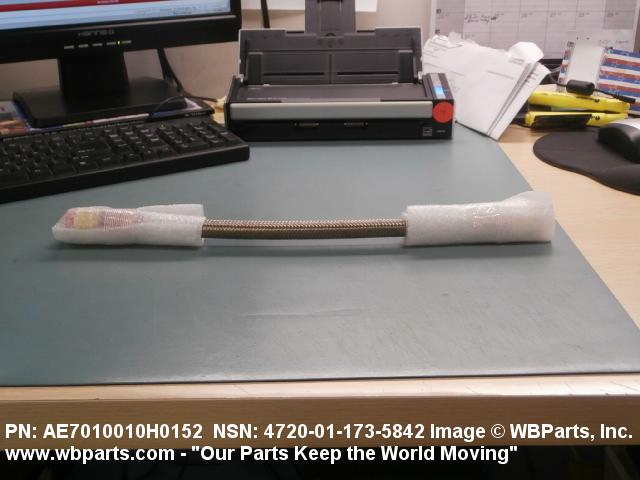

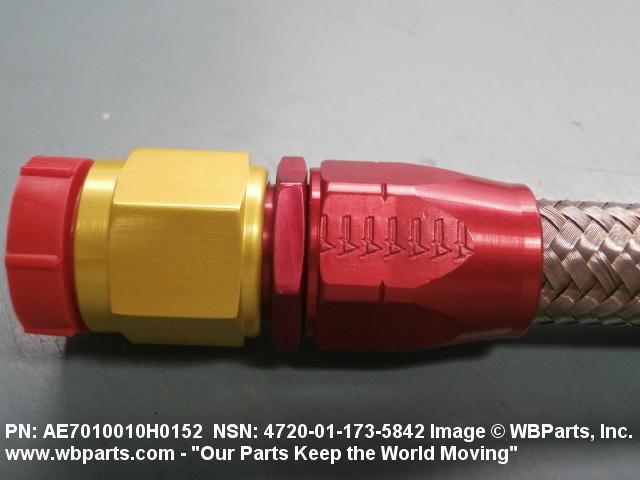

Drawings & Photos | NSN 4720-01-173-5842
Demand History | NSN 4720-01-173-5842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4J08TEJ08J-0152 | 2025-07-182 | 20 | DIBBS |
| AE7010010H0152 | 2025-07-182 | 20 | DIBBS |
| 4J08TEJ08J-0152 | 2024-09-263 | 20 | DIBBS |
| AE7010010H0152 | 2024-09-263 | 20 | DIBBS |
| 4J08TEJ08J-0152 | 2024-06-158 | 9 | DIBBS |
| AE7010010H0152 | 2024-06-158 | 9 | DIBBS |
| 4720-01-173-5842 | 2013-12-345 | 6 | United States |
| 4720-01-173-5842 | 2013-12-338 | 5 | United States |
| 4720-01-173-5842 | 2011-09-245 | 23 | DIBBS |
| 4720-01-173-5842 | 2011-09-245 | 35 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-173-5842
Related Products | NSN 4720-01-173-5842
Technical Data | NSN 4720-01-173-5842
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE, PARTIAL COVERAGE OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ALCOHOL RESISTANT AND SOLVENT RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.415 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.672 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 15.250 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 3.500 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C12 SWIVEL NUT, FLARELESS |
| FIRST END SEAT ANGLE IN DEG | 12.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING ALUMINUM ALLOY |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANODIZED |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 1000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 2500.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 5000.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-83796/1 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 8 SIZE |
Restrictions/Controls & Freight Information | NSN 4720-01-173-5842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-173-5842
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
