NSN 4720-01-283-3040 M24135/12/32, M241351232, AE37232
Product Details | NONMETALLIC HOSE
4720-01-283-3040 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M24135/12/32, M241351232, AE37232, AE372-32, FC30032, FC300-32, MILH24135, MIL-H-24135, 206/S4211-32, 20632, 206-32, 206S421132, 4720-01-283-3040, 01-283-3040, 4720012833040, 012833040
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 AUG 1988 | 01-283-3040 | 22670 ( HOSE, NONMETALLIC ) |

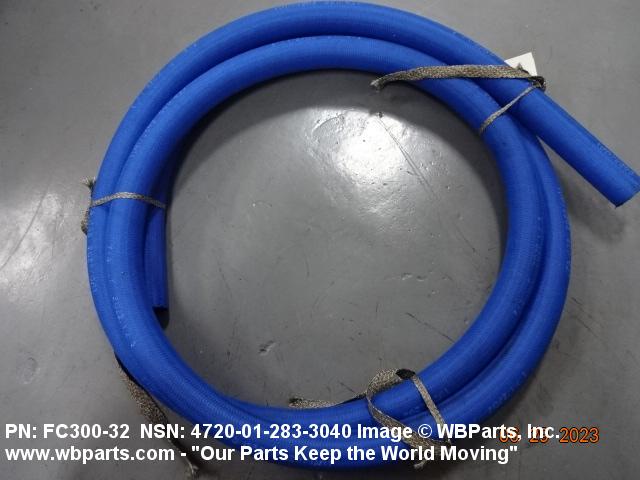

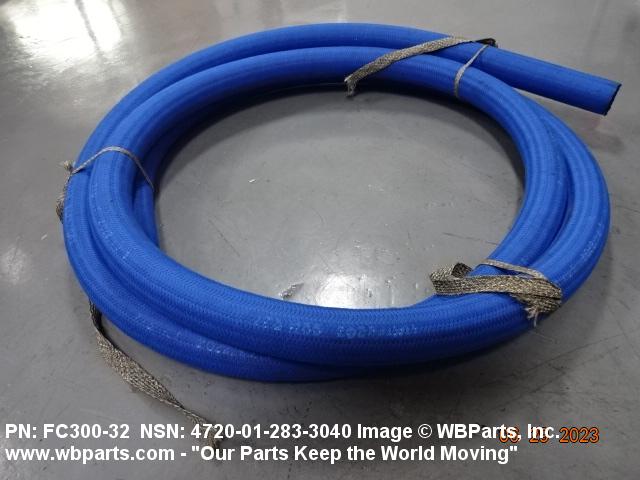

Drawings & Photos | NSN 4720-01-283-3040
Demand History | NSN 4720-01-283-3040
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-283-3040 | 2025-10-278 | 1465 | DIBBS |
| 4720-01-283-3040 | 2025-08-232 | 25 | DIBBS |
| 4720-01-283-3040 | 2025-08-230 | 780 | DIBBS |
| 4720-01-283-3040 | 2025-08-219 | 685 | DIBBS |
| 4720-01-283-3040 | 2025-08-217 | 780 | DIBBS |
| 4720-01-283-3040 | 2025-07-187 | 25 | DIBBS |
| 4720-01-283-3040 | 2024-09-263 | 780 | DIBBS |
| 4720-01-283-3040 | 2023-06-178 | 16 | United States |
| 4720-01-283-3040 | 2023-05-138 | 1868 | DIBBS |
| 4720-01-283-3040 | 2023-02-40 | 429 | DIBBS |
| 4720-01-283-3040 | 2022-07-202 | 406 | DIBBS |
| 4720-01-283-3040 | 2022-07-191 | 406 | DIBBS |
| 4720-01-283-3040 | 2022-07-185 | 143 | DIBBS |
| 4720-01-283-3040 | 2022-06-167 | 193 | DIBBS |
| 4720-01-283-3040 | 2021-12-354 | 143 | DIBBS |
| 4720-01-283-3040 | 2021-12-346 | 143 | DIBBS |
| 4720-01-283-3040 | 2020-11-329 | 611 | DIBBS |
| 4720-01-283-3040 | 2020-04-100 | 30 | DIBBS |
| 4720-01-283-3040 | 2020-02-37 | 428 | DIBBS |
| 4720-01-283-3040 | 2019-11-328 | 50 | US |
| 4720-01-283-3040 | 2019-03-67 | 597 | DIBBS |
| 4720-01-283-3040 | 2019-02-56 | 597 | DIBBS |
| 4720-01-283-3040 | 2019-02-45 | 597 | DIBBS |
| 4720-01-283-3040 | 2015-09-245 | 590 | DIBBS |
| 4720-01-283-3040 | 2015-07-189 | 272 | DIBBS |
| 4720-01-283-3040 | 2013-02-56 | 489 | DIBBS |
| 4720-01-283-3040 | 2012-04-95 | 250 | DIBBS |
| 4720-01-283-3040 | 2012-03-75 | 184 | DIBBS |
| 4720-01-283-3040 | 2012-03-62 | 358 | DIBBS |
| 4720-01-283-3040 | 2012-02-33 | 200 | DIBBS |
| 4720-01-283-3040 | 2012-01-26 | 168 | DIBBS |
| 4720-01-283-3040 | 2011-01-10 | 578 | DIBBS |
| 4720-01-283-3040 | 2010-12-364 | 808 | DIBBS |
| 4720-01-283-3040 | 2010-12-335 | 166 | DIBBS |
| 4720-01-283-3040 | 2010-09-272 | 212 | DIBBS |
| 4720-01-283-3040 | 2010-09-271 | 459 | DIBBS |
| 4720-01-283-3040 | 2010-04-120 | 121 | DIBBS |
Cross Reference | NSN 4720-01-283-3040
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-32 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 206/S4211-32 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| AE372-32 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| AE372-32 | 1P322 | EATON AEROQUIP INC |
| FC300-32 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| M24135/12/32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24135 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-283-3040
Related Products | NSN 4720-01-283-3040
Technical Data | NSN 4720-01-283-3040
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | PLASTIC, FLUORO-ELASTOMER |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED POLYESTER CORD 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER BRAIDED POLYESTER CORD |
| OUTER COVERING ENVIRONMENTAL PROTECTION | FIRE RESISTANT AND FUEL RESISTANT AND HYDRAULIC FLUID RESISTANT AND OIL RESISTANT |
| EXTERIOR COLOR | BLUE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

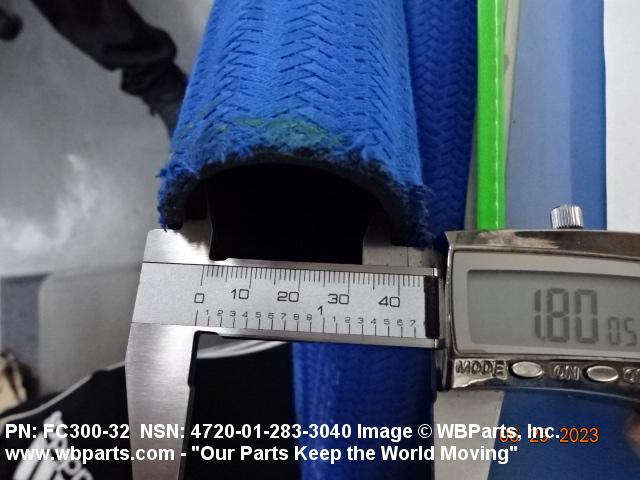

| INSIDE DIAMETER | 1.812 INCHES NOMINAL |

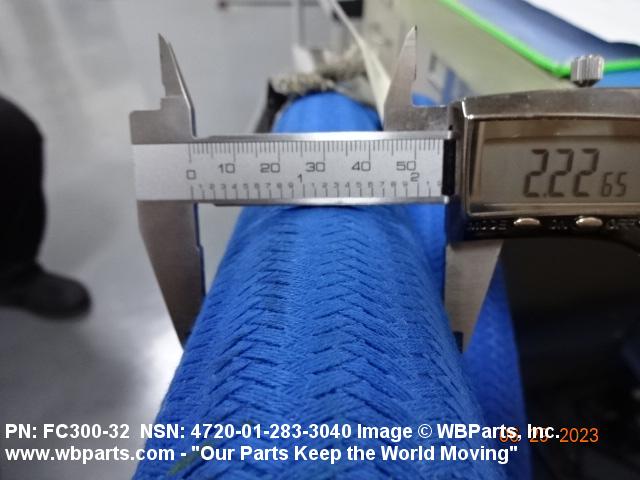

| OUTSIDE DIAMETER | 2.220 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 13.250 INCHES |
| TEMP RATING | -55.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 600.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1200.0 POUNDS PER SQUARE INCH |
| III END ITEM IDENTIFICATION | 4920-01-146-2230 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24135 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24135/12/32 |
Restrictions/Controls & Freight Information | NSN 4720-01-283-3040
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-283-3040
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
