NSN 4720-01-305-9799 S6130622057, S6130-62205-7, 60129316D0830
Product Details | METALLIC HOSE ASSEMBLY
4720-01-305-9799 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Part Alternates: S6130622057, S6130-62205-7, 60129316D0830, 601293-16D-0830, 4720-01-305-9799, 01-305-9799, 4720013059799, 013059799
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 AUG 1989 | 01-305-9799 | 17972 ( HOSE ASSEMBLY, METALLIC ) |

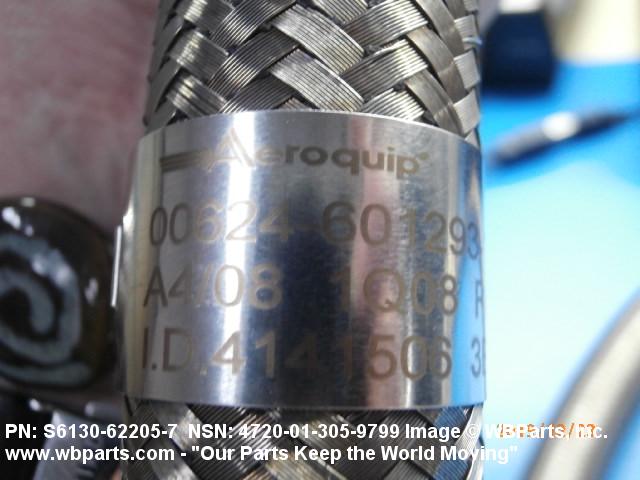

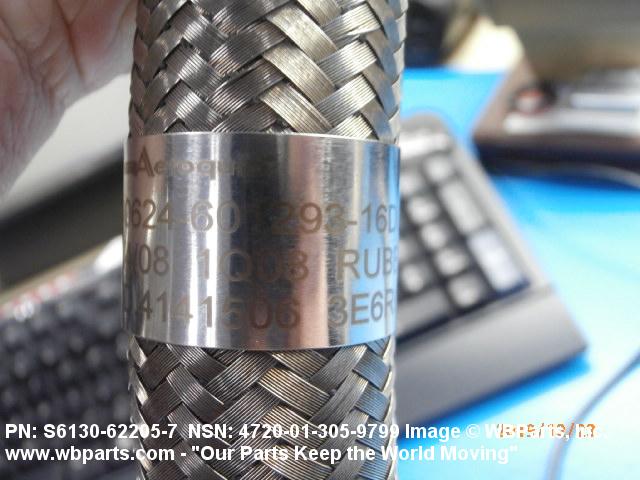

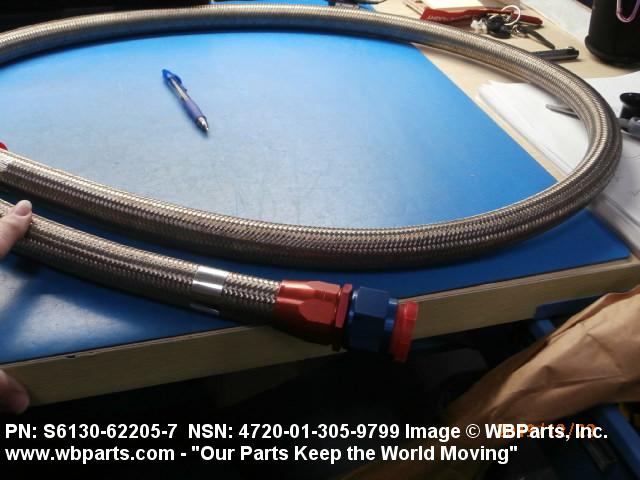

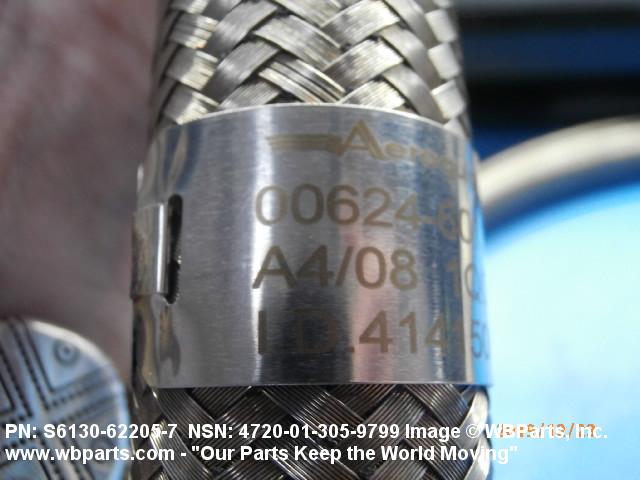

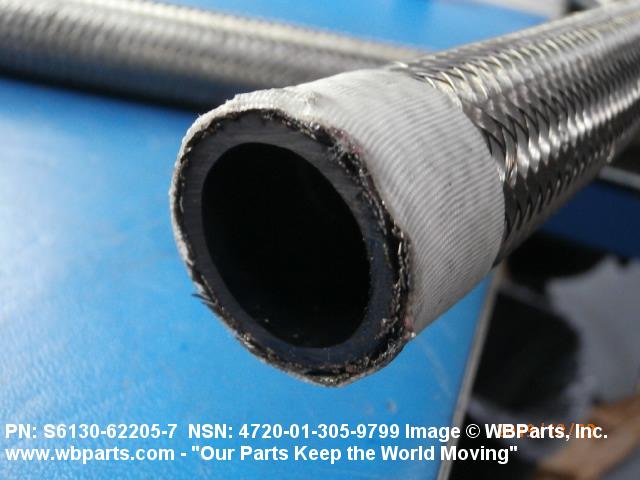

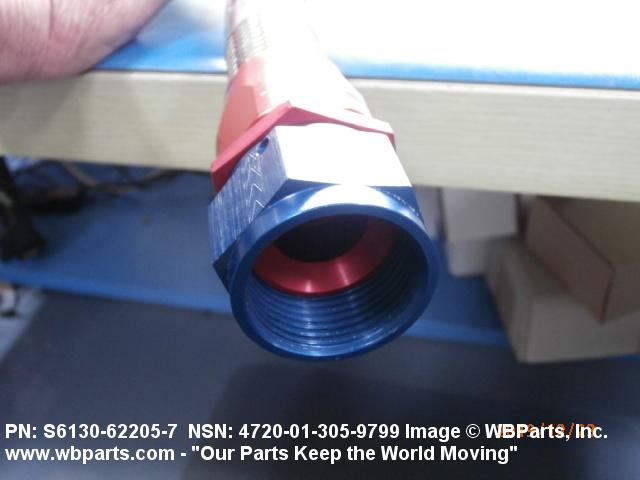

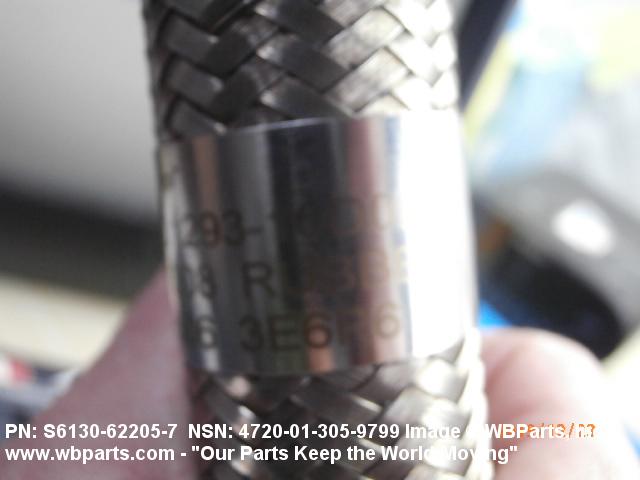

Drawings & Photos | NSN 4720-01-305-9799
Demand History | NSN 4720-01-305-9799
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-305-9799 | 2021-01-25 | 2 | US |
| 601293-16D-0830 | 2020-07-212 | 2 | DIBBS |
| S6130-62205-7 | 2020-07-212 | 2 | DIBBS |
| 4720-01-305-9799 | 2020-02-48 | 2 | PE |
| S6130622057 | 2019-10-284 | 2 | United States |
| 4720-01-305-9799 | 2014-10-297 | 1 | Saudi Arabia |
| S6130-62205-7 | 2012-07-184 | 1 | United States |
| S6130-62205-7 | 2012-06-160 | 6 | United States |
| S6130-62205-7 | 2012-04-93 | 6 | United States |
| S6130622057 | 2012-03-75 | 8 | United States |
| S6130-62205-7 | 2012-02-39 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-305-9799
Related Products | NSN 4720-01-305-9799
Technical Data | NSN 4720-01-305-9799
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| III END ITEM IDENTIFICATION | 1560-00-544-0907 |
Restrictions/Controls & Freight Information | NSN 4720-01-305-9799
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | U | 96 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-305-9799
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | U | 96 months |
| Purchasing | QTY UOM |
1 EA : Each |
