NSN 4720-01-324-9012 16A12110L13, 16A12110L1-3, 01-324-9012
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-324-9012 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 16A12110L13, 16A12110L1-3, 4720-01-324-9012, 01-324-9012, 4720013249012, 013249012
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 AUG 1990 | 01-324-9012 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

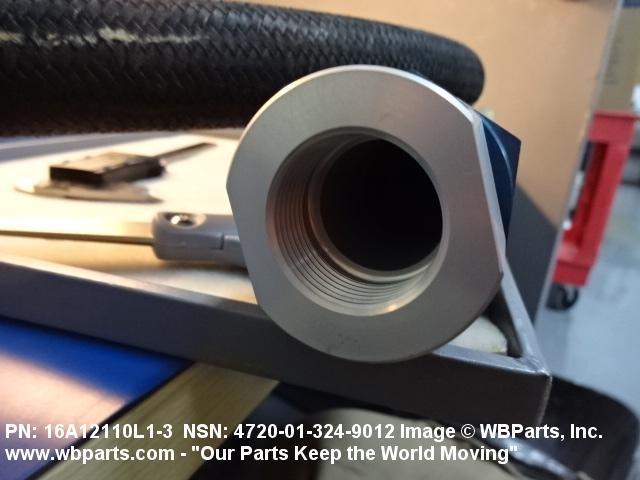

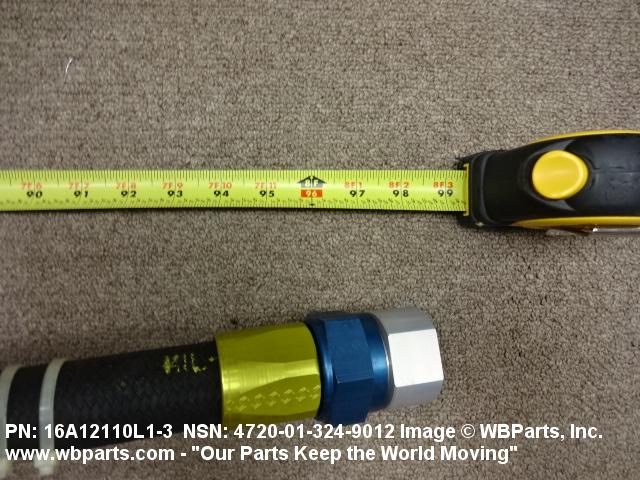

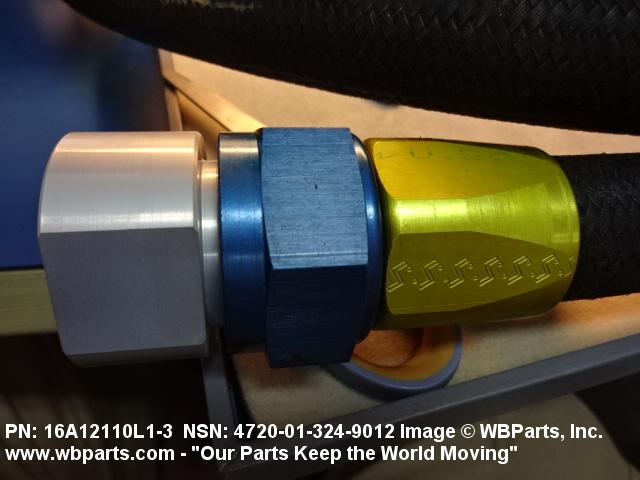

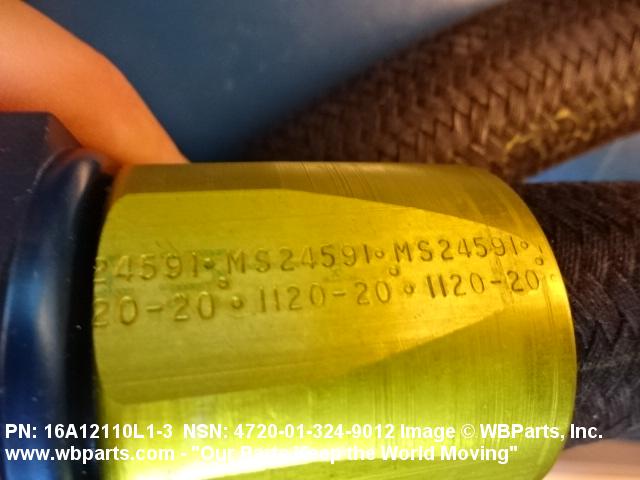

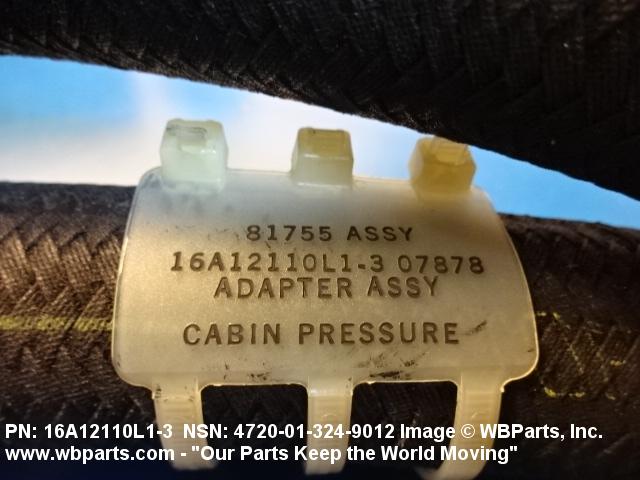

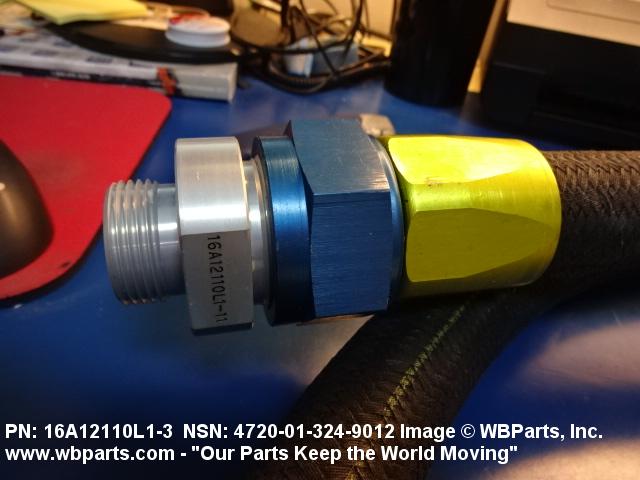

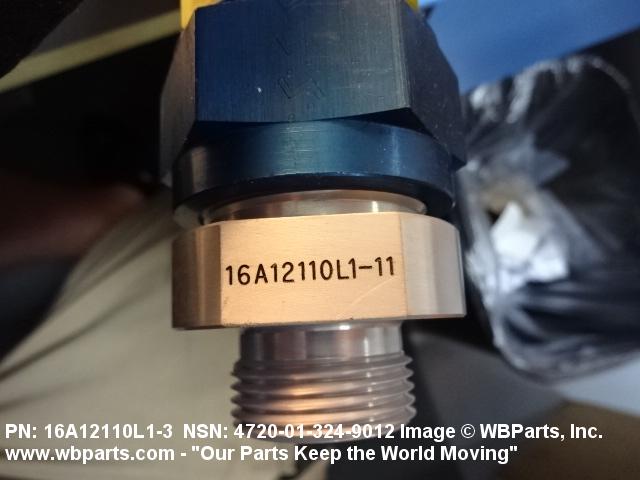

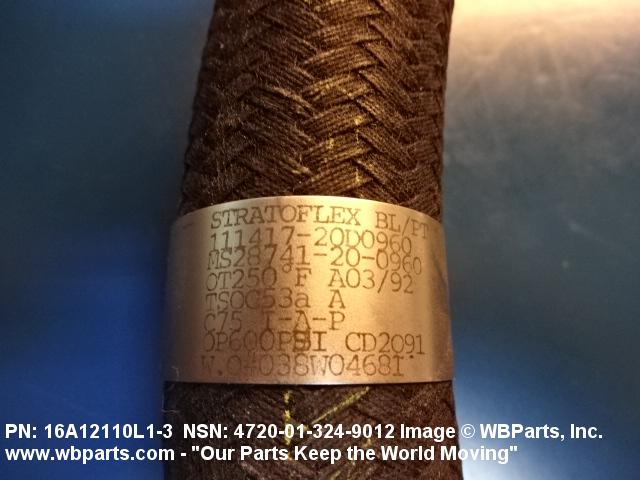

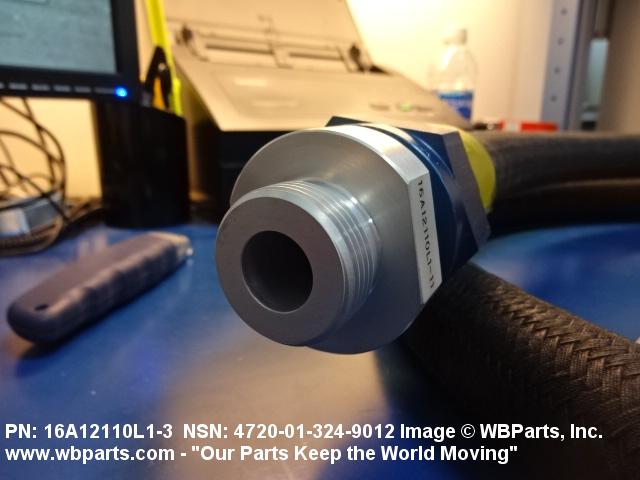

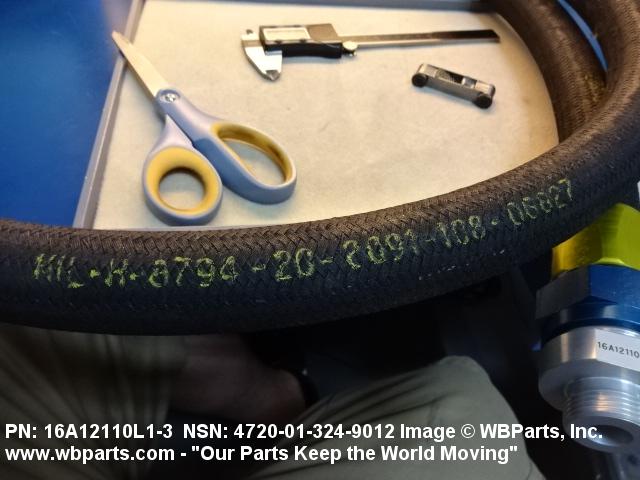

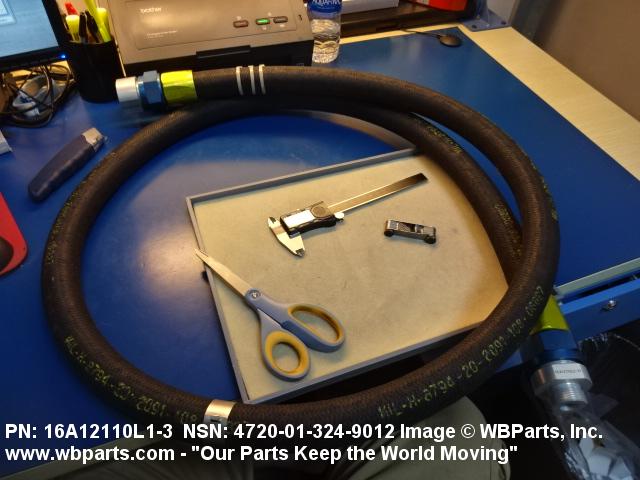

Drawings & Photos | NSN 4720-01-324-9012
Demand History | NSN 4720-01-324-9012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-324-9012 | 2025-12-353 | 1 | South Korea |
| 16A12110L1-3 | 2025-09-261 | 50 | DIBBS |
| 16A12110L1-3 | 2025-09-250 | 50 | DIBBS |
| 4720-01-324-9012 | 2025-07-182 | 1 | United States |
| 16A12110L1-3 | 2024-11-316 | 50 | DIBBS |
| 16A12110L1-3 | 2024-07-189 | 50 | DIBBS |
| 16A12110L1-3 | 2019-08-238 | 5 | DIBBS |
| 4720-01-324-9012 | 2019-08-235 | 2 | United States |
| 16A12110L1-3 | 2019-08-233 | 2 | DIBBS |
| 16A12110L1-3 | 2019-07-197 | 2 | DIBBS |
| 16A12110L1-3 | 2019-05-141 | 2 | DIBBS |
| 4720-01-324-9012 | 2019-05-126 | 1 | US |
| 16A12110L1-3 | 2019-04-105 | 3 | DIBBS |
| 4720-01-324-9012 | 2018-05-145 | 1 | United States |
| 16A12110L13 | 2015-08-239 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-324-9012
Related Products | NSN 4720-01-324-9012
Technical Data | NSN 4720-01-324-9012
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-S-7742 SPECIFICATION |
| INSIDE SURFACE CONDITION | SMOOTH |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.083 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 8.0 FEET NOMINAL OVERALL |
| SPECIAL FEATURES | U/FOR THE ADAPTER HOSE CONNECTS THE LEAKAGE TESTER SUPPLY HOSE TO THE TEST POINT;F-16A/B/C/D |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16A12110L1-3 |
Restrictions/Controls & Freight Information | NSN 4720-01-324-9012
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-324-9012
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
