Product Details | AIR BREATHING HOSE
4720-01-342-2927 A flexible, tubular item of odorless light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure air or oxygen for breathing purposes. For items with couplings and/or a communication cable, see HOSE ASSEBMLY, AIR BREATHING. Excludes HOSE, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: HC30S, 4720-01-342-2927, 01-342-2927, 4720013422927, 013422927
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 JUL 1991 | 01-342-2927 | 39226 ( HOSE, AIR BREATHING ) |

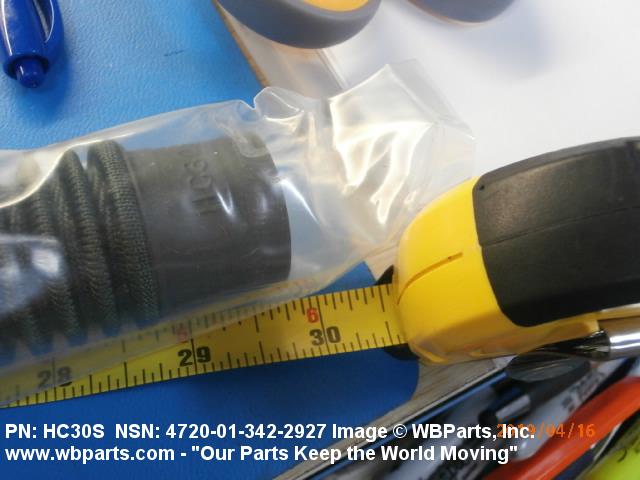

Drawings & Photos | NSN 4720-01-342-2927
Demand History | NSN 4720-01-342-2927
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-342-2927 | 2020-06-11 | 4 | US |
| 4720-01-342-2927 | 2019-04-05 | 1 | United States |
| 4720-01-342-2927 | 2017-08-14 | 61 | DIBBS |
| 4720-01-342-2927 | 2017-05-31 | 64 | DIBBS |
| 4720-01-342-2927 | 2017-05-17 | 64 | DIBBS |
| 4720-01-342-2927 | 2012-04-25 | 90 | DIBBS |
| 4720-01-342-2927 | 2011-04-01 | 77 | DIBBS |
Cross Reference | NSN 4720-01-342-2927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC30S | 13560 | HERBERT COOPER COMPANY INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4720-01-342-2927
Related Products | NSN 4720-01-342-2927
4720-01-342-3437, 4720-01-342-3597, 4720-01-342-3752, 4720-01-342-4025, 4720-01-342-4026
Technical Data | NSN 4720-01-342-2927
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER AND RUBBER SYNTHETIC LINER |

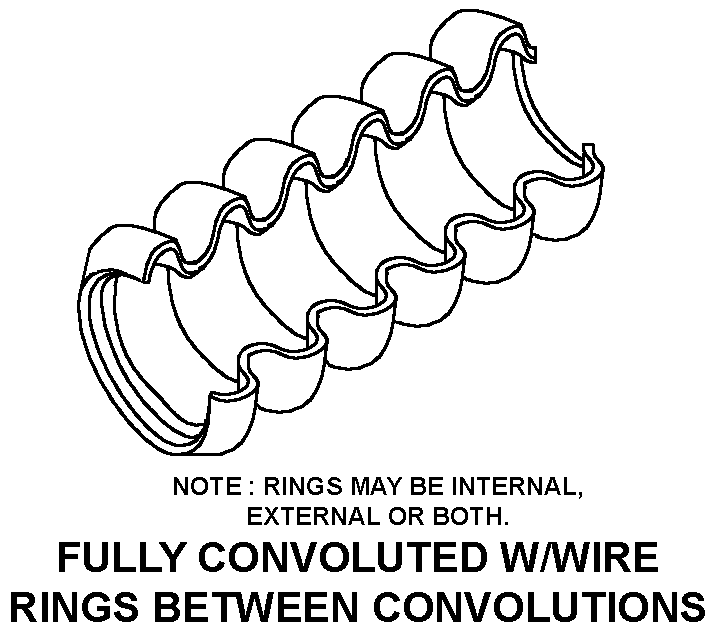

| STYLE DESIGNATOR | A3 FULLY CONVOLUTED W/WIRE RINGS BETWEN CONVOLUTIONS |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| MEASURING METHOD AND LENGTH | 30.000 INCHES NOMINAL OVERALL |
| CONNECTION STYLE | C3 ROUND BOTH ENDS |
| END INSIDE DIAMETER | 0.875 INCHES NOMINAL BOTH ENDS |
| MANUFACTURERS CODE | 13560 |
| DESIGN CONTROL REFERENCE | HC30S |
Restrictions/Controls & Freight Information | NSN 4720-01-342-2927
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-342-2927
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | MH | TG:LIFE SUPPORT SYSTEM 412A |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
