NSN 4720-01-389-0682 8820190, 88-20190, 01-389-0682
Product Details | PREFORMED HOSE
4720-01-389-0682 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: 8820190, 88-20190, 4720-01-389-0682, 01-389-0682, 4720013890682, 013890682
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 APR 1994 | 01-389-0682 | 17271 ( HOSE, PREFORMED ) |

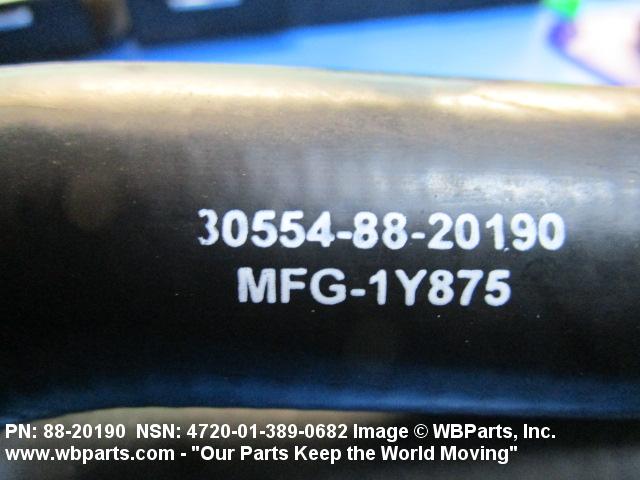

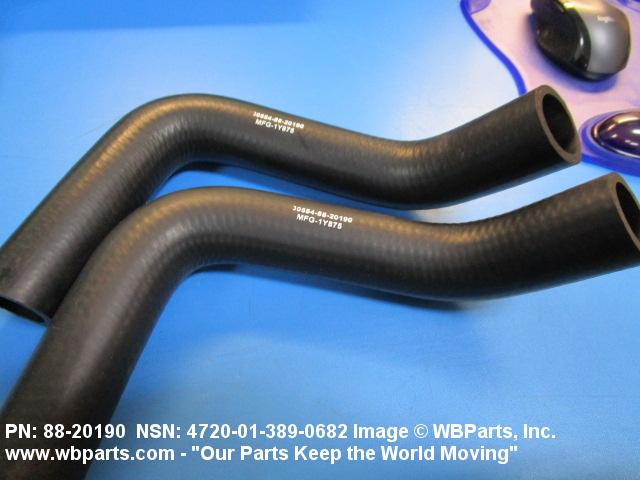

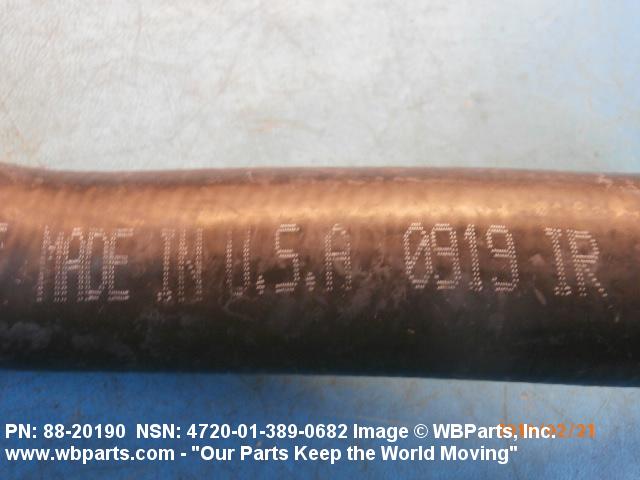

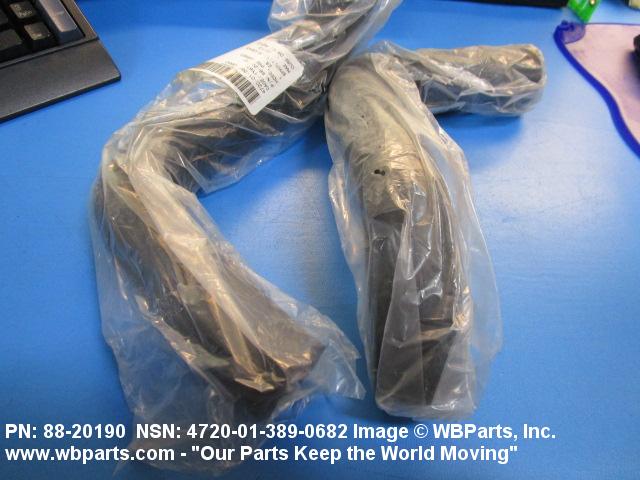

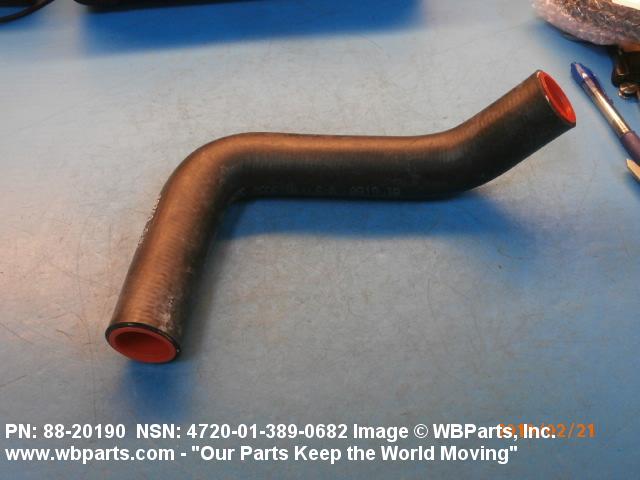

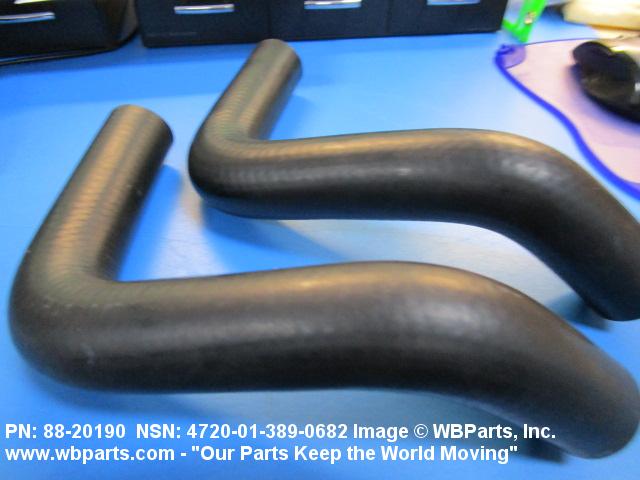

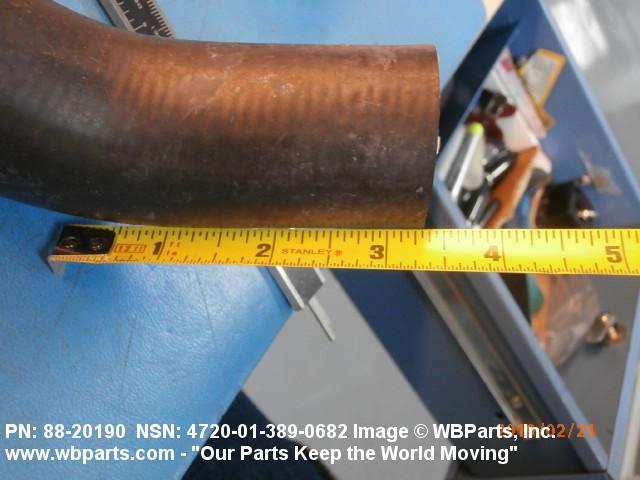

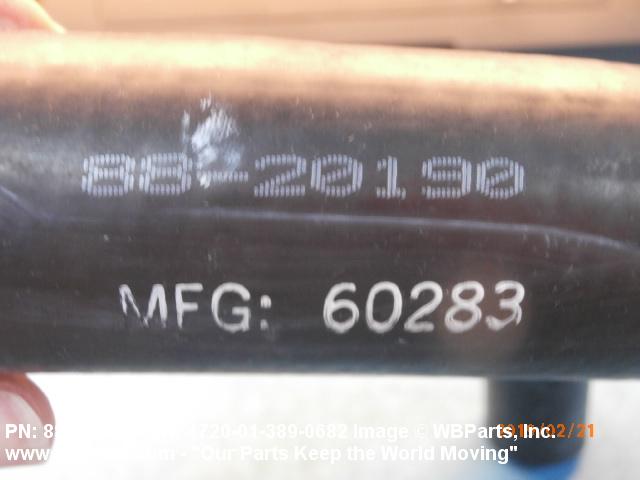

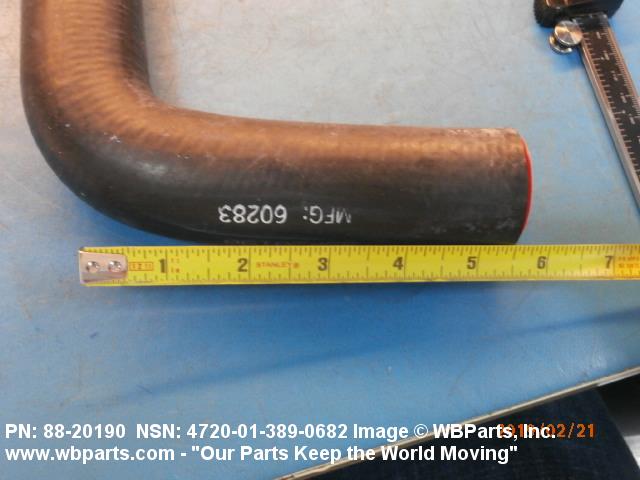

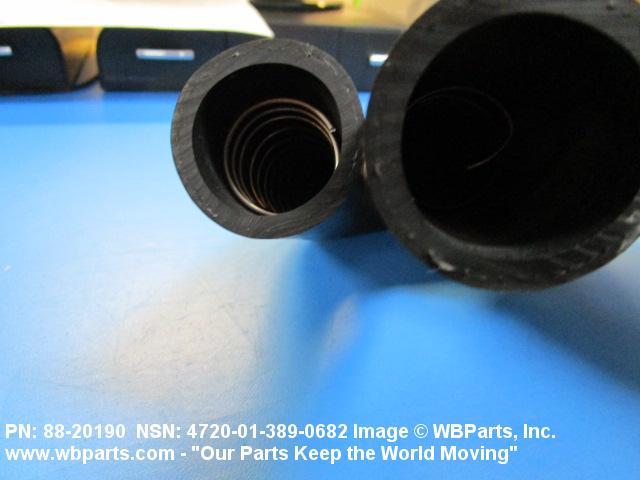

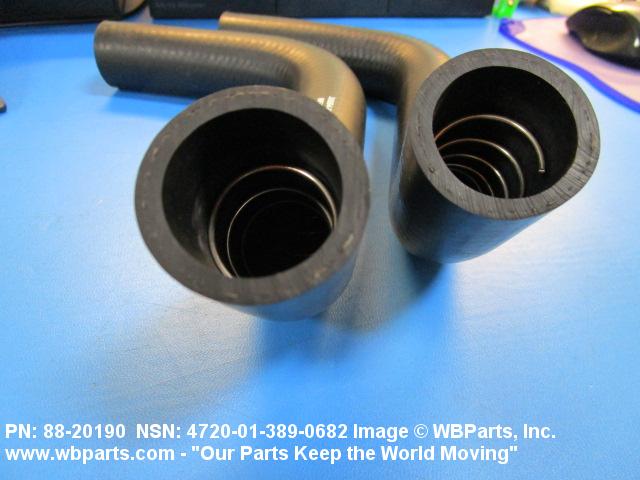

Drawings & Photos | NSN 4720-01-389-0682
Demand History | NSN 4720-01-389-0682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-389-0682 | 2024-07-186 | 364 | DIBBS |
| 4720-01-389-0682 | 2024-04-95 | 128 | DIBBS |
| 4720-01-389-0682 | 2023-08-213 | 134 | DIBBS |
| 4720-01-389-0682 | 2023-07-193 | 134 | DIBBS |
| 4720-01-389-0682 | 2023-04-120 | 1 | US |
| 4720-01-389-0682 | 2021-10-291 | 2 | United States |
| 4720-01-389-0682 | 2021-09-272 | 2 | United States |
| 4720-01-389-0682 | 2021-09-256 | 20 | us |
| 4720-01-389-0682 | 2021-09-244 | 53 | United States |
| 4720-01-389-0682 | 2020-04-93 | 1 | US |
| 4720-01-389-0682 | 2020-01-29 | 1 | US |
| 4720-01-389-0682 | 2018-12-361 | 2 | Kuwait |
| 4720-01-389-0682 | 2018-12-343 | 2 | Kuwait |
| 4720-01-389-0682 | 2018-11-332 | 2 | Kuwait |
| 4720-01-389-0682 | 2014-05-140 | 170 | MANUAL |
| 4720-01-389-0682 | 2013-06-161 | 1250 | DIBBS |
| 4720-01-389-0682 | 2012-05-125 | 1772 | DIBBS |
| 4720-01-389-0682 | 2011-11-318 | 1136 | DIBBS |
| 4720-01-389-0682 | 2011-05-140 | 412 | DIBBS |
| 4720-01-389-0682 | 2011-01-30 | 10 | AE |
| 4720-01-389-0682 | 2011-01-10 | 1067 | DIBBS |
| 4720-01-389-0682 | 2010-07-211 | 1124 | DIBBS |
| 4720-01-389-0682 | 2010-03-88 | 998 | DIBBS |
| 4720-01-389-0682 | 2010-02-36 | 305 | DIBBS |
| 4720-01-389-0682 | 2010-01-20 | 288 | DIBBS |
| 4720-01-389-0682 | 2009-04-114 | 560 | DIBBS |
| 4720-01-389-0682 | 2008-11-323 | 811 | DIBBS |
Cross Reference | NSN 4720-01-389-0682
| Part Number | Cage Code | Manufacturer |
|---|---|---|

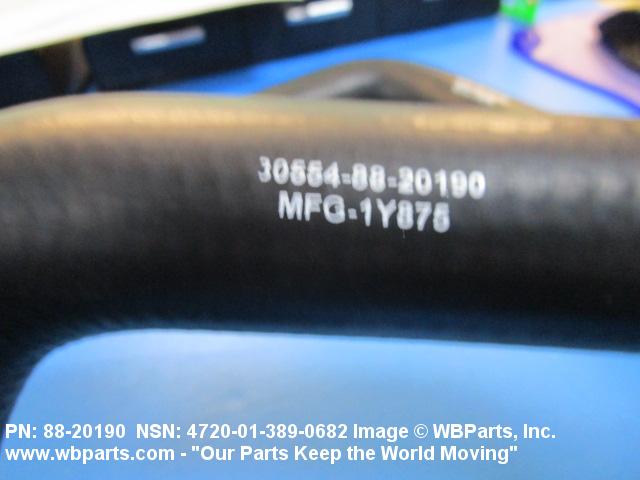

| 88-20190 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-389-0682
Related Products | NSN 4720-01-389-0682
Technical Data | NSN 4720-01-389-0682
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC |

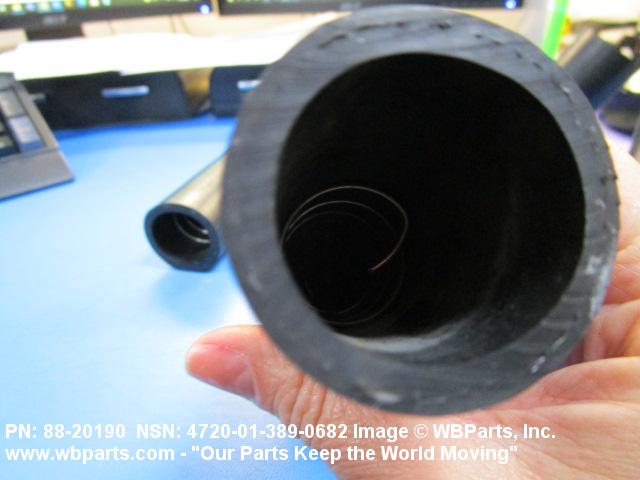

| REINFORCEMENT MATERIAL | WIRE |
| STYLE DESIGNATOR | C12 TWO BEND S |

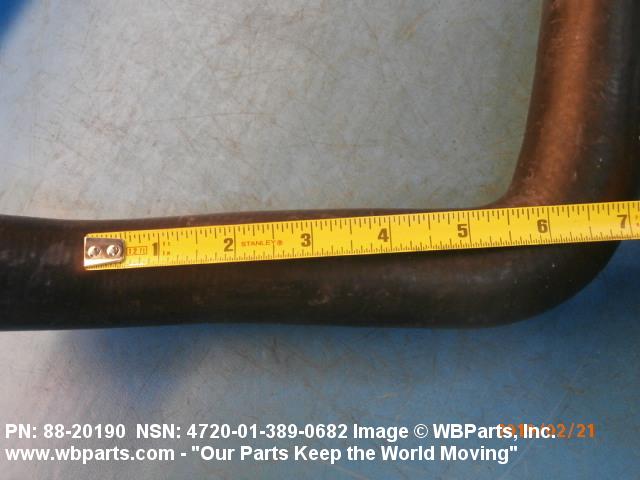

| EFFECTIVE LENGTH | 5.880 INCHES NOMINAL |
| BEND RADIUS | 1.250 INCHES NOMINAL |

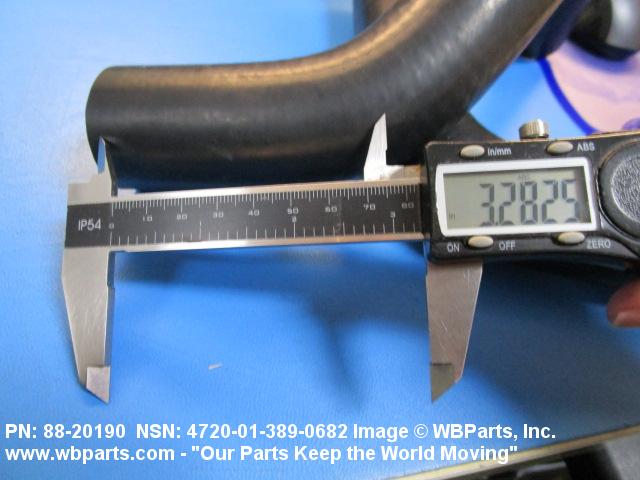

| FIRST ARM LENGTH | 3.240 INCHES NOMINAL |

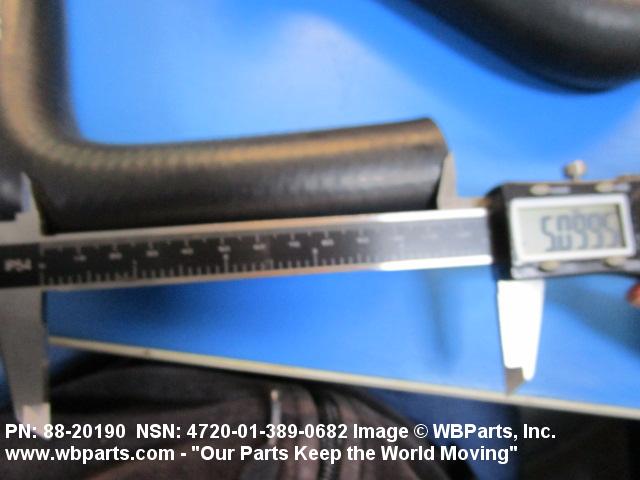

| SECOND ARM LENGTH | 5.500 INCHES NOMINAL |
| OUTER RADIUS | 1.250 INCHES NOMINAL |
| ENLARGED END | NOT PROVIDED |

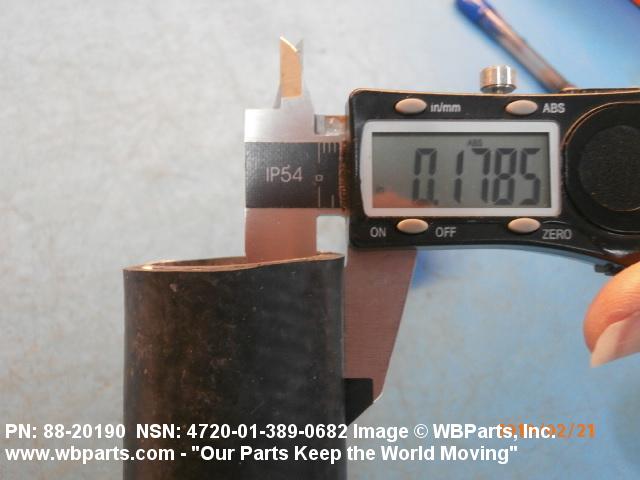

| WALL THICKNESS | 0.170 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |

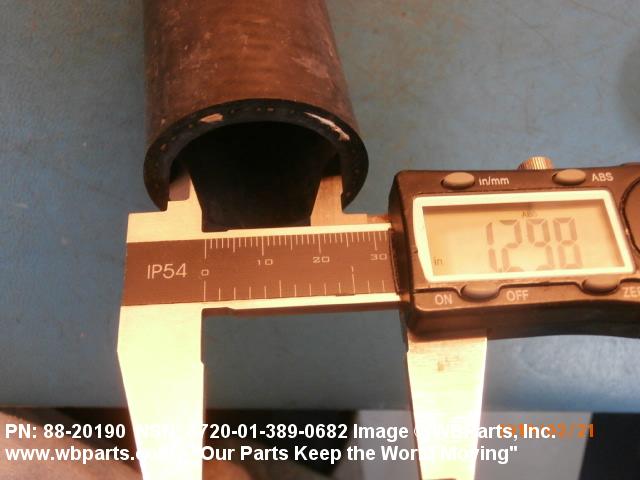

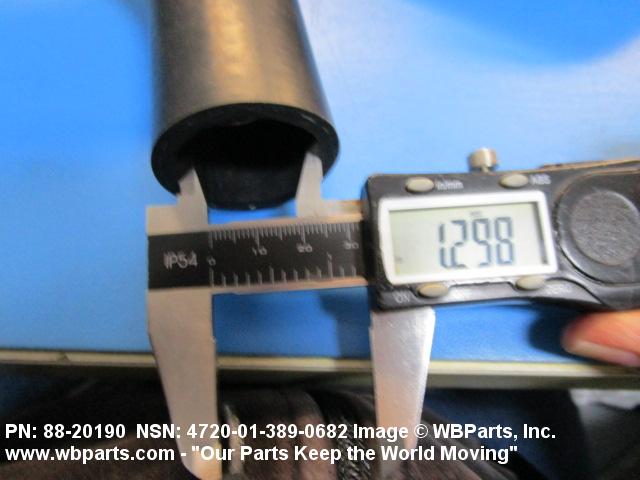

| HOSE INSIDE DIAMETER | 1.250 INCHES NOMINAL |
| PROTECTIVE CAP | NOT INCLUDED |
| III END ITEM IDENTIFICATION | 6115-01-274-7387 |
Restrictions/Controls & Freight Information | NSN 4720-01-389-0682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051590 | PIPE/DUCT(AIR/SMOKE)D/ELBOWS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-389-0682
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
