NSN 4720-01-434-7606 MB40010060190WBB, MB4001-006-0190WBB, 8306019001
Product Details | METALLIC HOSE ASSEMBLY
4720-01-434-7606 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Part Alternates: MB40010060190WBB, MB4001-006-0190WBB, 8306019001, 8306019-001, 40010060190WBB, 4001-006-0190WBB, 4720-01-434-7606, 01-434-7606, 4720014347606, 014347606
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 AUG 1996 | 01-434-7606 | 17972 ( HOSE ASSEMBLY, METALLIC ) |

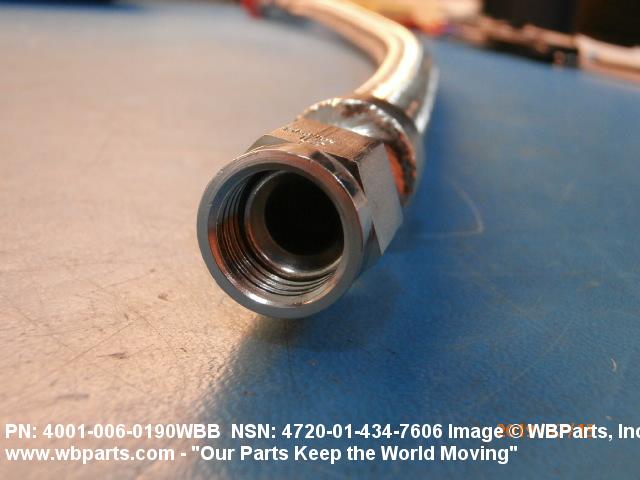

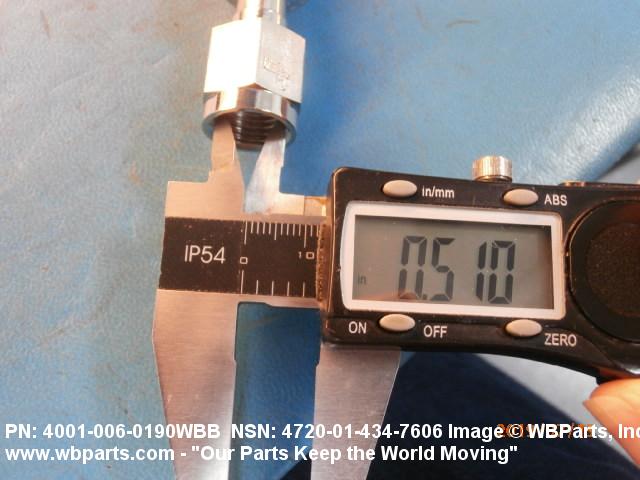

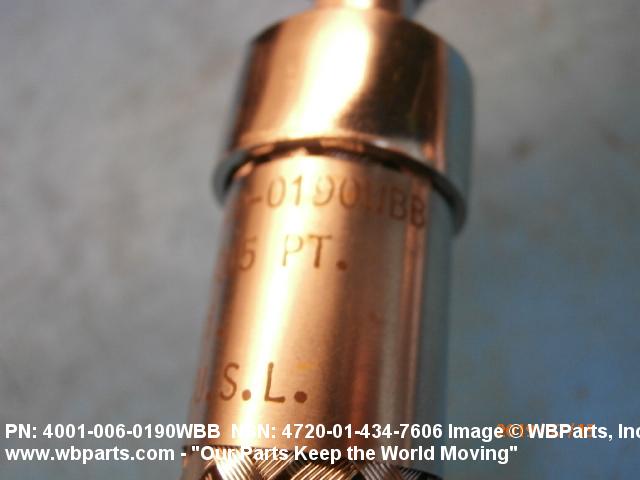

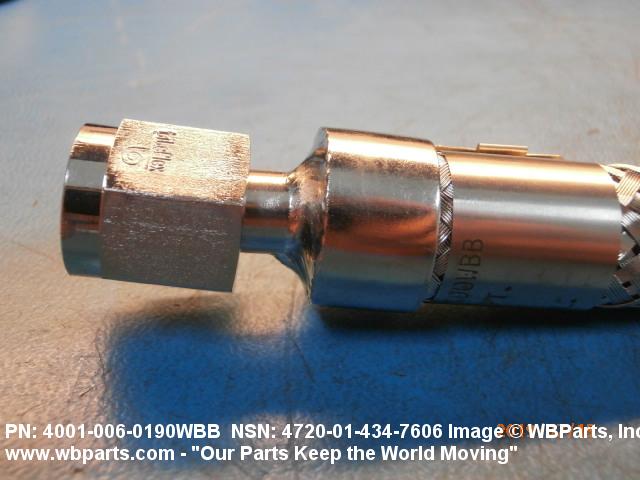

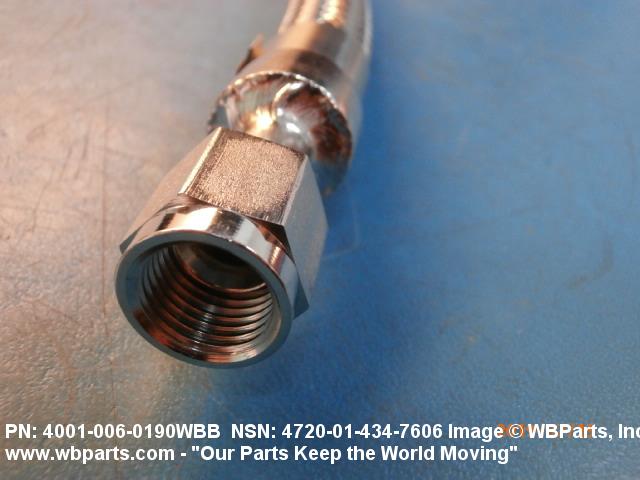

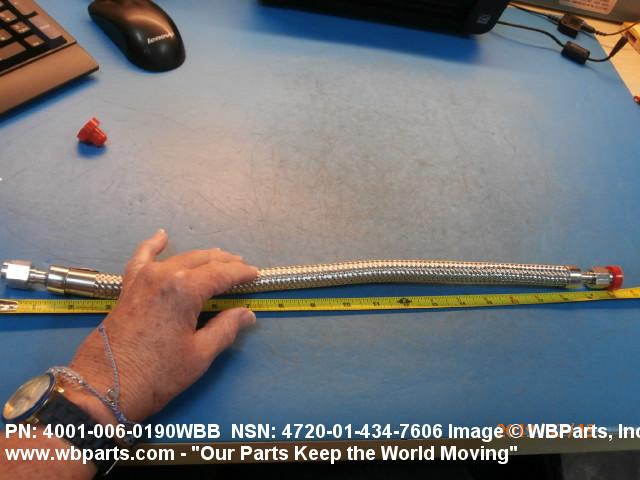

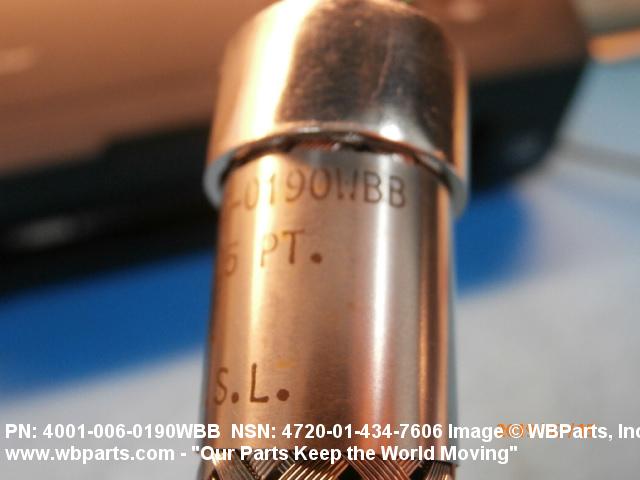

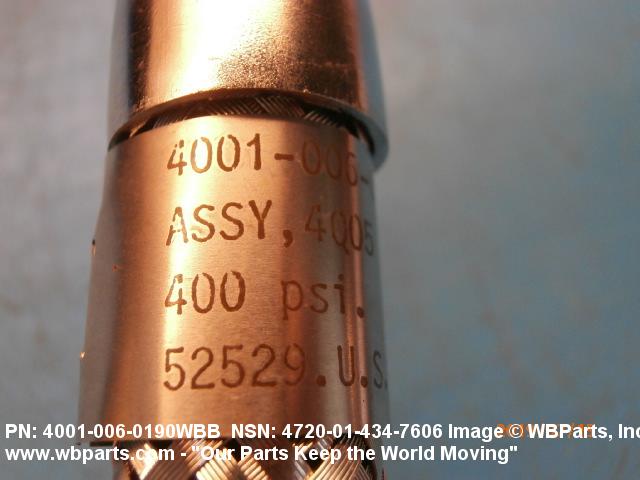

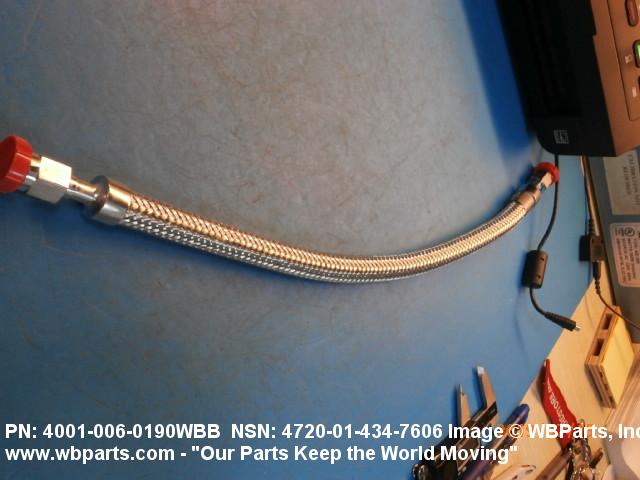

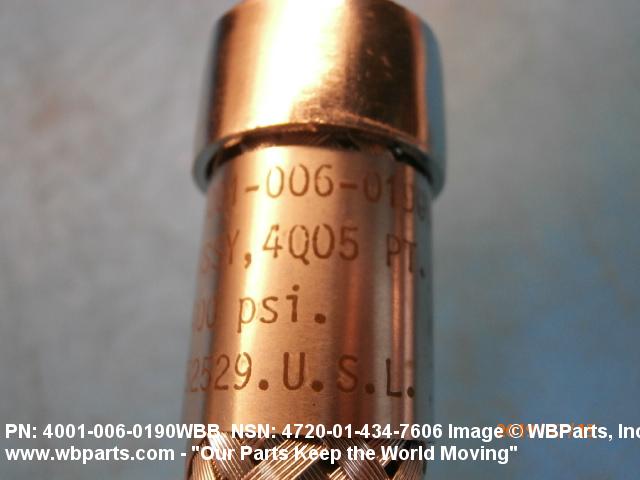

Drawings & Photos | NSN 4720-01-434-7606
Demand History | NSN 4720-01-434-7606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-434-7606 | 2025-09-251 | 1 | Denmark |
| 4720-01-434-7606 | 2019-07-189 | 1 | United States |
| MB4001-006-0190WBB | 2013-07-200 | 1 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-434-7606
Technical Data | NSN 4720-01-434-7606
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE STYLE | 9 ANNULAR OPEN-PITCH CORRUGATED |
| INNER CONVEYING TUBE MATERIAL | STEEL, CORROSION RESISTING |
| LAYER COMPOSITION AND LOCATION | OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |

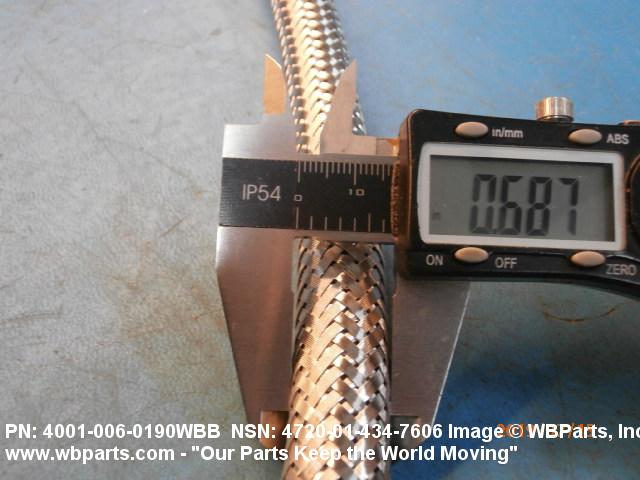

| OUTSIDE DIAMETER | 0.600 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 19.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 2.250 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | FERRULE STEEL, FED STD 66, AISI 321/SAE 30321 NIPPLE STEEL, FED STD 66, AISI 321/SAE 30321 NUT STEEL, FED STD 66, AISI 321/SAE 30321 |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | -450.0 DEG FAHRENHEIT AND 1200.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 1625.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 3250.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 9800.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | NUTS DRILLED FOR LOCKWIRE |
Restrictions/Controls & Freight Information | NSN 4720-01-434-7606
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
