NSN 4720-01-469-2116 44PN, 44-PN, 01-469-2116
Product Details | NONMETALLIC TUBING
4720-01-469-2116 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: 44PN, 44-PN, 4720-01-469-2116, 01-469-2116, 4720014692116, 014692116
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 NOV 1999 | 01-469-2116 | 31934 ( TUBING, NONMETALLIC ) |

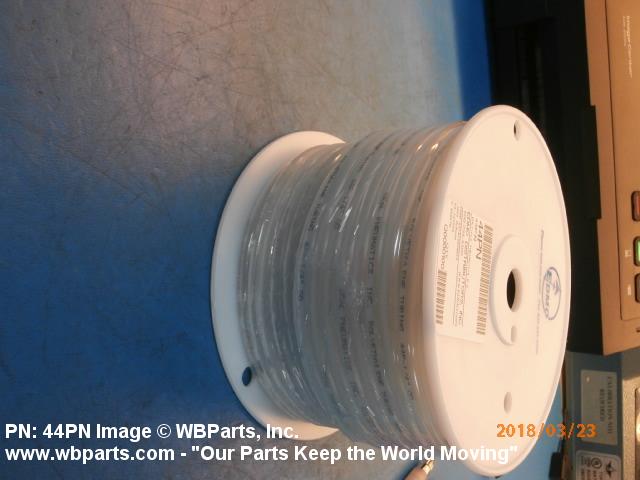

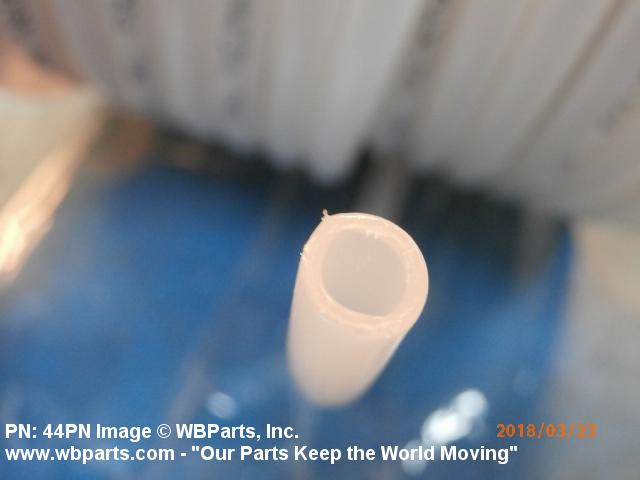

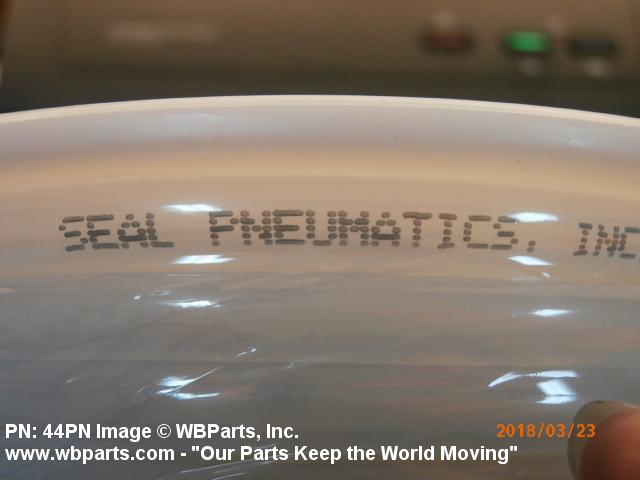

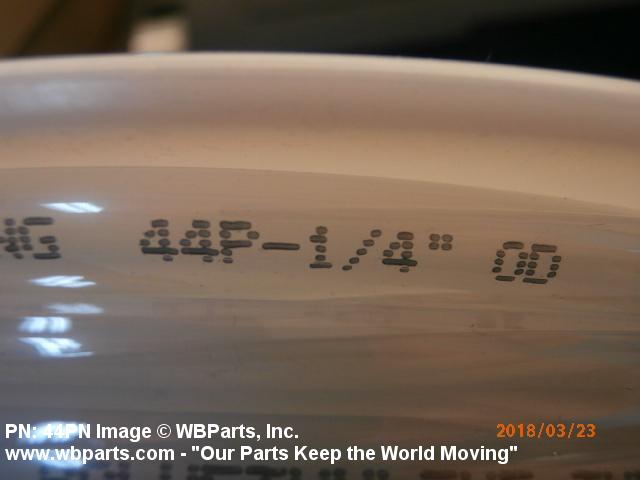

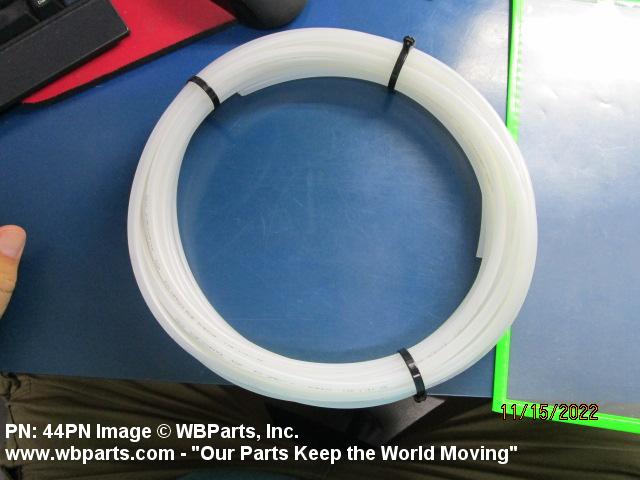

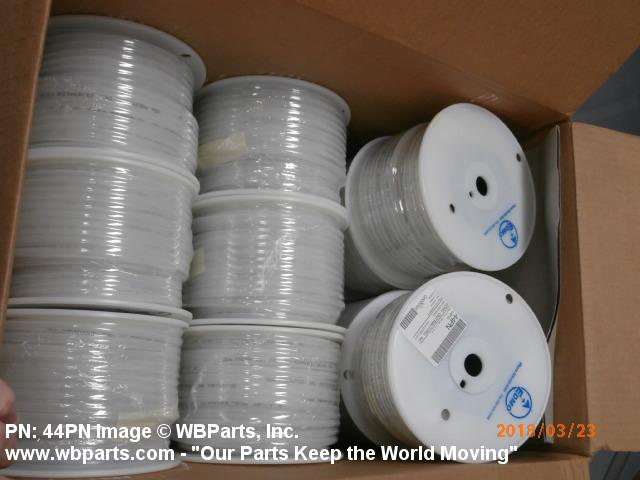

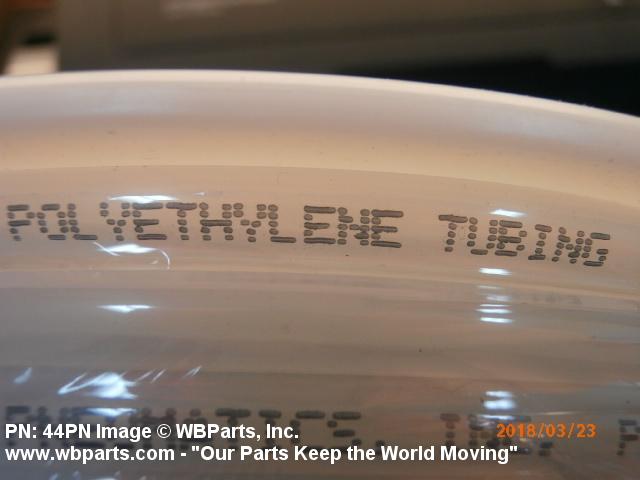

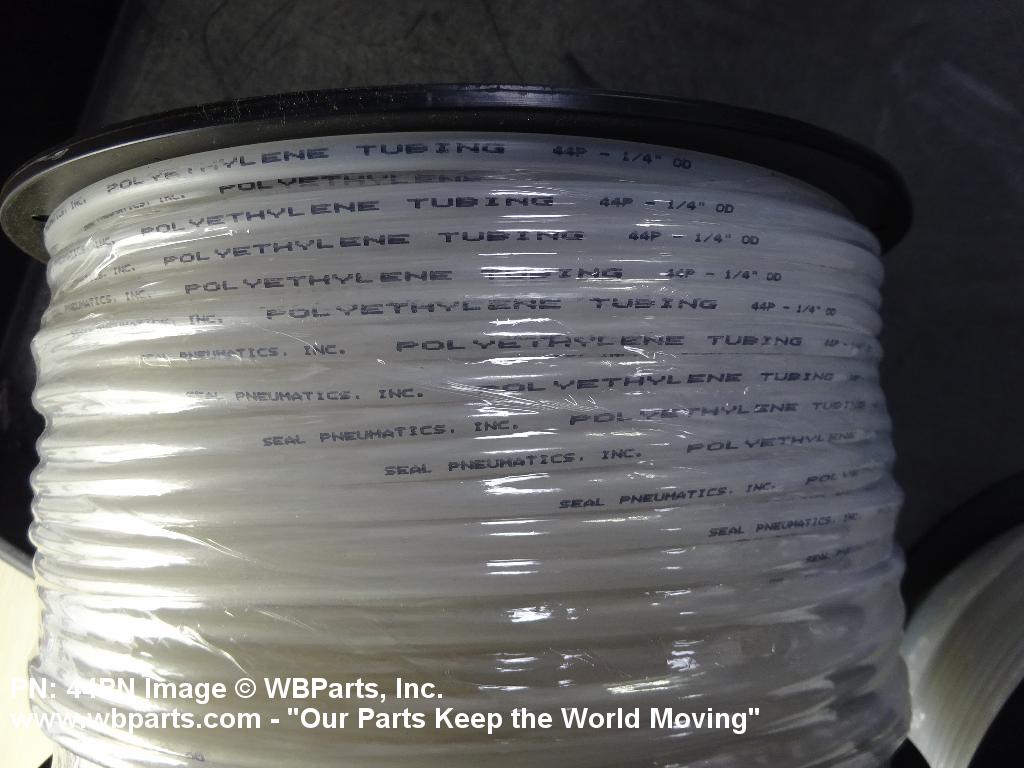

Drawings & Photos | NSN 4720-01-469-2116
Demand History | NSN 4720-01-469-2116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 44PN | 2022-07-183 | 100 | US |
| 44PN | 2018-02-54 | 10 | United States |
| 44PN | 2016-11-309 | 30 | Thailand |
| 44PN | 2012-07-206 | 6600 | United States |
Cross Reference | NSN 4720-01-469-2116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44-PN | 30327 | IMPERIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-469-2116
Technical Data | NSN 4720-01-469-2116
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TUBING MATERIAL | PLASTIC, POLYETHYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | NATURAL |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

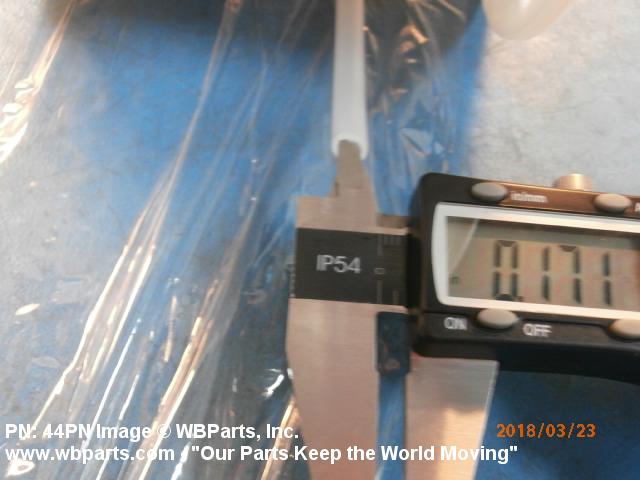

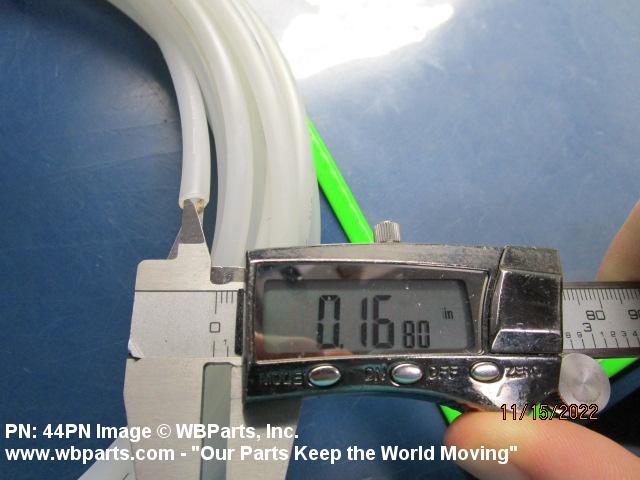

| INSIDE DIAMETER | 0.170 INCHES NOMINAL |

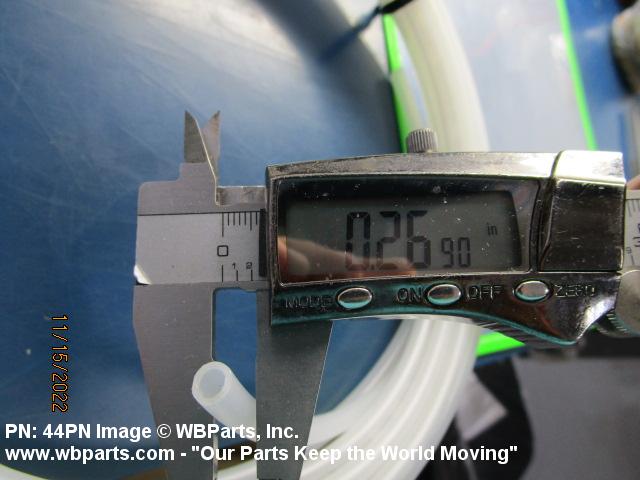

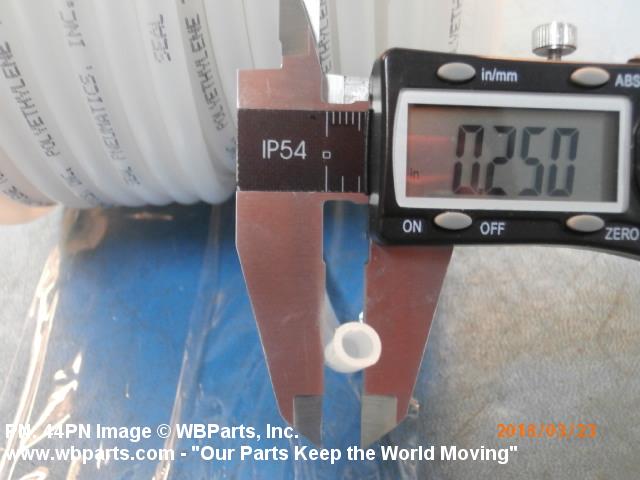

| OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 100.0 FEET NOMINAL OVERALL |
| FLEXIBILITY | FLEXIBLE |
| MINIMUM INSIDE BENDING RADIUS | 1.000 INCHES |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | 400.0 POUNDS PER SQUARE INCH |
| III END ITEM IDENTIFICATION | TRANSPORT AIRCRAFT, MODEL C-211 |
Restrictions/Controls & Freight Information | NSN 4720-01-469-2116
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
