NSN 4720-01-501-5068 M24136/3-20, M24136320, H6551502F202
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-501-5068 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M24136/3-20, M24136320, H6551502F202, H655-1502-F202, H917330152, H917-3301-52, MIL-H-24136/3, MILH241363, 505701598252, 505-7015982-52, 5316985694, 531-6985694, 5316985694F202, 531-6985694-F202, 4720-01-501-5068, 01-501-5068, 4720015015068, 015015068
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 OCT 2002 | 01-501-5068 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |

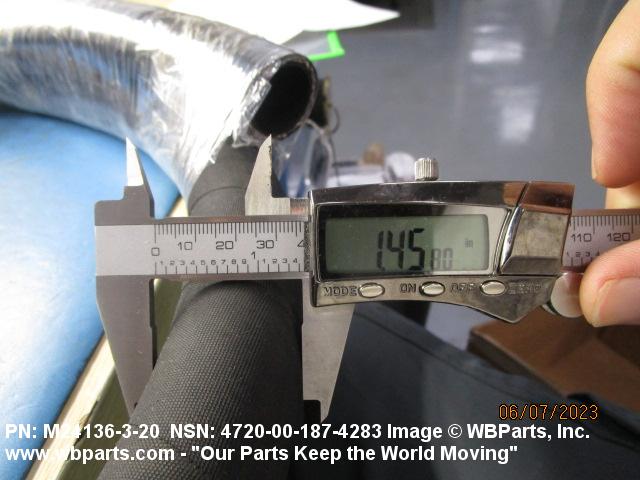

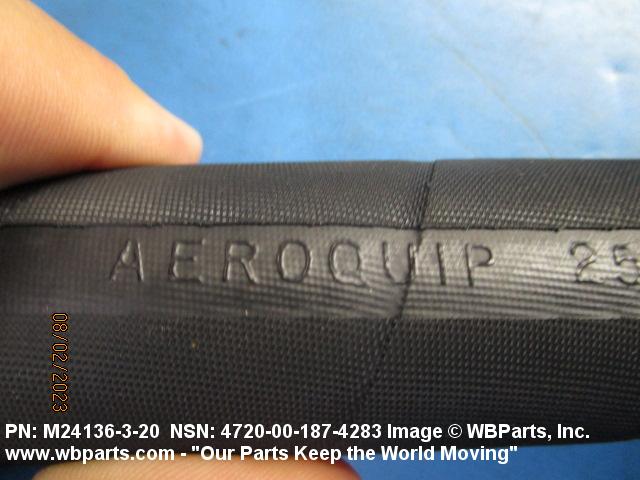

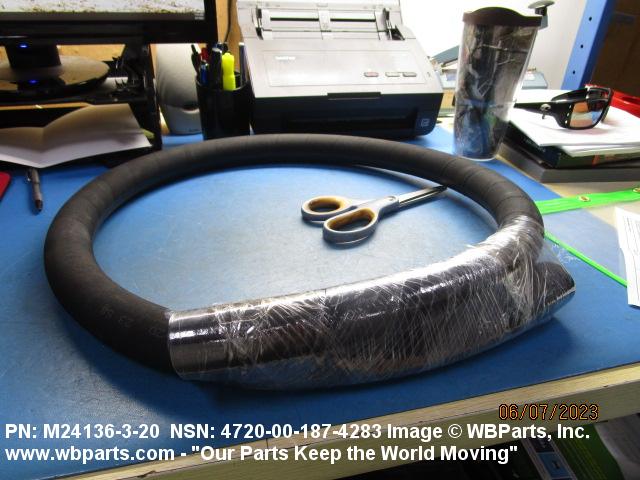

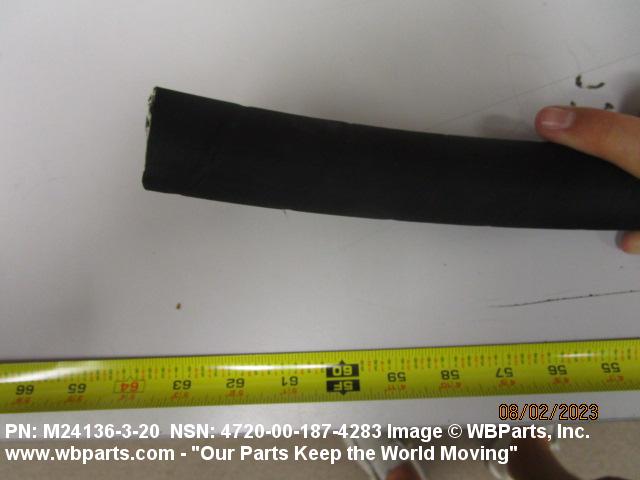

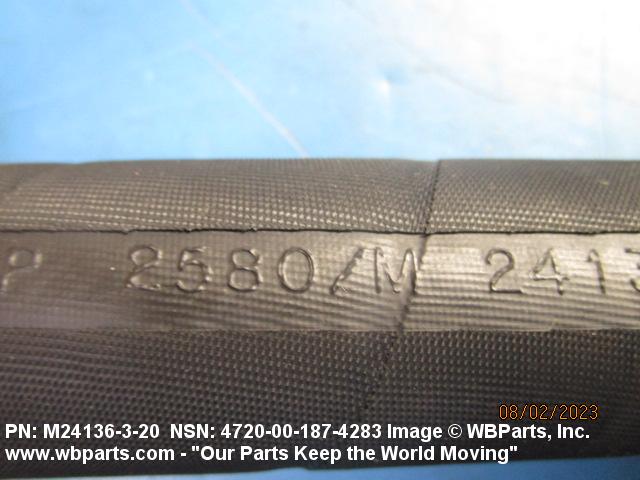

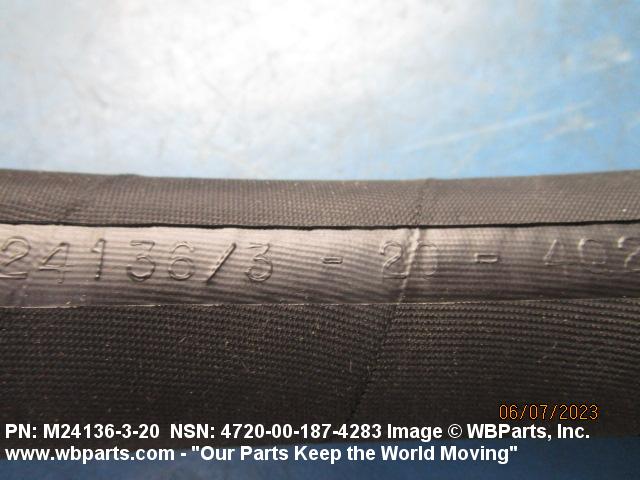

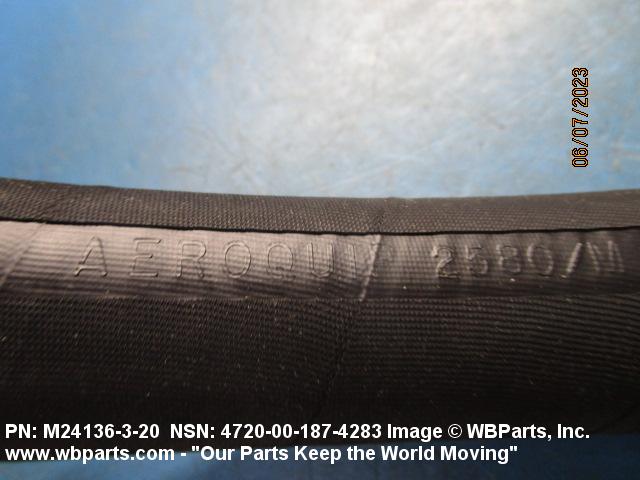

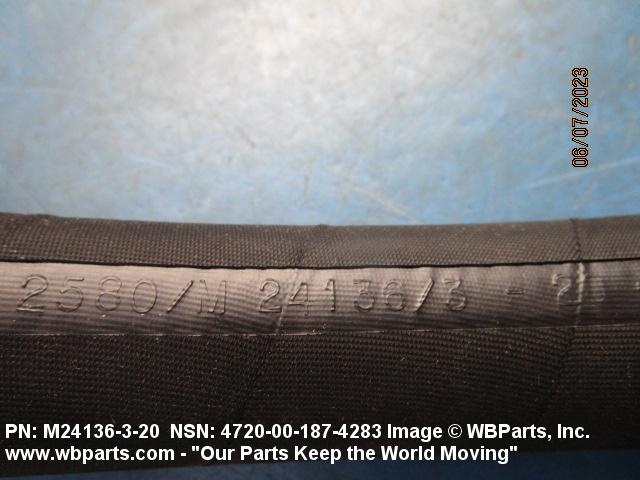

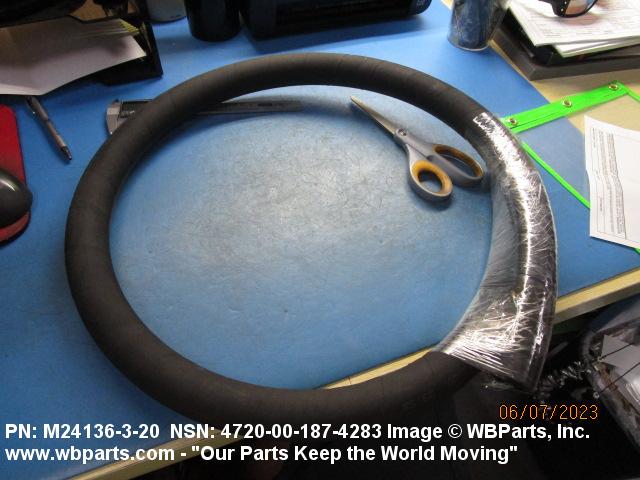

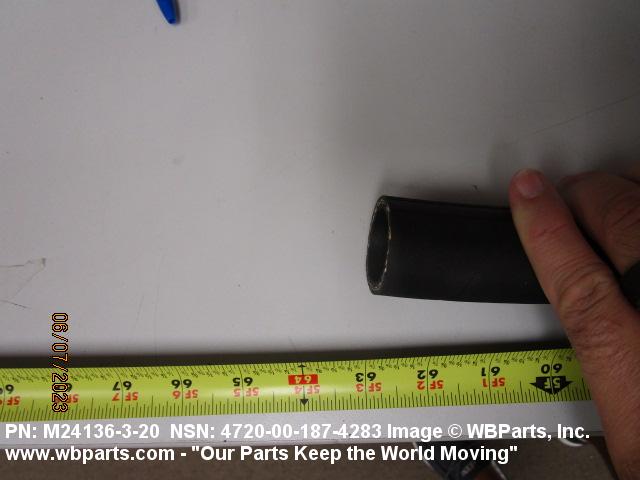

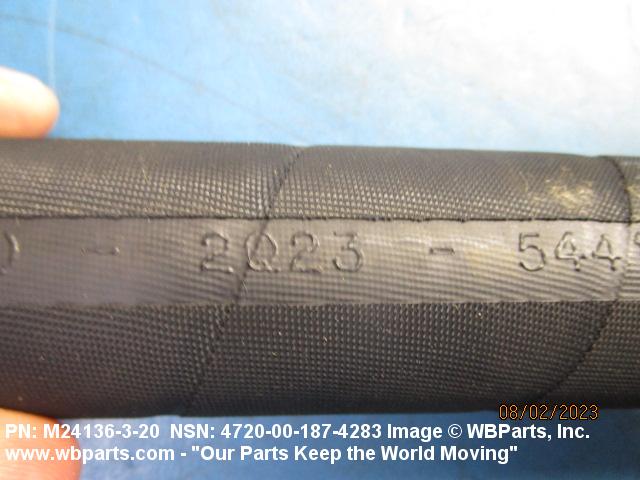

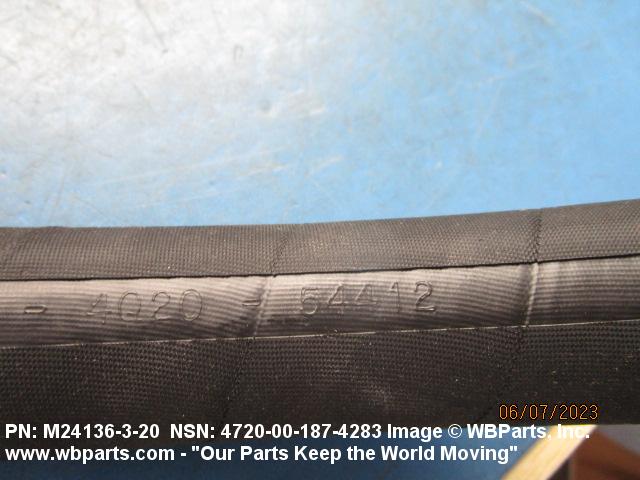

Drawings & Photos | NSN 4720-01-501-5068
Demand History | NSN 4720-01-501-5068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-501-5068 | 2025-05-147 | 1 | DIBBS |
| MILH241363 | 2018-07-207 | 2 | United States |
| MILH241363 | 2014-06-162 | 3 | AU |
Cross Reference | NSN 4720-01-501-5068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 505-7015982-52 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 531-6985694 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 531-6985694-F202 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| H655-1502-F202 | 96169 | ELECTRIC BOAT CORPORATION |
| H917-3301-52 | 96169 | ELECTRIC BOAT CORPORATION |
| M24136/3-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24136/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-501-5068
Related Products | NSN 4720-01-501-5068
Technical Data | NSN 4720-01-501-5068
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | WATER, SALT |
| INSIDE SURFACE CONDITION | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

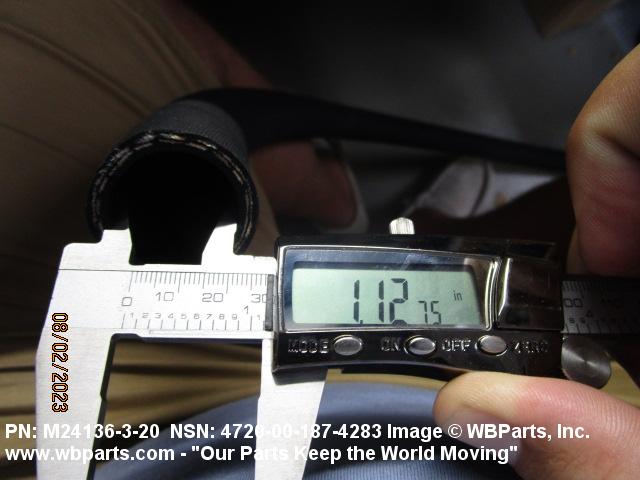

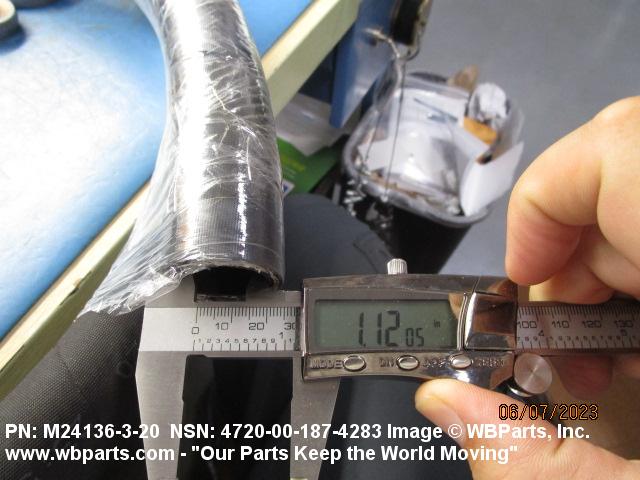

| INSIDE DIAMETER | 1.120 INCHES NOMINAL |

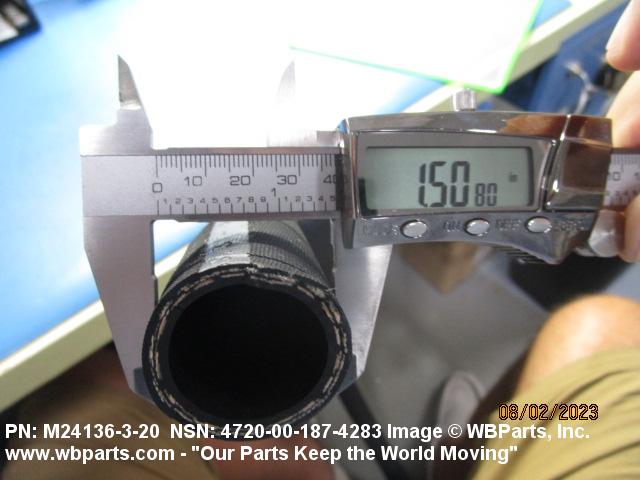

| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 17.075 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 9.000 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | 450.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1800.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | HOSE ASSEMBLY FOR LOW PRESSURE SIZE -20; HOSE LENGTHS L1 & L2, 17.075 IN |

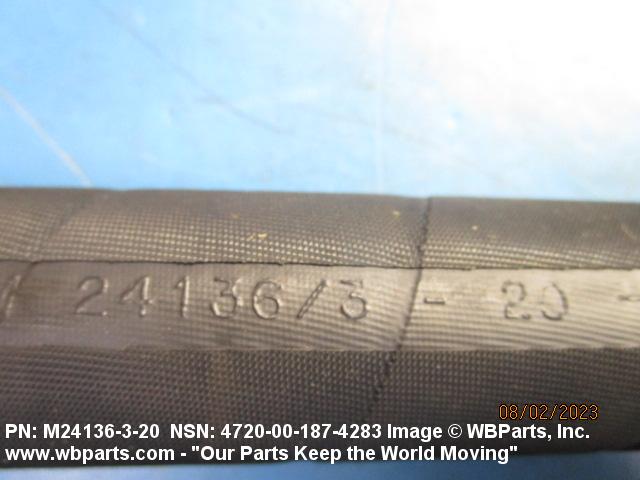

| SPECIFICATION/STANDARD DATA | 81349-MIL-H-24136/3 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 20 SIZE |
| III END ITEM IDENTIFICATION | R.O. UNIT PORT; WSD LOS ANGELES CLASS SSN (688) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HOSE ASSEMBLY,NONMETALLIC |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24136/3 |
Restrictions/Controls & Freight Information | NSN 4720-01-501-5068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-501-5068
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
