NSN 4720-01-505-0955 FF905052671501, FF-90505-2671-501, 801-6640963 REV N
Product Details | HOSE REINFORCING SPRING
4720-01-505-0955 An item of basic coil shape, designed to protect hose lines from abrasion, kinking, accidental damage, or to prevent internal collapsing of a hose as a result of vacuum. Not designed to absorb recoil, shock, or store up energy. Excludes SPRING, HELICAL, COMPRESSION; SPRING, HELICAL, EXTENSION; SPRING, HELICAL TORSION.
Part Alternates: FF905052671501, FF-90505-2671-501, 801-6640963 REV N, 8016640963REVN, 22202240C, 222022-40C, 4720-01-505-0955, 01-505-0955, 4720015050955, 015050955
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 FEB 2003 | 01-505-0955 | 33261 ( SPRING, REINFORCING, HOSE ) |

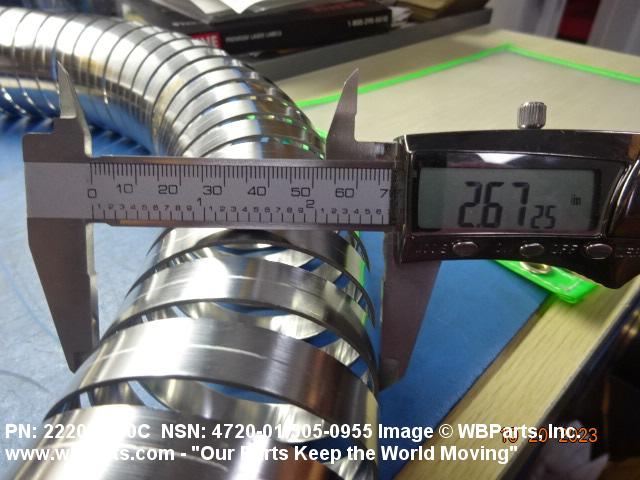

Drawings & Photos | NSN 4720-01-505-0955
Demand History | NSN 4720-01-505-0955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FF-90505-2671-501 | 2025-06-167 | 18 | DIBBS |
| FF-90505-2671-501 | 2025-06-156 | 18 | DIBBS |
| FF-90505-2671-501 | 2024-07-200 | 17 | DIBBS |
| FF-90505-2671-501 | 2024-04-109 | 15 | DIBBS |
| FF-90505-2671-501 | 2023-11-332 | 13 | DIBBS |
| 4720-01-505-0955 | 2023-06-173 | 20 | United States |
| FF-90505-2671-501 | 2023-04-96 | 5 | DIBBS |
| FF-90505-2671-501 | 2021-10-284 | 5 | DIBBS |
| FF-90505-2671-501 | 2021-08-243 | 2 | DIBBS |
| FF-90505-2671-501 | 2021-03-87 | 1 | DIBBS |
| FF-90505-2671-501 | 2020-07-197 | 17 | DIBBS |
| FF-90505-2671-501 | 2019-12-343 | 9 | DIBBS |
| 4720-01-505-0955 | 2018-03-79 | 10 | DIBBS |
| 4720-01-505-0955 | 2016-12-357 | 23 | DIBBS |
| 4720-01-505-0955 | 2014-01-09 | 35 | DIBBS |
| 4720-01-505-0955 | 2013-12-359 | 35 | DIBBS |
| 4720-01-505-0955 | 2013-10-303 | 36 | DIBBS |
| 4720-01-505-0955 | 2013-06-179 | 27 | DIBBS |
| 4720-01-505-0955 | 2013-06-164 | 27 | DIBBS |
| 4720-01-505-0955 | 2012-11-334 | 5 | DIBBS |
| 4720-01-505-0955 | 2012-09-249 | 6 | DIBBS |
| 4720-01-505-0955 | 2012-05-125 | 17 | DIBBS |
| 4720-01-505-0955 | 2010-08-229 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-505-0955
Related Products | NSN 4720-01-505-0955
Technical Data | NSN 4720-01-505-0955
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| SPRING FREE OUTSIDE DIAMETER | 2.670 INCHES NOMINAL |
| END STYLE | E3 PLAIN BOTH ENDS |
| SPECIAL FEATURES | RECOMMENDED FOR VACUUM SERVICE |
| END ITEM IDENTIFICATION | HOSE ASSEMBLY FOR VALVES |
Restrictions/Controls & Freight Information | NSN 4720-01-505-0955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051590 | PIPE/DUCT(AIR/SMOKE)D/ELBOWS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-505-0955
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
X FT : Foot |
