NSN 4720-01-564-2408 SAIC-D-07023 AY95, SAICD07023AY95, 07023A95
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-564-2408 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: SAIC-D-07023 AY95, SAICD07023AY95, 07023A95, 4720-01-564-2408, 01-564-2408, 4720015642408, 015642408
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 JUN 2008 | 01-564-2408 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |
Drawings & Photos | NSN 4720-01-564-2408
Demand History | NSN 4720-01-564-2408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-564-2408 | 2014-03-80 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-564-2408
Related Products | NSN 4720-01-564-2408
Technical Data | NSN 4720-01-564-2408
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE |
| TEMP RATING | -20.0 DEG FAHRENHEIT AND 140.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VACUUM IN TORR | 101.6 |
| EXTERIOR COLOR | BLACK OR GRAY |
| MEASURING METHOD AND LENGTH | 60.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 5.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | A1 ROUND |
| INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| INSIDE SURFACE CONDITION | CONVOLUTED |
| INNER CONVEYING TUBE STYLE | B11 HELICAL OPEN-PITCH CORRUGATED |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE 1ST END INTERNAL QUICK DISCONNECT 2ND END |

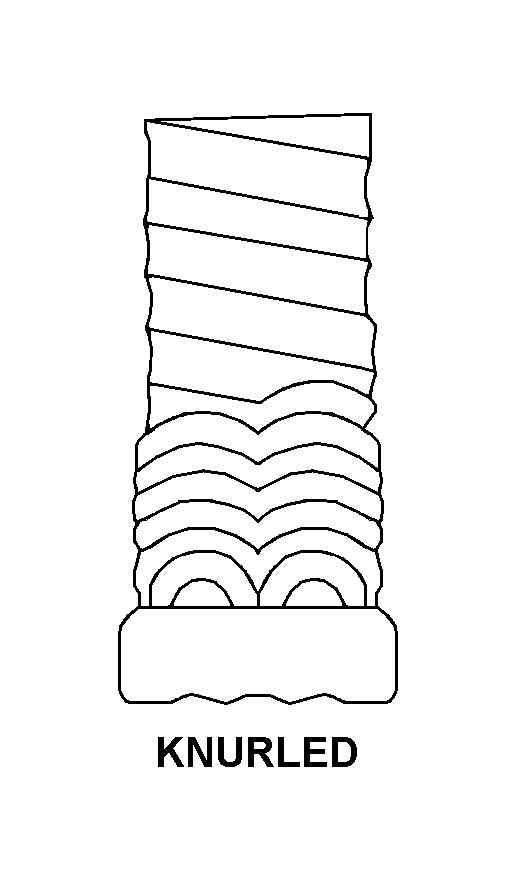

| CONNECTION STYLE | L3 KNURLED 1ST END H3 CAM OR LEVER (INTERNAL) 2ND END |
| END CONNECTION DESIGN | STRAIGHT 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 2.000 INCHES ALL ENDS |
| SPECIAL FEATURES | POLYETHYLENE HOSE, FITTING POLYPROPYLENE PLASTIC, TWO STAINLESS STEEL CLAMPS |
| END ITEM IDENTIFICATION | INCINERATOR A |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FLUSHING HOSE ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 4720-01-564-2408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-564-2408
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
