NSN 4720-01-564-6906 75200011, 75-20-0011, 01-564-6906
Product Details | NONMETALLIC HOSE ASSEMBLY
4720-01-564-6906 A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 75200011, 75-20-0011, 4720-01-564-6906, 01-564-6906, 4720015646906, 015646906
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JUN 2008 | 01-564-6906 | 20311 ( HOSE ASSEMBLY, NONMETALLIC ) |
Drawings & Photos | NSN 4720-01-564-6906
Demand History | NSN 4720-01-564-6906
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 75-20-0011 | 2024-08-221 | 107 | DIBBS |
| 75-20-0011 | 2023-08-236 | 118 | DIBBS |
| 75-20-0011 | 2023-07-187 | 44 | DIBBS |
| 75-20-0011 | 2020-03-69 | 231 | DIBBS |
| 75-20-0011 | 2020-02-58 | 231 | DIBBS |
| 4720-01-564-6906 | 2018-03-64 | 56 | DIBBS |
| 4720-01-564-6906 | 2018-02-53 | 56 | DIBBS |
| 4720-01-564-6906 | 2017-06-171 | 90 | DIBBS |
| 4720-01-564-6906 | 2016-12-364 | 46 | DIBBS |
| 4720-01-564-6906 | 2015-12-340 | 31 | DIBBS |
| 4720-01-564-6906 | 2015-05-141 | 24 | DIBBS |
| 4720-01-564-6906 | 2013-08-240 | 24 | DIBBS |
| 4720-01-564-6906 | 2011-11-333 | 6 | DIBBS |
| 4720-01-564-6906 | 2011-08-242 | 5 | DIBBS |
| 4720-01-564-6906 | 2009-01-13 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-564-6906
Related Products | NSN 4720-01-564-6906
Technical Data | NSN 4720-01-564-6906
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| CROSS-SECTIONAL SHAPE STYLE | A1 ROUND |
| CONNECTION TYPE | THREADED EXTERNAL BOSS 1ST END UNTHREADED FLUID PASSAGE BOLT 2ND END |

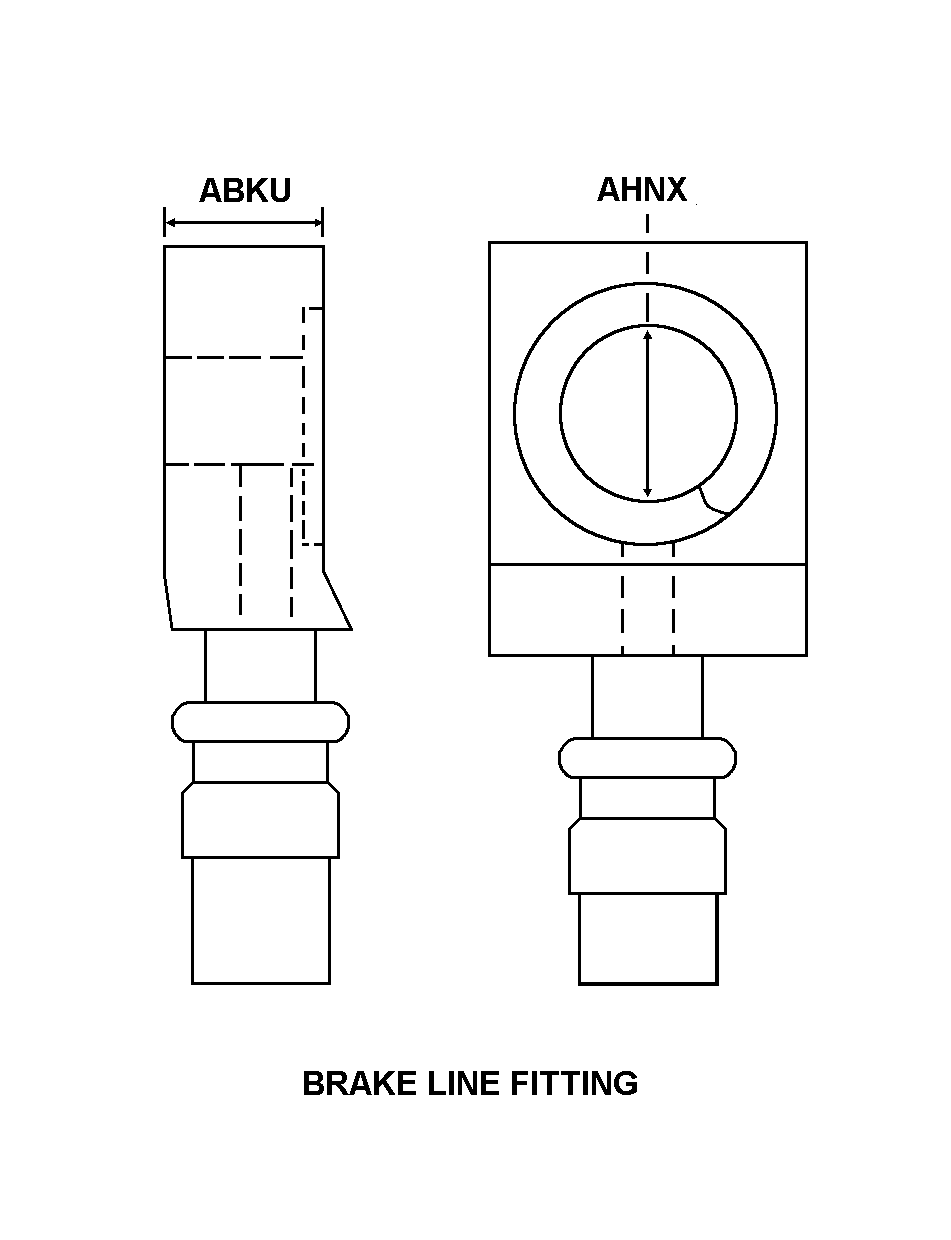

| CONNECTION STYLE | P1 BRAKE LINE FITTING 2ND END |
| END CONNECTION DESIGN | STRAIGHT ALL ENDS |
| END ITEM IDENTIFICATION | AIRCRAFT TOW TRUCK |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BRAKE HOSE |
Restrictions/Controls & Freight Information | NSN 4720-01-564-6906
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 046160 | SODIUM(SODA)BICHROMATE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-564-6906
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
