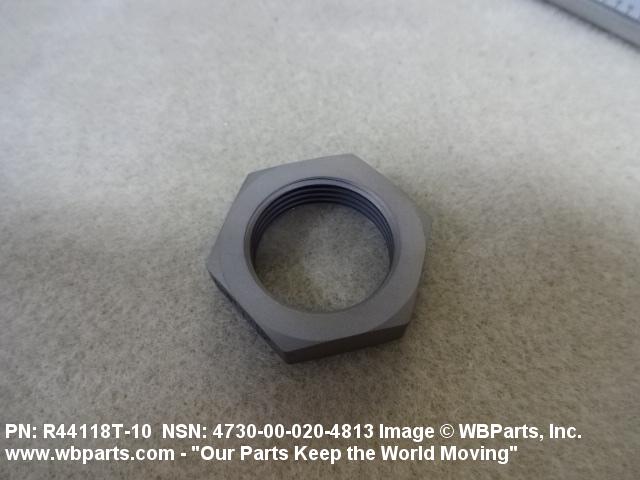

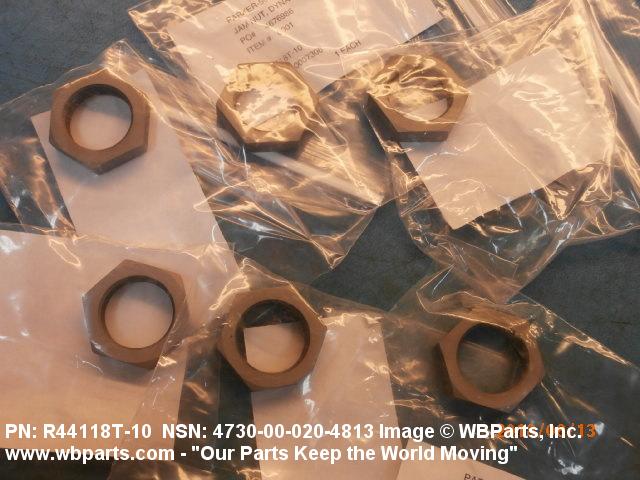

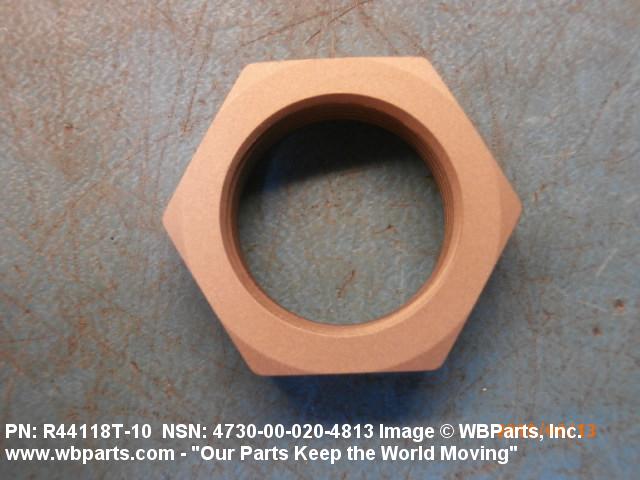

Product Details | TUBE COUPLING NUT
4730-00-020-4813 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AE1613310, AE16133-10, AP391T10, GN512EY10, R44118T10, R44118T-10, 07A098, 07A09810, 07A098-10, 4730-00-020-4813, 00-020-4813, 4730000204813, 000204813
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 OCT 1972 | 00-020-4813 | 03859 ( NUT, TUBE COUPLING ) |

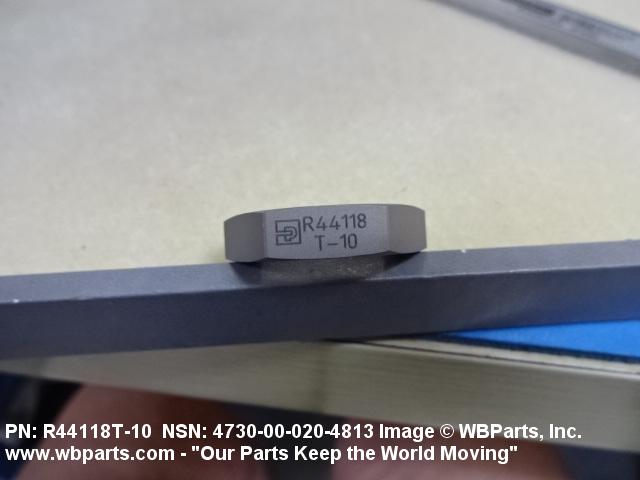

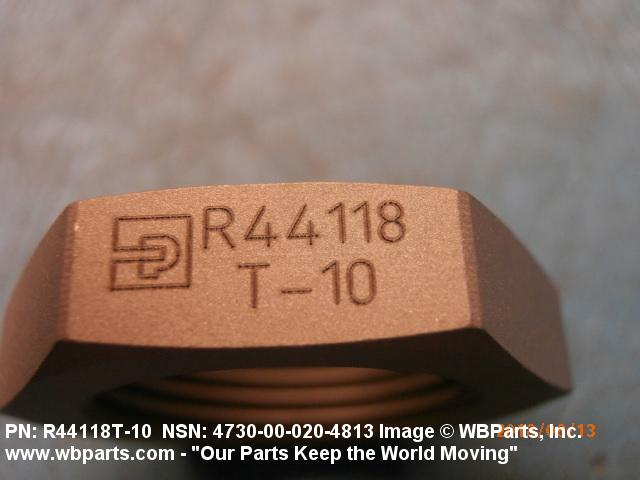

Drawings & Photos | NSN 4730-00-020-4813
Demand History | NSN 4730-00-020-4813
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-020-4813 | 2018-07-212 | 6 | us |
| 4730-00-020-4813 | 2018-07-211 | 6 | US |
| 4730-00-020-4813 | 2018-07-207 | 6 | us |
| R44118T10 | 2018-07-206 | 6 | us |
| 4730-00-020-4813 | 2018-01-24 | 2 | United States |
| 4730-00-020-4813 | 2017-08-215 | 47 | DIBBS |
| 4730-00-020-4813 | 2017-06-156 | 22 | DIBBS |
| 4730-00-020-4813 | 2017-05-143 | 22 | DIBBS |
Cross Reference | NSN 4730-00-020-4813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07A098 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| 07A098-10 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| AE16133-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AP391T10 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| GN512EY10 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| R44118T-10 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-020-4813
Related Products | NSN 4730-00-020-4813
Technical Data | NSN 4730-00-020-4813
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJS |
| NOMINAL THREAD SIZE | 0.843 INCHES |

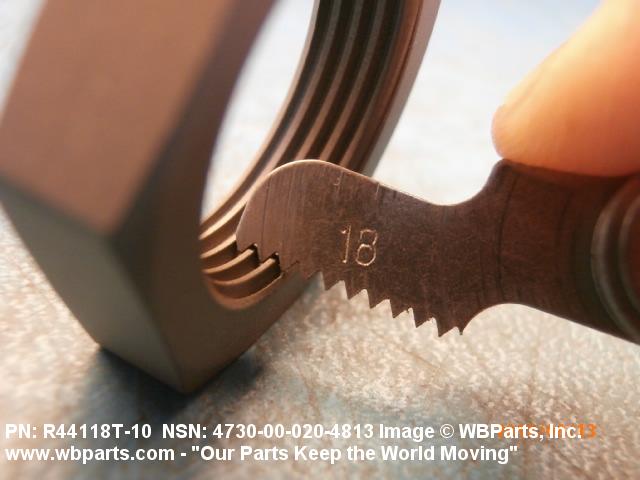

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | TITANIUM ALLOY OVERALL |
| NUT STYLE | A350 TUBE COUPLING |

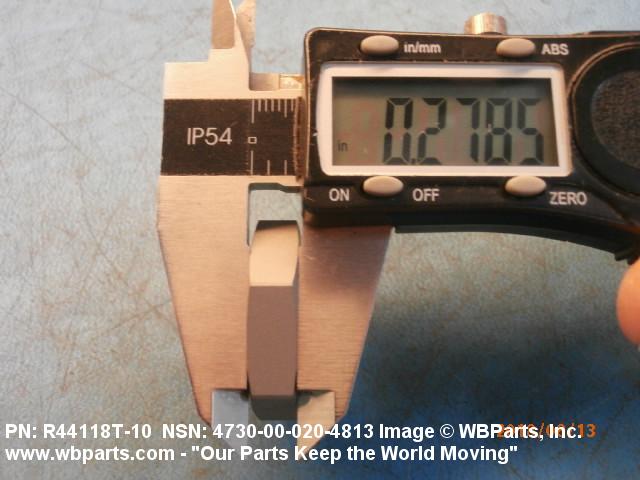

| NUT HEIGHT | 0.278 INCHES NOMINAL |

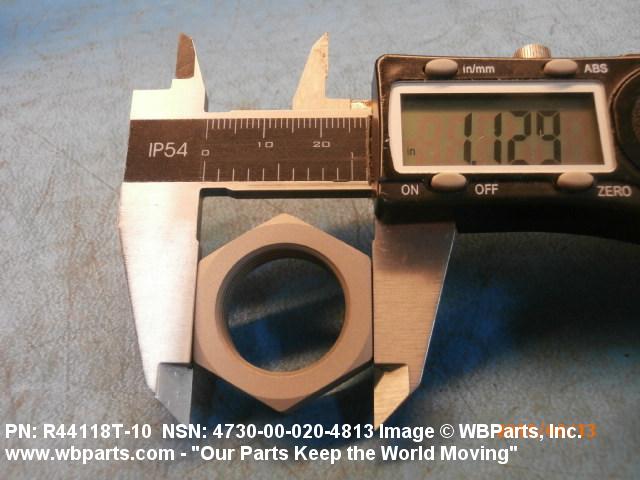

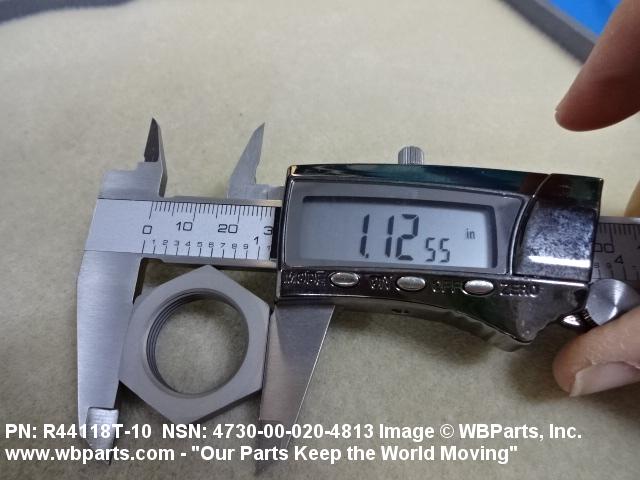

| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| LENGTH TO SHOULDER | 1.125 INCHES NOMINAL |

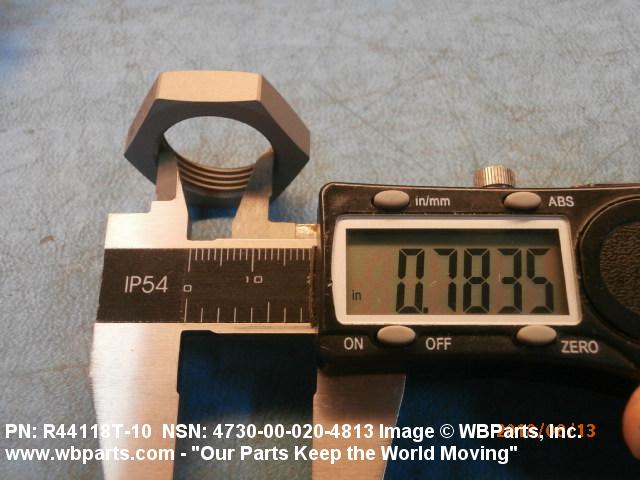

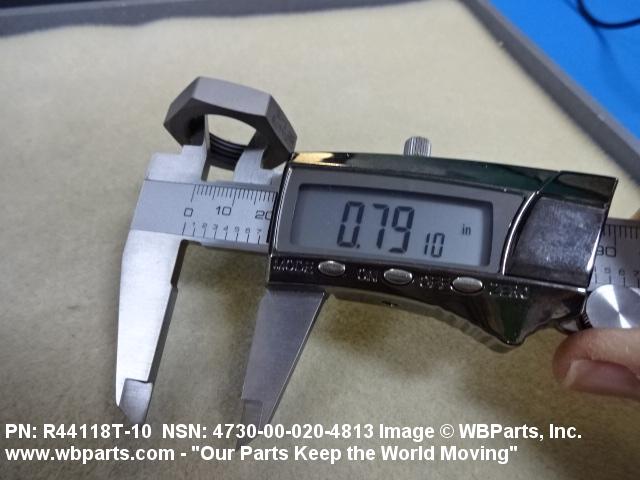

| SMALLEST INSIDE DIAMETER | 0.792 INCHES NOMINAL |
| SEAT ANGLE | 15.0 DEGREES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.625 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-020-4813
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
