NSN 4730-00-023-4888 MS20200KP3, MS24399K6, MS27640
Product Details | TUBE REDUCER
4730-00-023-4888 A straight tube fitting having a different size connection on each end. It is designed to join two tubes of different sizes. Excludes BUSHING (as modified).
Part Alternates: MS20200KP3, MS24399K6, MS27640, MS276403, MS27640-3 , AN200KP3ANG25 , AN9195J, AN919-5J, AN9196J, AN919-6J, AS27640 , AS4841, AS5174, AS5174K0603, KP3FS160, KP3FS464 , KP3 , 4730-00-023-4888, 00-023-4888, 4730000234888, 000234888
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 MAY 1967 | 00-023-4888 | 08506 ( REDUCER, TUBE ) |

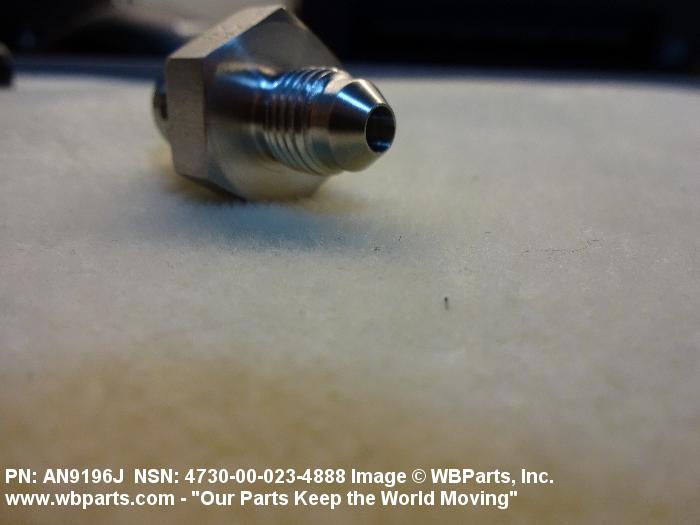

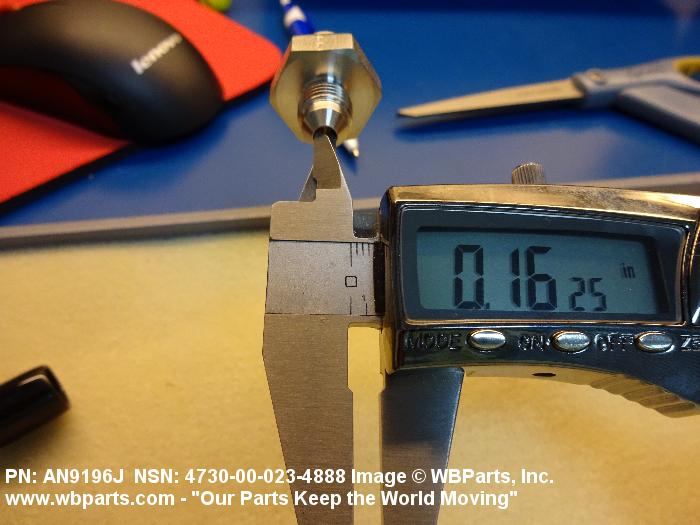

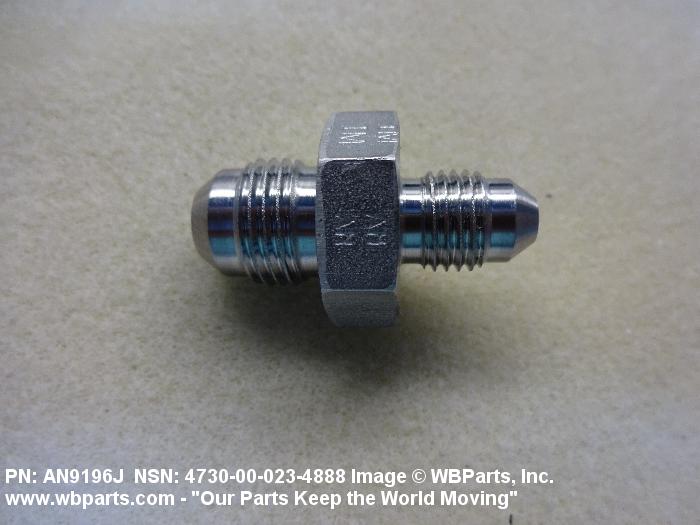

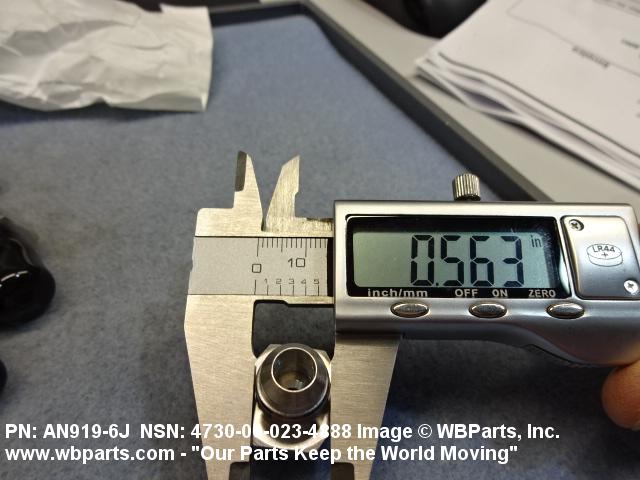

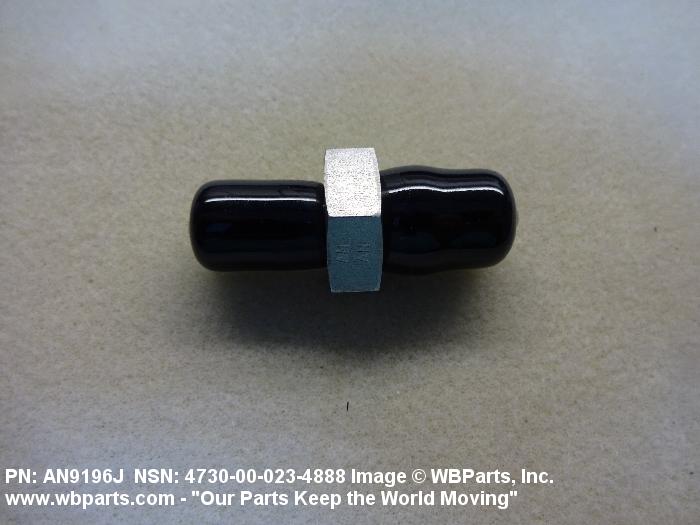

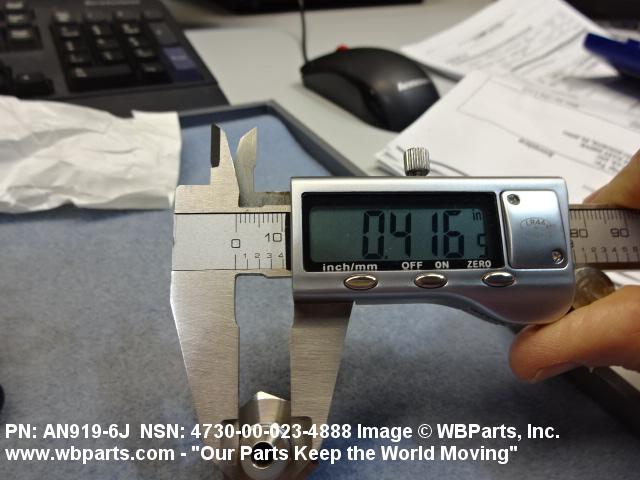

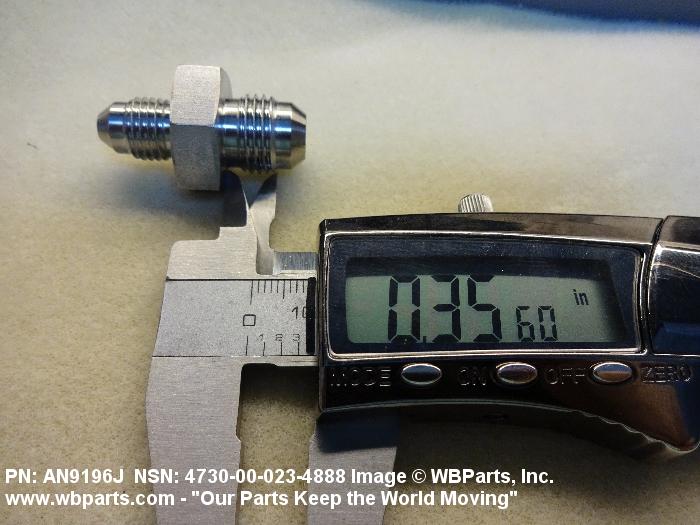

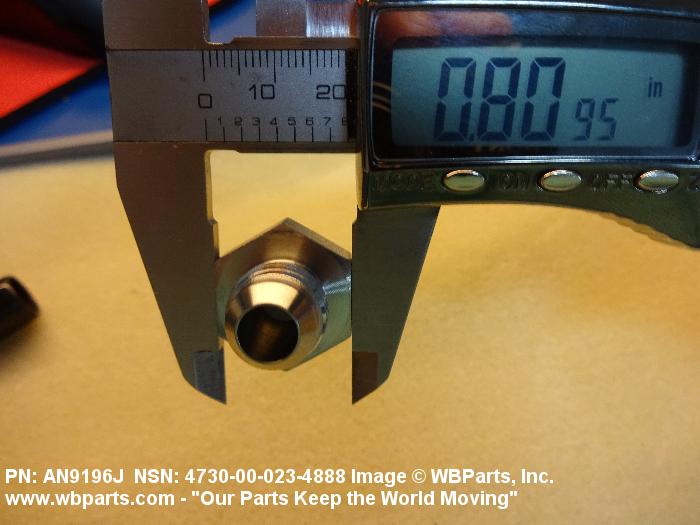

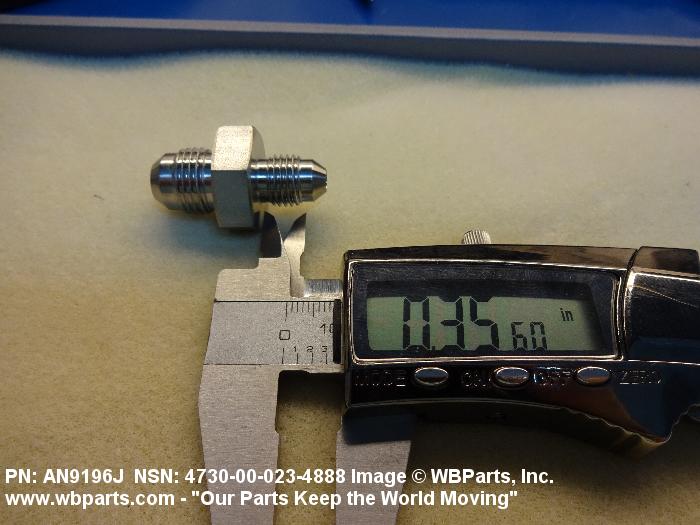

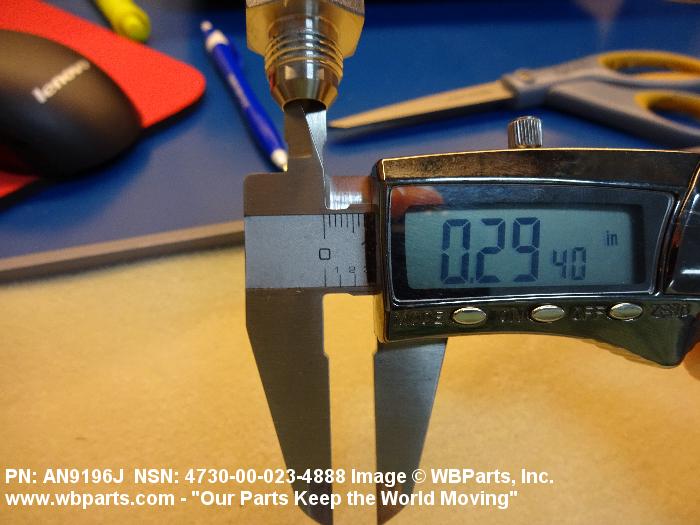

Drawings & Photos | NSN 4730-00-023-4888
Demand History | NSN 4730-00-023-4888
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-023-4888 | 2025-08-219 | 91 | DIBBS |
| AS4841 | 2025-04-106 | 1 | France |
| MS276403 | 2025-01-06 | 2 | France |
| AN9196J | 2024-10-299 | 1 | United States |
| 4730-00-023-4888 | 2023-11-320 | 84 | DIBBS |
| 4730-00-023-4888 | 2023-06-172 | 32 | DIBBS |
| AN9196J | 2021-08-236 | 15 | US |
| 4730-00-023-4888 | 2021-05-144 | 86 | DIBBS |
| 4730-00-023-4888 | 2021-05-133 | 86 | DIBBS |
| 4730-00-023-4888 | 2019-09-246 | 46 | DIBBS |
| 4730-00-023-4888 | 2019-08-233 | 46 | DIBBS |
| 4730-00-023-4888 | 2019-07-182 | 60 | DIBBS |
| 4730-00-023-4888 | 2019-06-171 | 60 | DIBBS |
| AN9196J | 2018-07-200 | 1 | United States |
| 4730-00-023-4888 | 2018-07-197 | 60 | DIBBS |
| 4730-00-023-4888 | 2018-07-185 | 60 | DIBBS |
| AN9196J | 2017-06-158 | 7 | United States |
| 4730-00-023-4888 | 2014-11-310 | 198 | DIBBS |
| AS5174 | 2013-11-310 | 6 | US |
| AN9196J | 2013-02-32 | 100 | PL |
| AN9196J | 2011-04-94 | 110 | Italy |
| AS4841 | 2011-03-69 | 8 | |
| AN9196J | 2010-09-272 | 1 | United States |
| 4730-00-023-4888 | 2010-06-180 | 88 | DIBBS |
| AN9196J | 2010-03-61 | 1 | us |
| 4730-00-023-4888 | 2010-03-60 | 10 | DIBBS |
| MS276403 | 2007-10-295 | 20 | US |
Cross Reference | NSN 4730-00-023-4888
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN919-5J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN919-6J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174K0603 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24399K6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-023-4888
Related Products | NSN 4730-00-023-4888
Technical Data | NSN 4730-00-023-4888
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END 0.188 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.375 INCHES 2ND END |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.328 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIFICATION/STANDARD DATA | 96906-MS24399 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24399K6 |
Restrictions/Controls & Freight Information | NSN 4730-00-023-4888
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-023-4888
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
