NSN 4730-00-042-0945 MIHB444734, SAA89703163, SAA89703-163
Product Details | MAGNETIC PIPE PLUG
4730-00-042-0945 A pipe fitting primarily designed for installation in a lubrication or hydraulic system. It has an integral magnet in the body and external pipe threads.
Part Alternates: MIHB444734, SAA89703163, SAA89703-163, 4730-00-042-0945, 00-042-0945, 4730000420945, 000420945
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 MAY 1968 | 00-042-0945 | 22340 ( PLUG, PIPE, MAGNETIC ) |

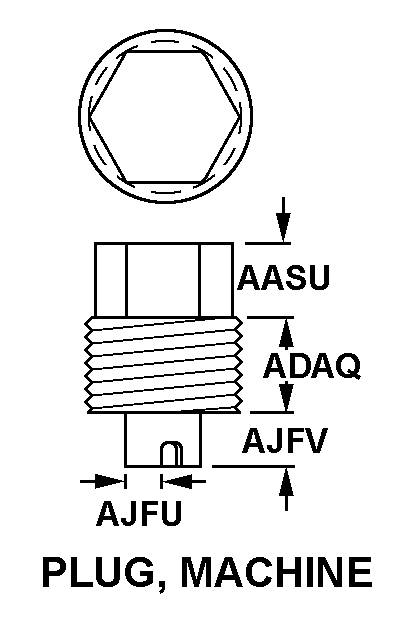

Drawings & Photos | NSN 4730-00-042-0945
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-042-0945
Technical Data | NSN 4730-00-042-0945
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | E20 PLUG, MAGNETIC |
| HEAD HEIGHT | 0.300 INCHES NOMINAL |
| BODY LENGTH | 0.470 INCHES NOMINAL |
| MAGNET WIDTH | 0.312 INCHES NOMINAL |
| MAGNET PROJECTION LENGTH | 0.190 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | NPTF EXTERNAL |
| NOMINAL THREAD SIZE | 0.250 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| MAGNET LIFT RATING | 7.0 OUNCES |
Restrictions/Controls & Freight Information | NSN 4730-00-042-0945
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096180 | PLUGS I/S W/MAGNETIZED INSERTS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | M | Magnetic material |
