Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-050-7285 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: A302659, 4730-00-050-7285, 00-050-7285, 4730000507285, 000507285
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 NOV 1972 | 00-050-7285 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-050-7285
Demand History | NSN 4730-00-050-7285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-050-7285 | 2017-12-345 | 10 | DIBBS |
| 4730-00-050-7285 | 2017-11-334 | 10 | DIBBS |
| 4730-00-050-7285 | 2017-09-253 | 3 | DIBBS |
| 4730-00-050-7285 | 2017-06-155 | 3 | DIBBS |
| 4730-00-050-7285 | 2017-02-33 | 1 | DIBBS |
| 4730-00-050-7285 | 2016-02-33 | 1 | DIBBS |
| 4730-00-050-7285 | 2016-01-28 | 1 | DIBBS |
| 4730-00-050-7285 | 2016-01-26 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-050-7285
Related Products | NSN 4730-00-050-7285
Technical Data | NSN 4730-00-050-7285

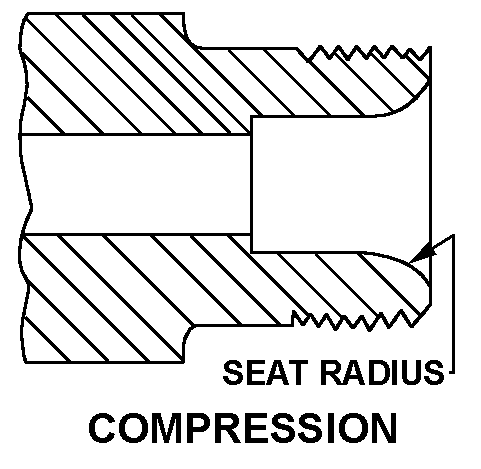

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | D16 1 FLUID CONNECTION |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.210 INCHES NOMINAL |
| THICKNESS | 0.900 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.625 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | G3 INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 0.500 IN. NOM PIPE SIZE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 1/2 IN.-12 |
| SCREW THREAD SERIES DESIGNATOR | BSPT |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | 0.8250 TO 0.8286 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 30.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
Restrictions/Controls & Freight Information | NSN 4730-00-050-7285
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
