NSN 4730-00-057-8583 C18426 , FC9637189, FC9637-189
Product Details | SWIVEL FLANGE TO HOSE ELBOW
4730-00-057-8583 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One end connection must have a swivel flange designed to permit axial rotation of the fitting, usually for the ease of installation, prior to securing it to a flange or mounting pad. The other end connection is designed to grip the hose directly, either externally, internally, or both. It includes items designed to accommodate a swivel flange.
Part Alternates: C18426 , FC9637189, FC9637-189, FC96376464188, FC9637-6464-188 , FC96376464189, FC9637-6464-189, MILF24787, MIL-F-24787 , MILH24136, MIL-H-24136, 24787/1 4X-64 TYFL GRX CLII , 2478714X64TYFLGRXCLII, 90EF1546B2464, 90EF-1546B2-4-64 , 4730-00-057-8583, 00-057-8583, 4730000578583, 000578583
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 JUN 1967 | 00-057-8583 | 18324 ( ELBOW, SWIVEL FLANGE TO HOSE ) |

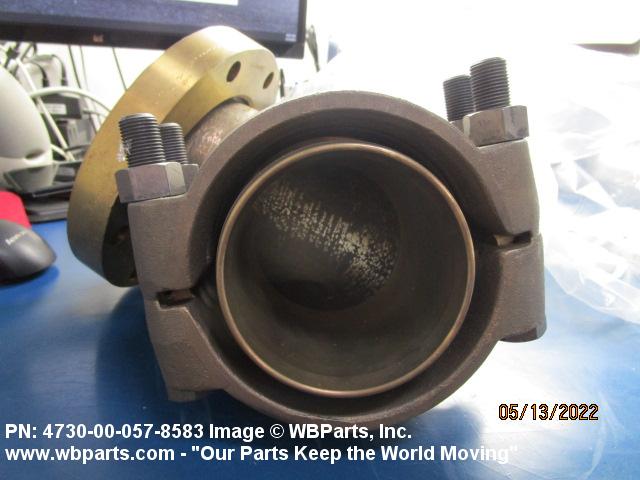

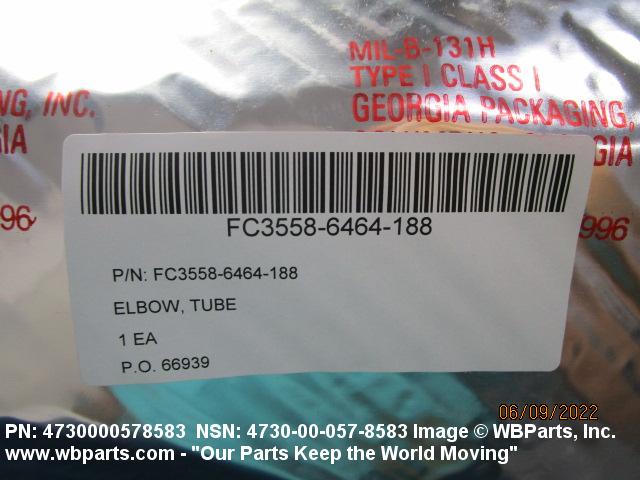

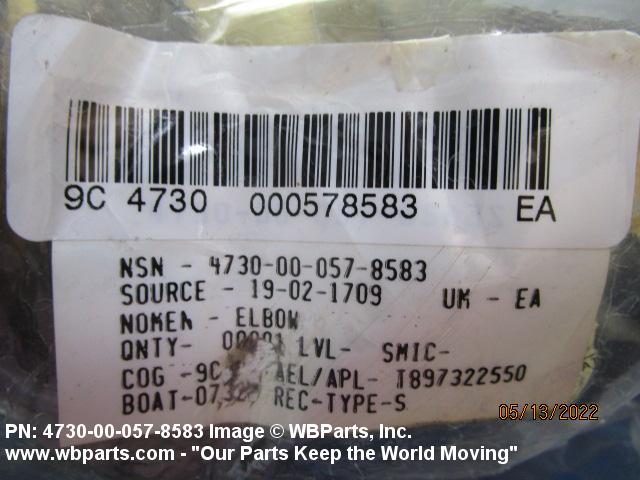

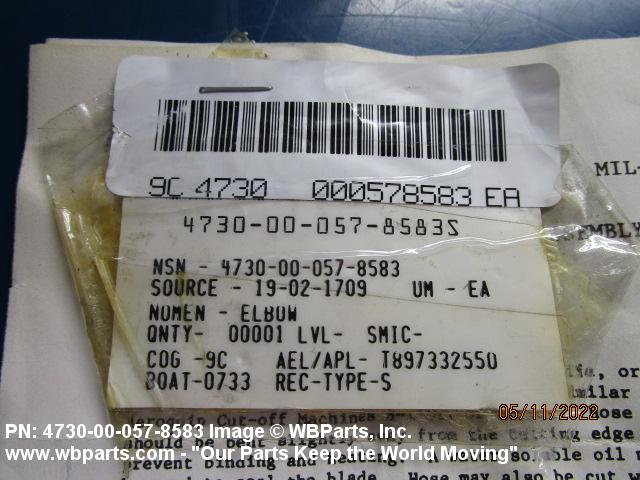

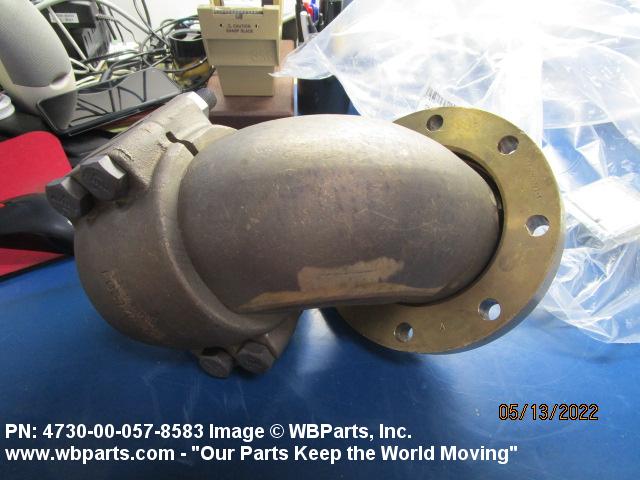

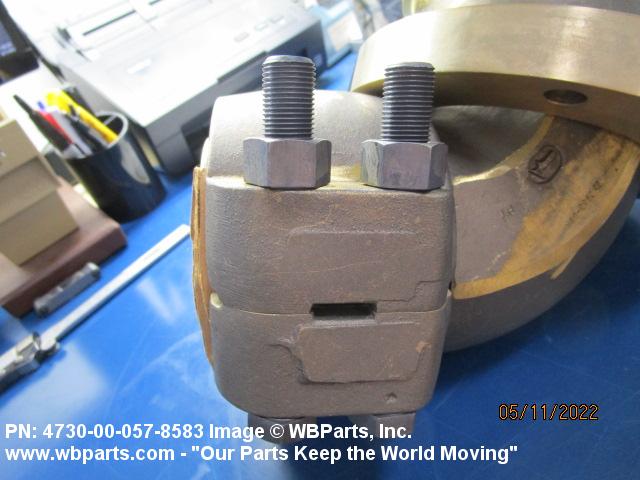

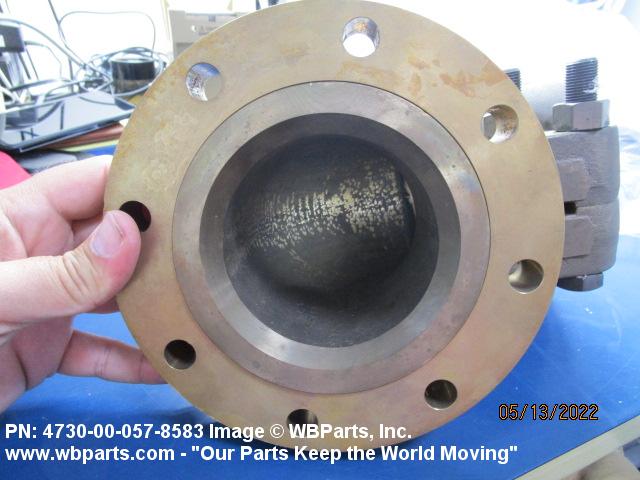

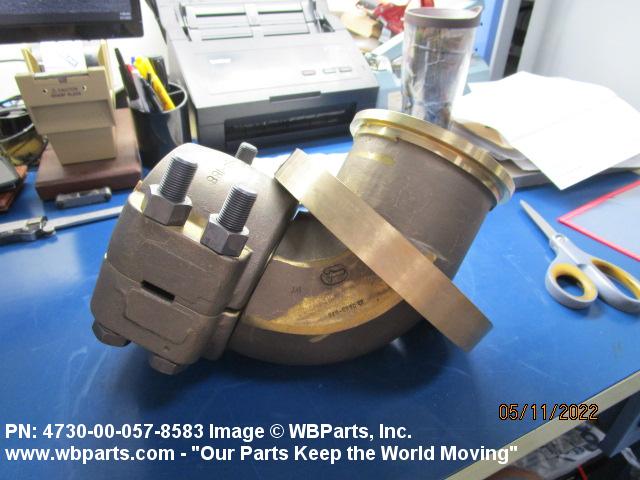

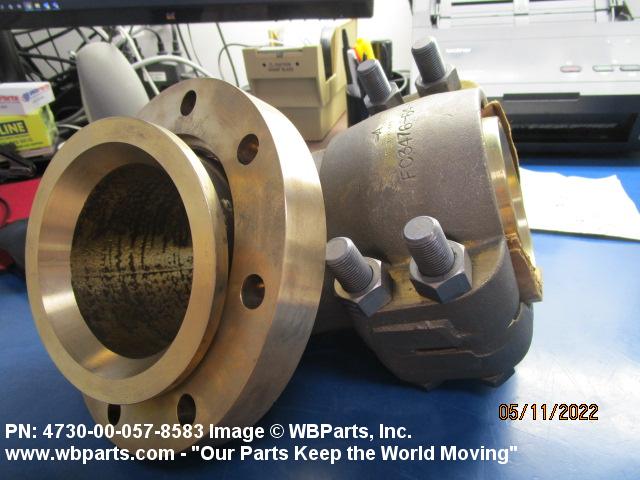

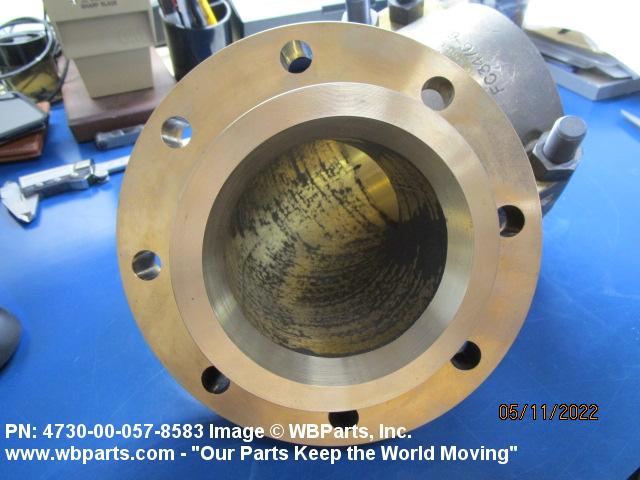

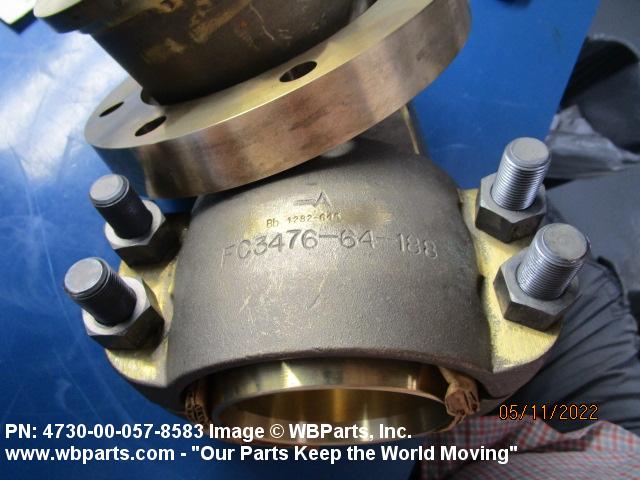

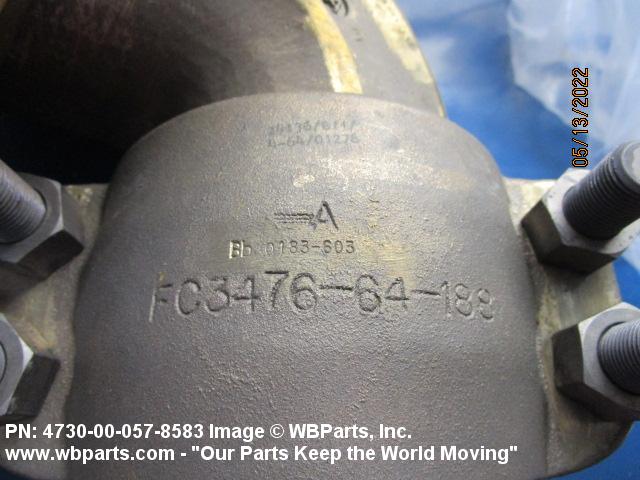

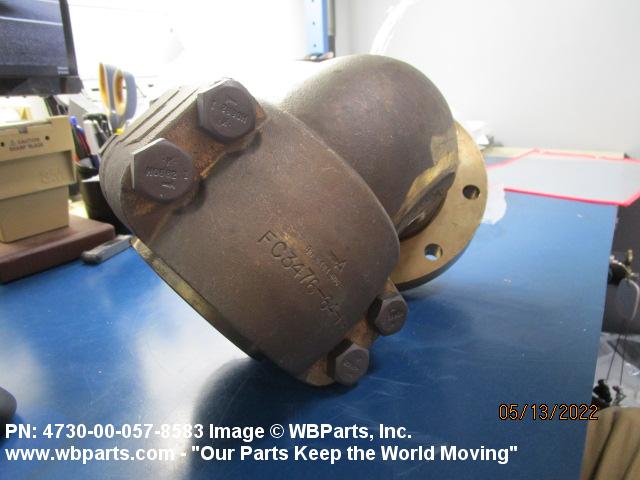

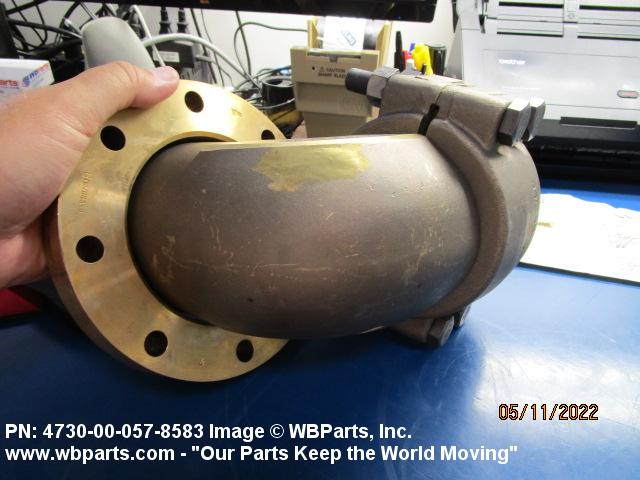

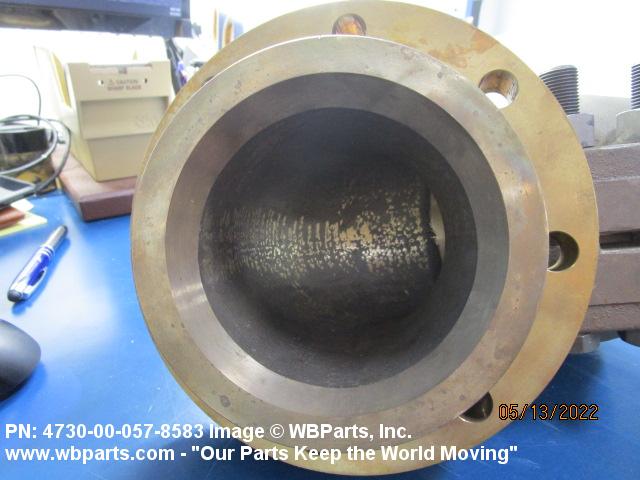

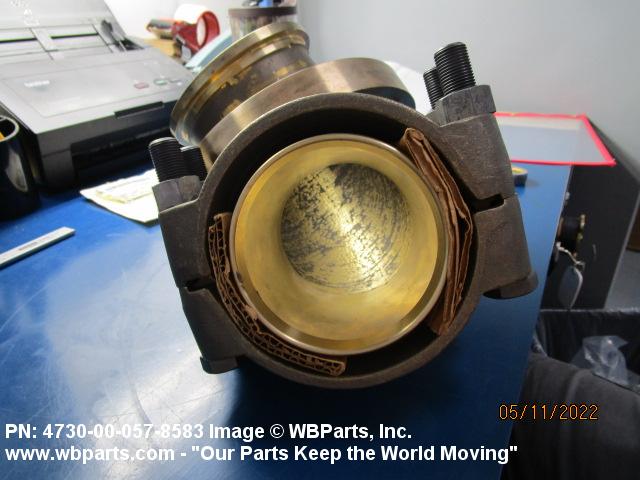

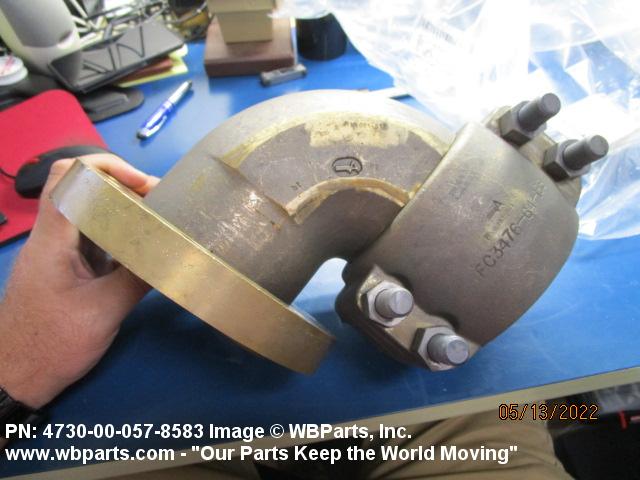

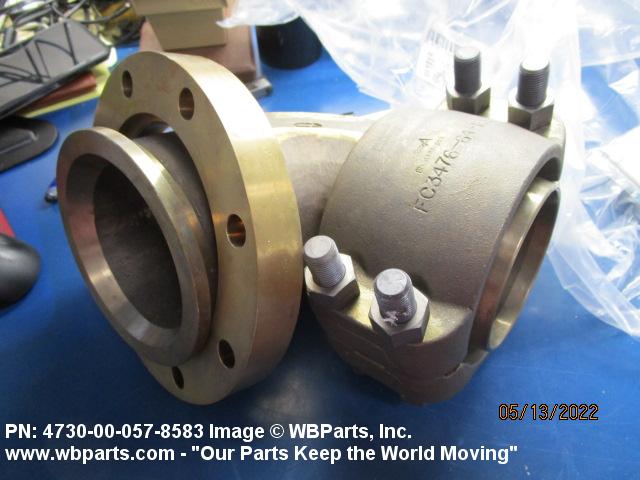

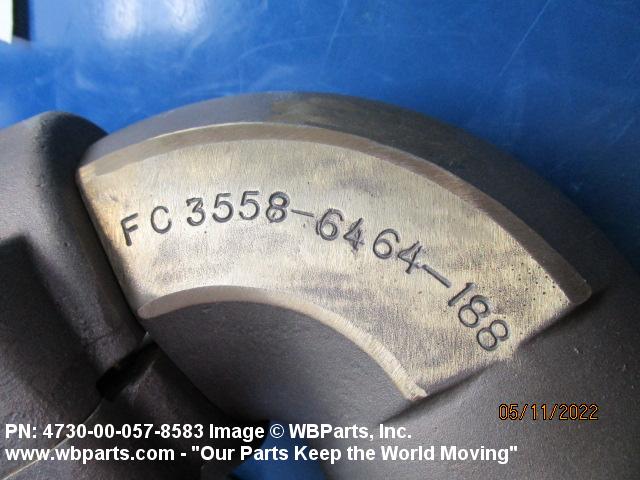

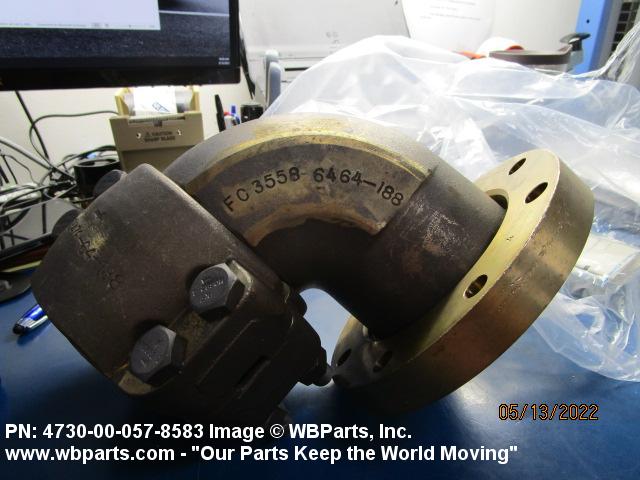

Drawings & Photos | NSN 4730-00-057-8583
Demand History | NSN 4730-00-057-8583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-057-8583 | 2024-09-263 | 17 | DIBBS |
| 4730-00-057-8583 | 2023-11-316 | 15 | DIBBS |
| 4730-00-057-8583 | 2022-11-317 | 20 | DIBBS |
| 4730-00-057-8583 | 2022-05-131 | 1 | United States |
| 4730-00-057-8583 | 2022-05-124 | 2 | United States |
| 4730-00-057-8583 | 2022-04-101 | 11 | DIBBS |
| 4730-00-057-8583 | 2022-04-98 | 8 | DIBBS |
| 4730-00-057-8583 | 2022-03-90 | 11 | DIBBS |
| 4730-00-057-8583 | 2022-03-87 | 8 | DIBBS |
| 4730-00-057-8583 | 2022-03-83 | 3 | DIBBS |
| 4730-00-057-8583 | 2021-12-350 | 5 | DIBBS |
| 4730-00-057-8583 | 2021-12-339 | 5 | DIBBS |
| 4730-00-057-8583 | 2021-09-256 | 6 | DIBBS |
| 4730-00-057-8583 | 2021-08-216 | 4 | DIBBS |
| 4730-00-057-8583 | 2021-06-172 | 1 | DIBBS |
| 4730-00-057-8583 | 2021-02-56 | 1 | DIBBS |
| 4730-00-057-8583 | 2020-10-294 | 5 | DIBBS |
| 4730-00-057-8583 | 2020-05-142 | 2 | DIBBS |
| 4730-00-057-8583 | 2020-05-128 | 1 | DIBBS |
| 4730-00-057-8583 | 2019-08-234 | 8 | DIBBS |
| 4730-00-057-8583 | 2019-05-143 | 3 | DIBBS |
| 4730-00-057-8583 | 2018-12-361 | 8 | DIBBS |
| 4730-00-057-8583 | 2017-08-219 | 7 | DIBBS |
| 4730-00-057-8583 | 2017-07-198 | 2 | United States |
| 4730-00-057-8583 | 2017-03-78 | 7 | DIBBS |
| 4730-00-057-8583 | 2016-01-12 | 7 | DIBBS |
| 4730-00-057-8583 | 2015-07-182 | 25 | DIBBS |
| 4730-00-057-8583 | 2012-09-250 | 4 | DIBBS |
| 4730-00-057-8583 | 2011-04-102 | 1 | DIBBS |
| 4730-00-057-8583 | 2009-05-138 | 2 | DIBBS |
Cross Reference | NSN 4730-00-057-8583
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24787/1 4X-64 TYFL GRX CLII | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 90EF-1546B2-4-64 | 32142 | HYDRASEARCH CO., INC. |
| C18426 | 32142 | HYDRASEARCH CO., INC. |
| FC9637-189 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| FC9637-6464-188 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| FC9637-6464-189 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| MIL-F-24787 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24136 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-057-8583
Related Products | NSN 4730-00-057-8583
Technical Data | NSN 4730-00-057-8583
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY 903 FLANGE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-24480 MIL SPEC SINGLE MATERIAL RESPONSE BODY QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE FLANGE |
| CONNECTION TYPE | FLANGE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |
| CONNECTION STYLE | B61 GRIPPING NIPPLE 2ND END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END |
| NOMINAL OUTSIDE DIAMETER | 7.688 INCHES 1ST END |
| NOMINAL THICKNESS | 1.000 INCHES 1ST END |
| BOLT HOLE QUANTITY | 8 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.690 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 6.562 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED SWIVEL 1ST END |
| RAISED FACE NOMINAL HEIGHT | 0.062 INCHES 1ST END |
| RAISED FACE NOMINAL DIAMETER | 5.220 INCHES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 4.000 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 4.862 INCHES 2ND END |
| LEG LENGTH | 5.620 INCHES NOMINAL 1ST END 6.480 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 SEGMENTED HOSE SOCKET ASSEMBLY |
| SPECIAL FEATURES | GRUMMAN A10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-24136 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | B11 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24136 |
Restrictions/Controls & Freight Information | NSN 4730-00-057-8583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-057-8583
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
