Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-089-9577 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 141103, 4730-00-089-9577, 00-089-9577, 4730000899577, 000899577
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 AUG 1967 | 00-089-9577 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-089-9577
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-089-9577
Related Products | NSN 4730-00-089-9577
Technical Data | NSN 4730-00-089-9577
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/9, ALLOY 7075, T73 |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625 |

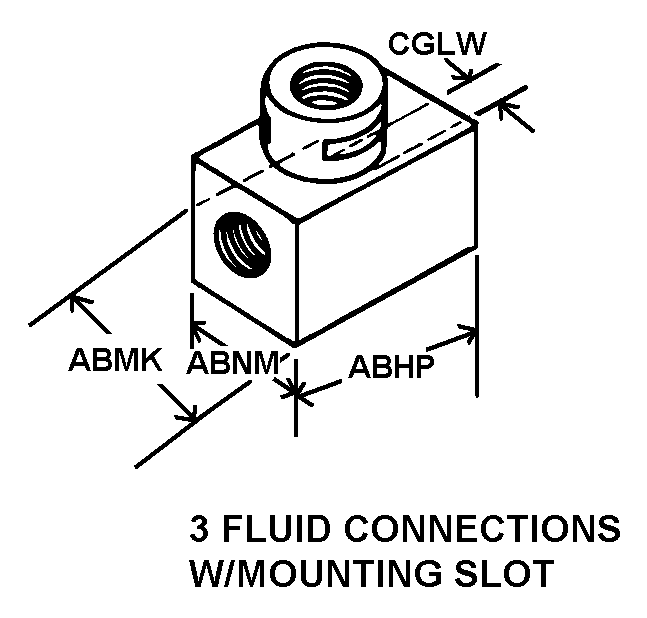

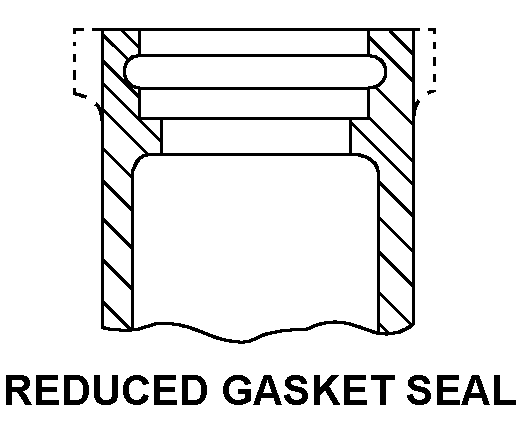

| STYLE DESIGNATOR | D21 3 FLUID CONNECTIONS W/MOUNTING SLOT |
| OVERALL LENGTH | 0.838 INCHES NOMINAL |
| OVERALL WIDTH | 1.378 INCHES NOMINAL |
| THICKNESS | 0.875 INCHES NOMINAL |
| MOUNTING SLOT HEIGHT | ANY ACCEPTABLE |
| FLUID CONNECTION QUANTITY | 2 1 |
| CONNECTION STYLE | F6 REDUCED SOCKET WITH ONE BRAZING RING G24 FLARELESS |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 0.614 IN. NOM PIPE SIZE; 0.250 IN. OD TUBE |
| THREAD PROVISION | UNTHREADED THREADED |
| THREAD SIZE | 0.438-20 IN |
| SCREW THREAD SERIES DESIGNATOR | UNJF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 12.0 |
| SEAT RADIUS | ANY ACCEPTABLE |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
| III END ITEM IDENTIFICATION | A-7 AIRCRAFT |
