NSN 4730-00-130-6255 A2-48, FC95274848189, FC9527-4848-189
Product Details | SWIVEL FLANGE TO HOSE STRAIGHT ADAPTER
4730-00-130-6255 An adapter having a swivel flange connection on one end designed to permit axial rotation of the fitting, usually for the ease of installation, prior to securing it to a flange or mounting pad. The other end is designed to grip the hose directly, either externally, internally, or both. It is designed to join a flange or flange fitting to a hose or hose fitting in a straight line. It includes items designed to accommodate a swivel flange.
Part Alternates: A2-48, FC95274848189, FC9527-4848-189, MILH24136, MILH24136Q3, 19021608, 19-02-1608, 19021608Q3, 19-02-1608Q3, A248, 4730-00-130-6255, 00-130-6255, 4730001306255, 001306255
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 DEC 1968 | 00-130-6255 | 29658 ( ADAPTER, STRAIGHT, SWIVEL FLANGE TO HOSE ) |

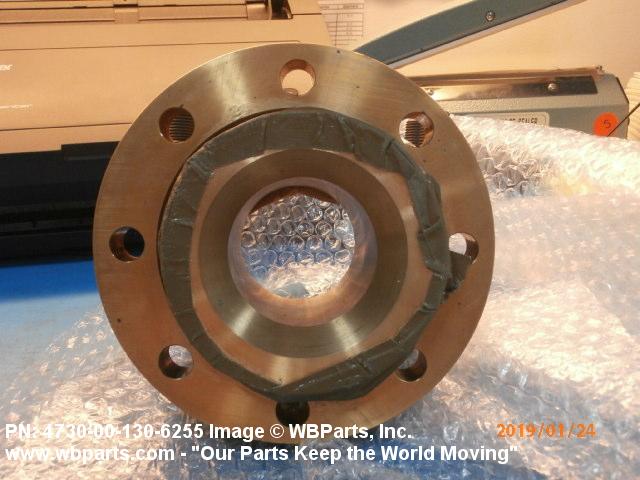

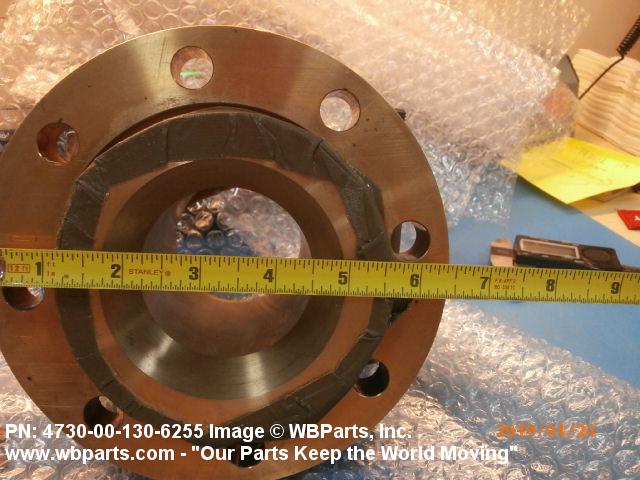

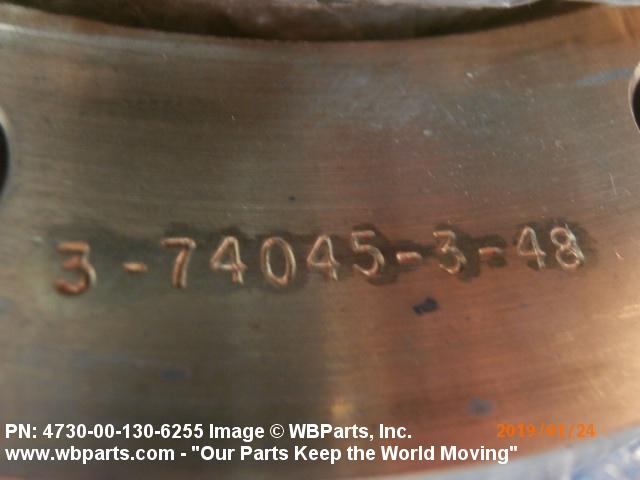

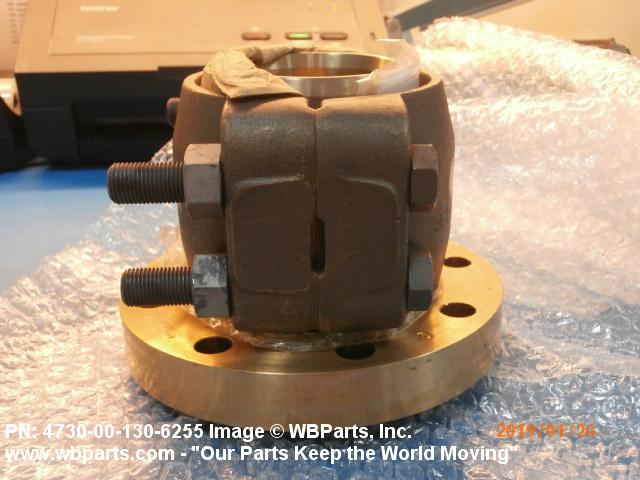

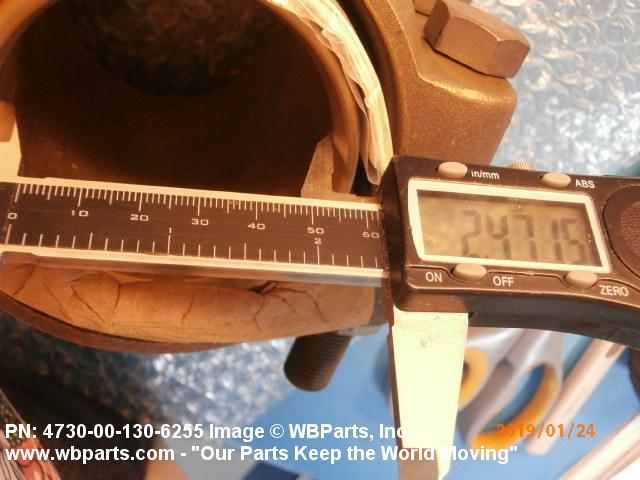

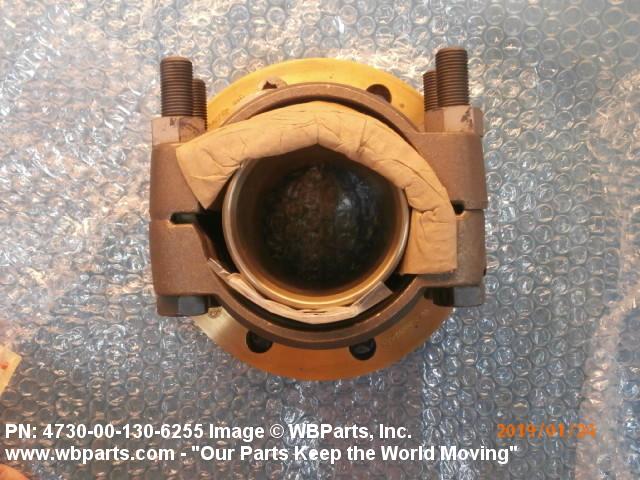

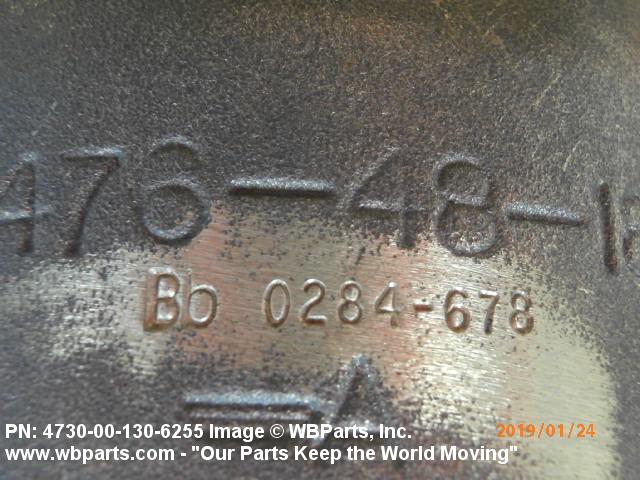

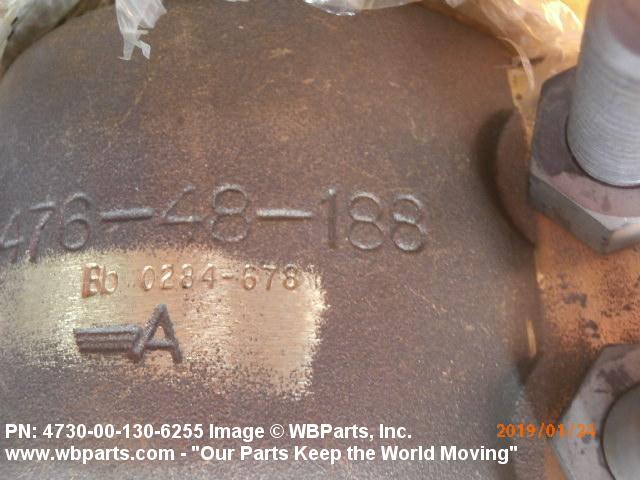

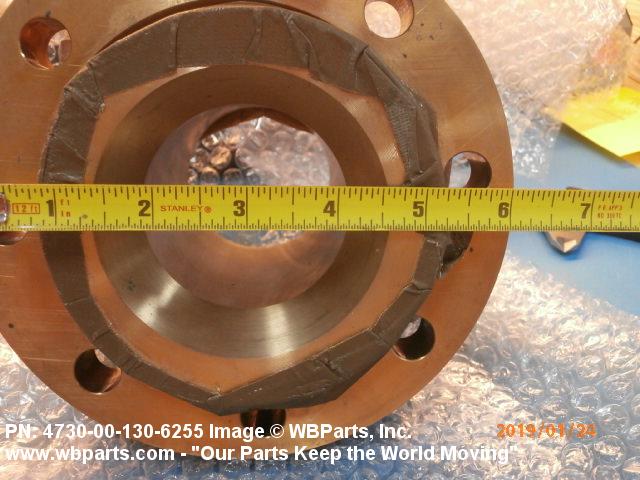

Drawings & Photos | NSN 4730-00-130-6255
Demand History | NSN 4730-00-130-6255
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-130-6255 | 2019-06-168 | 16 | NECO |
| 4730-00-130-6255 | 2019-01-18 | 2 | United States |
| 4730-00-130-6255 | 2019-01-09 | 16 | NECO |
Cross Reference | NSN 4730-00-130-6255
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19-02-1608 | 96169 | ELECTRIC BOAT CORPORATION |
| 19-02-1608Q3 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| A2-48 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FC9527-4848-189 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| MILH24136 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILH24136Q3 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-130-6255
Related Products | NSN 4730-00-130-6255
Technical Data | NSN 4730-00-130-6255
| Characteristic | Specifications |
|---|---|
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | ITEM THAT SUPPORTS A LEVEL 1 OR SUBSAFE CRITICAL SYSTEM THAT HAS UNDERGONE QUALITY ASSURANCE DURING THE ACQUISITION PROCESS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILH24136 |
| MANUFACTURERS CODE | 96169 |
| DESIGN CONTROL REFERENCE | 19-02-1608 |
Restrictions/Controls & Freight Information | NSN 4730-00-130-6255
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-130-6255
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | Q3 | Item that supports a Level 1 or SUBSAFE critical system that has undergone quality assurance during the acquisition process. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
