NSN 4730-00-142-2167 AN6186D, AN618-6D, AN8166D
Product Details | TUBE COUPLING NUT
4730-00-142-2167 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AN6186D, AN618-6D, AN8166D, AN816-6D, AN81866D, AN818-6-6D, AN8186D, AN818-6D, AS4841, C8156560, Z00.N7230061455, Z00N7230061455, 225D5, 2428140540, 2906D, 290-6D, 32-50242-23, 41677515, 416775-15, 47926D, 4792-6D, 7203356, 720335-6, 731857-106, 8176561, 946.29.95.205, 9462995205, 4730-00-142-2167, 00-142-2167, 4730001422167, 325024223, 731857106, 001422167
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-142-2167 | 03859 ( NUT, TUBE COUPLING ) |

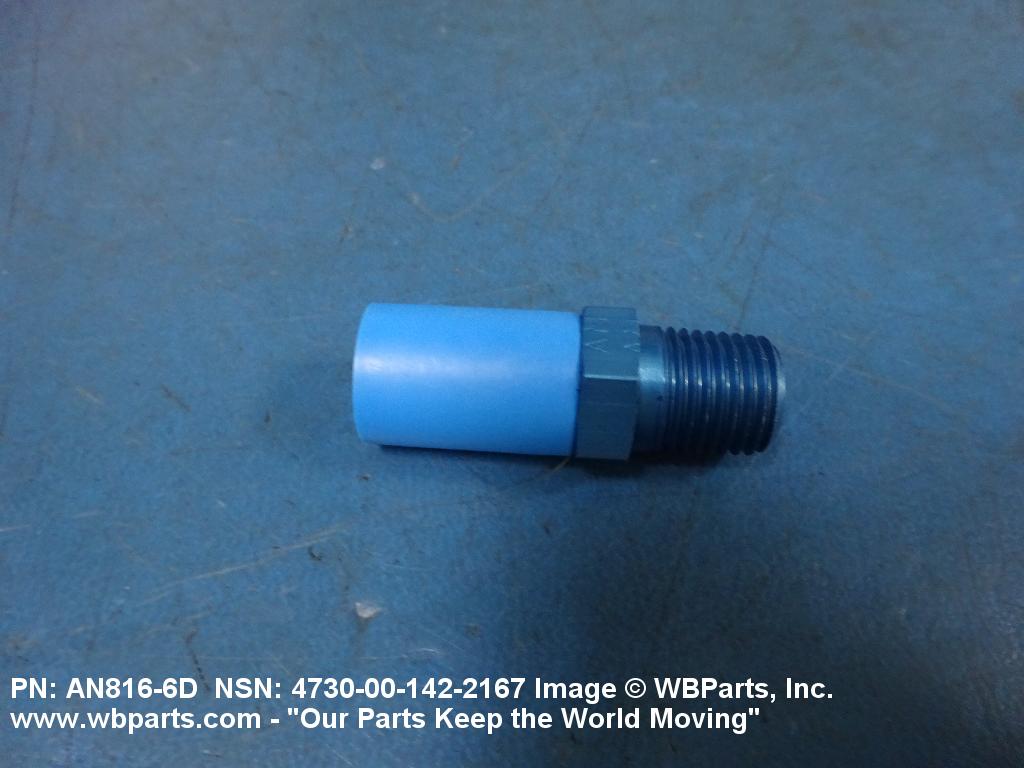

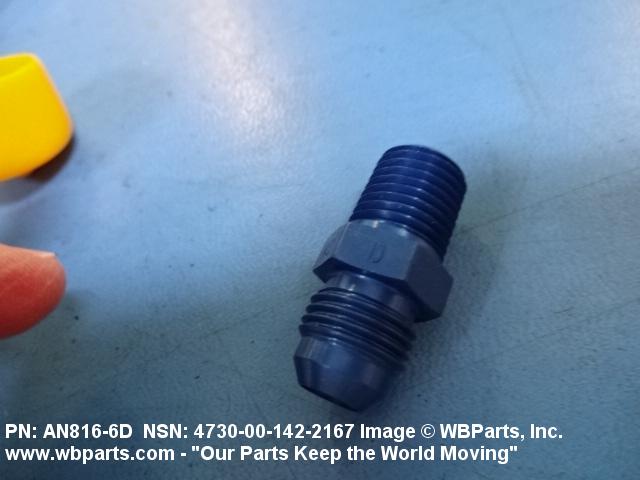

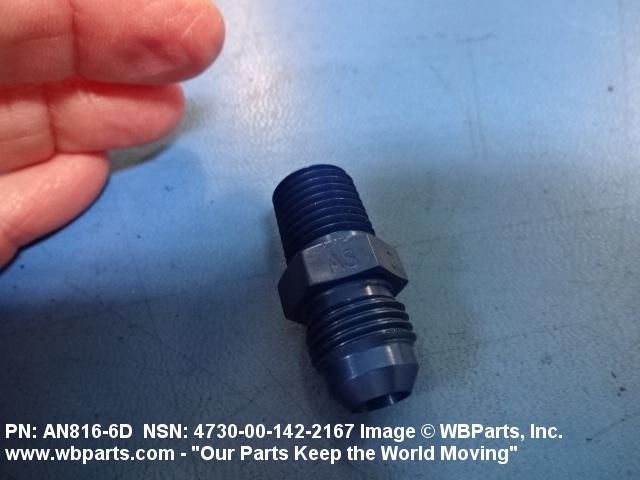

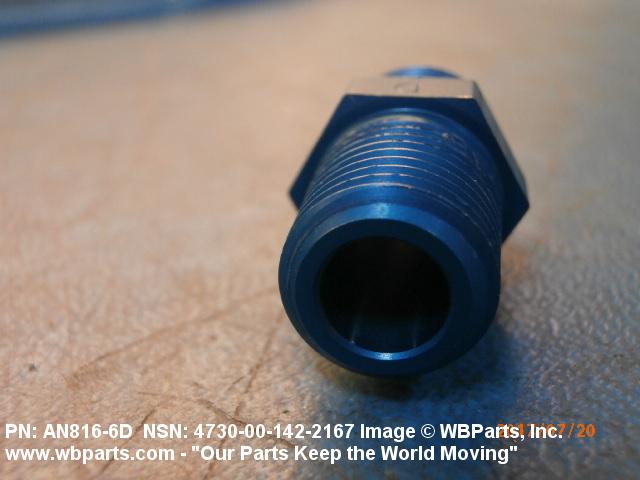

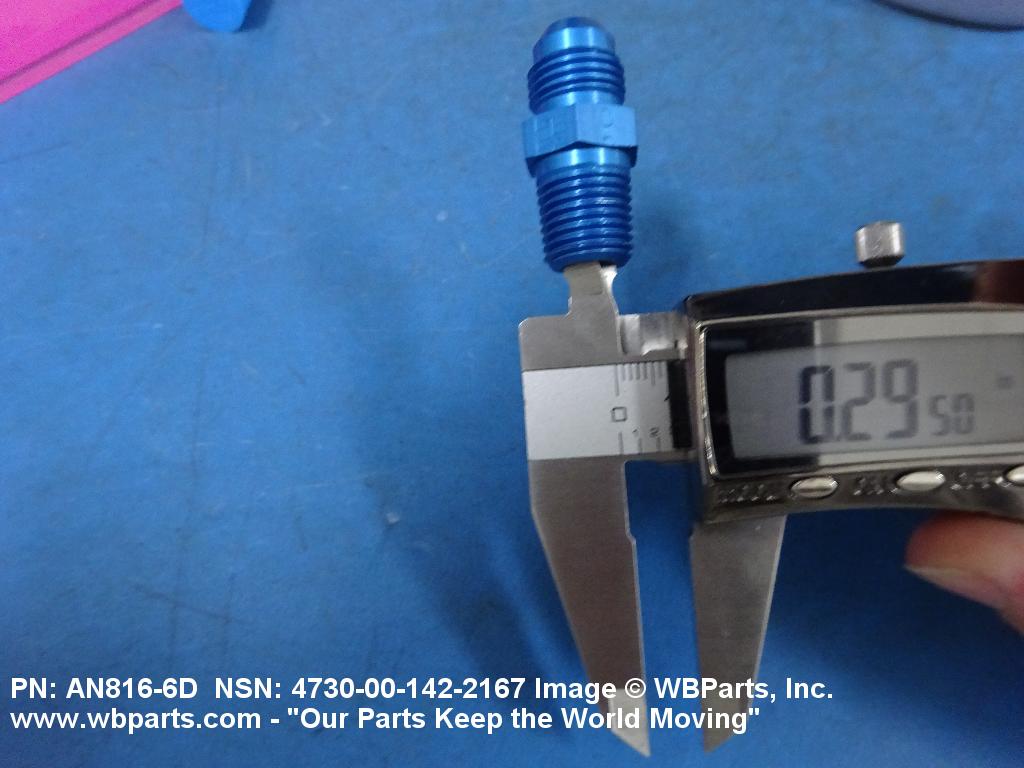

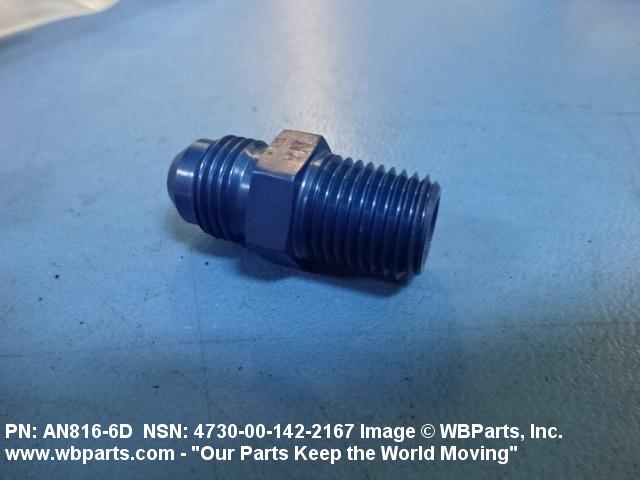

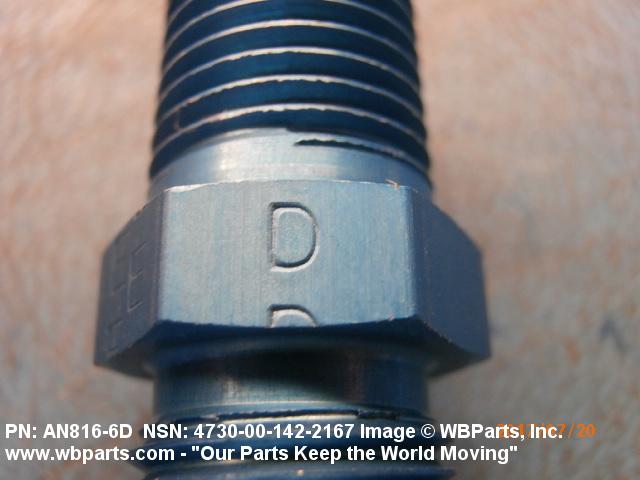

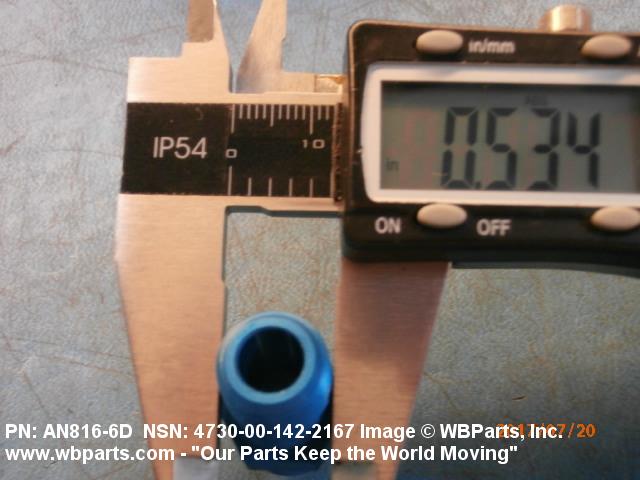

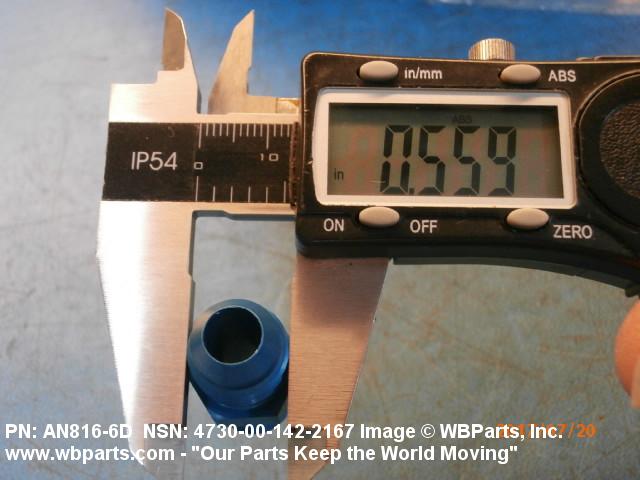

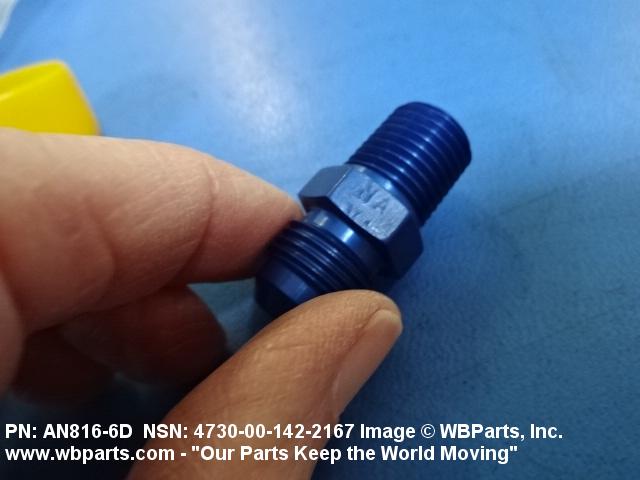

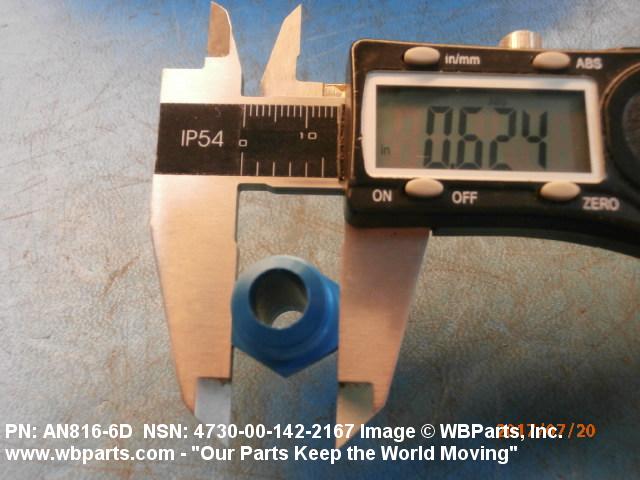

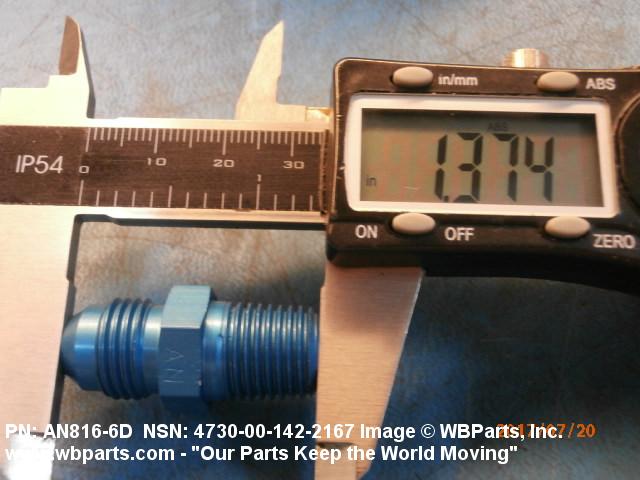

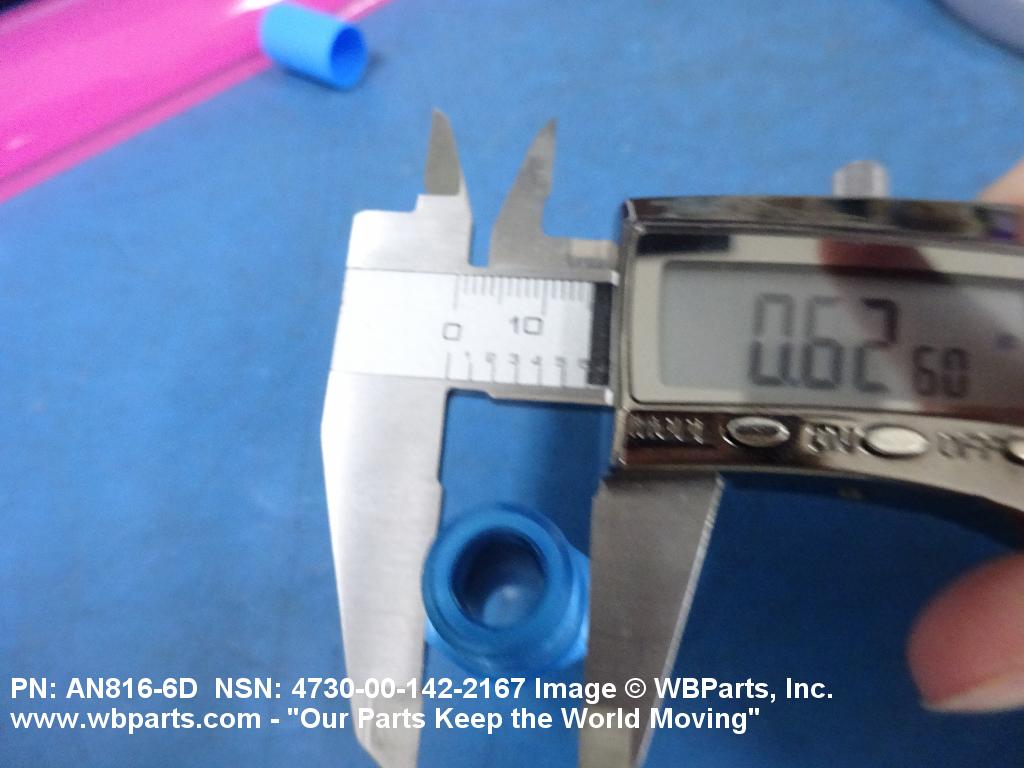

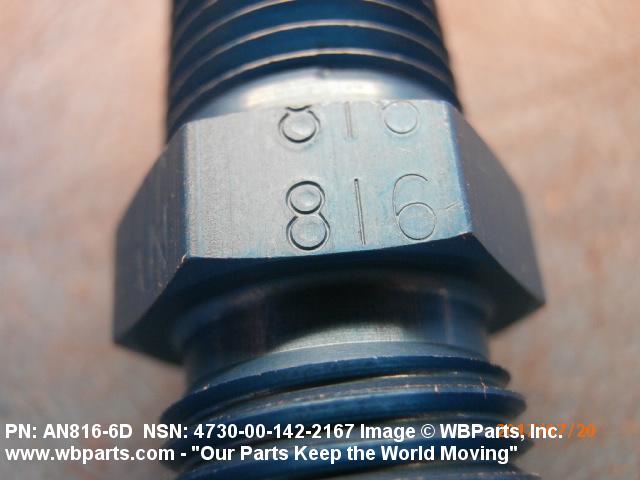

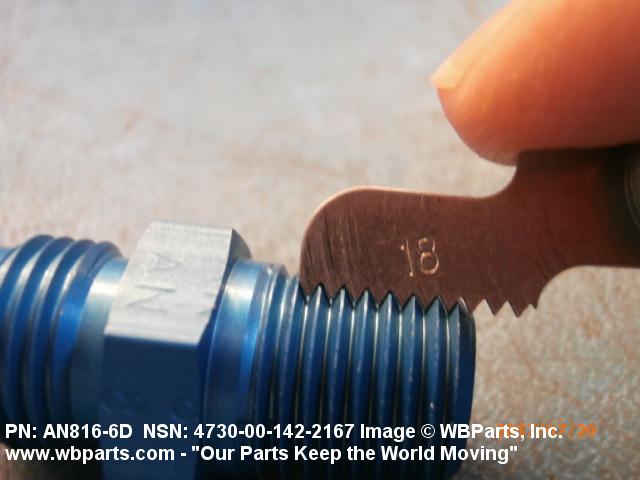

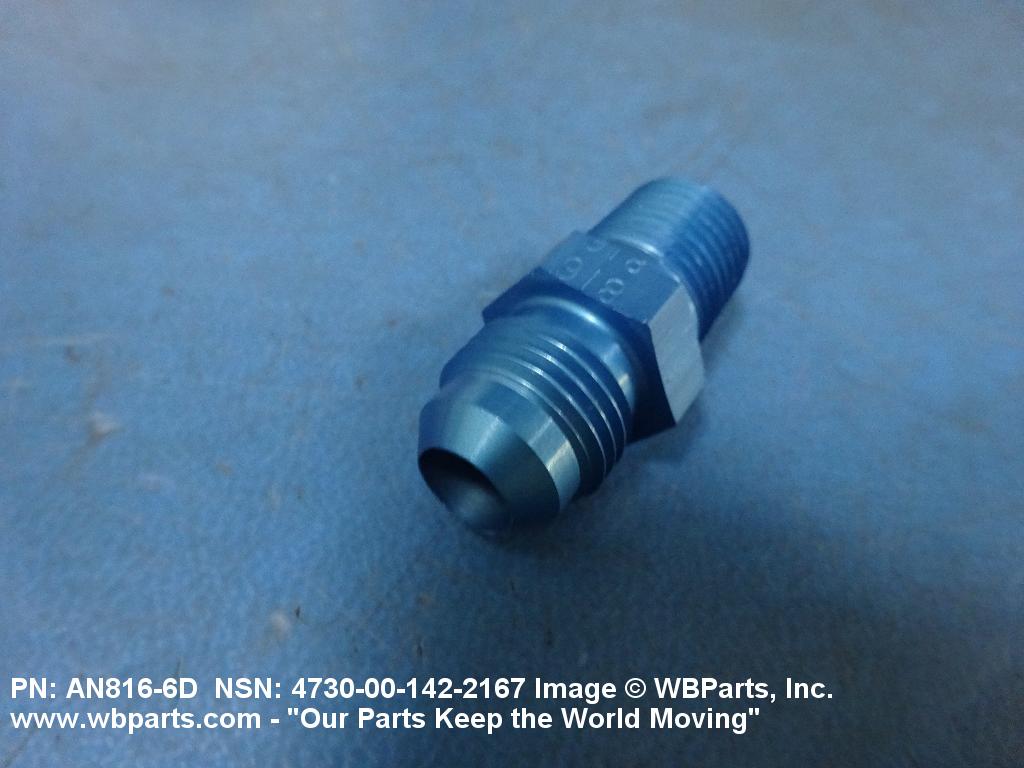

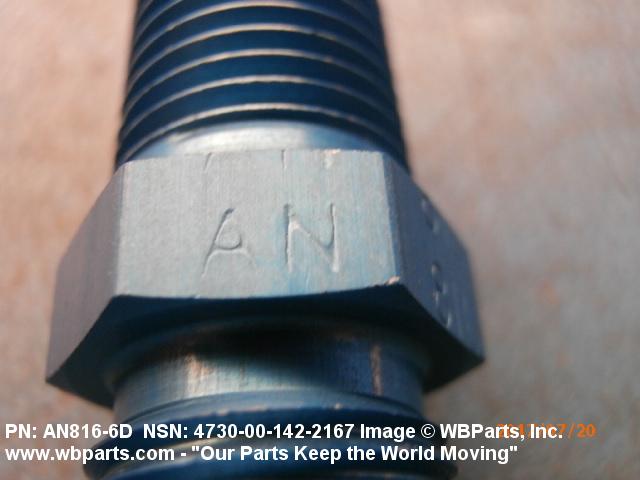

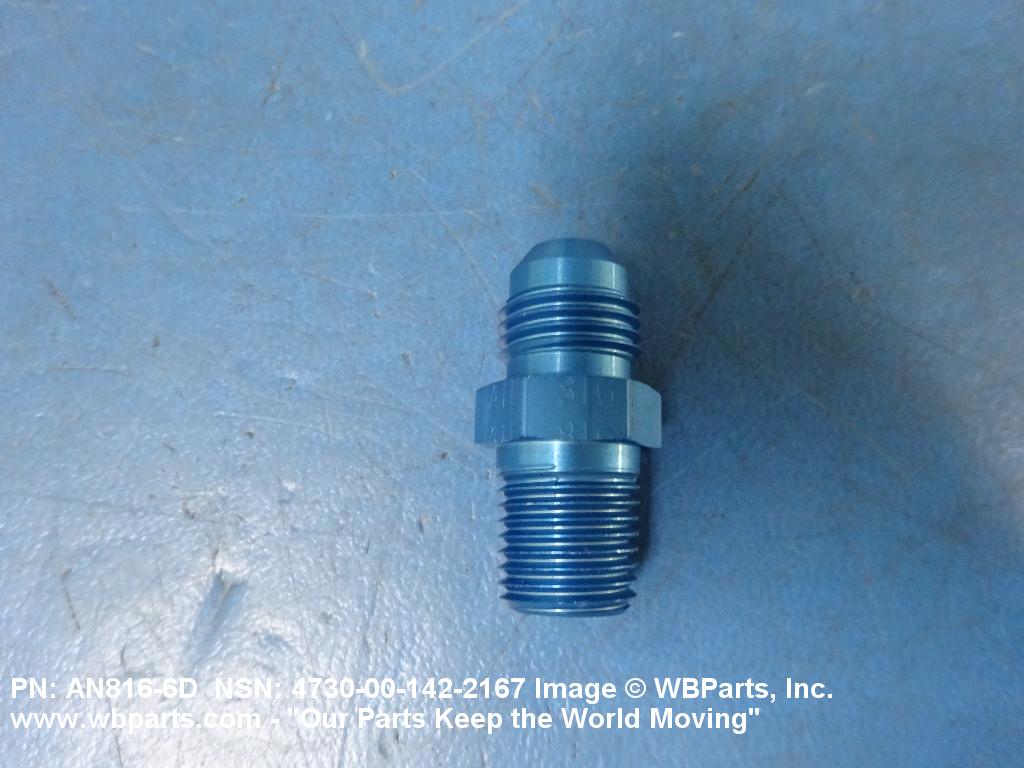

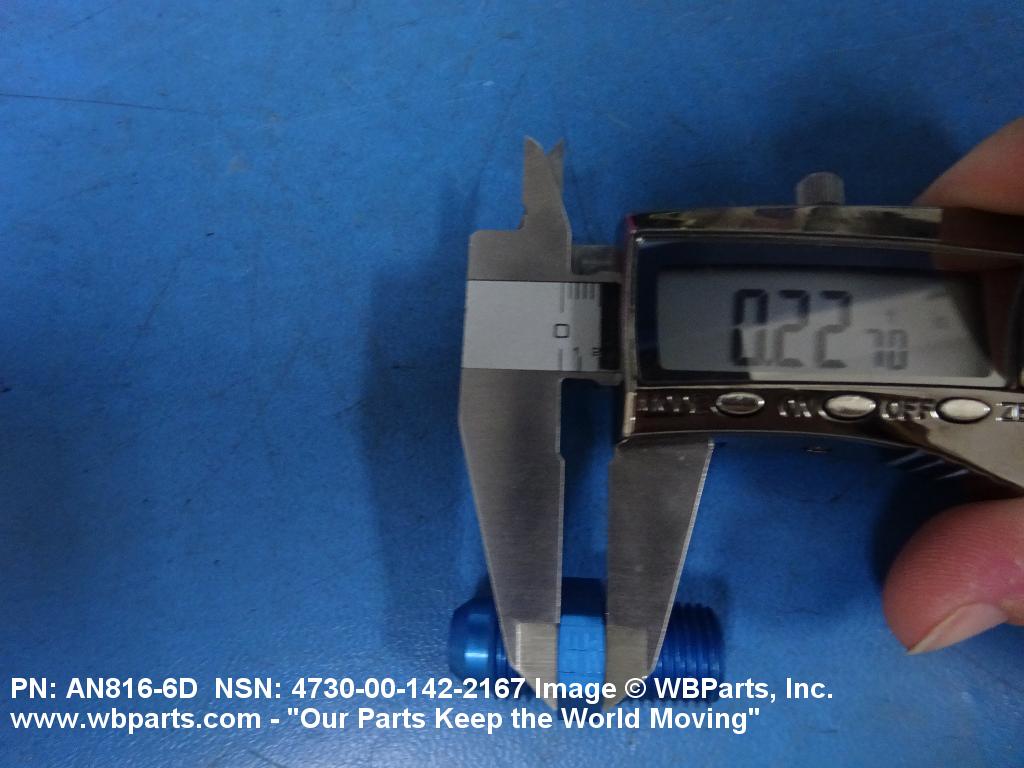

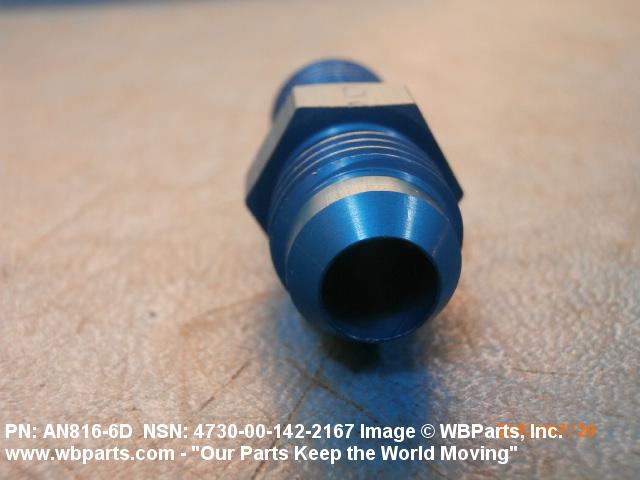

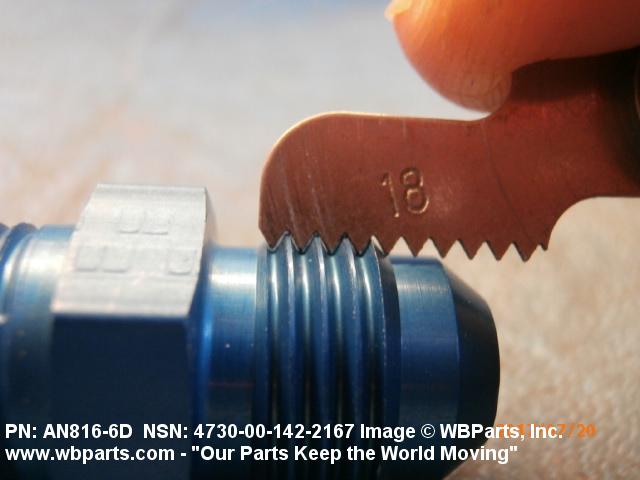

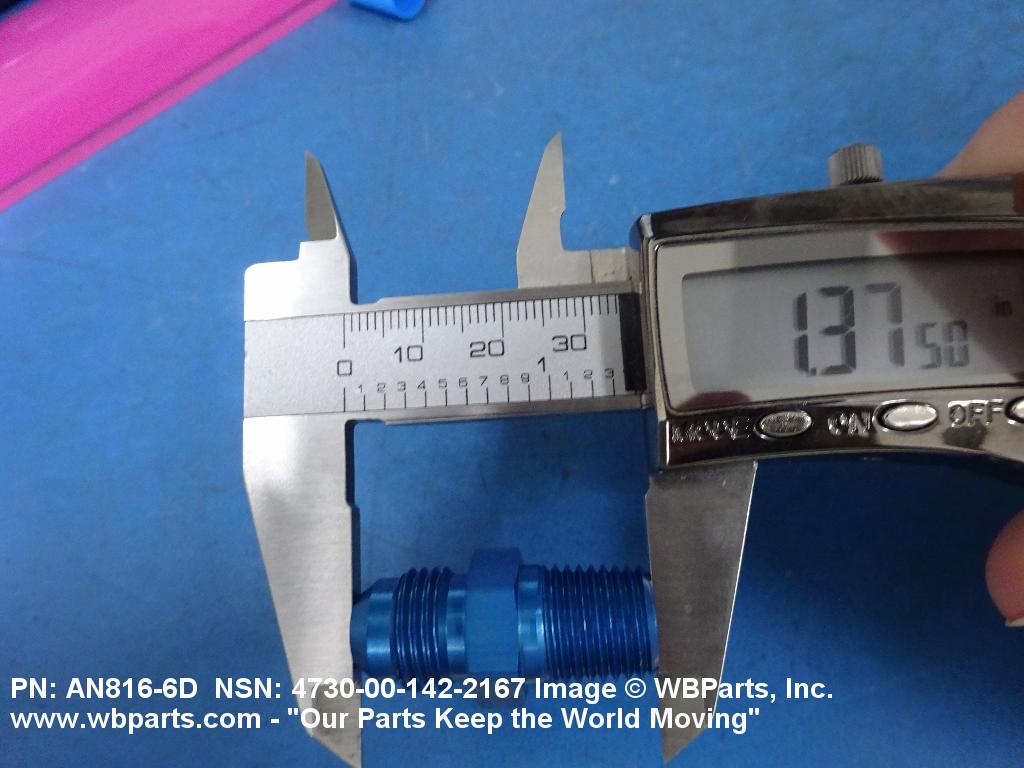

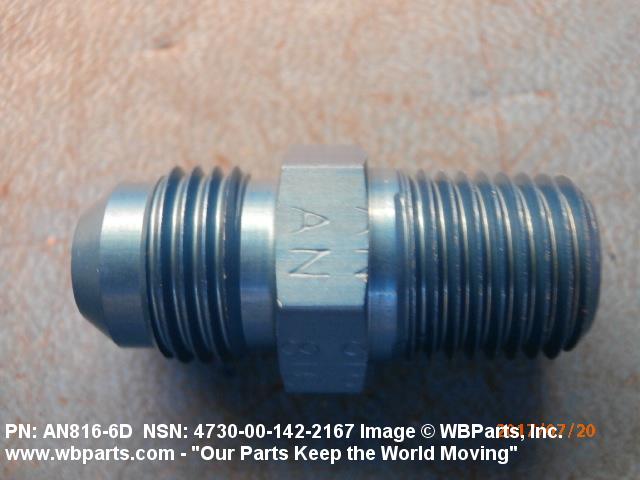

Drawings & Photos | NSN 4730-00-142-2167
Demand History | NSN 4730-00-142-2167
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8166D | 2025-10-304 | 250 | United States |
| AN8186D | 2025-10-297 | 4 | AE |
| 4730-00-142-2167 | 2025-10-283 | 4 | United States |
| AN8186D | 2025-07-188 | 18 | AE |
| 4730-00-142-2167 | 2025-05-125 | 2756 | DIBBS |
| 4730-00-142-2167 | 2025-04-114 | 2756 | DIBBS |
| AS4841 | 2025-04-106 | 1 | France |
| AN8166D | 2025-01-31 | 300 | United States |
| 4730-00-142-2167 | 2025-01-14 | 18 | United States |
| AN8186D | 2025-01-03 | 2 | AE |
| AN8166D | 2025-01-02 | 10 | HK |
| AN8186D | 2024-12-365 | 30 | AE |
| 4730-00-142-2167 | 2024-12-359 | 2 | United States |
| AN8186D | 2024-11-323 | 20 | United States |
| AN8166D | 2024-08-222 | 200 | United States |
| AN8186D | 2024-07-185 | 2 | AE |
| AN8186D | 2024-02-53 | 300 | us |
| 4730-00-142-2167 | 2024-02-51 | 3323 | DIBBS |
| 4730-00-142-2167 | 2024-02-36 | 3323 | DIBBS |
| AN8166D | 2024-01-25 | 150 | United States |
| AN8166D | 2023-12-348 | 123 | United States |
| AN8166D | 2023-12-348 | 123 | United States |
| AN8166D | 2023-09-249 | 200 | United States |
| AN8166D | 2023-08-226 | 1 | United States |
| 4730-00-142-2167 | 2023-06-178 | 10 | United States |
| 4730-00-142-2167 | 2023-06-178 | 10 | United States |
| 4730-00-142-2167 | 2023-05-143 | 13 | Saudi Arabia |
| AN8166D | 2022-04-108 | 20 | United States |
| AN8186D | 2021-09-273 | 4 | us |
| AN8166D | 2021-01-11 | 11 | United States |
| 4730-00-142-2167 | 2020-09-274 | 20 | TW |
| AN8186D | 2020-09-267 | 5 | United States |
| AN8166D | 2020-08-225 | 133 | United States |
| AN8166D | 2020-07-183 | 5 | Netherlands |
| 4730-00-142-2167 | 2019-10-274 | 2796 | DIBBS |
| 4730-00-142-2167 | 2019-07-210 | 9981 | DIBBS |
| 4730-00-142-2167 | 2019-07-199 | 9981 | DIBBS |
| 4730-00-142-2167 | 2019-06-161 | 4 | UK |
| 4730-00-142-2167 | 2019-01-03 | 4767 | DIBBS |
| AN8166D | 2018-11-331 | 130 | United States |
| AN8166D | 2018-11-331 | 175 | United States |
| AN8186D | 2018-10-283 | 24 | United States |
| 4730-00-142-2167 | 2018-04-91 | 7273 | DIBBS |
| 4730-00-142-2167 | 2017-11-334 | 10 | US |
| AN8186D | 2017-11-307 | 10 | TH |
| 4730-00-142-2167 | 2017-07-191 | 50 | United States |
| 4730-00-142-2167 | 2017-05-135 | 4240 | DIBBS |
| 4730-00-142-2167 | 2017-05-124 | 4240 | DIBBS |
| 4730-00-142-2167 | 2017-02-58 | 2284 | DIBBS |
| AN8166D | 2016-10-302 | 30 | United States |
| 4730-00-142-2167 | 2016-10-287 | 7529 | DIBBS |
| AN8166D | 2016-08-243 | 10 | United States |
| AN8186D | 2016-06-181 | 25 | United States |
| AN8186D | 2016-06-154 | 60 | United States |
| AN81866D | 2016-02-39 | 10 | US |
| AN8186D | 2015-09-259 | 200 | United States |
| 4730-00-142-2167 | 2015-06-152 | 7121 | DIBBS |
| 4730-00-142-2167 | 2015-05-133 | 106 | United States |
| 4730-00-142-2167 | 2014-09-267 | 7073 | DIBBS |
| AN8186D | 2014-08-218 | 80 | US |
| 4730-00-142-2167 | 2014-05-131 | 19 | DIBBS |
| 4730-00-142-2167 | 2014-03-85 | 3243 | DIBBS |
| AN818-6D | 2014-01-29 | 50 | United States |
| 4730-00-142-2167 | 2013-09-253 | 552 | DIBBS |
| 4730-00-142-2167 | 2013-07-191 | 257 | DIBBS |
| 4730-00-142-2167 | 2013-06-176 | 257 | DIBBS |
| 4730-00-142-2167 | 2013-05-143 | 25 | DIBBS |
| AN8186D | 2013-02-32 | 2 | UY |
| AN8186D | 2012-12-342 | 20 | Canada |
| AN8186D | 2012-10-297 | 20 | us |
| AN8186D | 2012-03-73 | 180 | US |
| AN81866D | 2011-10-285 | 2 | US |
| AN8166D | 2011-09-269 | 1344 | United States |
| AN8166D | 2011-09-269 | 1344 | United States |
| AN8166D | 2011-08-227 | 8400 | US |
| AN8186D | 2011-03-81 | 10 | US |
| AS4841 | 2011-03-69 | 8 | |
| AN8166D | 2010-09-272 | 36 | US |
| AN8186D | 2010-09-272 | 36 | US |
| AN8186D | 2010-06-176 | 1 | Italy |
| 4730-00-142-2167 | 2010-05-133 | 36 | United Arab Emirates |
| 4730-00-142-2167 | 2010-04-95 | 4302 | DIBBS |
| 4730-00-142-2167 | 2009-12-348 | 100 | US |
| 4730-00-142-2167 | 2009-07-209 | 2917 | DIBBS |
| 4730-00-142-2167 | 2009-06-181 | 1867 | DIBBS |
| 4730-00-142-2167 | 2008-12-365 | 1670 | DIBBS |
| 4730-00-142-2167 | 2008-11-316 | 1827 | DIBBS |
| 4730-00-142-2167 | 2007-11-324 | 75 | Iraq |
| 4730-00-142-2167 | 2006-10-278 | 30 | IT |
| AN8186D | 2006-09-265 | 30 | IT |
Cross Reference | NSN 4730-00-142-2167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 225D5 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 2428140540 | F9111 | THALES AVIONICS SAS DIV AVIONICS |
| 290-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 32-50242-23 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 416775-15 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4792-6D | 82386 | JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS |
| 720335-6 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 731857-106 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8176561 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 946.29.95.205 | S4080 | PILATUS AIRCRAFT LTD |
| AN618-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN816-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN818-6-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN818-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN818-6D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN818-6D | 14397 | FABER ENTERPRISES, INC. |
| AN818-6D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN818-6D | 22995 | CROWN FITTING CO INC |
| AN818-6D | 32142 | HYDRASEARCH CO., INC. |
| AN818-6D | 71563 | COLLINS ENGINEERING CORP |
| AN818-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN818-6D | 99994 | DEPARTMENT OF THE ARMY |
| AN818-6D | F0222 | SKF AEROSPACE FRANCE |
| AN818-6D | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| C8156560 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| Z00.N7230061455 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-142-2167
Related Products | NSN 4730-00-142-2167
Technical Data | NSN 4730-00-142-2167
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8525,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |
| NUT HEIGHT | 0.719 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.684 INCHES MINIMUM AND 0.691 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 0.600 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 0.440 INCHES MINIMUM AND 0.443 INCHES MAXIMUM |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.375 INCHES |
| SPECIFICATION/STANDARD DATA | 88044-AN818 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A-10 ACFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN818-6D |
Restrictions/Controls & Freight Information | NSN 4730-00-142-2167
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
