NSN 4730-00-159-6339 AN9244D, AN924-4D, LS12906184

Product Details | TUBE FITTING LOCKNUT

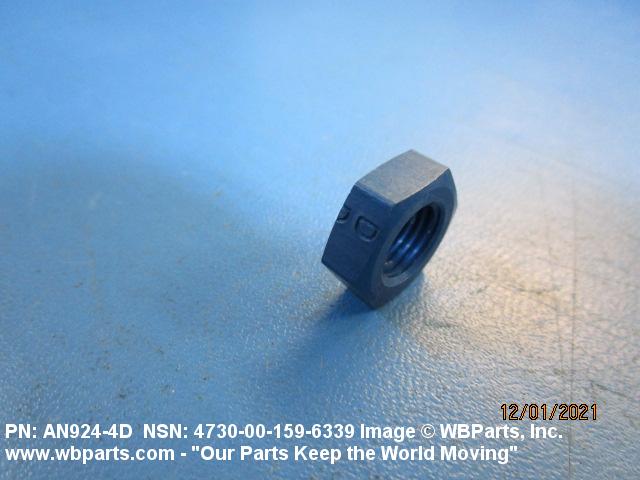

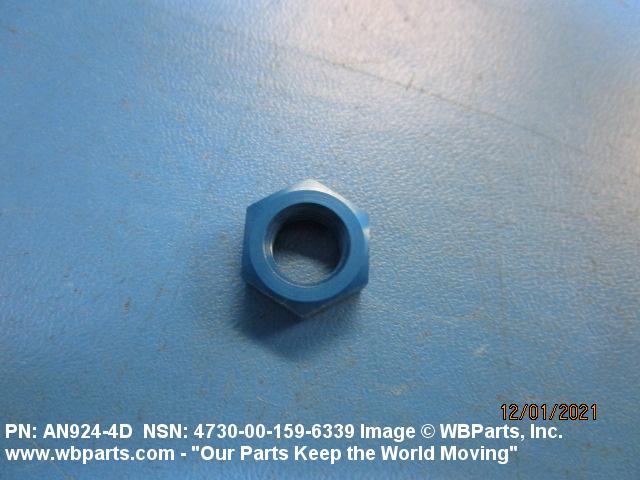

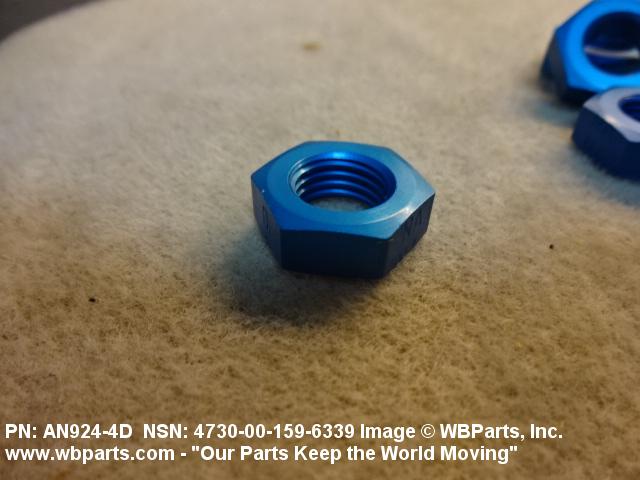

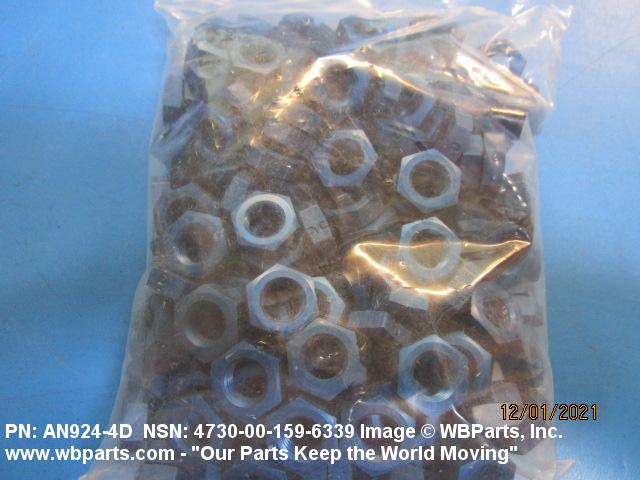

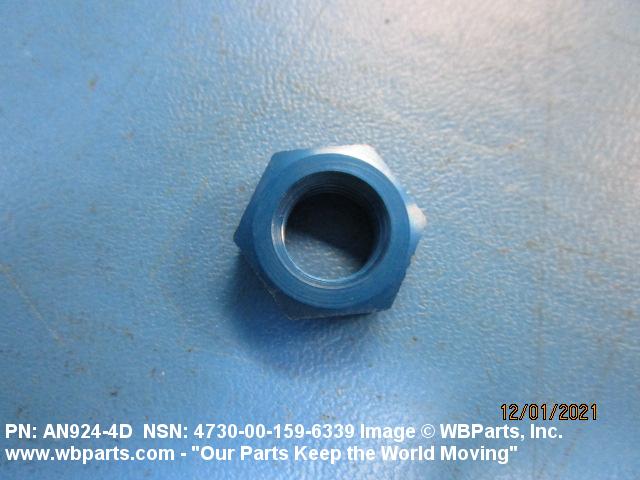

4730-00-159-6339 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.

Part Alternates: AN9244D, AN924-4D, LS12906184, LS12906-184, Z00.N7230063365, Z00N7230063365, 10086125 , 2428142140, 4730-00-159-6339, 00-159-6339, 4730001596339, 001596339

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	20 NOV 1971	00-159-6339	17645 ( LOCKNUT, TUBE FITTING )

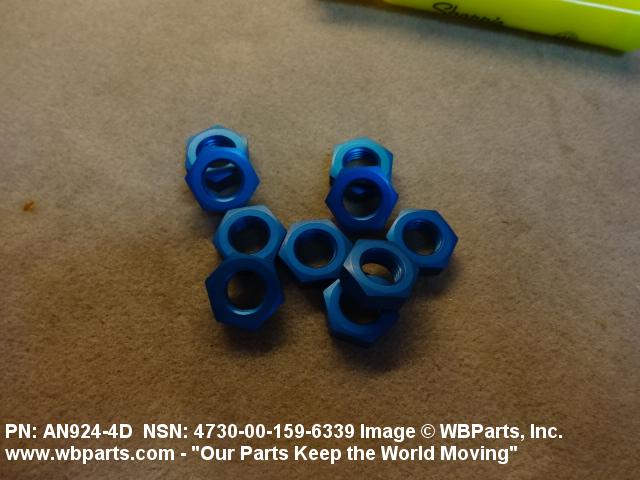

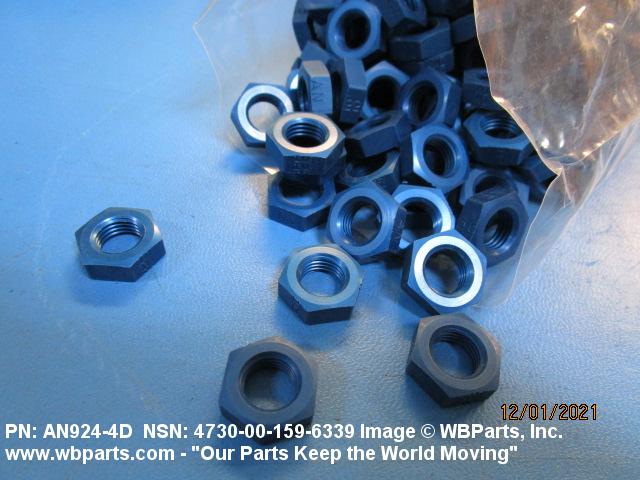

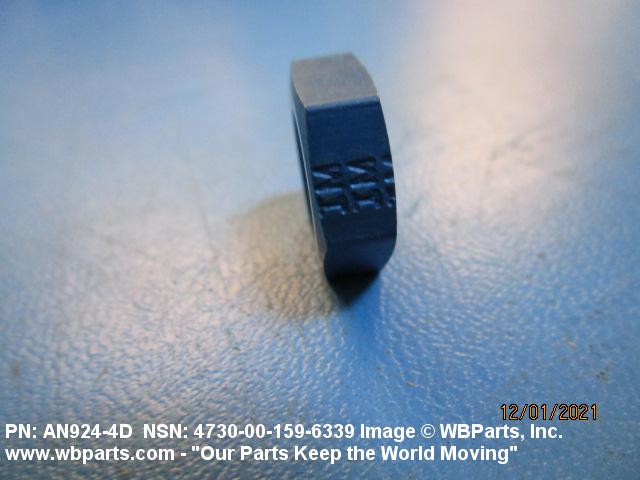

Drawings & Photos | NSN 4730-00-159-6339

Part Number	Request Date	QTY	Origin
AN9244D	2026-02-35	30	United States
AN9244D	2025-10-304	50	United States
LS12906-184	2025-07-188	342	DIBBS
AN9244D	2025-04-120	45	United States
AN9244D	2024-11-310	50	United States
AN9244D	2024-07-194	50	United States
AN9244D	2024-07-183	12	ES
AN9244D	2024-04-110	50	United States
AN9244D	2024-04-110	50	United States
AN9244D	2023-12-352	30	United States
AN9244D	2023-08-235	10	US
AN9244D	2023-08-222	100	United States
AN9244D	2023-02-48	25	US
AN9244D	2022-04-108	40	United States
AN9244D	2021-02-32	10	BD
4730-00-159-6339	2020-06-171	1	DIBBS-RFPs
AN9244D	2020-05-147	8	US
AN9244D	2019-02-37	50	United States
4730-00-159-6339	2019-01-06	64	DIBBS
4730-00-159-6339	2018-11-324	304	DIBBS
4730-00-159-6339	2018-10-283	639	DIBBS
4730-00-159-6339	2018-08-243	439	DIBBS
4730-00-159-6339	2018-08-235	439	DIBBS
4730-00-159-6339	2018-06-156	622	DIBBS
4730-00-159-6339	2017-10-297	1	DIBBS-KIT
AN924-4D	2017-10-297	1
AN9244D	2017-03-79	10	United States
4730-00-159-6339	2016-08-238	1	United States
AN9244D	2016-08-237	40	United States
AN9244D	2016-06-168	4	China
4730-00-159-6339	2016-04-119	1493	DIBBS
4730-00-159-6339	2016-02-60	899	DIBBS
4730-00-159-6339	2016-02-47	899	DIBBS
AN9244D	2015-08-222	10	Egypt
AN924-4D	2015-03-85	1	US
AN924-4D	2015-03-69	500	US
AN9244D	2015-01-27	2	Canada
4730-00-159-6339	2013-10-274	1313	DIBBS
AN924-4D	2012-11-310	50
4730-00-159-6339	2012-02-59	5	United States
4730-00-159-6339	2011-08-214	5	MANUAL
AN924-4D	2011-08-214	5	United States
AN9244D	2011-06-179	2	US
AN9244D	2011-04-95	1	US
AN9244D	2011-03-68	200	US
AN9244D	2011-03-68	500	US
4730-00-159-6339	2009-09-252	10	US
4730-00-159-6339	2009-07-203	8	PA
AN9244D	2007-10-302	100	US

Cross Reference | NSN 4730-00-159-6339

Part Number	Cage Code	Manufacturer
2428142140	F9111	THALES AVIONICS SAS DIV AVIONICS
AN924-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
LS12906-184	1WL60	LOCKHEED MARTIN SERVICES, INC.
LS12906-184	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
Z00.N7230063365	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-159-6339

Compare

Related Products | NSN 4730-00-159-6339

4730-00-159-6637, 4730-00-159-6762, 4730-00-159-7819, 4730-00-159-7820, 4730-00-159-7822

Technical Data | NSN 4730-00-159-6339

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4 TEMPER T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-225/6 TEMPER T6 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-225/6 TEMPER T851 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

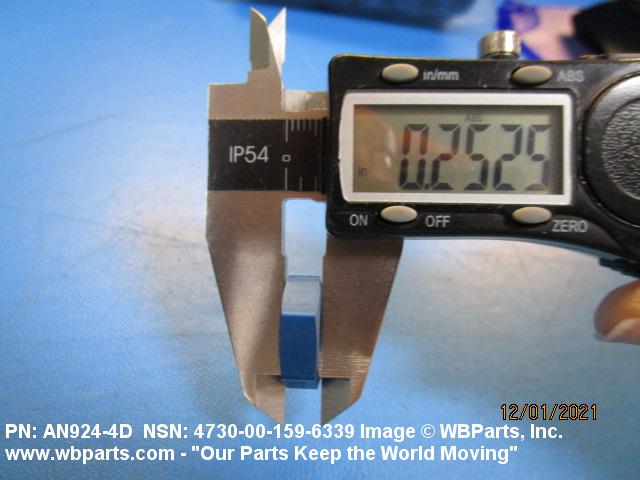

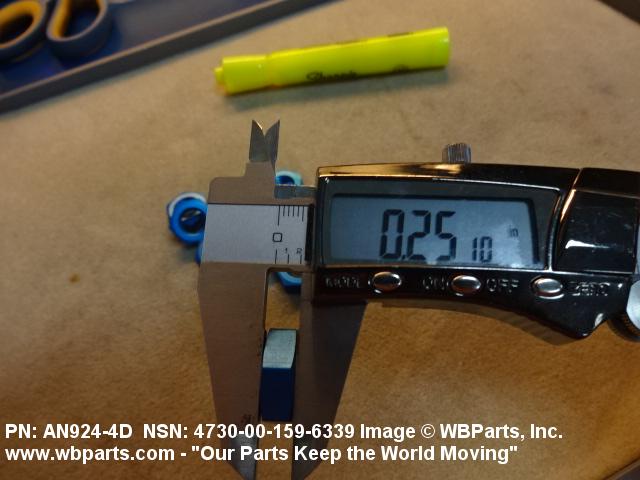

NUT HEIGHT	0.250 INCHES NOMINAL

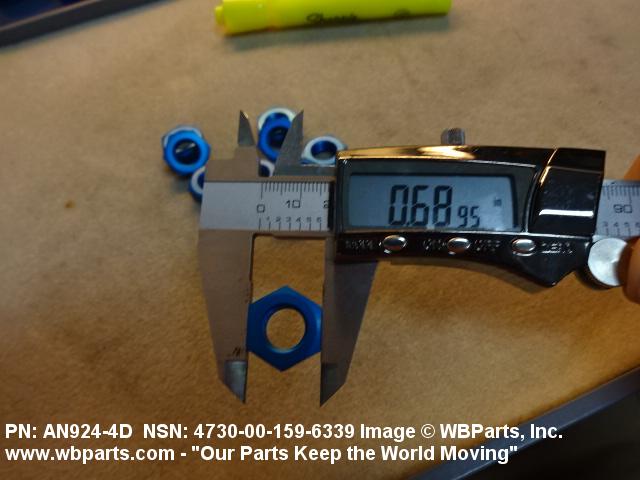

WIDTH ACROSS FLATS	0.684 INCHES MINIMUM AND 0.691 INCHES MAXIMUM
NOMINAL TUBE OUTSIDE DIAMETER	0.250 INCHES
SPECIAL FEATURES	COLOR BLUE
TEST DATA DOCUMENT	36659-LCP72-1238 SPECIFICATION
DEPARTURE FROM CITED DOCUMENT	CERTIFIED FREE FROM MAGNETIC CONTAMINATION LCPY 72-1238 FSCM 36659
CRITICALITY CODE JUSTIFICATION	ZZZW
